EP80L-AGKNSW (1989)
Toyota Starlet

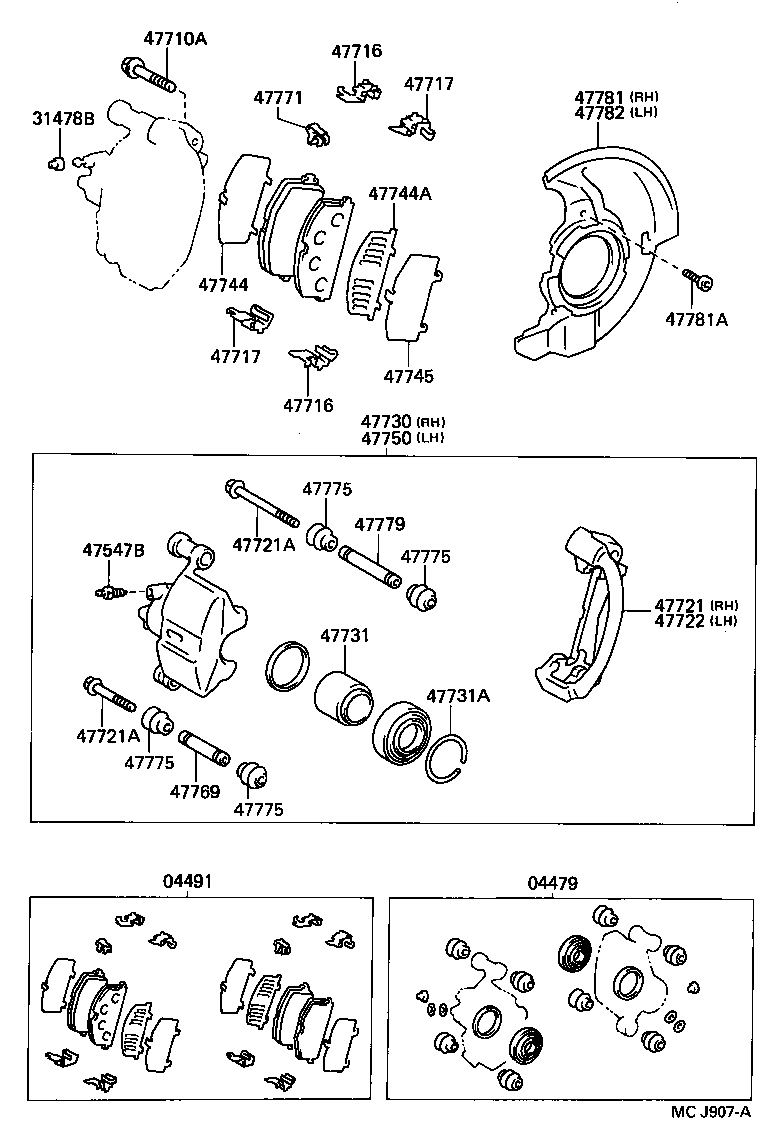

ILLUST NO. 1 OF 2(8912- )
ANTI-LOCK BRAKING SYSTEM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-10060 |
EP8#,NP80 |
1 | ||
| 04479-12091 |
EP8#..LHD W(ABS) |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-10160 |
EP8#..LHD W(ABS) |
1 | ||
| 04491-10131 |
EP8#,NP80 |
1 | ||
| 04491-10161 |
EP8#..LHD W(ABS) |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
EP8#,NP80 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
EP8#,NP80 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12040 |
EP8#..LHD *12-1.25PX25.8-19.5 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32031 |
EP8#,NP80 |
2 | ||
| 47716-32031 |
EP8#..LHD W(ABS) |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32031 |
EP8#,NP80 |
2 | ||
| 47716-32031 |
EP8#..LHD W(ABS) |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32031 |
EP8#,NP80 |
2 | ||
| 47717-32031 |
EP8#..LHD W(ABS) |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32031 |
EP8#,NP80 |
2 | ||
| 47717-32031 |
EP8#..LHD W(ABS) |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-12120 |
EP8#..LHD |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09004 |
EP8#..LHD *9-1.25PX91-25,*9-1.25PX93-25,MAIN PIN SIDE |
2 | ||
| 90119-09003 |
EP8#..LHD *9-1.25PX71-25,*9-1.25PX73-25,SUB PIN SIDE |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09004 |
EP8#..LHD *9-1.25PX91-25,*9-1.25PX93-25,MAIN PIN SIDE |
2 | ||
| 90119-09003 |
EP8#..LHD *9-1.25PX71-25,*9-1.25PX73-25,SUB PIN SIDE |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-12120 |
EP8#..LHD |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-10100 |
EP8#..LHD W(ABS) |
1 | ||
| 47730-10090 |
EP8#,NP80 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-12150 |
EP8#..LHD W(ABS) |
2 | ||
| 47731-16020 |
EP8#,NP80 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
EP8#,NP80 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-16011 |
EP8#..LHD W(ABS) |
2 | ||
| 47744-10050 |
EP8#,NP80 |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47742-32040 |
EP8#..LHD W(ABS) |
2 | ||
| 47742-10020 |
EP8#,NP80 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-10050 |
EP8#,NP80 |
2 | ||
| 47745-32040 |
EP8#..LHD W(ABS) |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-10100 |
EP8#..LHD W(ABS) |
1 | ||
| 47750-10090 |
EP8#,NP80 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-12030 |
EP8#..LHD W(ABS) |
2 | ||
| 47769-10030 |
EP8#,NP80 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-10010 |
EP8#,NP80 |
2 | ||
| 47771-32010 |
EP8#..LHD W(ABS) |
2 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-16010 |
EP8#..LHD W(ABS) |
2 | ||
| 47779-10010 |
EP8#,NP80 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-10050 |
EP8#,NP80 |
1 | ||
| 47781-10060 |
EP8#..LHD W(ABS) |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90109-06134 |
EP8#,NP80 |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-10050 |
EP8#,NP80 |
1 | ||
| 47782-10060 |
EP8#..LHD W(ABS) |
1 | ||

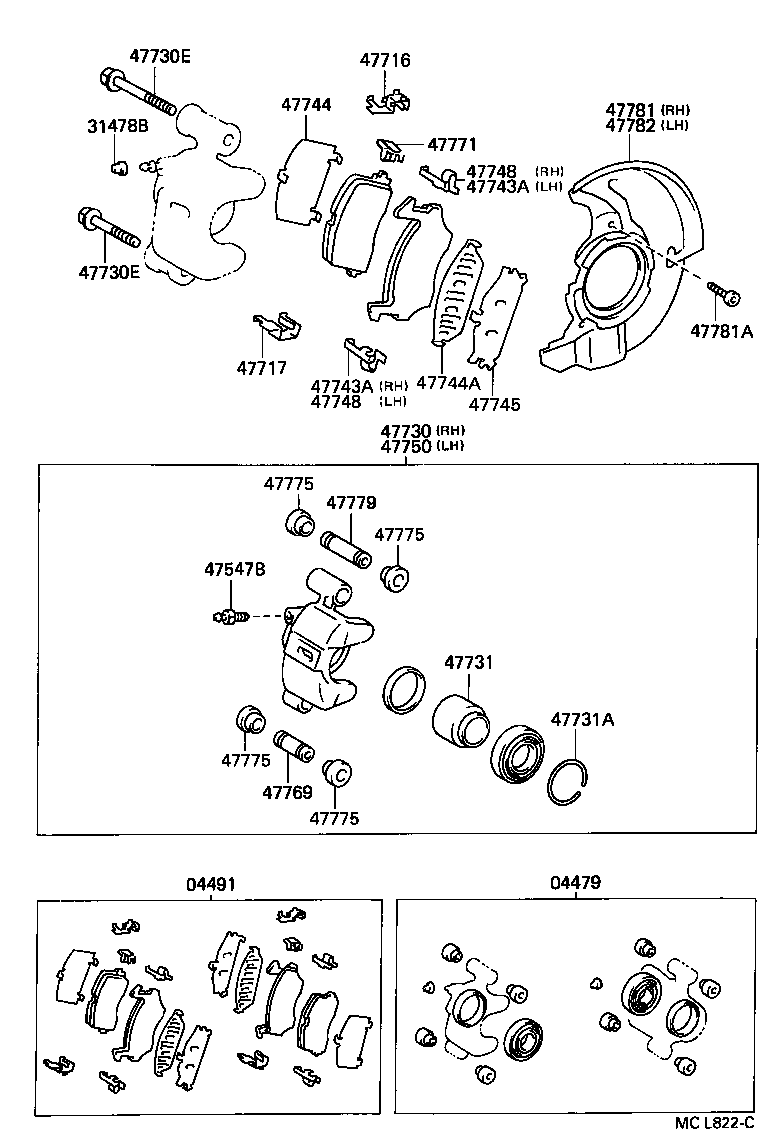

ILLUST NO. 1 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-10060 |
EP8#,NP80 |
1 | ||
| 04479-12091 |
EP8#..LHD W(ABS) |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-10160 |
EP8#..LHD W(ABS) |
1 | ||
| 04491-10131 |
EP8#,NP80 |
1 | ||
| 04491-10161 |
EP8#..LHD W(ABS) |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
EP8#,NP80 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
EP8#,NP80 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32031 |
EP8#,NP80 |
2 | ||
| 47716-32031 |
EP8#..LHD W(ABS) |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32031 |
EP8#,NP80 |
2 | ||
| 47717-32031 |
EP8#..LHD W(ABS) |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-10100 |
EP8#..LHD W(ABS) |
1 | ||
| 47730-10090 |
EP8#,NP80 |
1 | ||
| 47730E - BOLT(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90119-08005 |
EP8#,NP80 *8-1.25PX58-18 |
2 | ||
| 90119-08145 |
EP8#,NP80 *8-1.25PX78-30 |
2 | ||
| 47730E - BOLT(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90119-08005 |
EP8#,NP80 *8-1.25PX58-18 |
2 | ||
| 90119-08145 |
EP8#,NP80 *8-1.25PX78-30 |
2 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-12150 |
EP8#..LHD W(ABS) |
2 | ||
| 47731-16020 |
EP8#,NP80 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-61001 |
EP8#,NP80 |
2 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-10050 |
EP8#,NP80 |
2 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-10050 |
EP8#,NP80 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-16011 |
EP8#..LHD W(ABS) |
2 | ||
| 47744-10050 |
EP8#,NP80 |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47742-32040 |
EP8#..LHD W(ABS) |
2 | ||
| 47742-10020 |
EP8#,NP80 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-10050 |
EP8#,NP80 |
2 | ||
| 47745-32040 |
EP8#..LHD W(ABS) |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-10060 |
EP8#,NP80 |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-10060 |
EP8#,NP80 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-10100 |
EP8#..LHD W(ABS) |
1 | ||
| 47750-10090 |
EP8#,NP80 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-12030 |
EP8#..LHD W(ABS) |
2 | ||
| 47769-10030 |
EP8#,NP80 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-10010 |
EP8#,NP80 |
2 | ||
| 47771-32010 |
EP8#..LHD W(ABS) |
2 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-16010 |
EP8#..LHD W(ABS) |
2 | ||
| 47779-10010 |
EP8#,NP80 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-10050 |
EP8#,NP80 |
1 | ||
| 47781-10060 |
EP8#..LHD W(ABS) |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90109-06134 |
EP8#,NP80 |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-10050 |
EP8#,NP80 |
1 | ||
| 47782-10060 |
EP8#..LHD W(ABS) |
1 | ||
ILLUST NO. 2 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-10020 |
EP8#,NP80 |
1 | ||
| 04465-12040 |
EP8#..LHD MARK AISIN PC513,W(ABS) |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-10010 |
EP8#,NP80 |
1 | ||
| 04945-32120 |
EP8#..LHD W(ABS) |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-32010 |
EP8#..LHD W(ABS) |
1 | ||
| 04947-32030 |
EP8#,NP80 |
1 | ||
