EP71R-PHMDSW (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

Click highlighted areas on diagram

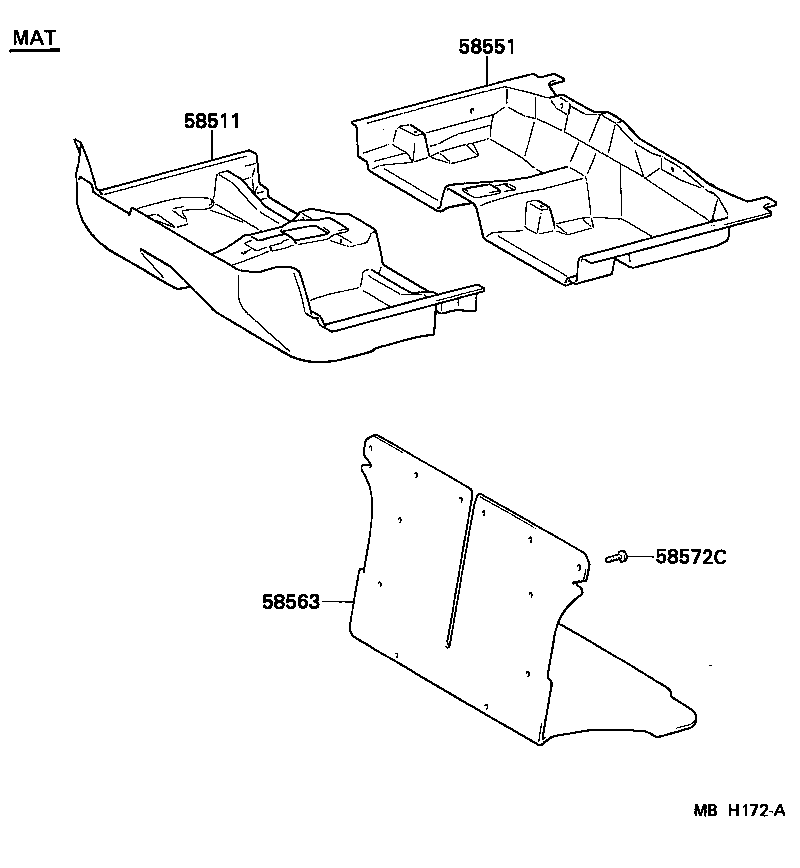

diagram 58511 58551 58563 58572C
Part # Description Qty Price
58563 - MAT, REAR FLOOR
58570-1025003

EP7#,NP70..STD,XL

W/RR BENCH SEAT,GRAY,GRAY,TRIM1#

 1
58570-1025006

EP7#,NP70..STD,XL

W/RR BENCH SEAT,BROWN,BROWN,TRIM4#

 1
58570-1025003

EP7#..DX,STD,XL

W/RR BENCH SEAT,GRAY,GRAY,TRIM1#

 1
58570-1025004

EP7#..DX,STD,XL

W/RR BENCH SEAT,BLUE,BLUE,TRIM8#

 1
58570-1025106

EP7#,NP70..STD,XL

W/RR BENCH SEAT,BROWN,BROWN,TRIM4#

 1
58570-1025103

EP7#,NP70..STD,XL

W/RR BENCH SEAT,GRAY,GRAY,TRIM1#

 1
58572C - CLIP, REAR FLOOR MAT SET
90467-0601633

EP7#..DX,STD,XL

GRAY,GRAY,TRIM1#

 12
90467-0601656

EP7#,NP70..STD,XL

BROWN,SEPIA BROWN,TRIM4#

 12
90467-0601633

EP7#,NP70..STD,XL

GRAY,GRAY,TRIM1#

 12
90467-0601654

EP7#..DX,STD,XL

BLUE,BLUE,TRIM8#

 12

(8410- )

Click highlighted areas on diagram

diagram 58520 58560 58564 58579C
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-1073003

EP7#..RHD

GRAY,GRAY,TRIM1#

 1
58510-1089006

EP7#..RHD

BROWN,BROWN,TRIM4#

 1
58510-1073004

EP7#..RHD

BLUE,BLUE,TRIM8#

 1
58510-1089003

EP7#..RHD

GRAY,GRAY,TRIM1#

 1
58510-1C01003

EP7#,NP70..RHD

W/CASSETTE,GRAY,GRAY,TRIM1#

 1
58510-1C01006

EP7#,NP70..RHD

W/CASSETTE,BROWN,BROWN,TRIM4#

 1
58560 - CARPET ASSY, FLOOR, REAR
58540-1040004

EP7#..5D..(DX,STD,XL)

BLUE,BLUE,TRIM8#

 1
58540-1040003

EP7#..5D..(DX,STD,XL)

GRAY,GRAY,TRIM1#

 1
58540-1040104

EP7#..5D..(DX,STD,XL)

BLUE,BLUE,TRIM8#

 1
58540-1040103

EP7#..5D..(DX,STD,XL)

GRAY,GRAY,TRIM1#

 1
58540-1064003

EP7#,NP70..5D..(STD,XL)

GRAY,GRAY,TRIM1#

 1
58540-1066003

EP7#,NP70..5D..XL..EUG

W/*CB,GRAY,GRAY,TRIM1#

 1
58540-1066006

EP7#,NP70..5D..XL..EUG

W/*CB,BROWN,BROWN,TRIM4#

 1
58540-1064006

EP7#,NP70..5D..(STD,XL)

BROWN,BROWN,TRIM4#

 1
58540-1067003

EP7#..5D

W/FR SEAT BELT=INNER,GRAY,GRAY,TRIM1#

 1
58540-1067006

EP7#..5D

W/FR SEAT BELT=INNER,BROWN,BROWN,TRIM4#

 1
58564 - CARPET, REAR FLOOR
58570-1023003

EP7#..DX,GL,XL

GRAY,GRAY,TRIM1#

 1
58570-1023004

EP7#..DX,GL,XL

BLUE,BLUE,TRIM8#

 1
58570-1023003

EP7#,NP70..GL,XL

GRAY,GRAY,TRIM1#

 1
58570-1023006

EP7#,NP70..GL,XL

BROWN,BROWN,TRIM4#

 1
58570-1023106

EP7#,NP70..GL,XL

BROWN,BROWN,TRIM4#

 1
58570-1023103

EP7#,NP70..GL,XL

GRAY,GRAY,TRIM1#

 1
58579C - CLIP, REAR FLOOR CARPET SET
90467-0601633

EP7#..DX,GL,XL

GRAY,GRAY,TRIM1#

 12
90467-0601633

EP7#,NP70..GL,XL

GRAY,GRAY,TRIM1#

 12
90467-0601656

EP7#,NP70..GL,XL

BROWN,SEPIA BROWN,TRIM4#

 12
90467-0601654

EP7#..DX,GL,XL

BLUE,BLUE,TRIM8#

 12
