EP71L-PHMNSC (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8410- )

Click highlighted areas on diagram

diagram 87810 87810 87827 87834 87834 9331915016 9331915016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1222101

EP7#,NP70..DX,GL,XL

BLACK,BLACK,TRIM1#

 1
87810-1222001

EP7#..DX,GL,XL

BLACK,BLACK,TRIM1#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1222101

EP7#,NP70..DX,GL,XL

BLACK,BLACK,TRIM1#

 1
87810-1222001

EP7#..DX,GL,XL

BLACK,BLACK,TRIM1#

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-30010

EP7#..DX,GL,XL

 1
87828-10010

EP7#,NP70..DX,GL,XL

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008018

EP7#,NP70

IVORY,IVORY

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008018

EP7#,NP70

IVORY,IVORY

 1
Common parts
93319-15016

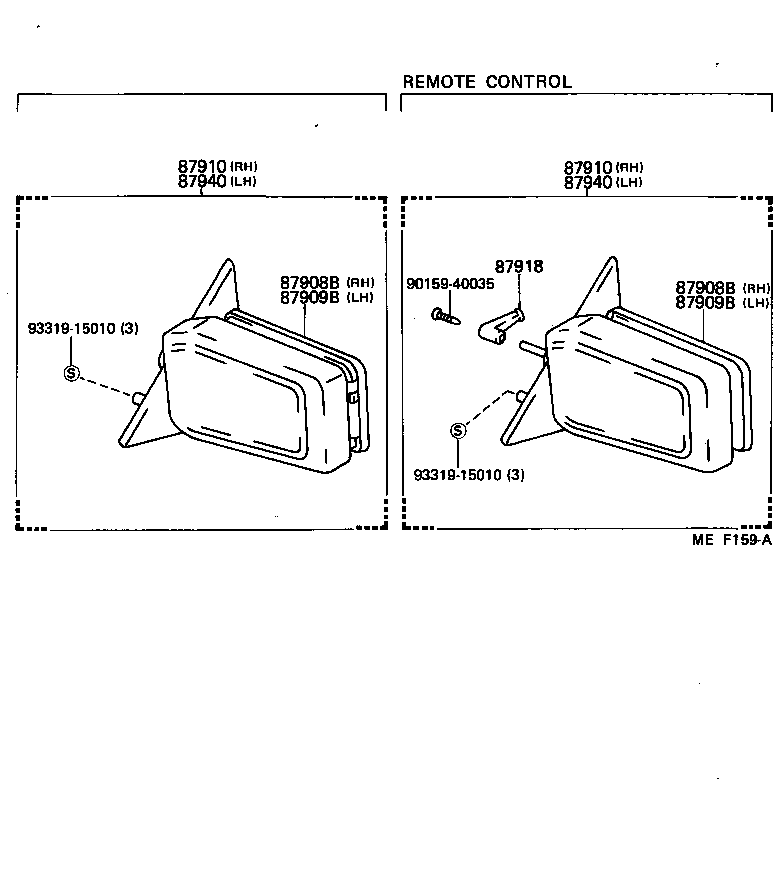

ILLUST NO. 2 OF 2(8410- )

Click highlighted areas on diagram

diagram 87908B 87908B 87909B 87909B 87910 87910 87918 87940 87940 9015940035 9331915010 9331915010
Part # Description Qty Price
87908B - MIRROR SUB-ASSY, RH
87908-16030

EP7#

 1
87908B - MIRROR SUB-ASSY, RH
87908-16030

EP7#

 1
87909B - MIRROR SUB-ASSY, LH
87909-16030

EP7#

 1
87909B - MIRROR SUB-ASSY, LH
87909-16030

EP7#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-10380

EP7#..LHD..5D..(DX,GL,XL)

REMOTE-CONTROL

 1
87910-10381

EP7#,NP70..LHD..5D..(DX,GL,XL)

REMOTE-CONTROL

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-10380

EP7#..LHD..5D..(DX,GL,XL)

REMOTE-CONTROL

 1
87910-10381

EP7#,NP70..LHD..5D..(DX,GL,XL)

REMOTE-CONTROL

 1
87918 - KNOB, CONTROL OUTER MIRROR
87918-12070

EP7#..DX,GL,S,XL

 2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-10380

EP7#..LHD..5D..(DX,GL,XL)

REMOTE-CONTROL

 1
87940-10381

EP7#,NP70..LHD..5D..(DX,GL,XL)

REMOTE-CONTROL

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-10380

EP7#..LHD..5D..(DX,GL,XL)

REMOTE-CONTROL

 1
87940-10381

EP7#,NP70..LHD..5D..(DX,GL,XL)

REMOTE-CONTROL

 1
Common parts
90159-40035
93319-15010
