EP71L-PHMNSC (1984)
Toyota Starlet
ILLUST NO. 2 OF 2(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-10020 |
EP7#..DX,GL,XL |
1 | ||
| 63201-10020 |
EP7#..GL,S,XL |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-10020 |
EP7#..DX,GL,XL |
1 | ||
| 63203-10020 |
EP7#..GL,S,XL |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-10010 |
EP7#..DX,GL,XL |
1 | ||
| 63207-10010 |
EP7#..GL,S,XL |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-10010 |
EP7#..GL,S,XL |
1 | ||
| 63208-10010 |
EP7#..DX,GL,XL |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-10020 |
EP7#..GL,S,XL |
1 | ||
| 63209-10020 |
EP7#..DX,GL,XL |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-10020 |
EP7#..DX,GL,XL RR |
2 | ||
| 63249-10020 |
EP7#..GL,S,XL RR |
2 | ||
| 63249-10010 |
EP7#..GL,S,XL FR |
2 | ||
| 63249-10010 |
EP7#..DX,GL,XL FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-10020 |
EP7#..DX,GL,XL RR |
2 | ||
| 63249-10020 |
EP7#..GL,S,XL RR |
2 | ||
| 63249-10010 |
EP7#..GL,S,XL FR |
2 | ||
| 63249-10010 |
EP7#..DX,GL,XL FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-10020 |
EP7#..DX,GL,XL RR |
2 | ||
| 63249-10020 |
EP7#..GL,S,XL RR |
2 | ||
| 63249-10010 |
EP7#..GL,S,XL FR |
2 | ||
| 63249-10010 |
EP7#..DX,GL,XL FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-10020 |
EP7#..DX,GL,XL RR |
2 | ||
| 63249-10020 |
EP7#..GL,S,XL RR |
2 | ||
| 63249-10010 |
EP7#..GL,S,XL FR |
2 | ||
| 63249-10010 |
EP7#..DX,GL,XL FR |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-10010 |
EP7#..DX,GL,XL |
1 | ||
| 63221-10010 |
EP7#..GL,S,XL |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-10010 |
EP7#..GL,S,XL |
1 | ||
| 63223-10010 |
EP7#..DX,GL,XL |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-10010 |
EP7#..DX,GL,XL |
1 | ||
| 63224-10010 |
EP7#..GL,S,XL |
1 | ||
| 63249A - SUPPORTER, WATER HOSE | ||||
| 82817-87013 |
EP7#..DX,GL,XL |
2 | ||
| 82817-87013 |
EP7#..GL,S,XL |
2 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-10020 |
EP7#..GL,S,XL |
1 | ||
| 63251-10020 |
EP7#..DX,GL,XL |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-12030 |
EP7#..GL,S,XL |
1 | ||
| 63255-12030 |
EP7#..DX,GL,XL |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-12030 |
EP7#..GL,S,XL |
1 | ||
| 63255-12030 |
EP7#..DX,GL,XL |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12040 |
EP7#..GL,S,XL |
1 | ||
| 63260-12040 |
EP7#..DX,GL,XL |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-10010 |
EP7#..GL,S,XL |
2 | ||
| 63261-10010 |
EP7#..DX,GL,XL |
2 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63268-14020 |
EP7#..GL,S,XL LH |
1 | ||
| 63267-14010 |
EP7#..DX,GL,XL RH |
1 | ||
| 63268-20010 |
EP7#..DX,GL,XL LH |
1 | ||
| 63267-20010 |
EP7#..DX,GL,XL RH |
1 | ||
| 63268-14020 |
EP7#..DX,GL,XL LH |
1 | ||
| 63267-14010 |
EP7#..GL,S,XL RH |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-20010 |
EP7#..DX,GL,XL RH |
1 | ||
| 63279-20010 |
EP7#..GL,S,XL LH |
1 | ||
| 63279-20010 |
EP7#..DX,GL,XL LH |
1 | ||
| 63269-20010 |
EP7#..GL,S,XL RH |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
EP7#..GL,S,XL 28X48 |
3 | ||
| 63277-20010 |
EP7#..DX,GL,XL 55X119.5 |
3 | ||
| 63277-14020 |
EP7#..DX,GL,XL 28X48 |
3 | ||
| 63277-20010 |
EP7#..GL,S,XL 55X119.5 |
3 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-14020 |
EP7#..GL,S,XL 28X48 |
3 | ||
| 63277-20010 |
EP7#..DX,GL,XL 55X119.5 |
3 | ||
| 63277-14020 |
EP7#..DX,GL,XL 28X48 |
3 | ||
| 63277-20010 |
EP7#..GL,S,XL 55X119.5 |
3 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12040 |
EP7#..DX,GL |
1 | ||
| 63699-12010 |
EP71..GL..SDZ;EP71..3D..XL..SDZ;EP7#..(DX,GL,XL)..(EUG,FRG) |
1 | ||
| Common parts | ||||
| 90159-60257 | ||||
| 90159-60291 | ||||
| 90162-50007 | ||||
| 90168-40046 | ||||
| 90179-06123 | ||||
| 90189-05043 | ||||
| 90333-15002 | ||||
| 90333-30002 | ||||
| 90467-12058 | ||||
| 90467-14001 | ||||
| 90480-26011 | ||||
| 93382-16012 | ||||

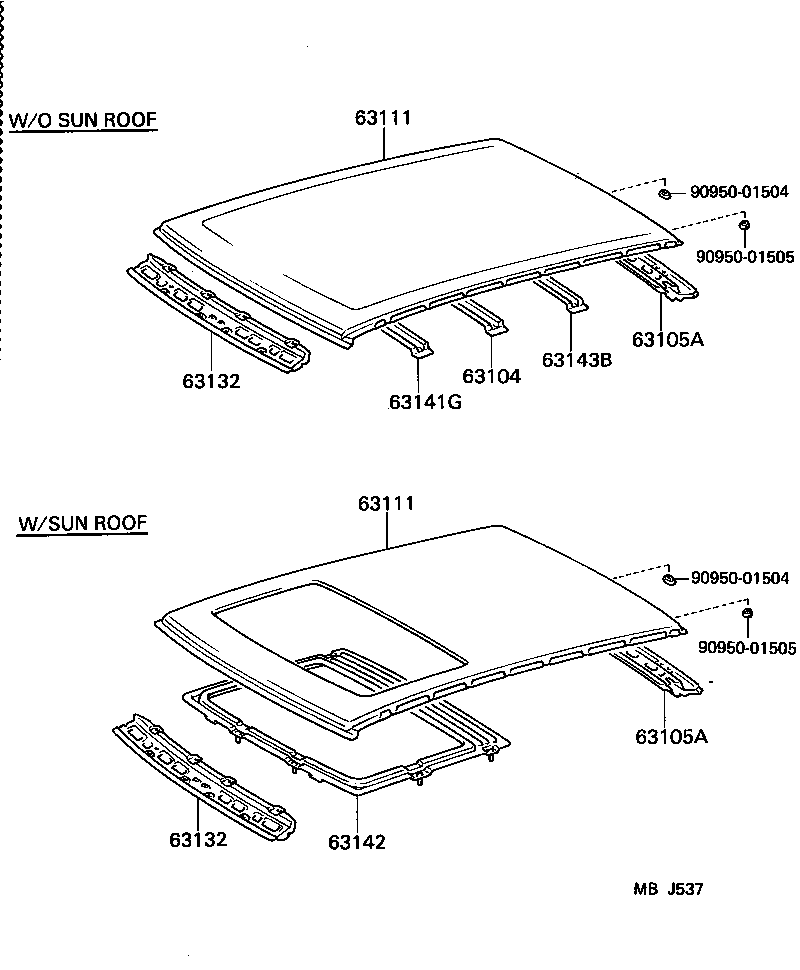

ILLUST NO. 1 OF 2(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-10010 |
EP7#,NP70 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-10050 |
EP7# W/RR WIPER |
1 | ||
| 63105-10060 |
EP7# W/O RR WIPER,W/*DEF |
1 | ||
| 63105-10080 |
EP7#,NP70 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-10050 |
EP7# W/RR WIPER |
1 | ||
| 63105-10060 |
EP7# W/O RR WIPER,W/*DEF |
1 | ||
| 63105-10080 |
EP7#,NP70 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-10080 |
EP7#..DX,GL W/SUN ROOF |
1 | ||
| 63111-10070 |
EP7#,NP70 W/O SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-10080 |
EP7#..DX,GL W/SUN ROOF |
1 | ||
| 63111-10070 |
EP7#,NP70 W/O SUN ROOF |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-10080 |
EP7#,NP70 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-10080 |
EP7#,NP70 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-10050 |
EP7#,NP70 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-10010 |
EP7#..DX,GL |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-10010 |
EP7#,NP70 |
1 | ||
| Common parts | ||||
| 90950-01504 | ||||
| 90950-01505 | ||||
