EP71L-PHMNSC (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )5D

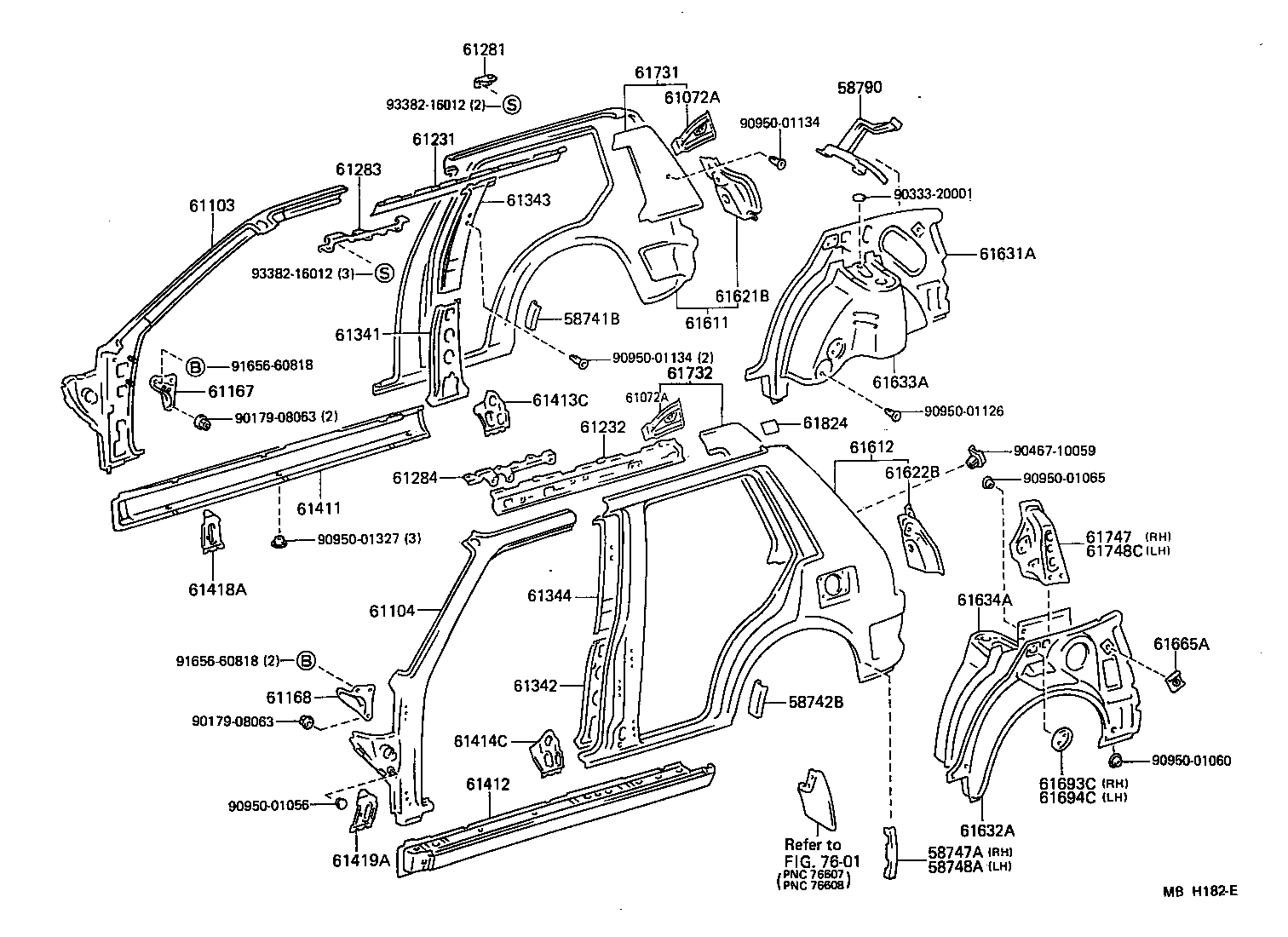

Click highlighted areas on diagram

diagram 58741B 58742B 58747A 58748A 58790 61072A 61072A 61103 61104 61167 61168 61231 61232 61281 61283 61284 61341 61342 61343 61344 61411 61412 61413C 61414C 61418A 61419A 61611 61612 61621B 61622B 61631A 61632A 61633A 61634A 61665A 61693C 61694C 61731 61732 61747 61748C 61824 7601 9017908063 9017908063 9033320001 9046710059 9095001056 9095001060 9095001065 9095001126 9095001134 9095001134 9095001327 9165660818 9165660818 9338216012 9338216012
Part # Description Qty Price
58741B - PROTECTOR, QUARTER PANEL, RH
58741-10010

EP7#,NP70..5D

 1
58742B - PROTECTOR, QUARTER PANEL, LH
58742-10010

EP7#,NP70..5D

 1
58747A - PROTECTOR, QUARTER PANEL, REAR RH
58747-10010

EP7#,NP70

 1
58748A - PROTECTOR, QUARTER PANEL, REAR LH
58748-10010

EP7#,NP70

 1
58790 - CARRIER ASSY, JACK
58790-10030

EP7#,NP70

 1
58790-10020

EP7#

 1
61072A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.1 UPPER
61072-10020

EP7#,NP70..5D

LH

 1
61071-10020

EP7#,NP70..5D

RH

 1
61072A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.1 UPPER
61072-10020

EP7#,NP70..5D

LH

 1
61071-10020

EP7#,NP70..5D

RH

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-10050

EP7#,NP70..LHD..5D

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-10100

EP7#,NP70..LHD..5D

 1
61167 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
61165-10030

EP7#,NP70..LHD

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-10110

EP7#,NP70..5D

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-10100

EP7#,NP70..5D

 1
61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61281-10010

EP7#..DX,GL

 2
61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61283-10010

EP7#..DX,GL

 1
61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61284-10010

EP7#..DX,GL

 1
61341 - PILLAR, CENTER BODY, INNER LOWER RH
61345-10030

EP7#,NP70..5D

 1
61342 - PILLAR, CENTER BODY, INNER LOWER LH
61346-10030

EP7#,NP70..5D

 1
61343 - PILLAR, CENTER BODY, INNER UPPER RH
61341-10040

EP7#,NP70..5D

 1
61344 - PILLAR, CENTER BODY, INNER UPPER LH
61342-10040

EP7#,NP70..5D

 1
61411 - PANEL, ROCKER, OUTER RH
61411-10130

EP7#,NP70..5D

 1
61412 - PANEL, ROCKER, OUTER LH
61412-10130

EP7#,NP70..5D

 1
61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH
61413-10010

EP7#,NP70

 1
61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH
61414-10010

EP7#,NP70

 1
61418A - REINFORCEMENT, ROCKER PANEL, RH
61418-10020

EP7#,NP70

 1
61419A - REINFORCEMENT, ROCKER PANEL, LH
61419-10010

EP7#,NP70

 1
61611 - PANEL, QUARTER, RH
61601-1C020

EP7#,NP70..5D

 1
61612 - PANEL, QUARTER, LH
61602-1C251

EP71..S

 1
61602-10880

EP7#..5D

 1
61602-1C240

EP71..GL

 1
61602-1C240

EP7#,NP70..5D

W/FUEL LID OPENER

 1
61621B - TROUGH, BACK DOOR OPENING, FRONT RH
61621-10020

EP7#,NP70

 1
61622B - TROUGH, BACK DOOR OPENING, FRONT LH
61622-10020

EP7#,NP70

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-10040

EP7#,NP70

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-10040

EP7#,NP70

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-10021

EP7#,NP70

 1
61607-10020

EP7#,NP70

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-10020

EP7#,NP70

 1
61665A - REINFORCEMENT, SAFETY BELT ANCHORAGE, REAR
61665-14010

EP7#,NP70

 2
61693C - RETAINER, REAR SEAT BACK SET, RH
61693-10030

EP7#,NP70

 1
61694C - RETAINER, REAR SEAT BACK SET, LH
61693-10030

EP7#,NP70

 1
61731 - PANEL, ROOF SIDE, INNER UPPER RH
61731-10949

EP7#,NP70..5D

W/*PT

 1
61731-10949

EP71..GL

 1
61731-10937

EP71..S

 1
61732 - PANEL, ROOF SIDE, INNER UPPER LH
61732-10924

EP71..GL

 1
61732-10924

EP7#,NP70..5D

W/*PT

 1
61732-10940

EP71..S

 1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-10030

EP7#,NP70..5D

W/*PT

 1
61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61748-10030

EP7#,NP70..5D

W/*PT

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-12010

EP7#..DX,GL

 2
Common parts
90179-08063
90333-20001
90467-10059
90950-01056
90950-01060
90950-01065
90950-01126
90950-01134
90950-01327
91656-60818
93382-16012
Linked diagrams
7601
