EP71L-PHMNSC (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

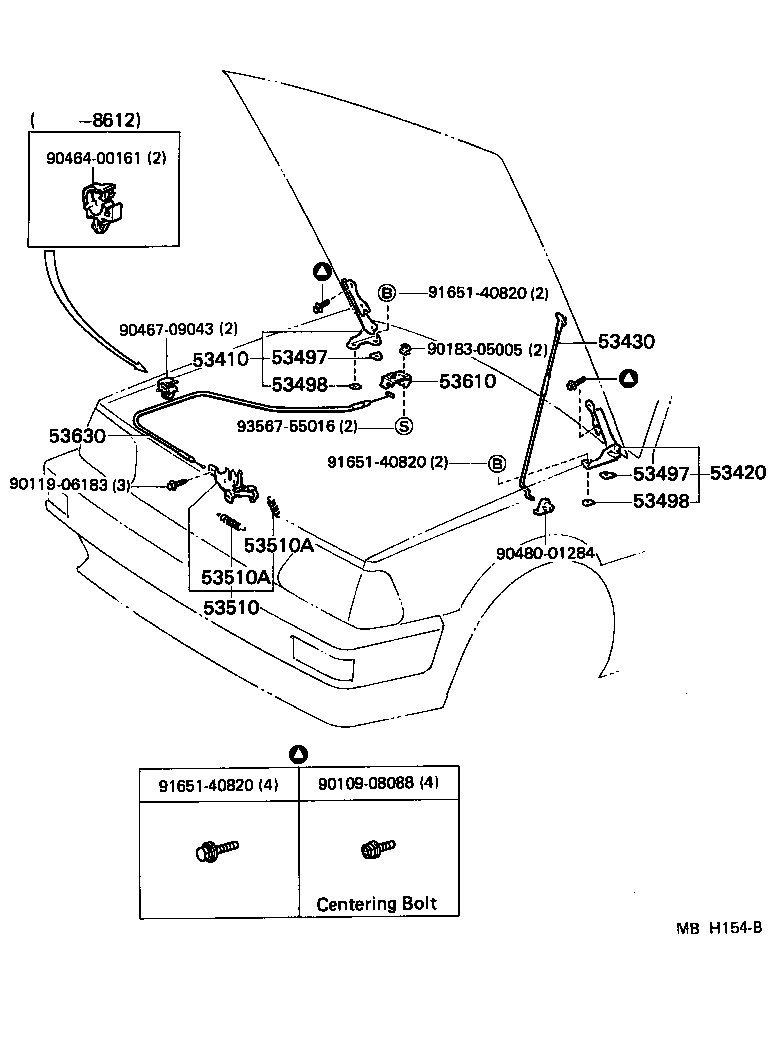

Click highlighted areas on diagram

diagram 53410 53420 53430 53497 53497 53498 53498 53510 53510A 53510A 53610 53630 9010908088 9011906183 9018305005 9046400161 9046709043 9048001284 9165140820 9165140820 9165140820 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-12051

EP7#,NP70

 1
53410-12050

EP7#,NP70

 1
53410-12080

EP7#

 1
53420 - HINGE ASSY, HOOD, LH
53420-12070

EP7#

 1
53420-12041

EP7#,NP70

 1
53420-12040

EP7#,NP70

 1
53430 - SUPPORT ASSY, HOOD
53440-10020

EP7#,NP70

 1
53440-10010

EP7#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-12011

EP7#,NP70

T=0.5

 2
53497-12010

EP7#,NP70

T=1.0

 2
53497 - PAD, HOOD HINGE, NO.1
53497-12011

EP7#,NP70

T=0.5

 2
53497-12010

EP7#,NP70

T=1.0

 2
53498 - PAD, HOOD HINGE, NO.2
53498-12011

EP7#,NP70

 2
53498-12010

EP7#,NP70

 2
53498 - PAD, HOOD HINGE, NO.2
53498-12011

EP7#,NP70

 2
53498-12010

EP7#,NP70

 2
53510 - LOCK ASSY, HOOD
53510-10120

EP7#,NP70..LHD

 1
53510-10070

EP7#..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09029

EP7#,NP70

WD=0.9,L=39.6

 1
90506-18024

EP7#,NP70

L=54.0

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09029

EP7#,NP70

WD=0.9,L=39.6

 1
90506-18024

EP7#,NP70

L=54.0

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-1002003

EP7#

GRAY,GRAY,TRIM1#

 1
53601-1002006

EP7#,NP70

BROWN,BROWN,TRIM4#

 1
53601-1002023

EP7#,NP70

GRAY,GRAY,TRIM1#

 1
53601-1002004

EP7#

BLUE,BLUE,TRIM8#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-10150

EP7#

 1
53630-10180

EP7#,NP70

 1
Common parts
90109-08088
90119-06183
90183-05005
90464-00161
90467-09043
90480-01284
91651-40820
93567-55016
