EP71L-PHMNSC (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )LHD

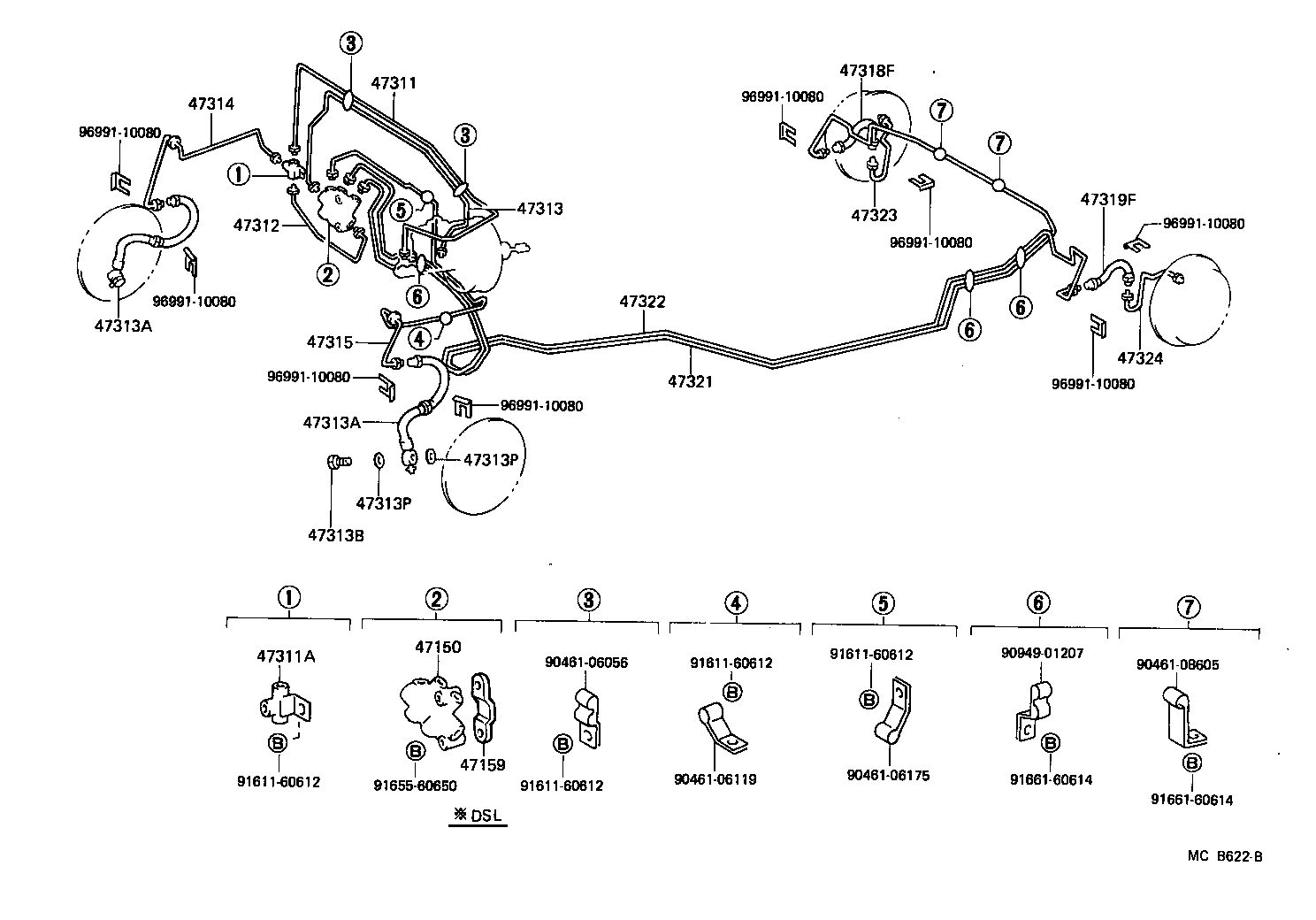

Click highlighted areas on diagram

diagram 47150 47159 47311 47311A 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318F 47319F 47321 47322 47323 47324 9046106056 9046106119 9046106175 9046108605 9094901207 9161160612 9161160612 9161160612 9161160612 9165560650 9166160614 9166160614 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-16050

EP71..DX..EUG;EP71..GL,S,STD,XL

SWEDEN SPEC

 1
47150-20140

EP7#,NP70

 1
47150-12050

EP7#

 1
47150-16070

EP7#,NP70

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-10120

EP7#..LHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

EP7#..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-10150

EP7#,NP70..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-10220

EP7#..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02461

EP7#

 2
90947-02511

EP7#,NP70

RH

 1
90947-02512

EP7#,NP70

LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02461

EP7#

 2
90947-02511

EP7#,NP70

RH

 1
90947-02512

EP7#,NP70

LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

EP7#,NP70

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

EP7#,NP70

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

EP7#,NP70

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-10190

EP7#..LHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-10120

EP7#..LHD

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
96950-32405

EP7#,NP70

 1
96950-32406

EP7#,NP70

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
96950-32405

EP7#,NP70

 1
96950-32406

EP7#,NP70

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-10140

EP7#..LHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-10090

EP7#..LHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-10040

EP7#,NP70

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-10040

EP7#,NP70

 1
Common parts
90461-06056
90461-06119
90461-06175
90461-08605
90949-01207
91611-60612
91655-60650
91661-60614
96991-10080
