EP71L-PHMNSC (1984)
Toyota Starlet

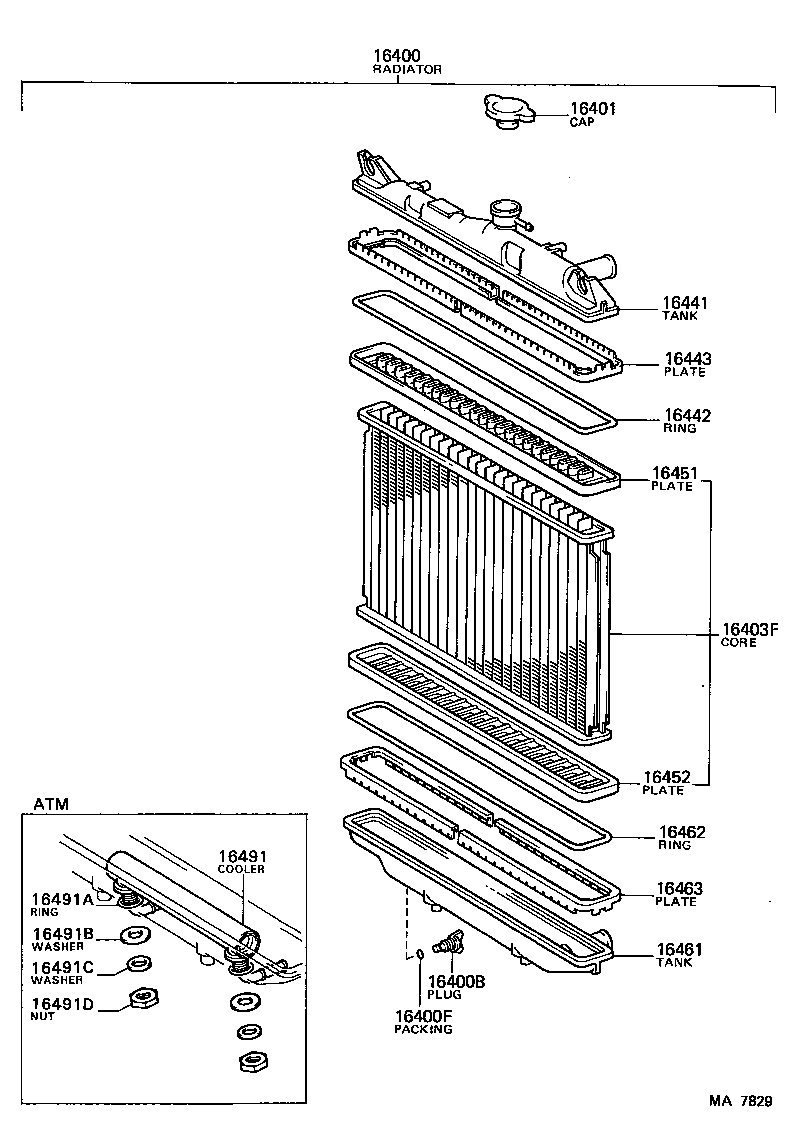

ILLUST NO. 2 OF 2(8410- )1EL,2EL#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-10010 |
1EL,2EL..EP7#..LHD..MTM W/COOLER |
1 | ||
| 16400-10021 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16400-10020 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16400-10011 |
1EL,2EL..EP7#..LHD..MTM W/COOLER |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1EL,2EL#..EP7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1EL,2EL#..EP7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1EL,2EL#..EP7# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-13250 |
1EL,2EL..EP7#..LHD..MTM W/COOLER |
1 | ||
| 16403-10020 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-10010 |
1EL,2EL#..EP7# |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-26330 |
1EL,2EL#..EP7# |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-13351 |
1EL,2EL#..EP7# |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-26330 |
1EL,2EL#..EP7# |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-26330 |
1EL,2EL#..EP7# |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-10010 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16461-10011 |
1EL,2EL..EP7#..LHD..MTM W/COOLER |
1 | ||
| 16461-10011 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-26330 |
1EL,2EL#..EP7# |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-13350 |
1EL,2EL#..EP7# |
2 | ||

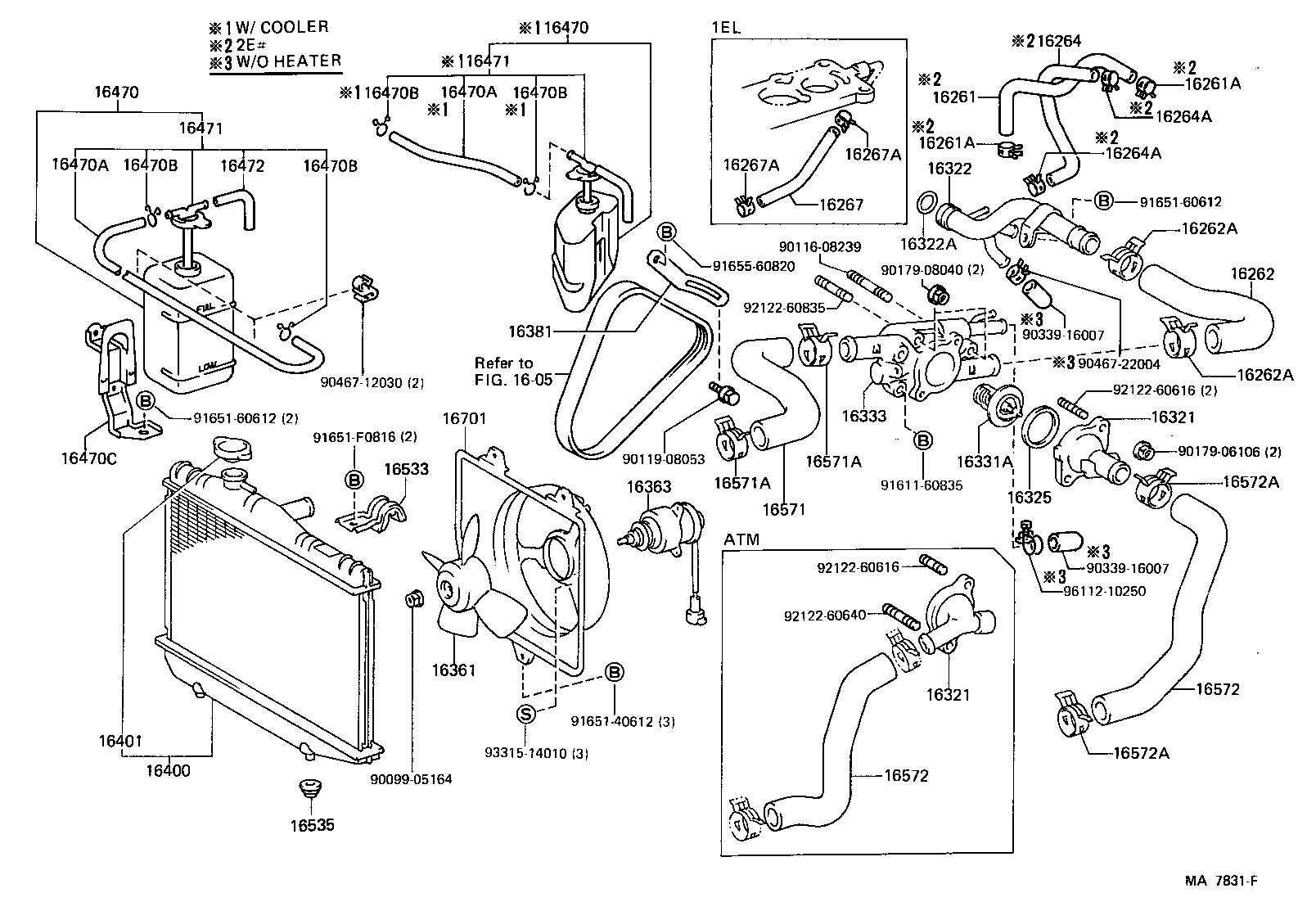

ILLUST NO. 1 OF 2(8410-8604)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-11010 |
2EL#..EP71 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
2EL#..EP71 |
2 | ||
| 90467-11049 |
2EL#..EP71 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
2EL#..EP71 |
2 | ||
| 90467-11049 |
2EL#..EP71 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-10010 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
1EL,2EL#..EP7# |
2 | ||
| 90467-34002 |
1EL,2EL#..EP7# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
1EL,2EL#..EP7# |
2 | ||
| 90467-34002 |
1EL,2EL#..EP7# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-11010 |
2EL#..EP71 |
1 | ||
| 16264-11010 |
2ELC..EP71 |
1 | ||
| 16264-11031 |
2EL..EP71..DX..EUG;2EL..EP71..GL,S,STD,XL |
1 | ||
| 16264-11040 |
2EL#..EP71 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2EL#..EP71 |
2 | ||
| 90467-11049 |
2EL#..EP71 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2EL#..EP71 |
2 | ||
| 90467-11049 |
2EL#..EP71 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-10010 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16321-10011 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-10010 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16321-10011 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-11010 |
1EL,2EL#..EP7# |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96711-35028 |
1EL,2EL#..EP7# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1EL,2EL#..EP7# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1EL,2EL#..EP7# *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-10010 |
1EL,2EL#..EP7# |
1 | ||
| 16303-10011 |
2EL#..EP71..FRG,SDZ |
1 | ||
| 16303-10011 |
1EL,2EL#..EP7# |
1 | ||
| 16303-11100 |
2ELC..EP71 |
1 | ||
| 16361 - FAN | ||||
| 16361-63040 |
1EL,2EL#..EP7# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-10010 |
1EL,2EL#..EP7# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-10040 |
1EL,2EL#..EP7# |
1 | ||
| 16381-11020 |
1EL,2EL#..EP7# |
1 | ||
| 16381-11030 |
2ELC..EP71 COLD SPEC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-10010 |
1EL,2EL..EP7#..LHD..MTM W/COOLER |
1 | ||
| 16400-10021 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16400-10020 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16400-10011 |
1EL,2EL..EP7#..LHD..MTM W/COOLER |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1EL,2EL#..EP7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-10020 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 16470-10030 |
1EL,2EL#..EP7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-10020 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 16470-10030 |
1EL,2EL#..EP7# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=240,NO.1,W/COOLER |
1 | ||
| 90445-12078 |
1EL,2EL..EP7# *H,L=166,NO.2 |
1 | ||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=140,NO.2,W/COOLER |
1 | ||
| 90099-33534 |
1EL,2EL..EP7# *H,L=800,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=240,NO.1,W/COOLER |
1 | ||
| 90445-12078 |
1EL,2EL..EP7# *H,L=166,NO.2 |
1 | ||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=140,NO.2,W/COOLER |
1 | ||
| 90099-33534 |
1EL,2EL..EP7# *H,L=800,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1EL,2EL#..EP7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1EL,2EL#..EP7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1EL,2EL#..EP7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1EL,2EL#..EP7# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-10010 |
1EL,2EL#..EP7# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-10010 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 16405-10020 |
1EL,2EL#..EP7# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-10010 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 16405-10020 |
1EL,2EL#..EP7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-10020 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 85338-74040 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 85338-30010 |
1EL,2EL..EP7# |
1 | ||
| 85338-70100 |
1EL,2EL..EP7# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-10010 |
1EL,2EL#..EP7# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-23008 |
1EL,2EL#..EP7# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-10020 |
1EL,2EL#..EP7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
1EL,2EL#..EP7# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
1EL,2EL#..EP7# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-10010 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-10010 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31001 |
1EL,2EL#..EP7# |
2 | ||
| 90467-31003 |
1EL,2EL#..EP7# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31001 |
1EL,2EL#..EP7# |
2 | ||
| 90467-31003 |
1EL,2EL#..EP7# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-10030 |
1EL,2EL#..EP7# |
1 | ||
| Common parts | ||||
| 90099-05164 | ||||
| 90116-08239 | ||||
| 90119-08053 | ||||
| 90179-06106 | ||||
| 90179-08040 | ||||
| 90339-16007 | ||||
| 90467-12030 | ||||
| 90467-22004 | ||||
| 91611-60835 | ||||
| 91651-40612 | ||||
| 91651-60612 | ||||
| 91651-F0816 | ||||
| 91655-60820 | ||||
| 92122-60616 | ||||
| 92122-60640 | ||||
| 92122-60835 | ||||
| 93315-14010 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1605 | ||||

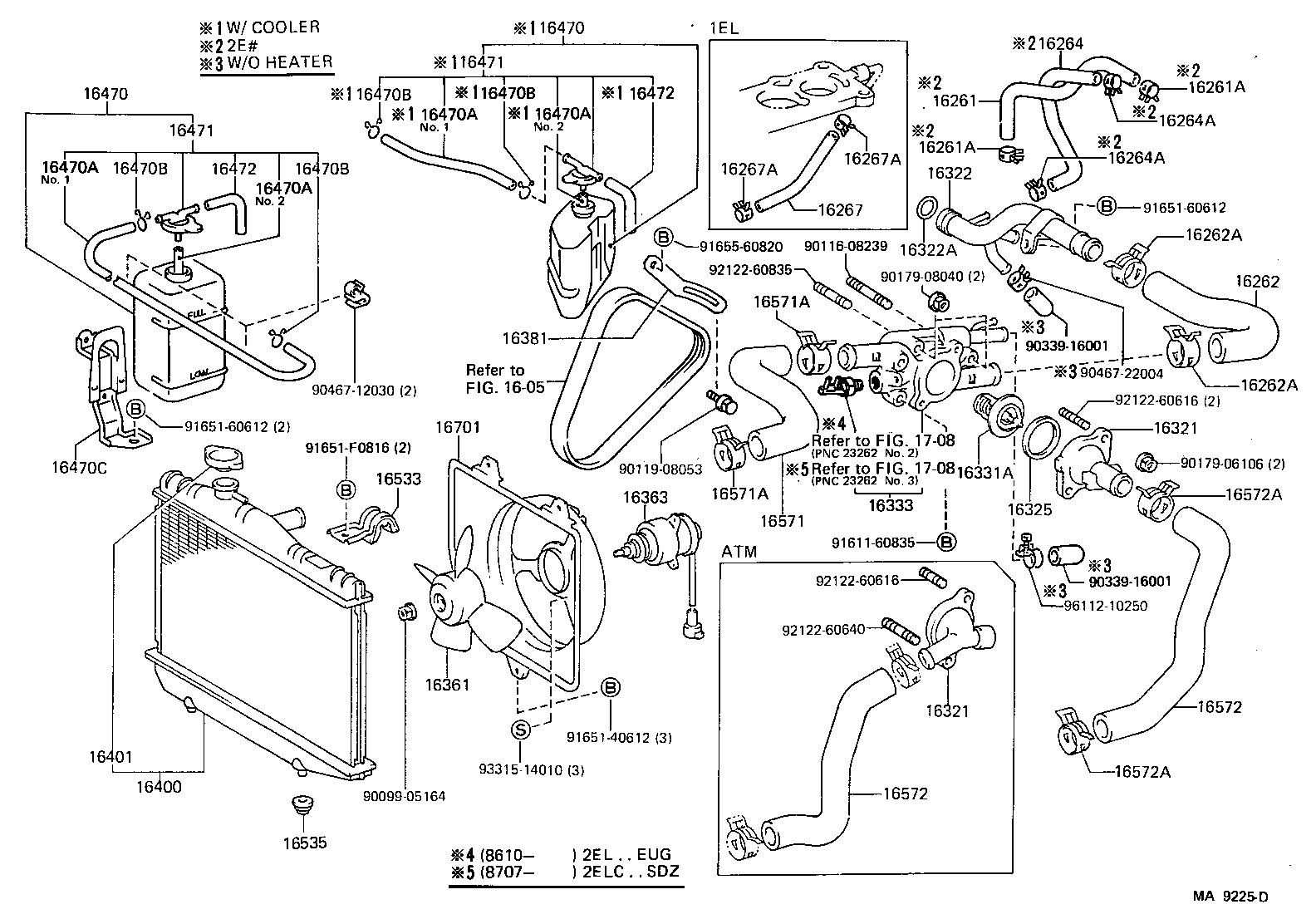

ILLUST NO. 1 OF 2(8604- )1EL,2EL#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-11010 |
2EL#..EP71 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
2EL#..EP71 |
2 | ||
| 90467-11049 |
2EL#..EP71 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
2EL#..EP71 |
2 | ||
| 90467-11049 |
2EL#..EP71 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-10010 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
1EL,2EL#..EP7# |
2 | ||
| 90467-34002 |
1EL,2EL#..EP7# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
1EL,2EL#..EP7# |
2 | ||
| 90467-34002 |
1EL,2EL#..EP7# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-11010 |
2EL#..EP71 |
1 | ||
| 16264-11010 |
2ELC..EP71 |
1 | ||
| 16264-11031 |
2EL..EP71..DX..EUG;2EL..EP71..GL,S,STD,XL |
1 | ||
| 16264-11040 |
2EL#..EP71 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2EL#..EP71 |
2 | ||
| 90467-11049 |
2EL#..EP71 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
2EL#..EP71 |
2 | ||
| 90467-11049 |
2EL#..EP71 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-10010 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16321-10011 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-10010 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16321-10011 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-11010 |
1EL,2EL#..EP7# |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96711-35028 |
1EL,2EL#..EP7# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1EL,2EL#..EP7# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1EL,2EL#..EP7# *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-10010 |
1EL,2EL#..EP7# |
1 | ||
| 16303-10011 |
2EL#..EP71..FRG,SDZ |
1 | ||
| 16303-10011 |
1EL,2EL#..EP7# |
1 | ||
| 16303-11100 |
2ELC..EP71 |
1 | ||
| 16361 - FAN | ||||
| 16361-63040 |
1EL,2EL#..EP7# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-10010 |
1EL,2EL#..EP7# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-10040 |
1EL,2EL#..EP7# |
1 | ||
| 16381-11020 |
1EL,2EL#..EP7# |
1 | ||
| 16381-11030 |
2ELC..EP71 COLD SPEC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-10010 |
1EL,2EL..EP7#..LHD..MTM W/COOLER |
1 | ||
| 16400-10021 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16400-10020 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16400-10011 |
1EL,2EL..EP7#..LHD..MTM W/COOLER |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1EL,2EL#..EP7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-10020 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 16470-10030 |
1EL,2EL#..EP7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-10020 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 16470-10030 |
1EL,2EL#..EP7# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=240,NO.1,W/COOLER |
1 | ||
| 90445-12078 |
1EL,2EL..EP7# *H,L=166,NO.2 |
1 | ||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=140,NO.2,W/COOLER |
1 | ||
| 90099-33534 |
1EL,2EL..EP7# *H,L=800,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=240,NO.1,W/COOLER |
1 | ||
| 90445-12078 |
1EL,2EL..EP7# *H,L=166,NO.2 |
1 | ||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=140,NO.2,W/COOLER |
1 | ||
| 90099-33534 |
1EL,2EL..EP7# *H,L=800,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=240,NO.1,W/COOLER |
1 | ||
| 90445-12078 |
1EL,2EL..EP7# *H,L=166,NO.2 |
1 | ||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=140,NO.2,W/COOLER |
1 | ||
| 90099-33534 |
1EL,2EL..EP7# *H,L=800,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=240,NO.1,W/COOLER |
1 | ||
| 90445-12078 |
1EL,2EL..EP7# *H,L=166,NO.2 |
1 | ||
| 90445-12078 |
1EL,2EL..EP7#..LHD *H,L=140,NO.2,W/COOLER |
1 | ||
| 90099-33534 |
1EL,2EL..EP7# *H,L=800,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1EL,2EL#..EP7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1EL,2EL#..EP7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1EL,2EL#..EP7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1EL,2EL#..EP7# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-10010 |
1EL,2EL#..EP7# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-10010 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 16405-10020 |
1EL,2EL#..EP7# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-10010 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 16405-10020 |
1EL,2EL#..EP7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-10020 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 85338-74040 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 85338-30010 |
1EL,2EL..EP7# |
1 | ||
| 85338-70100 |
1EL,2EL..EP7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-10020 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 85338-74040 |
1EL,2EL..EP7#..LHD W/COOLER |
1 | ||
| 85338-30010 |
1EL,2EL..EP7# |
1 | ||
| 85338-70100 |
1EL,2EL..EP7# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-10010 |
1EL,2EL#..EP7# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-23008 |
1EL,2EL#..EP7# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-10020 |
1EL,2EL#..EP7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
1EL,2EL#..EP7# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
1EL,2EL#..EP7# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-10010 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-10010 |
1EL,2EL#..EP7#..MTM |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31001 |
1EL,2EL#..EP7# |
2 | ||
| 90467-31003 |
1EL,2EL#..EP7# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31001 |
1EL,2EL#..EP7# |
2 | ||
| 90467-31003 |
1EL,2EL#..EP7# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-10030 |
1EL,2EL#..EP7# |
1 | ||
| Common parts | ||||
| 90099-05164 | ||||
| 90116-08239 | ||||
| 90119-08053 | ||||
| 90179-06106 | ||||
| 90179-08040 | ||||
| 90339-16001 | ||||
| 90467-12030 | ||||
| 90467-22004 | ||||
| 91611-60835 | ||||
| 91651-40612 | ||||
| 91651-60612 | ||||
| 91651-F0816 | ||||
| 91655-60820 | ||||
| 92122-60616 | ||||
| 92122-60640 | ||||
| 92122-60835 | ||||
| 93315-14010 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
