EP71L-PHKDSW (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

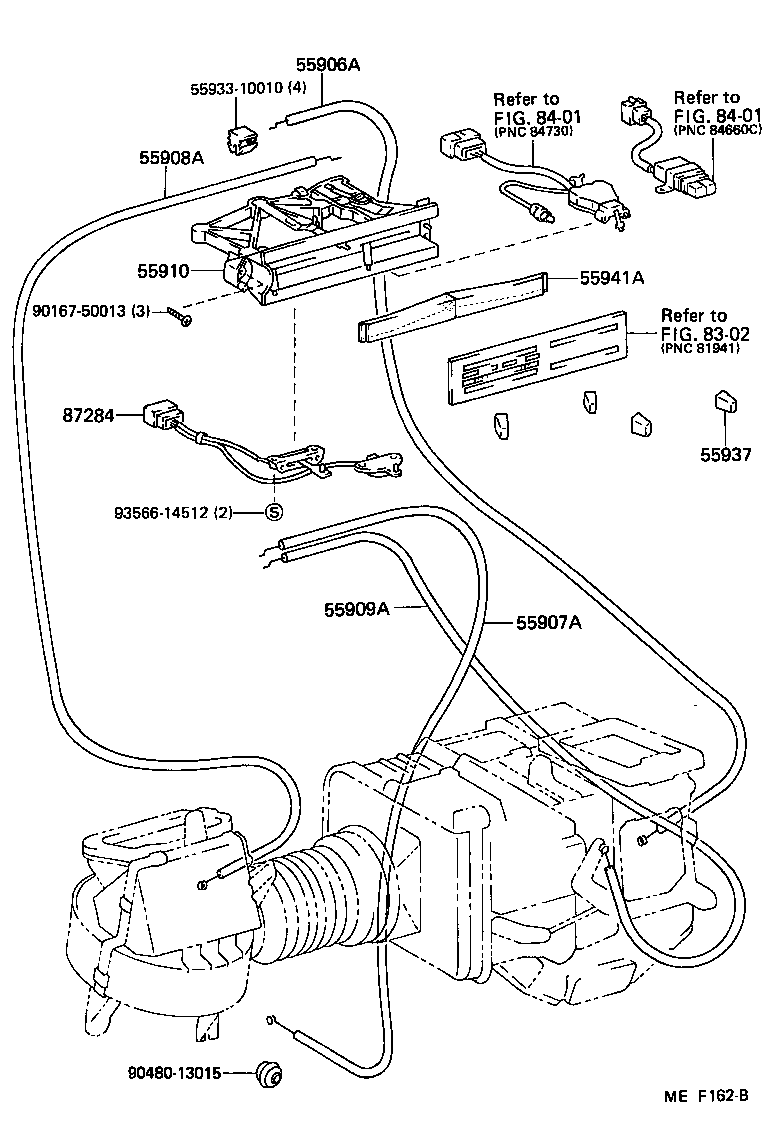

ILLUST NO. 1 OF 2(8410- )

Click highlighted areas on diagram

diagram 55906A 55907A 55908A 55909A 55910 5593310010 55937 55941A 8302 8401 8401 87284 9016750013 9048013015 9356614512
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-10160

EP7#,NP70..LHD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-10090

EP7#,NP70..LHD

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-10070

EP7#,NP70

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-10070

EP7#,NP70..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-10300

EP7#..LHD..EUG

W/BOOSTVENTILATOR & COOLER

 1
55910-10300

EP7#..LHD..MTM..EUG

W/BOOST VENTILATOR & COOLER

 1
55910-10260

EP7#,NP70..LHD

 1
55910-10280

EP7#,NP70..LHD..EUG

W/BOOST VENTILATOR

 1
55910-10280

EP7#..LHD..EUG

W/BOOSTVENTILATOR

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-10110

EP7#

 4
55905-10110

EP71..S..EUG

W/BOOSTVENTILATOR

 4
55905-10120

EP71..S

W/BOOST VENTILATOR

 4
55941A - GUIDE, HEATER CONTROL
55941-10010

EP7#,NP70

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-10040

EP7#..LHD..EUG

 1
Common parts
55933-10010
90167-50013
90480-13015
93566-14512
Linked diagrams
8302
8401

ILLUST NO. 2 OF 2(8410- )LHD

Click highlighted areas on diagram

diagram 87211 87211A 87212 87212 87213 87214 87215 87215A 9015950138 9015960025 9015960303 9015960303 9015960303 9016750013 9016750013 9018305094 9356715016
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87201-10060

EP7#,NP70..LHD..EUG

 1
87211A - DUCT, AIR, NO.2
87201-10080

EP7#..LHD

 1
87201-10081

EP7#,NP70..LHD

 1
87212 - DUCT, AIR, REAR NO.1
87202-10050

EP7#..LHD..EUG;EP71..(S,XL)..SDZ

 1
87212 - DUCT, AIR, REAR NO.1
87202-10050

EP7#..LHD..EUG;EP71..(S,XL)..SDZ

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55086-10060

EP7#..LHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-10031

EP7#..LHD

 1
55085-10030

EP7#..LHD

 1
55085-10050

EP7#..LHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55843-10040

EP7#..LHD

 1
55843-10041

EP7#..LHD

 1
Common parts
90159-50138
90159-60025
90159-60303
90167-50013
90183-05094
93567-15016
