EP71L-PHKDSW (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
2EL
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )

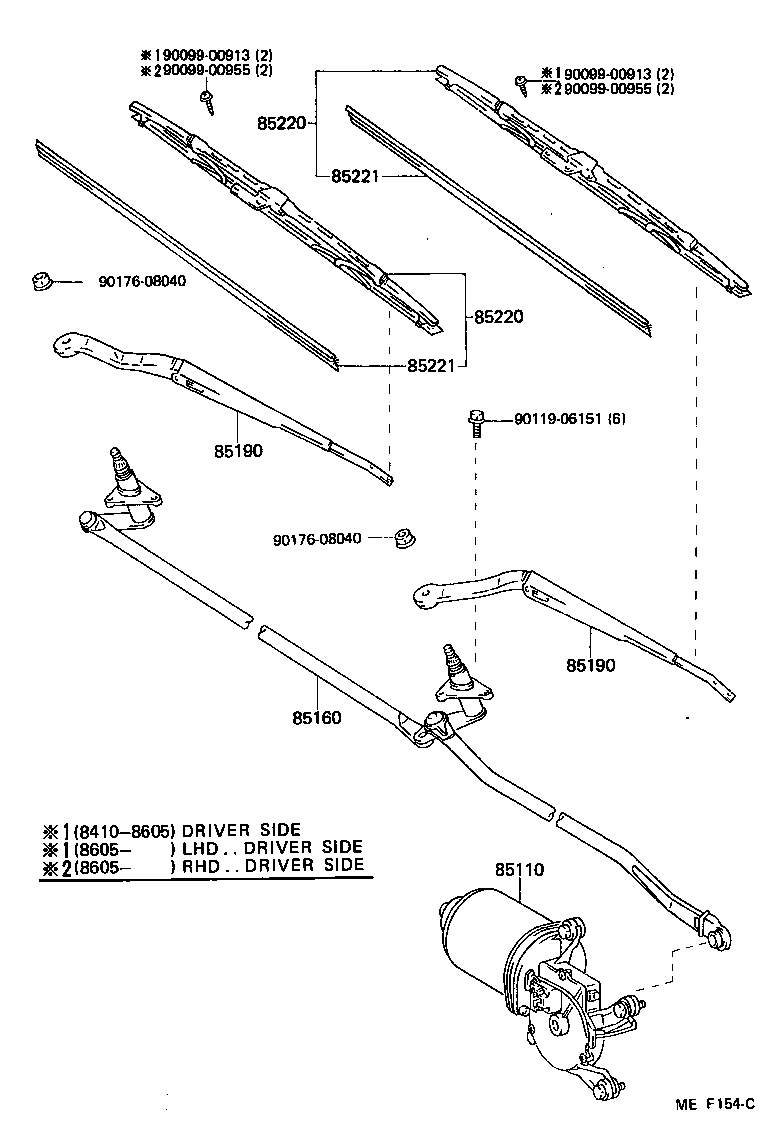

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-10270 |
EP71..LHD |
1 | ||
| 85110-10272 |
EP71..LHD |
1 | ||
| 85110-10271 |
EP71..LHD |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-10220 |
EP7#,NP70..LHD |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-10060 |
EP7#,NP70..LHD RH |
1 | ||
| 85190-10410 |
EP71..LHD LH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-10060 |
EP7#,NP70..LHD RH |
1 | ||
| 85190-10410 |
EP71..LHD LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16270 |
EP7#,NP70..LHD LH |
1 | ||
| 85220-22450 |
EP7#,NP70..LHD RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-16270 |
EP7#,NP70..LHD LH |
1 | ||
| 85220-22450 |
EP7#,NP70..LHD RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30100 |
EP7#..LHD LH |
1 | ||
| 85221-22090 |
EP7#,NP70..LHD RH |
1 | ||
| 85221-30100 |
EP7#,NP70..LHD LH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-30100 |
EP7#..LHD LH |
1 | ||
| 85221-22090 |
EP7#,NP70..LHD RH |
1 | ||
| 85221-30100 |
EP7#,NP70..LHD LH |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||
| 90099-00955 | ||||
| 90119-06151 | ||||
| 90176-08040 | ||||
