EP71L-PGMSSC (1986)
Toyota Starlet
Production
Dec 1986
-
Dec 1989
Engine
2ELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8707- )2ELC

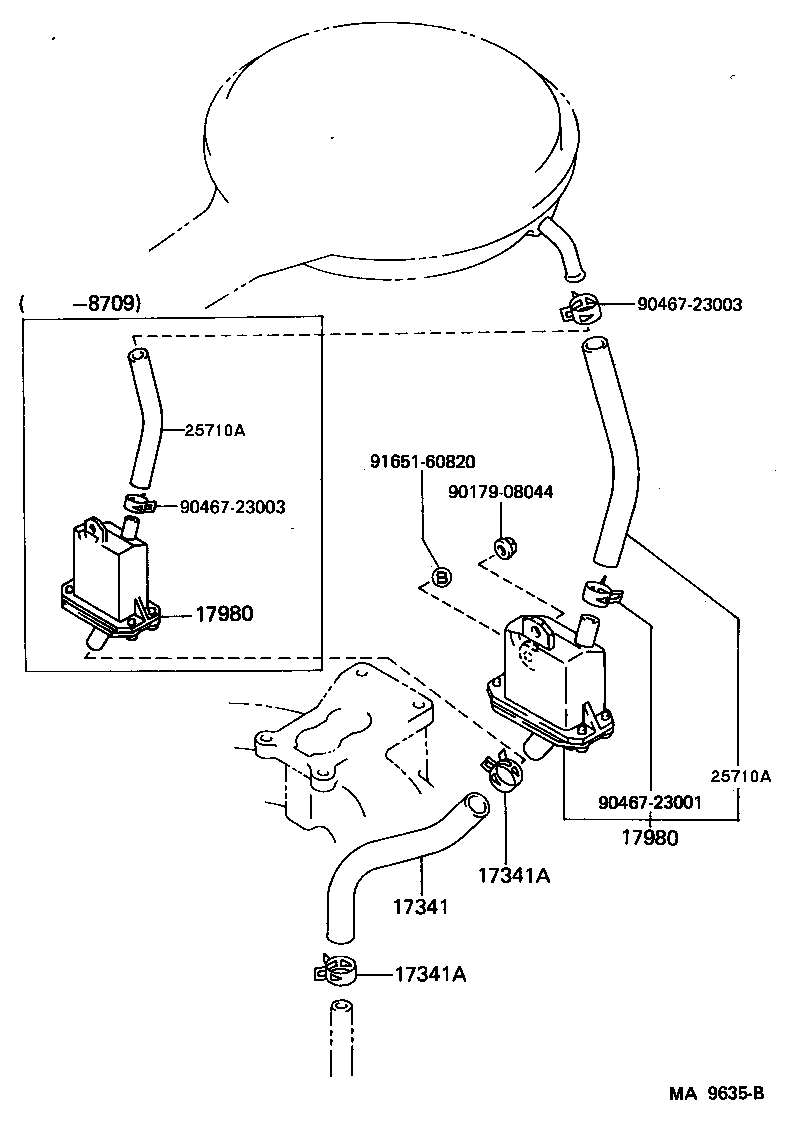

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-11080 |
2ELC..EP71 |
1 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-28003 |
2ELC..EP71 |
2 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-28003 |
2ELC..EP71 |
2 | ||
| 17980 - FILTER ASSY, AIR SUCTION | ||||
| 17980-11041 |
2ELC..EP71 |
1 | ||
| 17980-11041 |
2ELC..EP71 |
1 | ||
| 17980-11042 |
2ELC..EP71 |
1 | ||
| 17980-11020 |
2ELC..EP71 |
1 | ||
| 17980 - FILTER ASSY, AIR SUCTION | ||||
| 17980-11041 |
2ELC..EP71 |
1 | ||
| 17980-11041 |
2ELC..EP71 |
1 | ||
| 17980-11042 |
2ELC..EP71 |
1 | ||
| 17980-11020 |
2ELC..EP71 |
1 | ||
| 25710A - HOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE) | ||||
| 17341-10020 |
2ELC..EP71 |
1 | ||
| 90445-15010 |
2ELC..EP71 |
1 | ||
| 25710A - HOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE) | ||||
| 17341-10020 |
2ELC..EP71 |
1 | ||
| 90445-15010 |
2ELC..EP71 |
1 | ||
| Common parts | ||||
| 90179-08044 | ||||
| 90467-23001 | ||||
| 90467-23003 | ||||
| 91651-60820 | ||||
