EP71L-PGMSSC (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 2ELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410-8707)2EL# ; (8707- )2EL..DX..EUG ; (8707- )2EL..GL,S,STD,XL

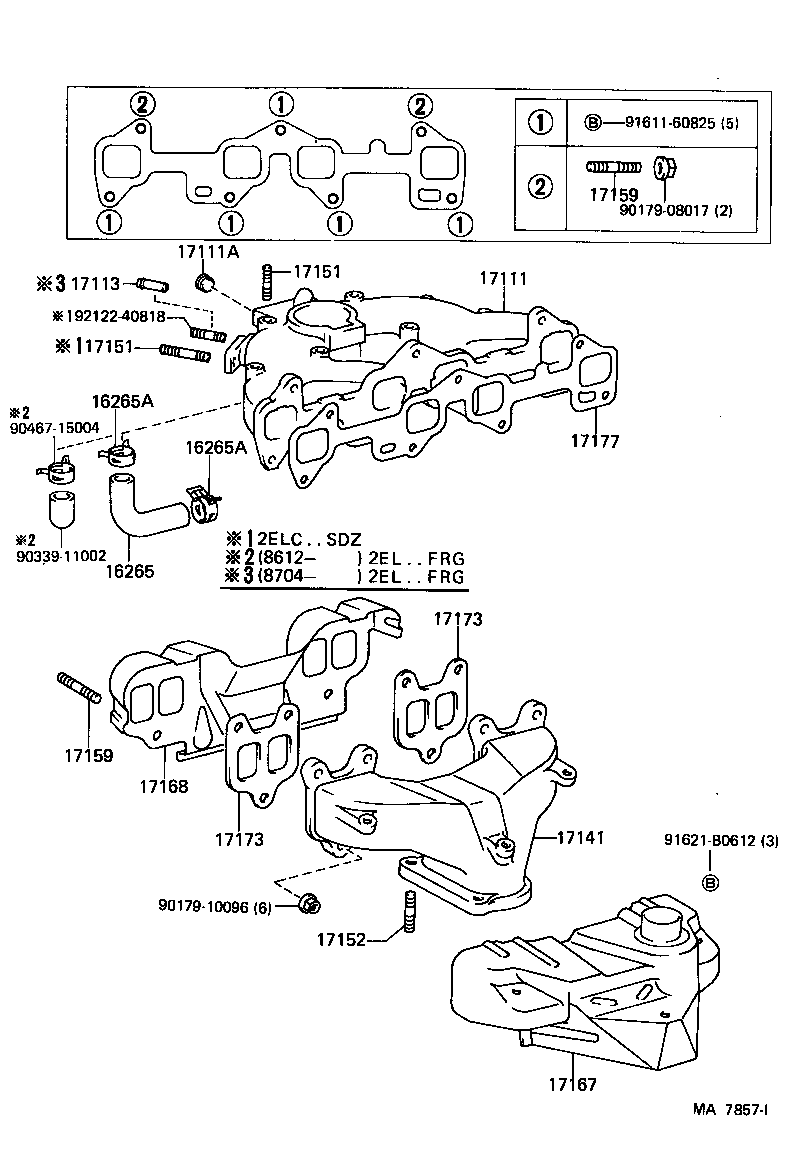

Click highlighted areas on diagram

diagram 16265 16265A 16265A 17111 17111A 17113 17141 17151 17151 17152 17159 17159 17167 17168 17173 17173 17177 9017908017 9017910096 9033911002 9046715004 9161160825 91621B0612 9212240818
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
16265-11010

1EL,2EL#..EP7#

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

1EL,2EL#..EP7#

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

1EL,2EL#..EP7#

 2
17111 - MANIFOLD, INTAKE
17101-11100

2ELC..EP71

 1
17101-11110

2EL..EP71

 1
17101-11130

2ELC..EP71

 1
17111A - PLUG, NO.1
90344-53015

2ELC..EP71

 1
90344-53015

1EL,2EL#..EP7#

 1
17141 - MANIFOLD, EXHAUST
17141-11040

2EL#..EP71..EUG,SDZ

 1
17141-11110

2ELC..EP71

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08204

2EL#..EP71

 5
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08204

2EL#..EP71

 5
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

1EL,2EL#..EP7#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61028

1EL,2EL#..EP7#

EXHAUST MANIFOLD

 6
92132-60825

1EL,2EL#..EP7#

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61028

1EL,2EL#..EP7#

EXHAUST MANIFOLD

 6
92132-60825

1EL,2EL#..EP7#

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-11020

2EL#..EP71

 1
17107-11090

2EL..EP71

 1
17107-11100

2ELC..EP71

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-10010

1EL,2EL#..EP7#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10020

1EL,2EL#..EP7#

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10020

1EL,2EL#..EP7#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-10010

1EL,2EL#..EP7#

 1
Common parts
90179-08017
90179-10096
90339-11002
90467-15004
91611-60825
91621-B0612
92122-40818

(8707- )2ELC

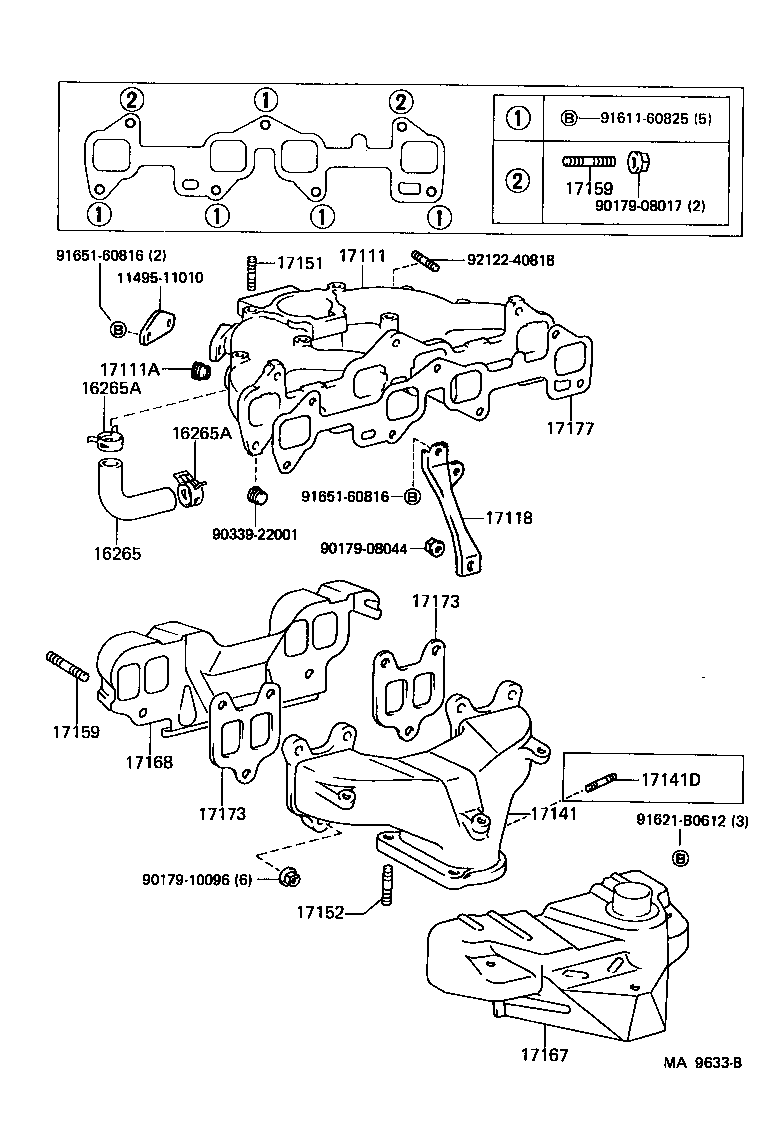

Click highlighted areas on diagram

diagram 1149511010 16265 16265A 16265A 17111 17111A 17118 17141 17141D 17151 17152 17159 17159 17167 17168 17173 17173 17177 9017908017 9017908044 9017910096 9033922001 9161160825 91621B0612 9165160816 9165160816 9212240818
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
16265-11010

1EL,2EL#..EP7#

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

1EL,2EL#..EP7#

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

1EL,2EL#..EP7#

 2
17111 - MANIFOLD, INTAKE
17101-11100

2ELC..EP71

 1
17101-11110

2EL..EP71

 1
17101-11130

2ELC..EP71

 1
17111A - PLUG, NO.1
90344-53015

2ELC..EP71

 1
90344-53015

1EL,2EL#..EP7#

 1
17118 - STAY, MANIFOLD
17118-11100

2ELC..EP71

 1
17141 - MANIFOLD, EXHAUST
17141-11040

2EL#..EP71..EUG,SDZ

 1
17141-11110

2ELC..EP71

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

2ELC..EP71

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08204

2EL#..EP71

 5
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

1EL,2EL#..EP7#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61028

1EL,2EL#..EP7#

EXHAUST MANIFOLD

 6
92132-60825

1EL,2EL#..EP7#

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61028

1EL,2EL#..EP7#

EXHAUST MANIFOLD

 6
92132-60825

1EL,2EL#..EP7#

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-11020

2EL#..EP71

 1
17107-11090

2EL..EP71

 1
17107-11100

2ELC..EP71

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-10010

1EL,2EL#..EP7#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10020

1EL,2EL#..EP7#

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10020

1EL,2EL#..EP7#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-10010

1EL,2EL#..EP7#

 1
Common parts
11495-11010
90179-08017
90179-08044
90179-10096
90339-22001
91611-60825
91621-B0612
91651-60816
92122-40818
