EP71L-PGMNSC (1984)

Toyota Starlet

Production Oct 1984 - Dec 1985
Engine 2ELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

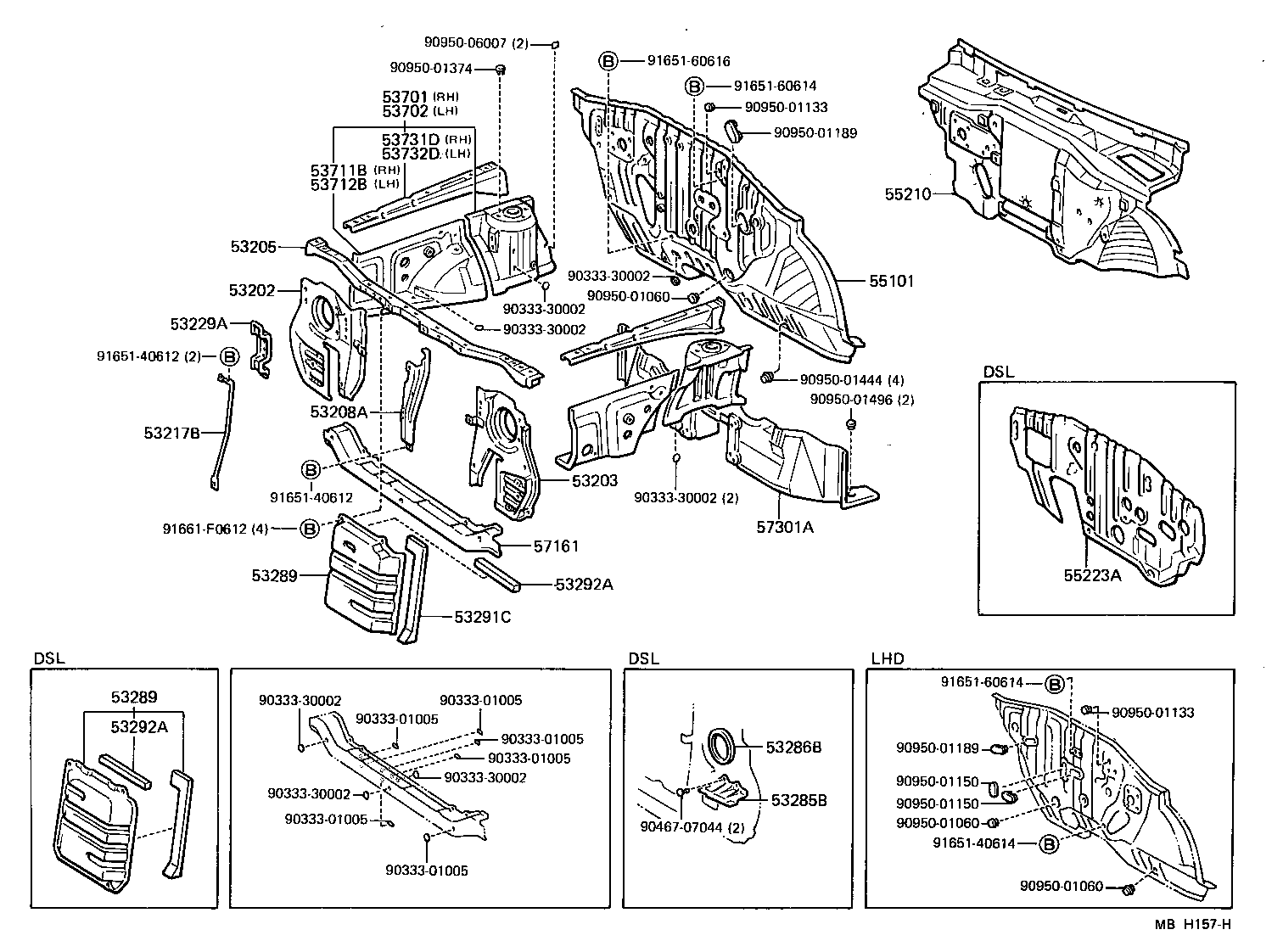

Click highlighted areas on diagram

diagram 53202 53203 53205 53208A 53217B 53229A 53285B 53286B 53289 53289 53291C 53292A 53292A 53701 53702 53711B 53712B 53731D 53732D 55101 55210 55223A 57161 57301A 9033301005 9033301005 9033301005 9033301005 9033301005 9033301005 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9033330002 9046707044 9095001060 9095001060 9095001060 9095001133 9095001133 9095001150 9095001150 9095001189 9095001189 9095001374 9095001444 9095001496 9095006007 9165140612 9165140612 9165140614 9165160614 9165160614 9165160616 91661F0612
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-10100

EP7#,NP70

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-10140

EP7#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-10900

EP7#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-10040

EP7#,NP70

 1
53229A - BRACKET, RADIATOR GRILLE MOUNTING
53223-10060

EP7#,NP70

RH

 1
53224-10030

EP7#,NP70

LH

 1
53289 - COVER, RADIATOR SIDE BAFFLE
53289-10030

EP7#

 1
53289 - COVER, RADIATOR SIDE BAFFLE
53289-10030

EP7#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-10290

EP7#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-10330

EP7#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-10120

EP7#,NP70

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-10190

EP7#,NP70

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-10040

EP7#,NP70

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-10040

EP7#,NP70

 1
55101 - PANEL SUB-ASSY, DASH
55101-10927

EP71..LHD..MTM

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-10130

EP7#..LHD..MTM

 1
57161 - CROSSMEMBER, FRONT
57161-10902

EP71..3D..SDZ

W/*HC

 1
57161-10901

EP7#

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-10020

EP7#..LHD

 1
Common parts
90333-01005
90333-30002
90467-07044
90950-01060
90950-01133
90950-01150
90950-01189
90950-01374
90950-01444
90950-01496
90950-06007
91651-40612
91651-40614
91651-60614
91651-60616
91661-F0612
