EP71L-PGMNSC (1984)

Toyota Starlet

Production Oct 1984 - Dec 1985
Engine 2ELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

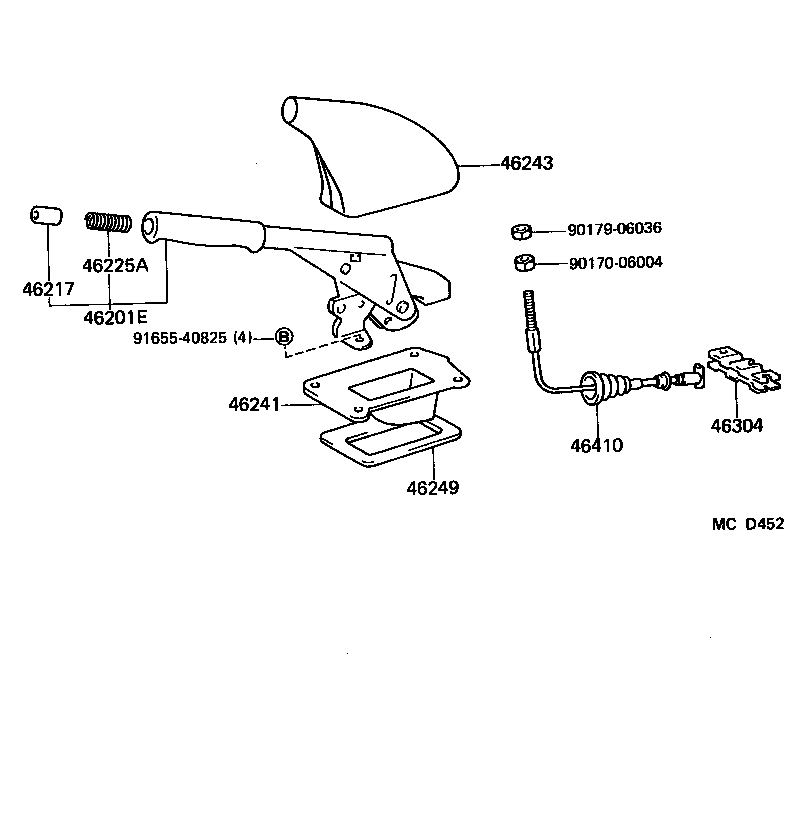

ILLUST NO. 1 OF 2(8410- )

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46243 46249 46304 46410 9017006004 9017906036 9165540825
Part # Description Qty Price
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002001

EP7#,NP70

BLACK,BLACK,TRIM1#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

EP7#,NP70

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-20050

EP7#,NP70

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-20020

EP7#,NP70

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-16020

EP7#,NP70

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-10050

EP7#,NP70

 1
Common parts
90170-06004
90179-06036
91655-40825

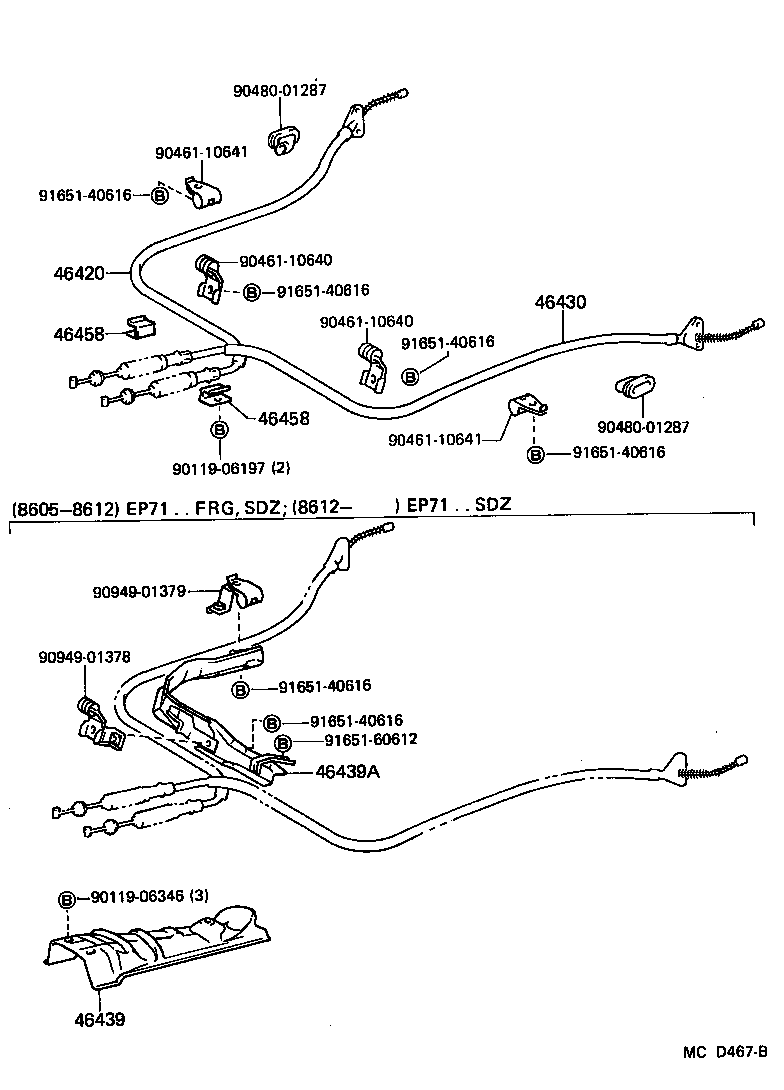

ILLUST NO. 2 OF 2(8410- )

Click highlighted areas on diagram

diagram 46420 46430 46439 46439A 46458 46458 9011906197 9011906346 9046110640 9046110640 9046110641 9046110641 9048001287 9048001287 9094901378 9094901379 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165160612
Part # Description Qty Price
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-10080

EP7#,NP70

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-10070

EP7#,NP70

 1
46458 - RETAINER, CABLE
46458-20020

EP7#,NP70

 2
46458 - RETAINER, CABLE
46458-20020

EP7#,NP70

 2
Common parts
90119-06197
90119-06346
90461-10640
90461-10641
90480-01287
90949-01378
90949-01379
91651-40616
91651-60612
