EP71L-PGMNSC (1984)

Toyota Starlet

Production Oct 1984 - Dec 1985
Engine 2ELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )1EL,2EL#

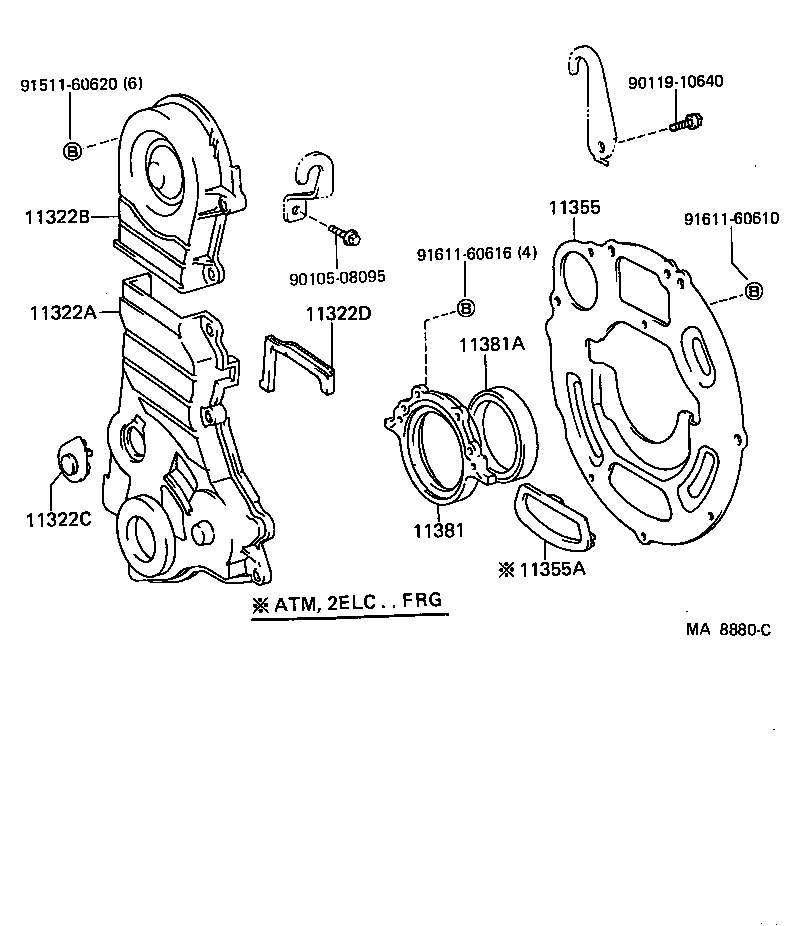

Click highlighted areas on diagram

diagram 11322A 11322B 11322C 11322D 11355 11355A 11381 11381A 9010508095 9011910640 9151160620 9161160610 9161160616
Part # Description Qty Price
11322A - COVER, TIMING BELT, NO.1
11302-11020

2EL#..EP71

 1
11322B - COVER, TIMING BELT, NO.2
11303-10020

1EL,2EL#..EP7#

 1
11322C - COVER, TIMING BELT, NO.3
11323-10010

1EL,2EL#..EP7#

 1
11355 - PLATE, REAR END
11355-10010

1EL,2EL#..EP7#..MTM..(EUG,SDZ)

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-10010

1EL,2EL#..EP7#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75004

1EL,2EL#..EP7#

 1
Common parts
90105-08095
90119-10640
91511-60620
91611-60610
91611-60616
