EP71L-PGMDSW (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

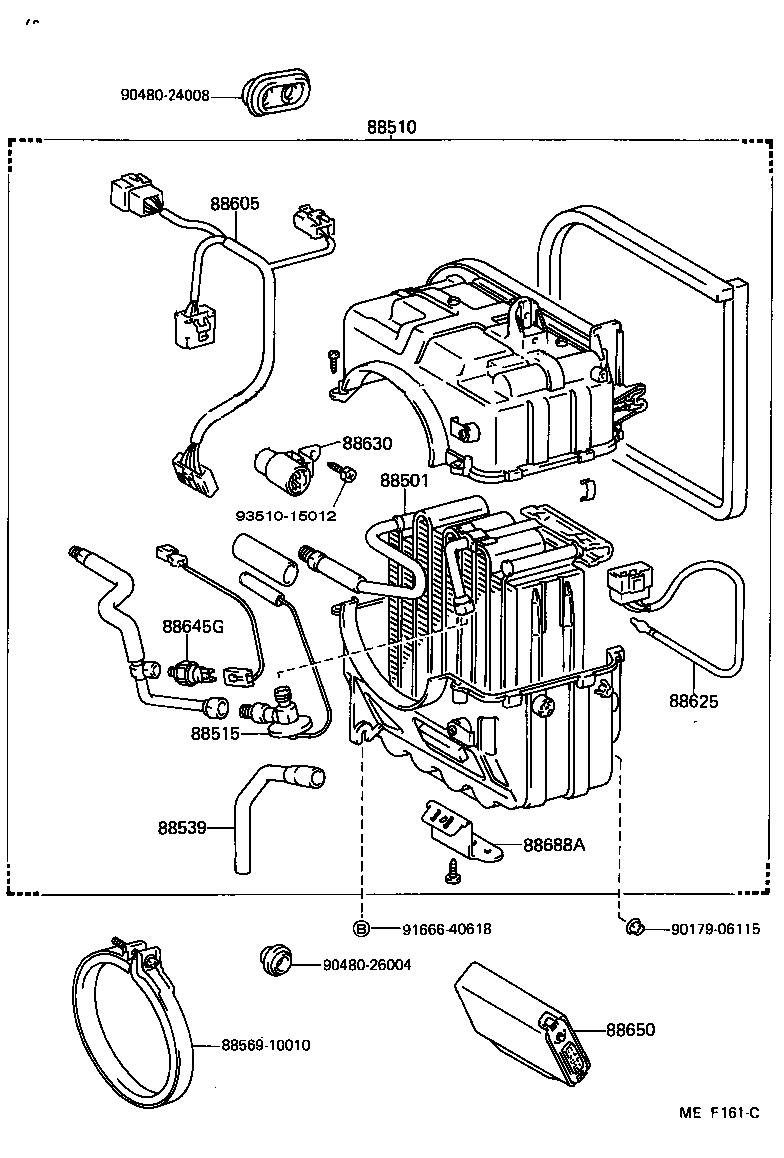

Click highlighted areas on diagram

diagram 88501 88510 88515 88539 8856910010 88605 88625 88630 88645G 88650 88688A 9017906115 9048024008 9048026004 9166640618 9351015012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10090

EP7#..LHD..EUG

 1
88501-10091

EP7#..LHD..EUG

 1
88501-10091

EP7#..LHD..MTM..EUG

 1
88510 - UNIT ASSY, COOLER
88510-10150

EP7#..LHD..MTM..EUG

W/HEATER

 1
88510-10170

EP7#..LHD..EUG

W/BOOST VENTILATOR

 1
88510-10150

EP7#..LHD..EUG

W/HEATER

 1
88510-10170

EP7#..LHD..MTM..EUG

W/BOOST VENTILATOR

 1
88515 - VALVE, COOLER EXPANSION
88515-16031

EP7#..LHD..EUG

 1
88515-16031

EP7#..LHD..MTM..EUG

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12080

EP7#..LHD..EUG

 1
88539-12080

EP7#..LHD..MTM..EUG

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-10230

EP7#..LHD..MTM..EUG

W/HEATER

 1
88605-10240

EP7#..LHD..MTM..EUG

W/BOOST VENTILATOR

 1
88605-10230

EP7#..LHD..EUG

W/HEATER

 1
88605-10240

EP7#..LHD..EUG

W/BOOST VENTILATOR

 1
88625 - THERMISTOR, COOLER, NO.1
88625-10020

EP7#..LHD..EUG

 1
88625-10020

EP7#..LHD..MTM..EUG

 1
88630 - RELAY ASSY, COOLER
88630-10040

EP7#..LHD..MTM..EUG

 1
88630-10040

EP7#..LHD..EUG

 1
88645G - SWITCH, PRESSURE
88645-10020

EP7#..LHD..EUG

 1
88645-10020

EP7#..LHD..MTM..EUG

 1
88645-12020

EP7#..LHD..EUG

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-10050

EP71..LHD..EUG

W/HEATER

 1
88650-10050

EP71..LHD..MTM..EUG

W/HEATER

 1
88650-10050

EP7#..LHD..EUG

W/HEATER

 1
88650-10060

EP7#..LHD..EUG

W/BOOST VENTILATOR

 1
88650-10060

EP71..LHD..EUG

W/BOOST VENTILATOR

 1
88650-10060

EP71..LHD..MTM..EUG

W/BOOST VENTILATOR

 1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-10060

EP7#..LHD..EUG

 1
88688-10060

EP7#..LHD..MTM..EUG

 1
Common parts
88569-10010
90179-06115
90480-24008
90480-26004
91666-40618
93510-15012
