EP71L-PGKDSW (1984)
Toyota Starlet

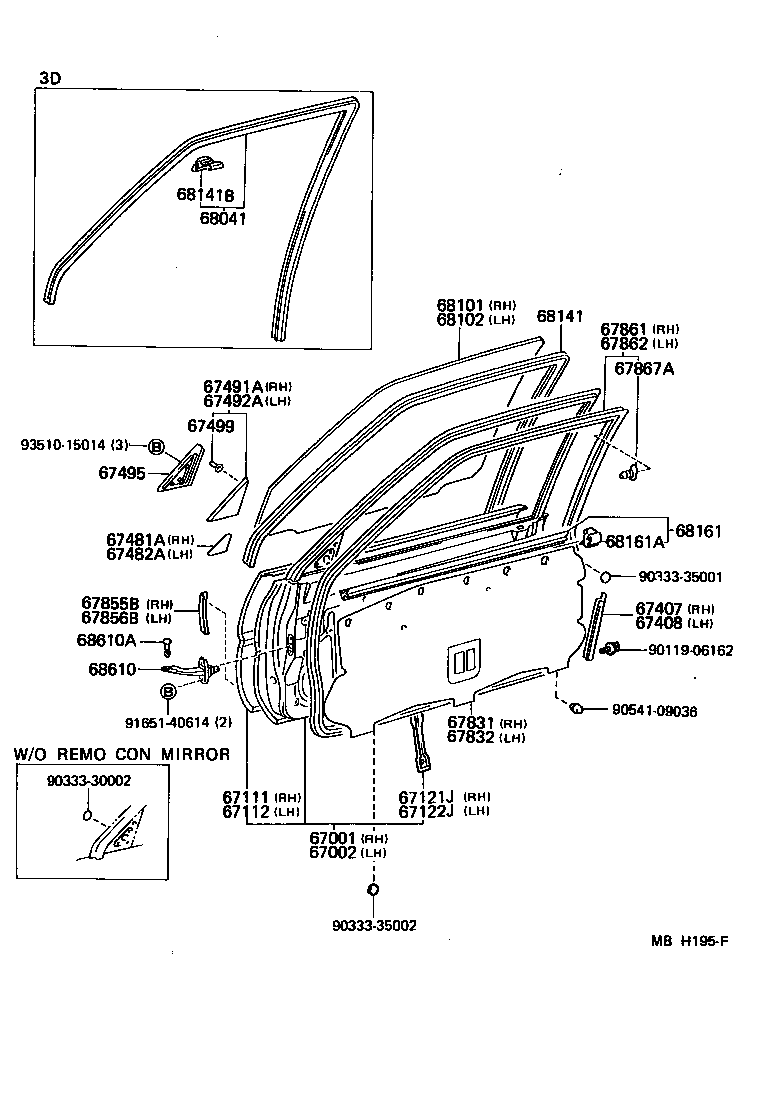

ILLUST NO. 1 OF 3(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-10290 |
EP7#..3D..(GL,XL) W/*RCM |
1 | ||
| 67001-10280 |
EP70..LHD..GL;EP71..3D..EUG;EP71..XL..SDZ;EP70..3D..(STD,XL) |
1 | ||
| 67001-10320 |
EP7#,NP70..3D |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-10290 |
EP7#..3D..(GL,XL) W/*RCM |
1 | ||
| 67002-10280 |
EP70..RHD..3D;EP7#..LHD..3D..(STD,XL) |
1 | ||
| 67002-10320 |
EP7#,NP70..3D |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-10240 |
EP7#,NP70..3D |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-10240 |
EP7#,NP70..3D |
1 | ||
| 67121J - REINFORCEMENT, FRONT DOOR OUTSIDE PANEL, RH | ||||
| 67121-10010 |
EP7#,NP70 |
1 | ||
| 67122J - REINFORCEMENT, FRONT DOOR OUTSIDE PANEL, LH | ||||
| 67121-10010 |
EP7#,NP70 |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-10020 |
EP7#..3D |
1 | ||
| 67403-10040 |
EP7#,NP70..3D |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-10040 |
EP7#,NP70..3D |
1 | ||
| 67404-10020 |
EP7#..3D |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-16130 |
EP7#,NP70 |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67481-16130 |
EP7#,NP70 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-10070 |
EP7#..3D..(DX,XL) GL PACK,S PACK |
1 | ||
| 67491-10110 |
EP7#..3D..(DX,XL) W/*RCM |
1 | ||
| 67491-10100 |
EP7#..3D..(GL,S) W/*RCM |
1 | ||
| 67491-10080 |
EP7#,NP70..3D..(STD,XL) |
1 | ||
| 67491-10100 |
EP7#..3D..(DX,XL) GL PACK,S PACK,W/*RCM |
1 | ||
| 67491-10110 |
EP7#,NP70..3D..XL W/*RCM |
1 | ||
| 67491-10070 |
EP7#,NP70..3D..XL FULL FABRIC |
1 | ||
| 67491-10100 |
EP7#,NP70..3D..XL FULL FABRIC,W/*RCM |
1 | ||
| 67491-10070 |
EP71..S |
1 | ||
| 67491-10080 |
EP7#..3D..(DX,STD,XL) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-10090 |
EP7#..3D..(DX,XL) GL PACK,S PACK,W/*RCM |
1 | ||
| 67492-10070 |
EP7#..3D..(DX,XL) GL PACK,S PACK |
1 | ||
| 67492-10080 |
EP7#..3D..(DX,STD,XL) |
1 | ||
| 67492-10100 |
EP7#..3D..(DX,XL) W/*RCM |
1 | ||
| 67492-10070 |
EP7#,NP70..3D..XL FULL FABRIC |
1 | ||
| 67492-10080 |
EP7#,NP70..3D..(STD,XL) |
1 | ||
| 67492-10090 |
EP7#..3D..(GL,S) W/*RCM |
1 | ||
| 67492-10090 |
EP7#,NP70..3D..XL FULL FABRIC,W/*RCM |
1 | ||
| 67492-10070 |
EP71..S |
1 | ||
| 67492-10100 |
EP7#,NP70..3D..XL W/*RCM |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67495-10040 |
EP7#,NP70..LHD..3D RH |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-10010 |
EP7#,NP70..3D |
2 | ||
| 67499-30010 |
EP7# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-10090 |
EP7#..3D |
1 | ||
| 67831-10091 |
EP7#,NP70..3D |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-10050 |
EP7#..3D |
1 | ||
| 67832-10051 |
EP7#,NP70..3D |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 58741-12060 |
EP7#,NP70 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 58741-12060 |
EP7#,NP70 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-10120 |
EP7#,NP70..3D |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-10120 |
EP7#,NP70..3D |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67868-30040 |
EP7#,NP70..3D |
42 | ||
| 68041 - RUN SUB-ASSY, FRONT DOOR GLASS | ||||
| 68042-10070 |
EP7#,NP70..3D LH |
1 | ||
| 68041-10070 |
EP7#,NP70..3D RH |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-10220 |
EP7#,NP70..3D *TEM,T=3.5,*TEM,T=3.5 |
1 | ||
| 68111-10240 |
EP7#,NP70..3D *TT,T=3.5,*TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-10180 |
EP7#,NP70..3D *TEM,T=3.5,*TEM,T=3.5 |
1 | ||
| 68112-10200 |
EP7#,NP70..3D *TT,T=3.5,*TT,T=3.5 |
1 | ||
| 68141B - CLIP, DOOR GLASS RUN | ||||
| 62367-16010 |
EP7#,NP70..3D |
2 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68160-10110 |
EP7#,NP70..3D RH |
1 | ||
| 68210-10090 |
EP7#,NP70..3D LH |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-10070 |
EP7#,NP70..3D |
14 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-10020 |
EP7#,NP70 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90A00 |
EP7#,NP70 |
2 | ||
| 68617-12010 |
EP7# |
2 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90333-30002 | ||||
| 90333-35001 | ||||
| 90333-35002 | ||||
| 90541-09036 | ||||
| 91651-40614 | ||||
| 93510-15014 | ||||

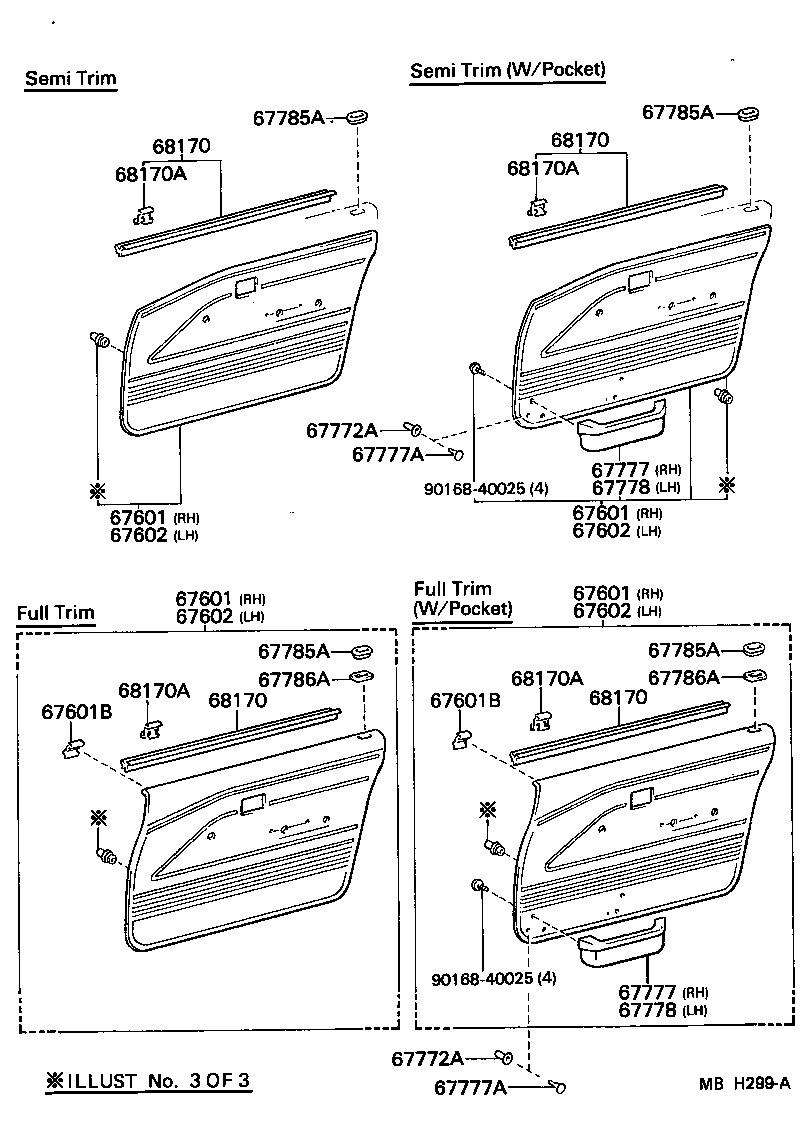

ILLUST NO. 2 OF 3(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1067004 |
EP7#..LHD..3D..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1071004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1071003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1067003 |
EP7#..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1089003 |
EP7#..LHD..3D..XL W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1089004 |
EP7#..LHD..3D..XL W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1008004 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1004004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1020004 |
EP7#..LHD..3D..XL W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1089004 |
EP7#..LHD..3D..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1020003 |
EP7#..LHD..3D..XL W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008003 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004003 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004004 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1089003 |
EP7#..LHD..3D..(DX,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008013 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008014 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1C16003 |
EP7#,NP70..LHD..3D..XL W/POCKET FULL FABRIC,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C15003 |
EP7#,NP70..LHD..3D..XL W/POCKET FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C14003 |
EP7#,NP70..3D..XL W/POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C17003 |
EP7#..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1051003 |
EP7#,NP70..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1048003 |
EP7#,NP70..3D..XL W/DOOR POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1051006 |
EP7#,NP70..LHD..3D..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1053003 |
EP71..S GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1066006 |
EP7#..3D..XL W/*SNR,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1069003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1048006 |
EP7#,NP70..3D..XL W/DOOR POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1068006 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1068003 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1066003 |
EP7#..3D..XL W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1070003 |
EP71..S W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1052003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FULL FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1067004 |
EP7#..LHD..3D..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1071004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1071003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1067003 |
EP7#..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1089003 |
EP7#..LHD..3D..XL W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1089004 |
EP7#..LHD..3D..XL W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1008004 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1004004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1020004 |
EP7#..LHD..3D..XL W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1089004 |
EP7#..LHD..3D..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1020003 |
EP7#..LHD..3D..XL W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008003 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004003 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004004 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1089003 |
EP7#..LHD..3D..(DX,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008013 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008014 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1C16003 |
EP7#,NP70..LHD..3D..XL W/POCKET FULL FABRIC,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C15003 |
EP7#,NP70..LHD..3D..XL W/POCKET FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C14003 |
EP7#,NP70..3D..XL W/POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C17003 |
EP7#..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1051003 |
EP7#,NP70..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1048003 |
EP7#,NP70..3D..XL W/DOOR POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1051006 |
EP7#,NP70..LHD..3D..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1053003 |
EP71..S GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1066006 |
EP7#..3D..XL W/*SNR,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1069003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1048006 |
EP7#,NP70..3D..XL W/DOOR POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1068006 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1068003 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1066003 |
EP7#..3D..XL W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1070003 |
EP71..S W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1052003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FULL FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1067004 |
EP7#..LHD..3D..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1071004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1071003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1067003 |
EP7#..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1089003 |
EP7#..LHD..3D..XL W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1089004 |
EP7#..LHD..3D..XL W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1008004 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1004004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1020004 |
EP7#..LHD..3D..XL W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1089004 |
EP7#..LHD..3D..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1020003 |
EP7#..LHD..3D..XL W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008003 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004003 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004004 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1089003 |
EP7#..LHD..3D..(DX,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008013 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008014 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1C16003 |
EP7#,NP70..LHD..3D..XL W/POCKET FULL FABRIC,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C15003 |
EP7#,NP70..LHD..3D..XL W/POCKET FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C14003 |
EP7#,NP70..3D..XL W/POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C17003 |
EP7#..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1051003 |
EP7#,NP70..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1048003 |
EP7#,NP70..3D..XL W/DOOR POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1051006 |
EP7#,NP70..LHD..3D..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1053003 |
EP71..S GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1066006 |
EP7#..3D..XL W/*SNR,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1069003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1048006 |
EP7#,NP70..3D..XL W/DOOR POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1068006 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1068003 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1066003 |
EP7#..3D..XL W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1070003 |
EP71..S W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1052003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FULL FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1067004 |
EP7#..LHD..3D..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1071004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1071003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1067003 |
EP7#..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1089003 |
EP7#..LHD..3D..XL W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1089004 |
EP7#..LHD..3D..XL W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1008004 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1004004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1020004 |
EP7#..LHD..3D..XL W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1089004 |
EP7#..LHD..3D..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 67650-1020003 |
EP7#..LHD..3D..XL W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008003 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004003 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1004004 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1089003 |
EP7#..LHD..3D..(DX,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008013 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1008014 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1C16003 |
EP7#,NP70..LHD..3D..XL W/POCKET FULL FABRIC,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C15003 |
EP7#,NP70..LHD..3D..XL W/POCKET FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C14003 |
EP7#,NP70..3D..XL W/POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-1C17003 |
EP7#..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1051003 |
EP7#,NP70..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1048003 |
EP7#,NP70..3D..XL W/DOOR POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1051006 |
EP7#,NP70..LHD..3D..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1053003 |
EP71..S GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1066006 |
EP7#..3D..XL W/*SNR,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1069003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1048006 |
EP7#,NP70..3D..XL W/DOOR POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1068006 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67650-1068003 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1066003 |
EP7#..3D..XL W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1070003 |
EP71..S W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67650-1052003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FULL FABRIC,GRAY,GRAY,TRIM1# |
1 | ||

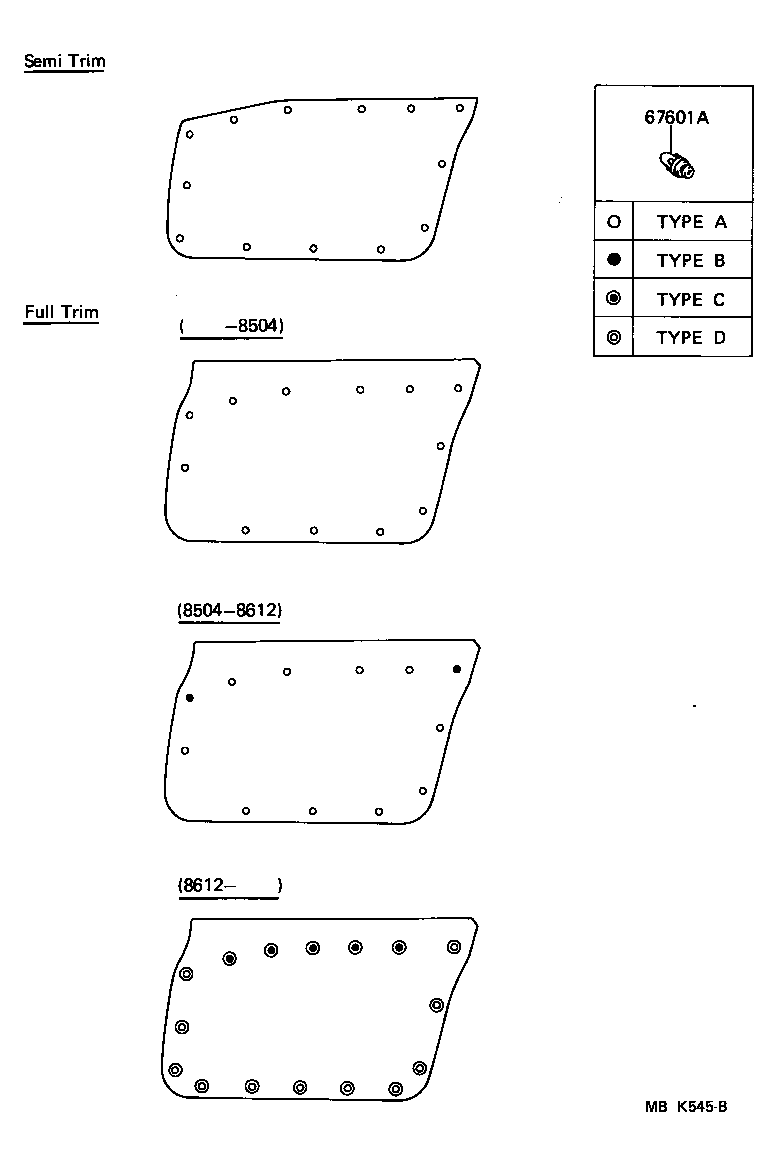

| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 68211-10080 |
EP7#,NP70..3D..XL FULL FABRIC,FB-G |
2 | ||
| 68211-10080 |
EP7#..GL,S |
2 | ||
| 68211-10080 |
EP7#..DX,XL GL PACK,S PACK |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 68211-10080 |
EP7#,NP70..3D..XL FULL FABRIC,FB-G |
2 | ||
| 68211-10080 |
EP7#..GL,S |
2 | ||
| 68211-10080 |
EP7#..DX,XL GL PACK,S PACK |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1065003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1065004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1074004 |
EP7#..LHD..3D..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1074003 |
EP7#..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1089003 |
EP7#..LHD..3D..XL W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C01004 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C01003 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1089004 |
EP7#..LHD..3D..XL W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1087004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C13004 |
EP7#..LHD..3D..XL W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1087003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C13003 |
EP7#..LHD..3D..XL W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1087004 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1089003 |
EP7#..LHD..3D..(DX,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C01014 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1089004 |
EP7#..LHD..3D..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C01013 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1087003 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C35003 |
EP7#,NP70..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C35006 |
EP7#,NP70..LHD..3D..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C39003 |
EP71..S GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C34006 |
EP7#,NP70..3D..XL W/DOOR POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C52003 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C51006 |
EP7#..3D..XL W/*SNR,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C52006 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C34003 |
EP7#,NP70..3D..XL W/DOOR POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C38003 |
EP7#,NP70..LHD..3D..XL W/POCKET FULL FABRIC,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C51003 |
EP7#..3D..XL W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C54003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FULL FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C55003 |
EP71..S W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C88003 |
EP7#..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C87003 |
EP7#,NP70..3D..XL W/POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1065003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1065004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1074004 |
EP7#..LHD..3D..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1074003 |
EP7#..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1089003 |
EP7#..LHD..3D..XL W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C01004 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C01003 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1089004 |
EP7#..LHD..3D..XL W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1087004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C13004 |
EP7#..LHD..3D..XL W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1087003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C13003 |
EP7#..LHD..3D..XL W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1087004 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1089003 |
EP7#..LHD..3D..(DX,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C01014 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1089004 |
EP7#..LHD..3D..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C01013 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1087003 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C35003 |
EP7#,NP70..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C35006 |
EP7#,NP70..LHD..3D..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C39003 |
EP71..S GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C34006 |
EP7#,NP70..3D..XL W/DOOR POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C52003 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C51006 |
EP7#..3D..XL W/*SNR,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C52006 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C34003 |
EP7#,NP70..3D..XL W/DOOR POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C38003 |
EP7#,NP70..LHD..3D..XL W/POCKET FULL FABRIC,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C51003 |
EP7#..3D..XL W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C54003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FULL FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C55003 |
EP71..S W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C88003 |
EP7#..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C87003 |
EP7#,NP70..3D..XL W/POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1065003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1065004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1074004 |
EP7#..LHD..3D..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1074003 |
EP7#..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1089003 |
EP7#..LHD..3D..XL W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C01004 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C01003 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1089004 |
EP7#..LHD..3D..XL W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1087004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C13004 |
EP7#..LHD..3D..XL W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1087003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C13003 |
EP7#..LHD..3D..XL W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1087004 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1089003 |
EP7#..LHD..3D..(DX,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C01014 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1089004 |
EP7#..LHD..3D..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C01013 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1087003 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C35003 |
EP7#,NP70..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C35006 |
EP7#,NP70..LHD..3D..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C39003 |
EP71..S GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C34006 |
EP7#,NP70..3D..XL W/DOOR POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C52003 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C51006 |
EP7#..3D..XL W/*SNR,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C52006 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C34003 |
EP7#,NP70..3D..XL W/DOOR POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C38003 |
EP7#,NP70..LHD..3D..XL W/POCKET FULL FABRIC,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C51003 |
EP7#..3D..XL W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C54003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FULL FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C55003 |
EP71..S W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C88003 |
EP7#..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C87003 |
EP7#,NP70..3D..XL W/POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1065003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1065004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1074004 |
EP7#..LHD..3D..XL BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1074003 |
EP7#..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1089003 |
EP7#..LHD..3D..XL W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C01004 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C01003 |
EP7#..LHD..3D..XL W/SUN ROOF,FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1089004 |
EP7#..LHD..3D..XL W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1087004 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C13004 |
EP7#..LHD..3D..XL W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1087003 |
EP7#..3D..XL..(EUG,FRG) GL PACK,W/SUN ROOF,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C13003 |
EP7#..LHD..3D..XL W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1087004 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1089003 |
EP7#..LHD..3D..(DX,XL) GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C01014 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1089004 |
EP7#..LHD..3D..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1C01013 |
EP7#..LHD..3D..(DX,XL) W/FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1087003 |
EP7#..3D..(DX,XL)..(EUG,FRG) GL PACK,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C35003 |
EP7#,NP70..LHD..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C35006 |
EP7#,NP70..LHD..3D..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C39003 |
EP71..S GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C34006 |
EP7#,NP70..3D..XL W/DOOR POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C52003 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C51006 |
EP7#..3D..XL W/*SNR,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C52006 |
EP7#,NP70..LHD..3D..XL W/*SNR,POCKET,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-1C34003 |
EP7#,NP70..3D..XL W/DOOR POCKET,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C38003 |
EP7#,NP70..LHD..3D..XL W/POCKET FULL FABRIC,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C51003 |
EP7#..3D..XL W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C54003 |
EP7#,NP70..3D..XL W/*SNR,POCKET,FULL FABRIC,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C55003 |
EP71..S W/*SNR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C88003 |
EP7#..3D..XL W/*SNR,POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-1C87003 |
EP7#,NP70..3D..XL W/POCKET,FB-G,GRAY,GRAY,TRIM1# |
1 | ||
| 67772A - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-20040 |
EP7#..GL,S |
2 | ||
| 67772-20040 |
EP7#..DX,XL GL PACK,S PACK |
2 | ||
| 67772-20040 |
EP7#,NP70..XL |
1 | ||
| 67772-20040 |
EP7#..DX,XL |
1 | ||
| 67772-20040 |
EP7#,NP70..3D..XL FB-G |
2 | ||
| 67772A - CAP, FRONT DOOR TRIM RETAINER | ||||
| 67772-20040 |
EP7#..GL,S |
2 | ||
| 67772-20040 |
EP7#..DX,XL GL PACK,S PACK |
2 | ||
| 67772-20040 |
EP7#,NP70..XL |
1 | ||
| 67772-20040 |
EP7#..DX,XL |
1 | ||
| 67772-20040 |
EP7#,NP70..3D..XL FB-G |
2 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204024 |
EP7#..LHD..(DX,XL) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67777-1002006 |
EP7#..GL,S BROWN,BROWN,TRIM4# |
1 | ||
| 67777-1002003 |
EP7#..GL,S GRAY,GRAY,TRIM1# |
1 | ||
| 67777-1002003 |
EP7#,NP70..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67777-2204023 |
EP7#..LHD..(DX,XL) GL PACK,S PACK,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1002006 |
EP7#,NP70..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204024 |
EP7#..LHD..(DX,XL) GL PACK,BLUE,BLUE,TRIM8# |
1 | ||
| 67777-1002006 |
EP7#..GL,S BROWN,BROWN,TRIM4# |
1 | ||
| 67777-1002003 |
EP7#..GL,S GRAY,GRAY,TRIM1# |
1 | ||
| 67777-1002003 |
EP7#,NP70..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67777-2204023 |
EP7#..LHD..(DX,XL) GL PACK,S PACK,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1002006 |
EP7#,NP70..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67777A - CLIP, FRONT DOOR POCKET | ||||
| 90467-0704314 |
EP7#..DX,XL GL PACK,BLUE,BLUE,TRIM8# |
2 | ||
| 90467-0704303 |
EP7#..DX,XL GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 90467-0704314 |
EP7#..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 90467-0704303 |
EP7#..GL,S GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 90467-0704303 |
EP7#,NP70..XL GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 90467-0704303 |
EP7#..DX,XL GL PACK,S PACK,GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 90467-0704306 |
EP7#,NP70..XL BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 90467-0704303 |
EP7#,NP70..3D..XL FB-G,GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 90467-0704306 |
EP7#..GL,S BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 67777A - CLIP, FRONT DOOR POCKET | ||||
| 90467-0704314 |
EP7#..DX,XL GL PACK,BLUE,BLUE,TRIM8# |
2 | ||
| 90467-0704303 |
EP7#..DX,XL GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 90467-0704314 |
EP7#..DX,XL BLUE,BLUE,TRIM8# |
1 | ||
| 90467-0704303 |
EP7#..GL,S GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 90467-0704303 |
EP7#,NP70..XL GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 90467-0704303 |
EP7#..DX,XL GL PACK,S PACK,GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 90467-0704306 |
EP7#,NP70..XL BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 90467-0704303 |
EP7#,NP70..3D..XL FB-G,GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 90467-0704306 |
EP7#..GL,S BROWN,SEPIA BROWN,TRIM4# |
2 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203034 |
EP7#..LHD..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 67778-2203023 |
EP7#..LHD..(DX,XL) GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1002003 |
EP7#..GL,S GRAY,GRAY,TRIM1# |
1 | ||
| 67777-1002006 |
EP7#,NP70..3D..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67777-1002006 |
EP7#..GL,S BROWN,BROWN,TRIM4# |
1 | ||
| 67777-1002003 |
EP7#,NP70..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-2203034 |
EP7#..LHD..(DX,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 67778-2203023 |
EP7#..LHD..(DX,XL) GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67777-1002003 |
EP7#..GL,S GRAY,GRAY,TRIM1# |
1 | ||
| 67777-1002006 |
EP7#,NP70..3D..XL BROWN,BROWN,TRIM4# |
1 | ||
| 67777-1002006 |
EP7#..GL,S BROWN,BROWN,TRIM4# |
1 | ||
| 67777-1002003 |
EP7#,NP70..3D..XL GRAY,GRAY,TRIM1# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-1201001 |
EP7#,NP70..3D..XL FUEL FABRIC,FB-G,BLACK,BLACK |
2 | ||
| 69751-1201001 |
EP7#..DX,XL GL PACK,S PACK,BLACK,BLACK |
2 | ||
| 69751-2003101 |
NP70..STD;EP71..3D..XL..SDZ;EP7#..(DX,STD,XL)..(EUG,FRG) BLACK,BLACK |
2 | ||
| 69751-1201001 |
EP7#..GL,S BLACK,BLACK |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-1201001 |
EP7#,NP70..3D..XL FUEL FABRIC,FB-G,BLACK,BLACK |
2 | ||
| 69751-1201001 |
EP7#..DX,XL GL PACK,S PACK,BLACK,BLACK |
2 | ||
| 69751-2003101 |
NP70..STD;EP71..3D..XL..SDZ;EP7#..(DX,STD,XL)..(EUG,FRG) BLACK,BLACK |
2 | ||
| 69751-1201001 |
EP7#..GL,S BLACK,BLACK |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-1201001 |
EP7#,NP70..3D..XL FUEL FABRIC,FB-G,BLACK,BLACK |
2 | ||
| 69751-1201001 |
EP7#..DX,XL GL PACK,S PACK,BLACK,BLACK |
2 | ||
| 69751-2003101 |
NP70..STD;EP71..3D..XL..SDZ;EP7#..(DX,STD,XL)..(EUG,FRG) BLACK,BLACK |
2 | ||
| 69751-1201001 |
EP7#..GL,S BLACK,BLACK |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-1201001 |
EP7#,NP70..3D..XL FUEL FABRIC,FB-G,BLACK,BLACK |
2 | ||
| 69751-1201001 |
EP7#..DX,XL GL PACK,S PACK,BLACK,BLACK |
2 | ||
| 69751-2003101 |
NP70..STD;EP71..3D..XL..SDZ;EP7#..(DX,STD,XL)..(EUG,FRG) BLACK,BLACK |
2 | ||
| 69751-1201001 |
EP7#..GL,S BLACK,BLACK |
2 | ||
| 67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67786-12010 |
EP7#,NP70..3D..XL FULL FABRIC,FB-G |
2 | ||
| 67786-12010 |
EP7#..DX,XL GL PACK,S PACK |
2 | ||
| 67786-12010 |
EP7#..GL,S |
2 | ||
| 67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67786-12010 |
EP7#,NP70..3D..XL FULL FABRIC,FB-G |
2 | ||
| 67786-12010 |
EP7#..DX,XL GL PACK,S PACK |
2 | ||
| 67786-12010 |
EP7#..GL,S |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-10130 |
EP7#..3D..(DX,STD,XL) RH |
1 | ||
| 68220-10110 |
EP7#..3D..(DX,STD,XL) LH |
1 | ||
| 68220-10110 |
EP7#,NP70..3D..(STD,XL) LH |
1 | ||
| 68171-10070 |
EP7#..3D..(GL,S) RH |
1 | ||
| 68171-10070 |
EP7#,NP70..LHD..3D..XL FULL FABRIC,FB-G,RH |
1 | ||
| 68172-10040 |
EP7#..3D..(GL,S) LH |
1 | ||
| 68170-10130 |
EP7#,NP70..3D..(STD,XL) RH |
1 | ||
| 68172-10040 |
EP7#,NP70..LHD..3D..XL FULL FABRIC,FB-G,LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-10130 |
EP7#..3D..(DX,STD,XL) RH |
1 | ||
| 68220-10110 |
EP7#..3D..(DX,STD,XL) LH |
1 | ||
| 68220-10110 |
EP7#,NP70..3D..(STD,XL) LH |
1 | ||
| 68171-10070 |
EP7#..3D..(GL,S) RH |
1 | ||
| 68171-10070 |
EP7#,NP70..LHD..3D..XL FULL FABRIC,FB-G,RH |
1 | ||
| 68172-10040 |
EP7#..3D..(GL,S) LH |
1 | ||
| 68170-10130 |
EP7#,NP70..3D..(STD,XL) RH |
1 | ||
| 68172-10040 |
EP7#,NP70..LHD..3D..XL FULL FABRIC,FB-G,LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-10130 |
EP7#..3D..(DX,STD,XL) RH |
1 | ||
| 68220-10110 |
EP7#..3D..(DX,STD,XL) LH |
1 | ||
| 68220-10110 |
EP7#,NP70..3D..(STD,XL) LH |
1 | ||
| 68171-10070 |
EP7#..3D..(GL,S) RH |
1 | ||
| 68171-10070 |
EP7#,NP70..LHD..3D..XL FULL FABRIC,FB-G,RH |
1 | ||
| 68172-10040 |
EP7#..3D..(GL,S) LH |
1 | ||
| 68170-10130 |
EP7#,NP70..3D..(STD,XL) RH |
1 | ||
| 68172-10040 |
EP7#,NP70..LHD..3D..XL FULL FABRIC,FB-G,LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-10130 |
EP7#..3D..(DX,STD,XL) RH |
1 | ||
| 68220-10110 |
EP7#..3D..(DX,STD,XL) LH |
1 | ||
| 68220-10110 |
EP7#,NP70..3D..(STD,XL) LH |
1 | ||
| 68171-10070 |
EP7#..3D..(GL,S) RH |
1 | ||
| 68171-10070 |
EP7#,NP70..LHD..3D..XL FULL FABRIC,FB-G,RH |
1 | ||
| 68172-10040 |
EP7#..3D..(GL,S) LH |
1 | ||
| 68170-10130 |
EP7#,NP70..3D..(STD,XL) RH |
1 | ||
| 68172-10040 |
EP7#,NP70..LHD..3D..XL FULL FABRIC,FB-G,LH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
EP7#..3D..(DX,XL) GL PACK,S PACK |
16 | ||
| 67773-12010 |
EP7#,NP70..3D..XL FULL FABRIC,FB-G |
16 | ||
| 68211-10030 |
EP7#..3D..(DX,STD,XL) |
16 | ||
| 68211-10030 |
EP7#,NP70..3D..(STD,XL) |
16 | ||
| 67773-12010 |
EP7#..3D..(GL,S) |
16 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
EP7#..3D..(DX,XL) GL PACK,S PACK |
16 | ||
| 67773-12010 |
EP7#,NP70..3D..XL FULL FABRIC,FB-G |
16 | ||
| 68211-10030 |
EP7#..3D..(DX,STD,XL) |
16 | ||
| 68211-10030 |
EP7#,NP70..3D..(STD,XL) |
16 | ||
| 67773-12010 |
EP7#..3D..(GL,S) |
16 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
EP7#..3D..(DX,XL) GL PACK,S PACK |
16 | ||
| 67773-12010 |
EP7#,NP70..3D..XL FULL FABRIC,FB-G |
16 | ||
| 68211-10030 |
EP7#..3D..(DX,STD,XL) |
16 | ||
| 68211-10030 |
EP7#,NP70..3D..(STD,XL) |
16 | ||
| 67773-12010 |
EP7#..3D..(GL,S) |
16 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
EP7#..3D..(DX,XL) GL PACK,S PACK |
16 | ||
| 67773-12010 |
EP7#,NP70..3D..XL FULL FABRIC,FB-G |
16 | ||
| 68211-10030 |
EP7#..3D..(DX,STD,XL) |
16 | ||
| 68211-10030 |
EP7#,NP70..3D..(STD,XL) |
16 | ||
| 67773-12010 |
EP7#..3D..(GL,S) |
16 | ||
| Common parts | ||||
| 90168-40025 | ||||
ILLUST NO. 3 OF 3(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16020 |
EP7# TYPE A |
1 | ||
| 67771-30060 |
EP7#..DX,XL GL PACK,S PACK,TYPE B |
4 | ||
| 67771-22010 |
EP7#,NP70..3D TYPE D |
10 | ||
| 67771-16080 |
EP7#,NP70 TYPE C |
33 | ||
Part Price Details
Loading price information...
Part Number:
Price:
