EP71L-PGHDSW (1984)
Toyota Starlet

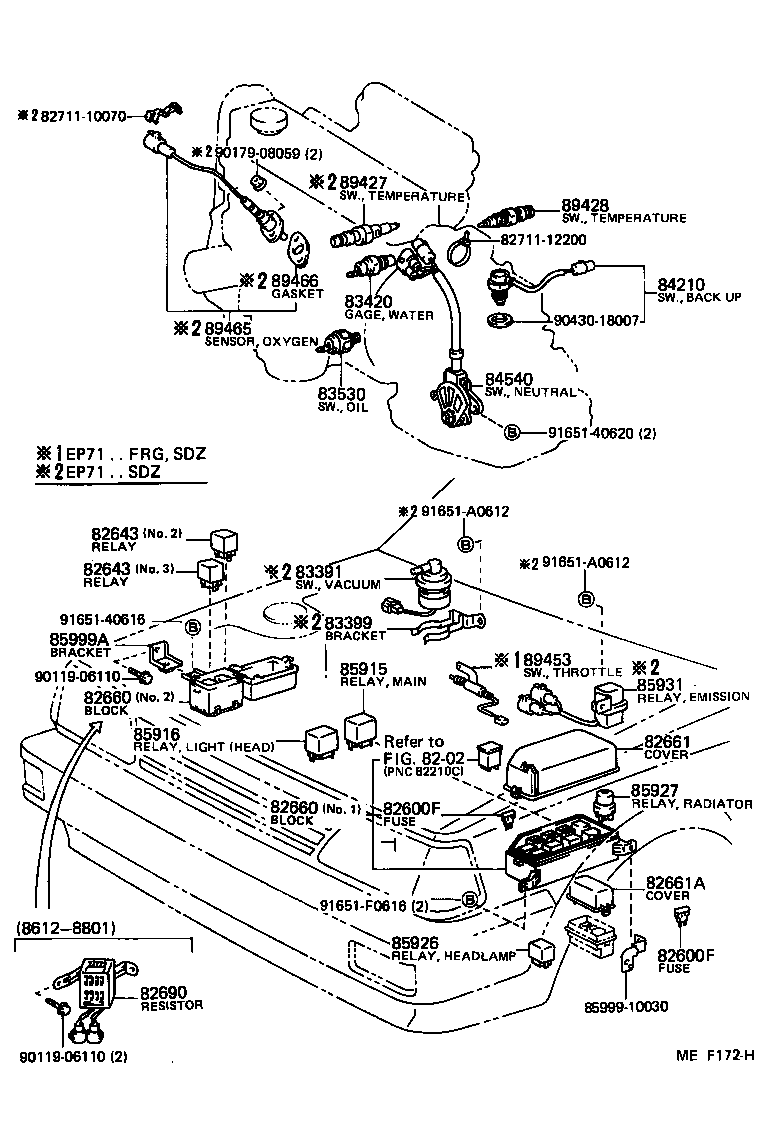

ILLUST NO. 1 OF 5(8410- )EP7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
EP7#,NP70 10A,10A |
33 | ||
| 90982-07011 |
EP7#,NP70 30A,GREEN,30A |
33 | ||
| 90982-09003 |
EP7#,NP70 15A,15A |
33 | ||
| 90982-09004 |
EP7#,NP70 20A,YELLOW,20A |
33 | ||
| 90982-09005 |
EP7#,NP70 7.5A,7.5A |
33 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
EP7#,NP70 10A,10A |
33 | ||
| 90982-07011 |
EP7#,NP70 30A,GREEN,30A |
33 | ||
| 90982-09003 |
EP7#,NP70 15A,15A |
33 | ||
| 90982-09004 |
EP7#,NP70 20A,YELLOW,20A |
33 | ||
| 90982-09005 |
EP7#,NP70 7.5A,7.5A |
33 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-10021 |
EP7#,NP70 NO.1 |
1 | ||
| 82660-10020 |
EP7#,NP70 NO.1 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-10021 |
EP7#,NP70 NO.1 |
1 | ||
| 82660-10020 |
EP7#,NP70 NO.1 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-10020 |
EP71..S..EUG *FRG |
1 | ||
| 82661-10020 |
EP7#..LHD..(EUG,FRG) *FRG |
1 | ||
| 82661-10010 |
EP7#,NP70 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-10040 |
EP7#..LHD..(EUG,FRG) *FRG |
1 | ||
| 82661-10040 |
EP71..S..EUG *FRG |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EP7#,NP70 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
EP7# |
1 | ||
| 83530-30080 |
EP7# |
1 | ||
| 83530-30080 |
EP7# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12160 |
EP71..3FC |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02006 |
EP7#,NP70 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
EP7#,NP70 TAIL |
1 | ||
| 90987-02006 |
EP7#,NP70 HEAD |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
EP7#..LHD..(EUG,FRG) *FRG |
1 | ||
| 85926-30020 |
EP71..S..EUG *FRG |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
EP7#,NP70 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10100 |
EP7# |
1 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 82711-12200 | ||||
| 85999-10030 | ||||
| 90119-06110 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 91651-A0612 | ||||
| 91651-F0616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 3 OF 5(8410-8612)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19715 |
EP7#..LHD |
1 | ||
| 84112-19865 |
EP7#,NP70..LHD |
1 | ||
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-10060 |
EP71..DX,GL,S,XL |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
EP71..DX,GL,S,XL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-10020 |
EP71..DX,GL,S,XL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19385 |
EP7#..LHD |
1 | ||
| 84140-10110 |
EP7#,NP70..LHD |
1 | ||
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-32030 |
EP7#..EUG |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-10010 |
EP71..3D..SDZ;EP7#..LHD..EUG |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10590 |
EP7#..LHD..(DX,GL,XL) W/INTERMITTENT WIPER |
1 | ||
| 84310-10580 |
EP7#..LHD..(DX,STD,XL) |
1 | ||
| 84310-10650 |
EP7#,NP70..LHD..(S,STD,XL) |
1 | ||
| 84310-10670 |
EP7#,NP70..LHD..(GL,S,XL) W/INTERMITTENT WIPER |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
EP7#..LHD |
1 | ||
| 84312-32020 |
EP7#,NP70 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16020 |
EP7#,NP70 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-10490 |
EP7#,NP70..LHD..(GL,S,XL) W/INTERMITTENT WIPER |
1 | ||
| 84652-80062 |
EP7#..LHD..(DX,GL,XL) W/INTERMITTENT WIPER |
1 | ||
| 84652-80061 |
EP7#..LHD..(DX,STD,XL) |
1 | ||
| 84652-10470 |
EP7#,NP70..LHD..(S,STD,XL) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10050 |
EP7#..LHD..EUG |
1 | ||
| 84670 - SWITCH ASSY, REAR WIPER & DEFOGGER | ||||
| 84670-10010 |
EP7# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10080 |
EP7#,NP70..DX,GL,STD,XL |
1 | ||
| 84732-10110 |
EP71..S W/HEATER |
1 | ||
| 84732-10080 |
EP71..S..EUG W/BOOSTVENTILATOR & COOLER |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EP7#,NP70 14V 1.4W,12V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-10030 |
EP71..DX,GL,S,XL NO.1 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-10080 |
EP7# |
1 | ||
| 84790-10140 |
EP7#,NP70..LHD |
1 | ||
| 84790-10130 |
EP7#,NP70..LHD W/RR FOG LAMP |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
EP7# 12V 1.12W |
1 | ||
| 84999-10180 |
EP7#,NP70 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
EP7# 12V 1.12W |
1 | ||
| 84999-10180 |
EP7#,NP70 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10100 |
EP7#,NP70 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
EP7#,NP70 |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90463-15402 | ||||
| 90984-01013 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93567-15012 | ||||

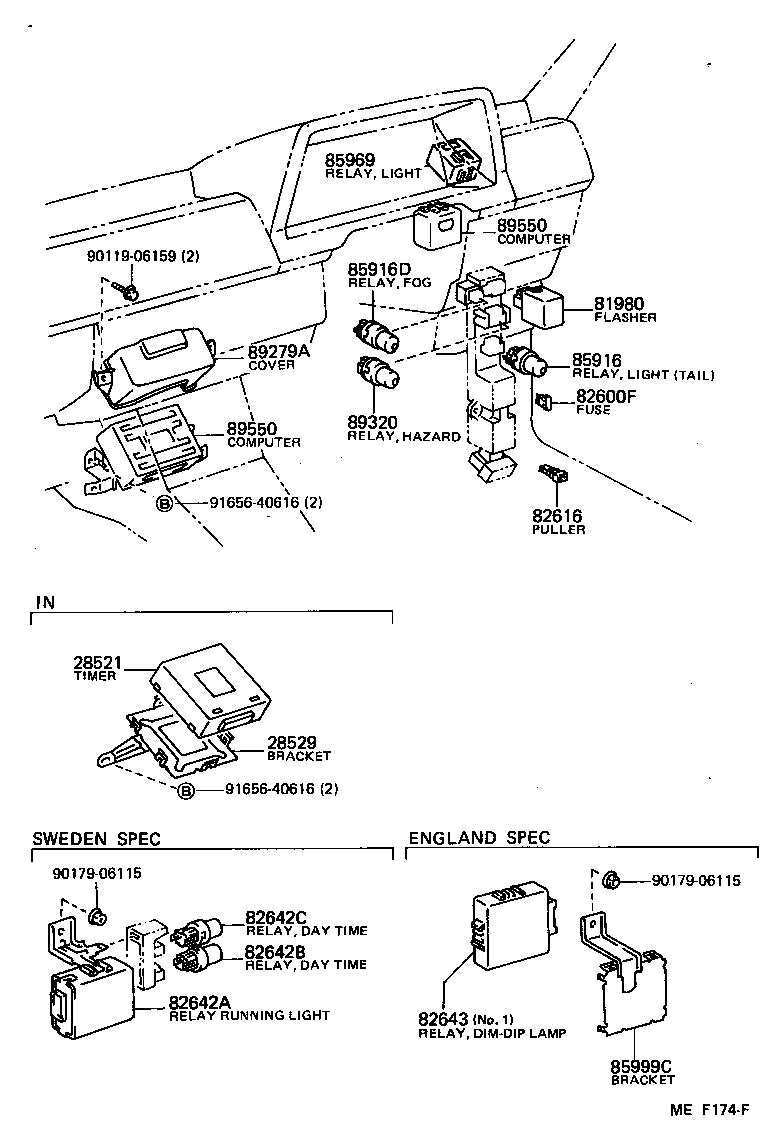

ILLUST NO. 4 OF 5(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
EP7#,NP70 |
1 | ||
| 81980-22070 |
EP7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
EP7#,NP70 10A,10A |
33 | ||
| 90982-07011 |
EP7#,NP70 30A,GREEN,30A |
33 | ||
| 90982-09003 |
EP7#,NP70 15A,15A |
33 | ||
| 90982-09004 |
EP7#,NP70 20A,YELLOW,20A |
33 | ||
| 90982-09005 |
EP7#,NP70 7.5A,7.5A |
33 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
EP7#,NP70 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
EP7#,NP70 TAIL |
1 | ||
| 90987-02006 |
EP7#,NP70 HEAD |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
EP7#,NP70 |
1 | ||
| 90987-02004 |
EP7#..EUG,FRG |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-17010 |
EP7#,NP70 |
1 | ||
| 89320 - RELAY ASSY, HAZARD WARNING | ||||
| 90987-03001 |
EP7#..LHD..(EUG,FRG) |
1 | ||
| Common parts | ||||
| 90119-06159 | ||||
| 90179-06115 | ||||
| 91656-40616 | ||||
ILLUST NO. 3 OF 5(8612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19715 |
EP7#..LHD |
1 | ||
| 84112-19865 |
EP7#,NP70..LHD |
1 | ||
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-10060 |
EP71..DX,GL,S,XL |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
EP71..DX,GL,S,XL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-10020 |
EP71..DX,GL,S,XL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19385 |
EP7#..LHD |
1 | ||
| 84140-10110 |
EP7#,NP70..LHD |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-10010 |
EP71..3D..SDZ;EP7#..LHD..EUG |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10590 |
EP7#..LHD..(DX,GL,XL) W/INTERMITTENT WIPER |
1 | ||
| 84310-10580 |
EP7#..LHD..(DX,STD,XL) |
1 | ||
| 84310-10650 |
EP7#,NP70..LHD..(S,STD,XL) |
1 | ||
| 84310-10670 |
EP7#,NP70..LHD..(GL,S,XL) W/INTERMITTENT WIPER |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
EP7#..LHD |
1 | ||
| 84312-32020 |
EP7#,NP70 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-10120 |
EP7#,NP70..LHD W/RR WIPER |
1 | ||
| 84332-10130 |
EP7#,NP70..LHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10180 |
EP7#,NP70 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16020 |
EP7#,NP70 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-10490 |
EP7#,NP70..LHD..(GL,S,XL) W/INTERMITTENT WIPER |
1 | ||
| 84652-80062 |
EP7#..LHD..(DX,GL,XL) W/INTERMITTENT WIPER |
1 | ||
| 84652-80061 |
EP7#..LHD..(DX,STD,XL) |
1 | ||
| 84652-10470 |
EP7#,NP70..LHD..(S,STD,XL) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10050 |
EP7#..LHD..EUG |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10080 |
EP7#,NP70..DX,GL,STD,XL |
1 | ||
| 84732-10110 |
EP71..S W/HEATER |
1 | ||
| 84732-10080 |
EP71..S..EUG W/BOOSTVENTILATOR & COOLER |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EP7#,NP70 14V 1.4W,12V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-10030 |
EP71..DX,GL,S,XL NO.1 |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-10030 |
EP71..DX,GL,S,XL NO.1 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-10080 |
EP7# |
1 | ||
| 84790-10140 |
EP7#,NP70..LHD |
1 | ||
| 84790-10130 |
EP7#,NP70..LHD W/RR FOG LAMP |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
EP7# 12V 1.12W |
1 | ||
| 84999-10180 |
EP7#,NP70 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10100 |
EP7#,NP70 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
EP7#,NP70 |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90183-05094 | ||||
| 90984-01013 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93567-15012 | ||||

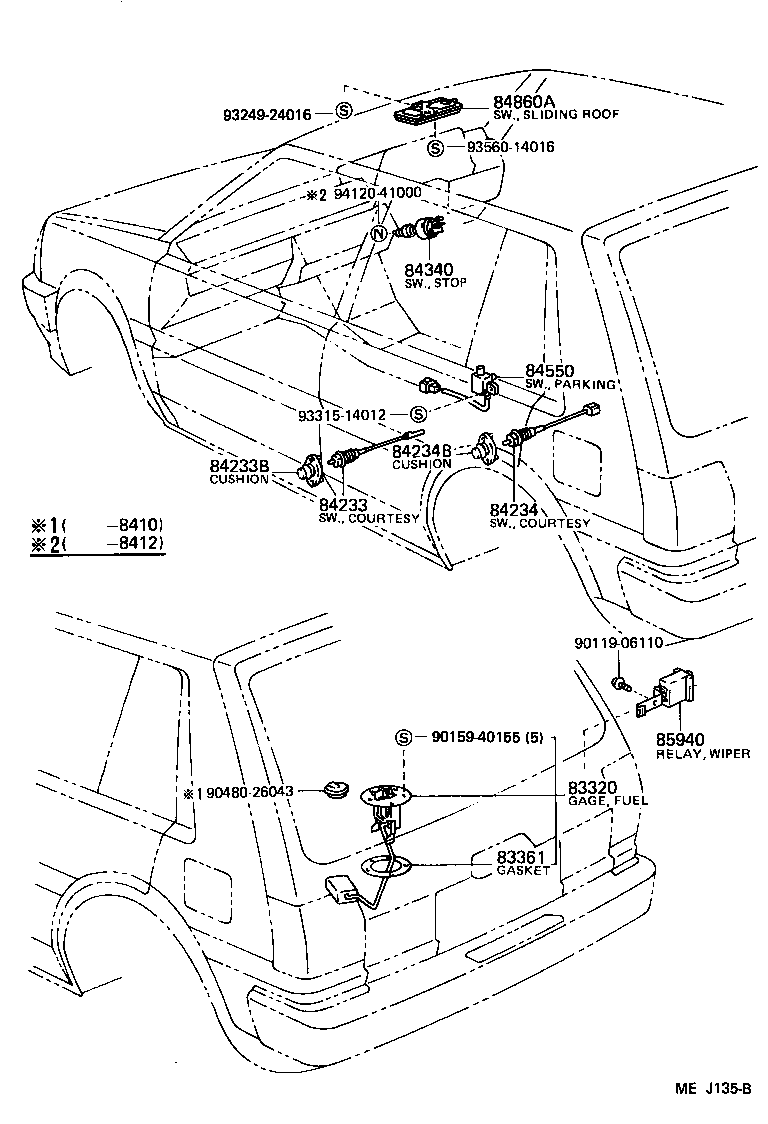

ILLUST NO. 5 OF 5(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19816 |
EP71..DX,GL,S,XL W/TACHOMETER |
1 | ||
| 83320-19805 |
EP7#,NP70..DX,GL,STD,XL |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
EP7#,NP70 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22060 |
EP7#,NP70 |
2 | ||
| 84230-12120 |
EP7#,NP70 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
EP7#,NP70 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-10020 |
EP7#,NP70 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16010 |
EP7#,NP70 |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-1002008 |
EP7#..DX,GL,S,XL IVORY,IVORY |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-10020 |
EP7#,NP70 |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90159-40155 | ||||
| 90480-26043 | ||||
| 93249-24016 | ||||
| 93315-14012 | ||||
| 93560-14016 | ||||
| 94120-41000 | ||||
