EP71L-PGHDSW (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

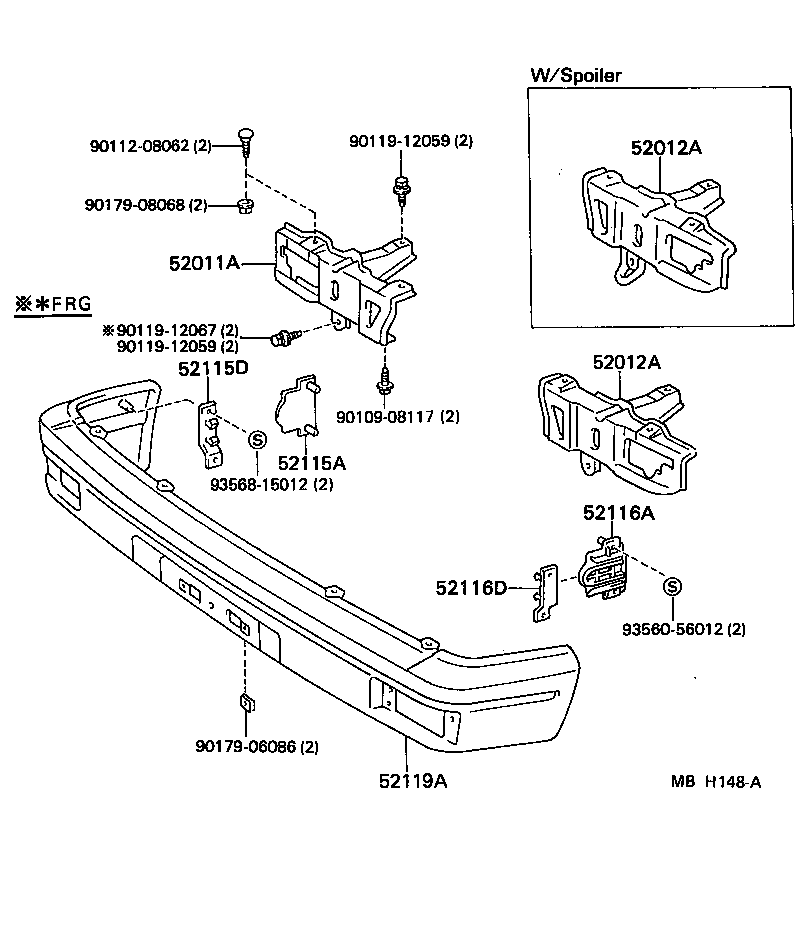

Click highlighted areas on diagram

diagram 52011A 52012A 52012A 52115A 52115D 52116A 52116D 52119A 9010908117 9011208062 9011912059 9011912059 9011912067 9017906086 9017908068 9356056012 9356815012
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-10090

EP7#,NP70

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-10100

EP71..DX,GL,XL

W/SPOILER

 1
52012-10100

EP71..S

 1
52012-10090

EP7#,NP70

 1
52012-10100

EP7#,NP70..GL,XL

W/SPOILER

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-10100

EP71..DX,GL,XL

W/SPOILER

 1
52012-10100

EP71..S

 1
52012-10090

EP7#,NP70

 1
52012-10100

EP7#,NP70..GL,XL

W/SPOILER

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52167-10020

EP7#,NP70

 1
52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH
52157-10020

EP7#,NP70

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52167-10020

EP7#,NP70

 1
52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH
52157-10020

EP7#,NP70

 1
52119A - COVER, FRONT BUMPER
52119-10070

EP7#..LHD..(EUG,FRG)

W/*HC

 1
52119-10060

EP7#,NP70

 1
Common parts
90109-08117
90112-08062
90119-12059
90119-12067
90179-06086
90179-08068
93560-56012
93568-15012
