EP71L-PGHDSW (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EL
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

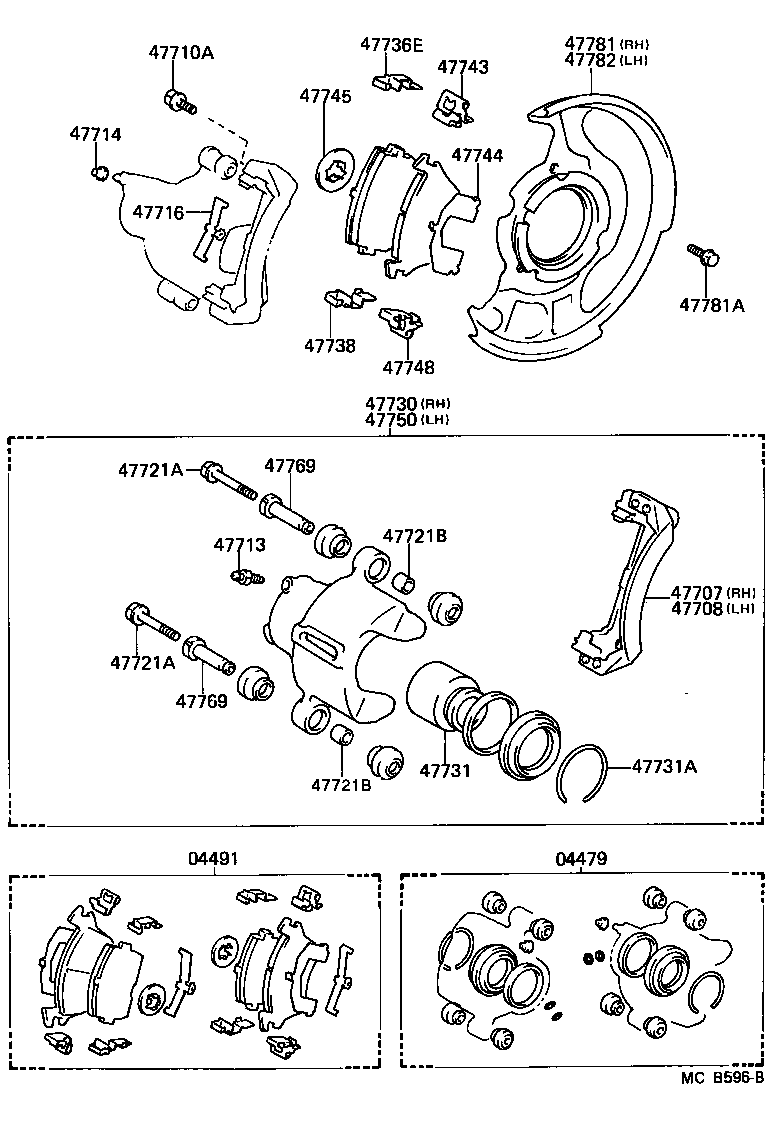

ILLUST NO. 1 OF 2(8410- )

Click highlighted areas on diagram

diagram 04479 04491 47707 47708 47710A 47713 47714 47716 47721A 47721A 47721B 47721B 47730 47731 47731A 47736E 47738 47743 47744 47745 47748 47750 47769 47769 47781 47781A 47782
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-10050

EP7#

 1
04479-10051

EP7#,NP70

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-10070

EP7#,NP70

 1
04491-10101

EP71..3D..(S,XL)

SWEDEN SPEC

 1
04491-10101

EP7#,NP70

 1
04491-10100

EP71..3D..(S,XL)

SWEDEN SPEC

 1
47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
47707-10040

EP7#,NP70..DX,GL,STD,XL

 1
47707-10050

EP71..S

 1
47707-10050

EP71

S PACK

 1
47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
47707-10050

EP71

S PACK

 1
47707-10040

EP7#,NP70..DX,GL,STD,XL

 1
47707-10050

EP71..S

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12086

EP7#,NP70

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

EP7#

 2
47547-10050

EP7#,NP70

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

EP7#,NP70

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-10020

EP7#,NP70

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-08217

EP7#,NP70

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-08217

EP7#,NP70

 4
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-13002

EP7#,NP70

 4
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-13002

EP7#,NP70

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-10060

EP7#

 1
47730-10071

EP71..S

 1
47730-10070

EP71

S PACK

 1
47730-10061

EP7#,NP70..DX,GL,STD,XL

 1
47730-10071

EP71

S PACK

 1
47731 - PISTON, FRONT DISC BRAKE
47731-12040

EP7#,NP70

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-56001

EP7#,NP70

 2
47736E - PLATE, FRONT DISC BRAKE PAD GUIDE, NO.1
47736-10010

EP7#,NP70

 2
47738 - PLATE, DISC BRAKE PAD GUIDE, NO.2
47738-10020

EP7#,NP70

 2
47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47743-10020

EP7#,NP70

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-10020

EP70..STD;EP70..5D..5F;EP70..RHD..3D;EP70..4F..XL..FRG;EP71,NP70..GL,STD,XL;EP70..LHD..3D..XL..EUG

 2
47744-10020

EP7#,NP70

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-10020

EP70..STD;EP70..5D..5F;EP70..RHD..3D;EP70..4F..XL..FRG;EP71,NP70..GL,STD,XL;EP70..LHD..3D..XL..EUG

 2
47745-10020

EP7#,NP70

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-10040

EP7#,NP70

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-10060

EP7#

 1
47750-10070

EP71

S PACK

 1
47750-10071

EP71..S

 1
47750-10071

EP71

S PACK

 1
47750-10061

EP7#,NP70..DX,GL,STD,XL

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-10020

EP7#,NP70

 4
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-10020

EP7#,NP70

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-10040

EP7#,NP70

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

EP7#,NP70

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-10040

EP7#,NP70

 1

ILLUST NO. 2 OF 2(8410- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-10090

EP71..3D..(S,XL)

 1
04465-10090

EP7#,NP70

 1
04465-10160

EP7#,NP70

SWEDEN SPEC

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-10020

EP7#,NP70

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-10020

EP7#,NP70

 1
04947-10020

EP71..3D..(S,XL)

SWEDEN SPEC

 1
