EP70L-PHMDSW (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

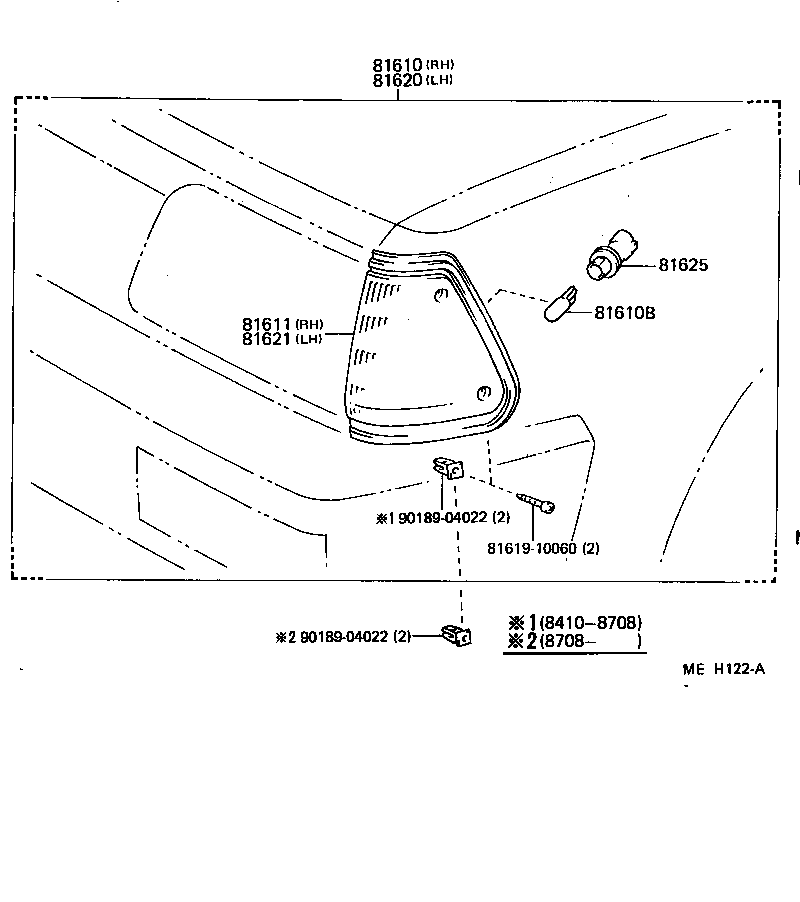

Click highlighted areas on diagram

diagram 81610 81610B 81611 8161910060 81620 81621 81625 9018904022 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19555

EP7#,NP70

 1
81610-10060

EP7#,NP70

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

EP7#,NP70

12V 5W,12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-10060

EP7#,NP70

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19555

EP7#,NP70

 1
81620-10060

EP7#,NP70

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-10060

EP7#,NP70

 1
81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
81735-12180

EP7#,NP70

 2
Common parts
81619-10060
90189-04022
