EP70L-PHMDSW (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )1EL,2EL#

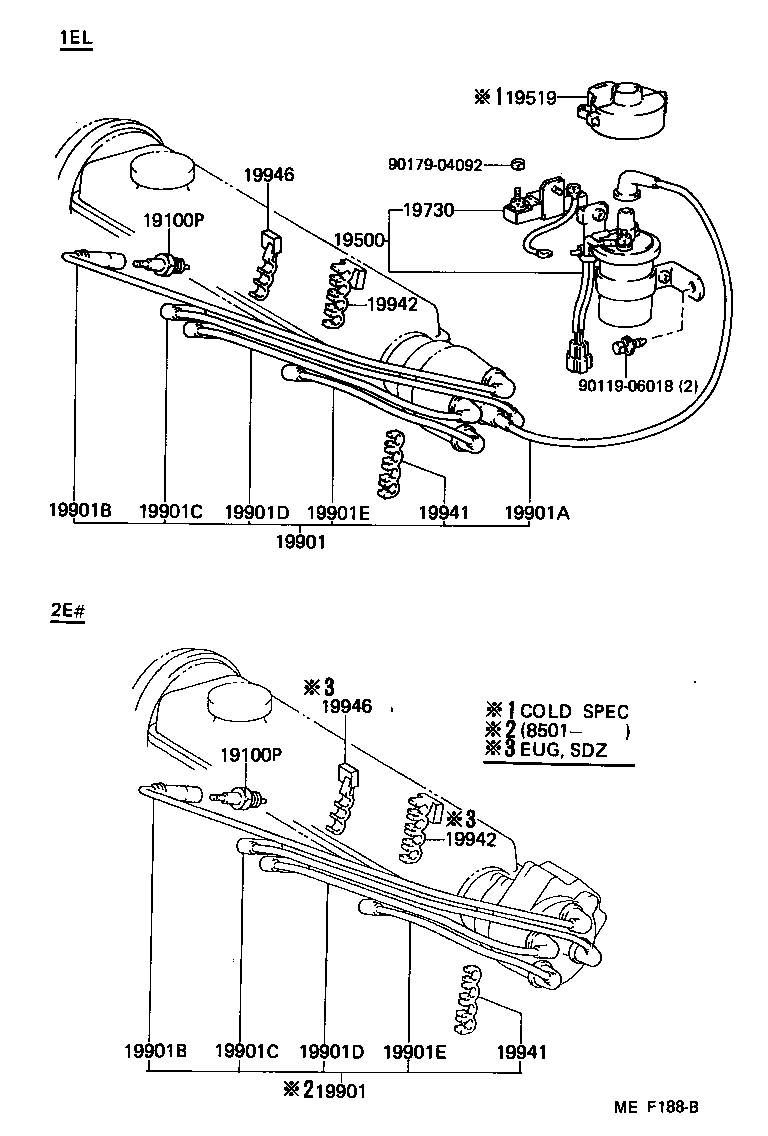

Click highlighted areas on diagram

diagram 19100P 19100P 19500 19519 19730 19901 19901 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 19941 19941 19942 19942 19946 19946 9011906018 9017904092
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01084

1EL..EP70

W20EXR-U,W20EXR-U

 4
19100P - PLUG, SPARK
90919-01084

1EL..EP70

W20EXR-U,W20EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02165

1EL..EP70

 1
19519 - COVER, IGNITION COIL
19519-28020

1EL..EP70..LHD..EUG

COLD SPEC

 1
19730 - RESISTOR, IGNITION COIL
90919-04041

1EL..EP70

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21360

1EL..EP70

 1
90919-21460

1EL..EP70

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21360

1EL..EP70

 1
90919-21460

1EL..EP70

 1
19901A - CORD, COIL RESISTIVE
90919-13339

1EL..EP70

 1
90919-13236

1EL..EP70

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12572

1EL,2EL#..EP7#

YAZAKI

 1
90919-12568

1EL,2EL#..EP7#

SUMITOMO

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12572

1EL,2EL#..EP7#

YAZAKI

 1
90919-12568

1EL,2EL#..EP7#

SUMITOMO

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12569

1EL,2EL#..EP7#

SUMITOMO

 1
90919-12573

1EL,2EL#..EP7#

YAZAKI

 1
90919-12775

1EL,2EL#..EP7#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12569

1EL,2EL#..EP7#

SUMITOMO

 1
90919-12573

1EL,2EL#..EP7#

YAZAKI

 1
90919-12775

1EL,2EL#..EP7#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12574

1EL,2EL#..EP7#

YAZAKI

 1
90919-12570

1EL,2EL#..EP7#

SUMITOMO

 1
90919-12776

1EL,2EL#..EP7#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12574

1EL,2EL#..EP7#

YAZAKI

 1
90919-12570

1EL,2EL#..EP7#

SUMITOMO

 1
90919-12776

1EL,2EL#..EP7#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12575

1EL,2EL#..EP7#

YAZAKI

 1
90919-12571

1EL,2EL#..EP7#

SUMITOMO

 1
90919-12777

1EL,2EL#..EP7#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12575

1EL,2EL#..EP7#

YAZAKI

 1
90919-12571

1EL,2EL#..EP7#

SUMITOMO

 1
90919-12777

1EL,2EL#..EP7#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00358

1EL,2EL#..EP7#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00358

1EL,2EL#..EP7#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00372

1EL,2EL#..EP7#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00372

1EL,2EL#..EP7#

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00404

1EL,2EL#..EP7#

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00404

1EL,2EL#..EP7#

 1
Common parts
90119-06018
90179-04092
