EP70L-PHKRSW (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
1EL
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410-8608)2ELC ; (8608-8707)1EL,2EL#

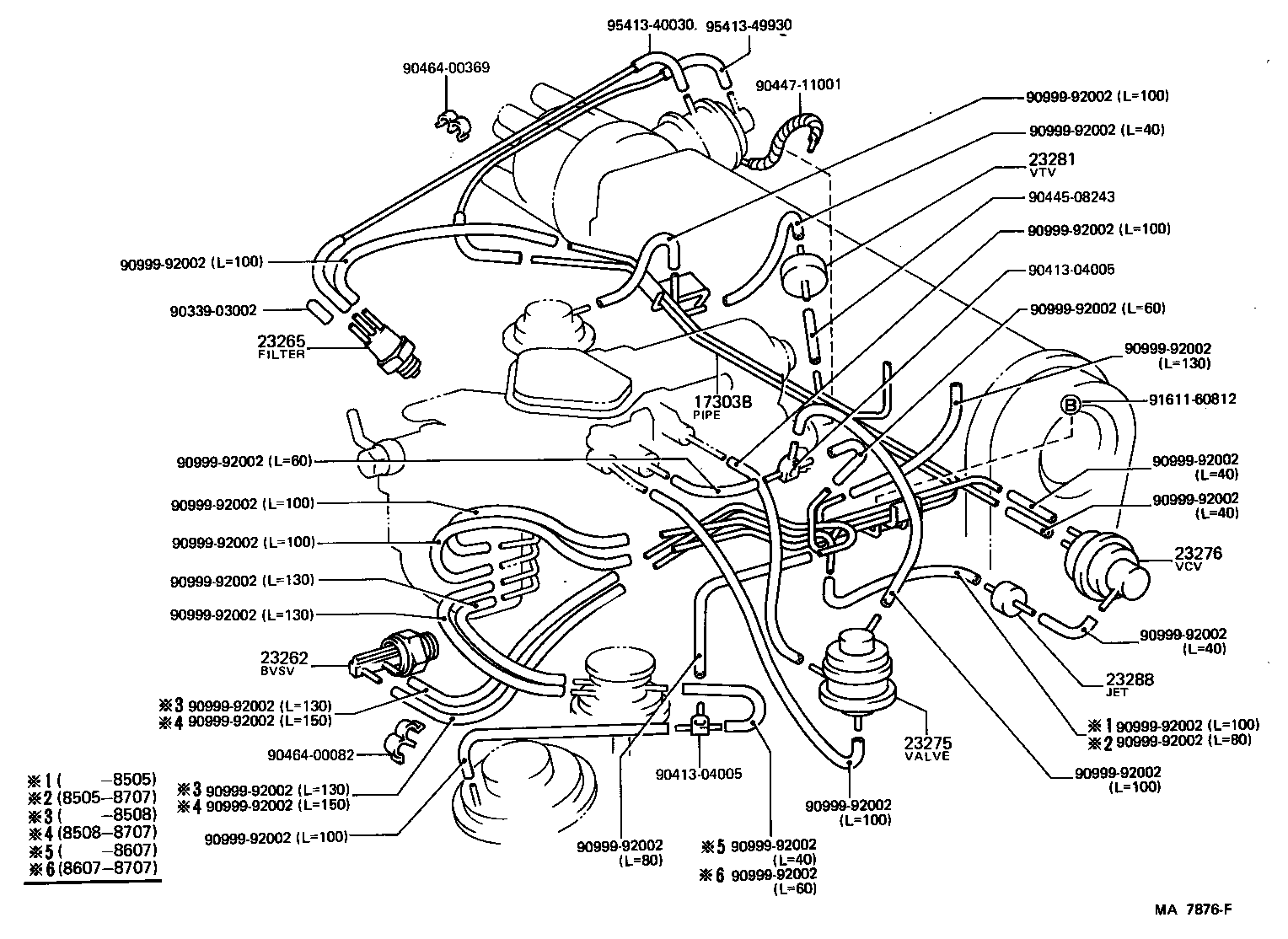

Click highlighted areas on diagram
(8608-8707)SWEDEN SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1EL,2EL#..EP7# |
1 | ||
| 90917-11024 |
1EL,2EL#..EP7# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
1EL..EP70 |
1 | ||
| 90925-01014 |
1EL..EP70 |
1 | ||
| 90925-01041 |
1EL,2EL..EP7# NO.1 |
1 | ||
| 90925-01041 |
1EL,2EL..EP7# NO.1 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
1EL..EP70 |
1 | ||
| 90925-04006 |
1EL..EP70 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90445-08243 | ||||
| 90447-11001 | ||||
| 90464-00082 | ||||
| 90464-00369 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| 95413-40030 | ||||
| 95413-49930 | ||||
(8410- )1EL..EUG

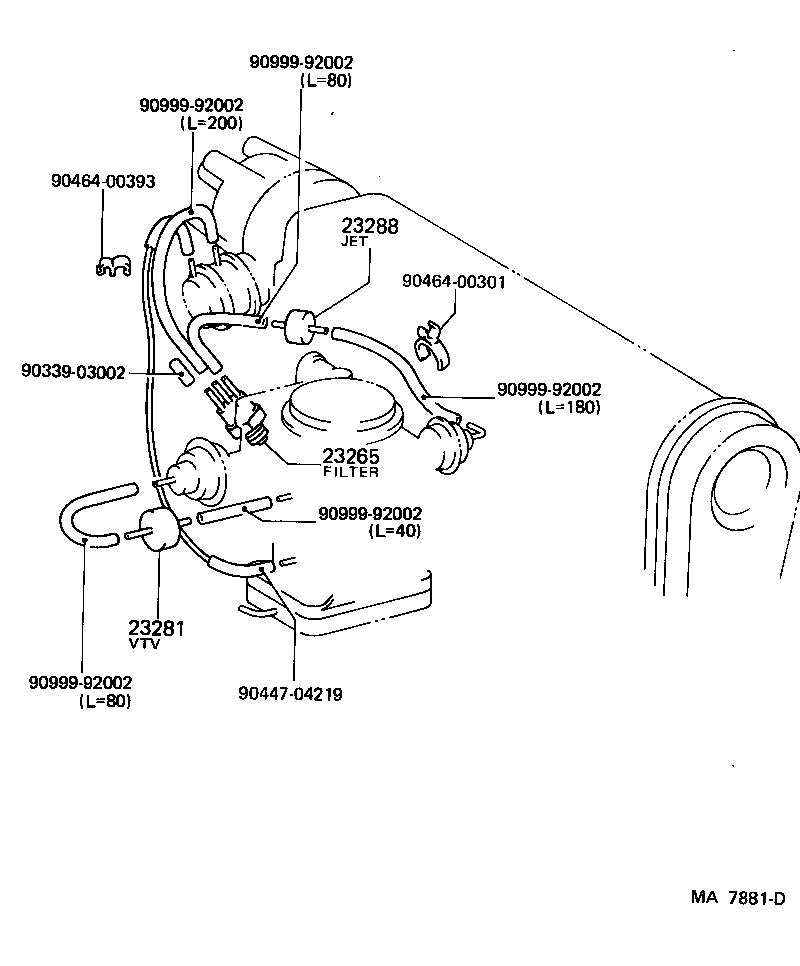

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1EL,2EL#..EP7# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
1EL..EP70 |
1 | ||
| 90925-01041 |
1EL,2EL..EP7# NO.1 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
1EL..EP70 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90447-04219 | ||||
| 90464-00301 | ||||
| 90464-00393 | ||||
| 90999-92002 | ||||
(8410- )1EL,2EL#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
