EP70L-PHKRSW (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )1EL

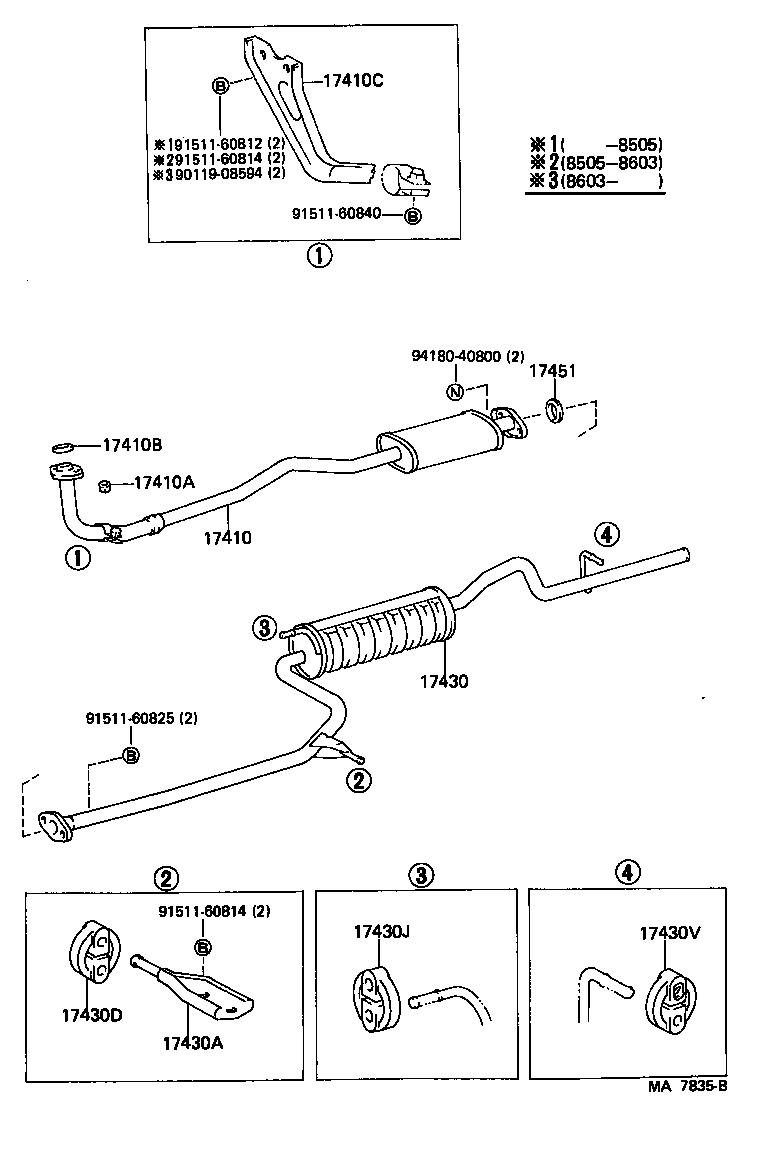

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17430 17430A 17430D 17430J 17430V 17451 9011908594 9151160812 9151160814 9151160814 9151160825 9151160840 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-10060

1EL..EP70

 1
17410-10061

1EL..EP70

 1
17410-10071

1EL..EP70..LHD..EUG

HARSH ROAD PACKAGE

 1
17410-10070

1EL..EP70..LHD..EUG

HARSH ROAD PACKAGE

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1EL,2EL#,1N..EP7#,NP70

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

1EL..EP70

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-10010

1EL..EP70..LHD..EUG

HARSH ROAD PACKAGE

 1
17571-11020

1EL..EP70

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-10010

1EL..EP70

 1
17430-10020

1EL..EP70

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-11020

1EL,2EL#,1N..EP7#,NP70

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-11010

1EL,2EL#,1N..EP7#,NP70

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-11030

1EL,2EL#,1N..EP7#,NP70

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17505-11010

1EL,2EL#..EP7#

 1
17505-11010

1EL..EP70

 1
17451 - GASKET, EXHAUST PIPE
90917-06026

1EL..EP70

 1
Common parts
90119-08594
91511-60812
91511-60814
91511-60825
91511-60840
94180-40800

(8410-8608)2EL#..EUG,SDZ ; (8608-8712)2EL..EUG ;(8608- )

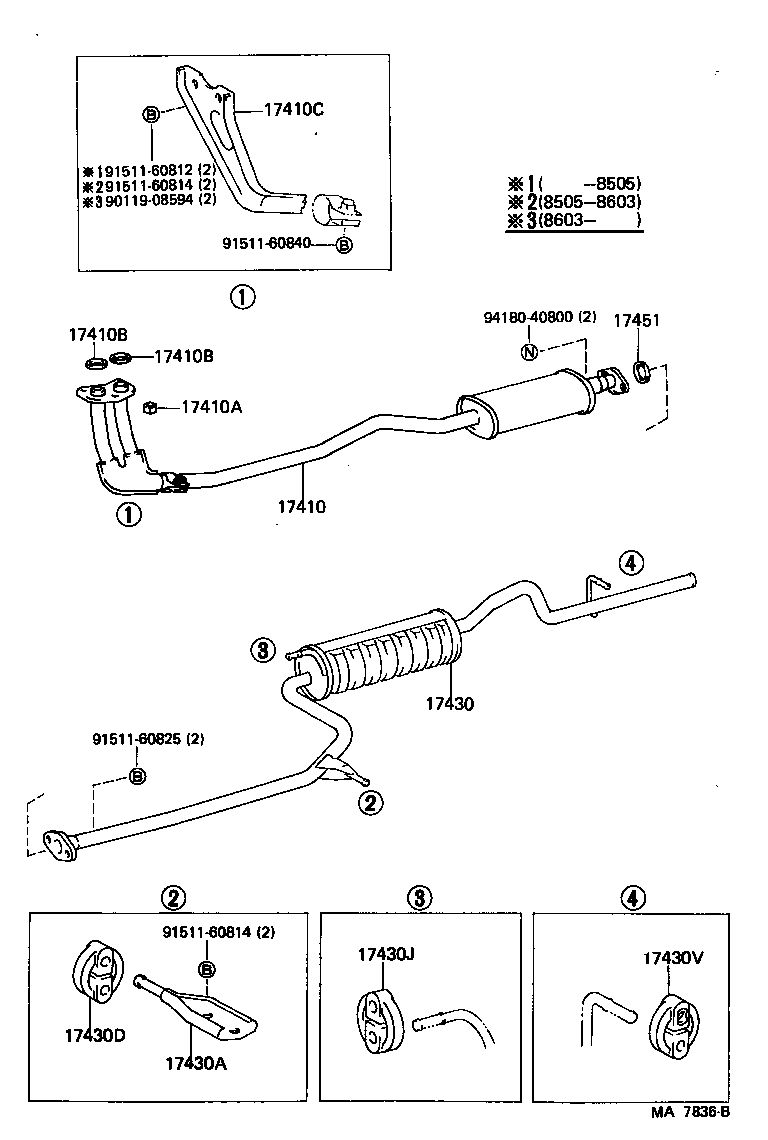

Click highlighted areas on diagram

(8608-8707)SWEDEN SPEC

diagram 17410 17410A 17410B 17410B 17410C 17430 17430A 17430D 17430J 17430V 17451 9011908594 9151160812 9151160814 9151160814 9151160825 9151160840 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-10060

1EL..EP70

 1
17410-10061

1EL..EP70

 1
17410-10071

1EL..EP70..LHD..EUG

HARSH ROAD PACKAGE

 1
17410-10070

1EL..EP70..LHD..EUG

HARSH ROAD PACKAGE

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1EL,2EL#,1N..EP7#,NP70

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

1EL..EP70

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

1EL..EP70

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-10010

1EL..EP70..LHD..EUG

HARSH ROAD PACKAGE

 1
17571-11020

1EL..EP70

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-10010

1EL..EP70

 1
17430-10020

1EL..EP70

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17572-11020

1EL,2EL#,1N..EP7#,NP70

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17565-11010

1EL,2EL#,1N..EP7#,NP70

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-11030

1EL,2EL#,1N..EP7#,NP70

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17505-11010

1EL,2EL#..EP7#

 1
17505-11010

1EL..EP70

 1
17451 - GASKET, EXHAUST PIPE
90917-06026

1EL..EP70

 1
Common parts
90119-08594
91511-60812
91511-60814
91511-60825
91511-60840
94180-40800
