EP70L-PHKDSW (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

Click highlighted areas on diagram

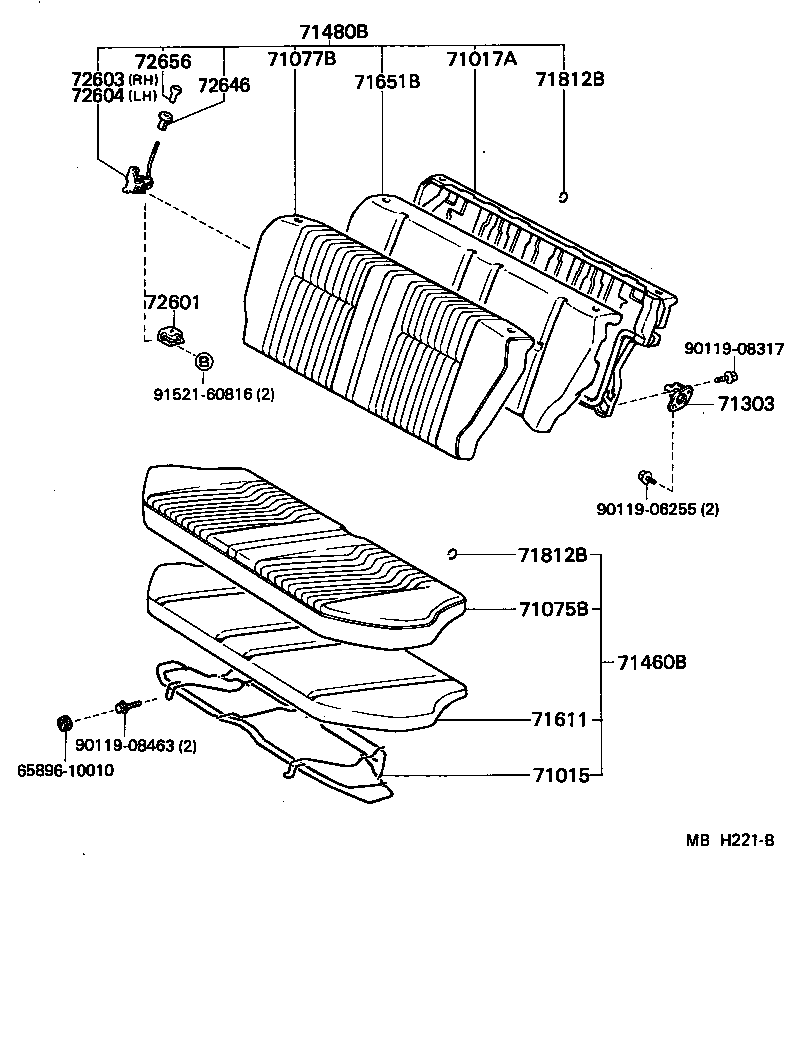

BENCH SEAT

diagram 6589610010 71015 71017A 71075B 71077B 71303 71460B 71480B 71611 71651B 71812B 71812B 72601 72603 72604 72646 72656 9011906255 9011908317 9011908463 9152160816
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-10070

EP7#

 1
71015-10071

EP7#

 1
71015-10072

EP7#,NP70

 1
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-10040

EP7#,NP70..STD,XL

 1
71017-10040

EP7#..DX,STD,XL

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1072003

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71075-1072014

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71075-1072013

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71075-1072004

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71075-1079004

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,BLUE,BLUE,TRIM8#

 1
71065-1005006

EP7#,NP70..XL

FB-B,BROWN,BROWN,TRIM4#

 1
71075-1079003

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,GRAY,GRAY,TRIM1#

 1
71065-1003003

EP7#,NP70..XL

FB-G,GRAY,GRAY,TRIM1#

 1
71065-1005003

EP7#,NP70..XL

FB-B,GRAY,GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1085013

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71077-1085004

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71077-1085003

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71077-1C23006

EP7#,NP70..XL

FB,BROWN,BROWN,TRIM4#

 1
71077-1C23003

EP7#,NP70..XL

FB,GRAY,GRAY,TRIM1#

 1
71077-1085014

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-10020

EP7#,NP70

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1067003

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,GRAY,GRAY,TRIM1#

 1
71460-1067004

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,BLUE,BLUE,TRIM8#

 1
71460-1072003

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71460-1072004

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71460-1072103

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71460-1072104

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71460-1004043

EP7#,NP70..XL

FB-G,GRAY,GRAY,TRIM1#

 1
71460-1067103

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,GRAY,GRAY,TRIM1#

 1
71460-1067104

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,BLUE,BLUE,TRIM8#

 1
71560-1003006

EP7#,NP70..XL

FB-B,BROWN,BROWN,TRIM4#

 1
71560-1003003

EP7#,NP70..XL

FB-B,GRAY,GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-1C09004

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71480-1C09014

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71480-1085003

EP7#,NP70..XL

FB,GRAY,GRAY,TRIM1#

 1
71480-1C09013

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71480-1C09003

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71480-1085006

EP7#,NP70..XL

FB,BROWN,BROWN,TRIM4#

 1
71611 - PAD, REAR SEAT CUSHION
71611-10080

EP7#,NP70

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-10230

EP7#..DX,STD,XL

 1
71651-10230

EP7#,NP70..STD,XL

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EP7#,NP70

 33
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EP7#,NP70

 33
72601 - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-10060

EP7#,NP70

 2
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-10050

EP7#,NP70

 1
72630-10070

EP7#

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-10040

EP7#,NP70

 1
72640-10060

EP7#

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72655-2002054

EP7#

BLUE,BLUE,TRIM8#

 2
72655-2002056

EP7#,NP70

BROWN,BROWN,TRIM4#

 2
72655-2002023

EP7#,NP70

GRAY,GRAY,TRIM1#

 2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72656-2001023

EP7#,NP70

GRAY,GRAY,TRIM1#

 2
72656-2001054

EP7#

BLUE,BLUE,TRIM8#

 2
72656-2001056

EP7#,NP70

BROWN,BROWN,TRIM4#

 2
Common parts
65896-10010
90119-06255
90119-08317
90119-08463
91521-60816

(8410- )

Click highlighted areas on diagram

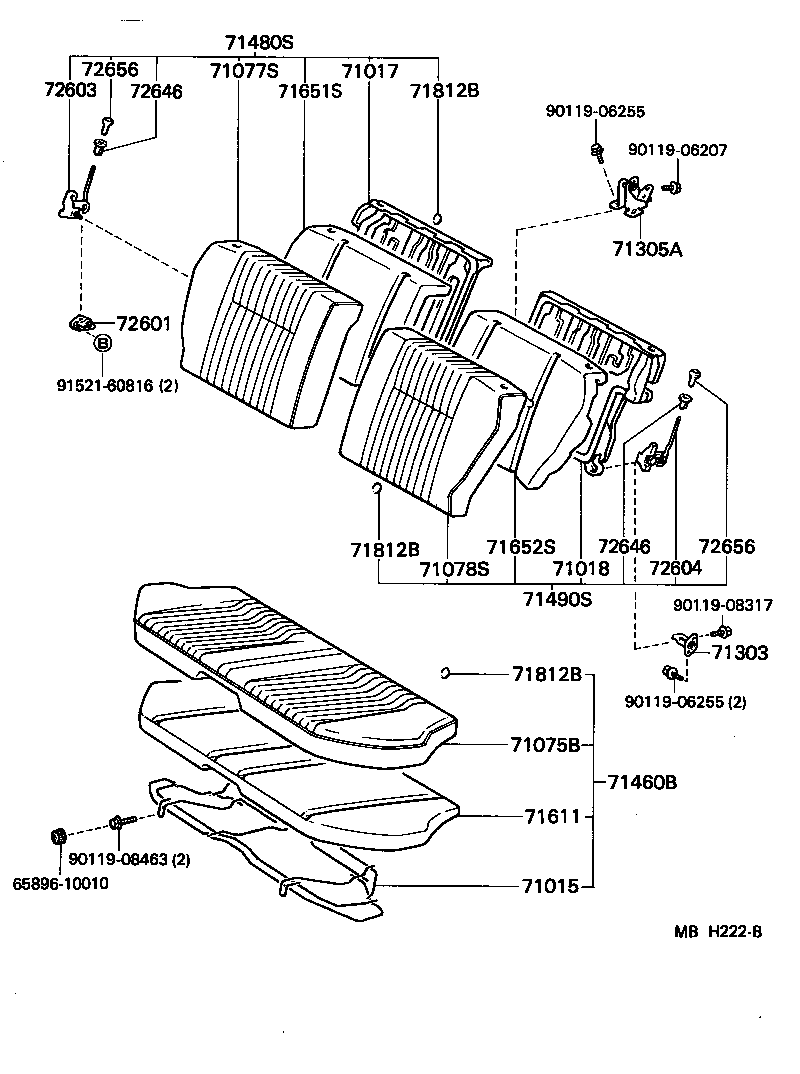

SEPARATE SEAT

diagram 6589610010 71015 71017 71018 71075B 71077S 71078S 71303 71305A 71460B 71480S 71490S 71611 71651S 71652S 71812B 71812B 71812B 72601 72603 72604 72646 72646 72656 72656 9011906207 9011906255 9011906255 9011908317 9011908463 9152160816
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-10070

EP7#

 1
71015-10071

EP7#

 1
71015-10072

EP7#,NP70

 1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-10050

EP7#,NP70

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-10010

EP7#,NP70

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1072003

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71075-1072014

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71075-1072013

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71075-1072004

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71075-1079004

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,BLUE,BLUE,TRIM8#

 1
71065-1005006

EP7#,NP70..XL

FB-B,BROWN,BROWN,TRIM4#

 1
71075-1079003

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,GRAY,GRAY,TRIM1#

 1
71065-1003003

EP7#,NP70..XL

FB-G,GRAY,GRAY,TRIM1#

 1
71065-1005003

EP7#,NP70..XL

FB-B,GRAY,GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1C21003

EP7#,NP70..XL

FB-G,GRAY,GRAY,TRIM1#

 1
71077-1C10004

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,BLUE,BLUE,TRIM8#

 1
71077-1C02014

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71077-1C02013

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71077-1C26003

EP7#,NP70..XL

FB-B,GRAY,GRAY,TRIM1#

 1
71077-1C02004

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71077-1C02003

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71077-1C10003

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,GRAY,GRAY,TRIM1#

 1
71077-1C26006

EP7#,NP70..XL

FB-B,BROWN,BROWN,TRIM4#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-1051003

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71078-1051004

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71078-1054004

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,BLUE,BLUE,TRIM8#

 1
71078-1050003

EP7#,NP70..XL

FB-G,GRAY,GRAY,TRIM1#

 1
71078-1058006

EP7#,NP70..XL

FB-B,BROWN,BROWN,TRIM4#

 1
71078-1051013

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71078-1058003

EP7#,NP70..XL

FB-B,GRAY,GRAY,TRIM1#

 1
71078-1051014

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71078-1054003

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,GRAY,GRAY,TRIM1#

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-10020

EP7#,NP70

 2
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-10020

EP7#,NP70

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1067003

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,GRAY,GRAY,TRIM1#

 1
71460-1067004

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,BLUE,BLUE,TRIM8#

 1
71460-1072003

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71460-1072004

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71460-1072103

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71460-1072104

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71460-1004043

EP7#,NP70..XL

FB-G,GRAY,GRAY,TRIM1#

 1
71460-1067103

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,GRAY,GRAY,TRIM1#

 1
71460-1067104

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,BLUE,BLUE,TRIM8#

 1
71560-1003006

EP7#,NP70..XL

FB-B,BROWN,BROWN,TRIM4#

 1
71560-1003003

EP7#,NP70..XL

FB-B,GRAY,GRAY,TRIM1#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-1C15004

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71480-1C10003

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,GRAY,GRAY,TRIM1#

 1
71480-1C15013

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71480-1C15003

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71480-1C01003

EP7#,NP70..XL

FB-B,GRAY,GRAY,TRIM1#

 1
71480-1C15014

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71480-1C02003

EP7#,NP70..XL

FB-G,GRAY,GRAY,TRIM1#

 1
71480-1C10004

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,BLUE,BLUE,TRIM8#

 1
71480-1C01006

EP7#,NP70..XL

FB-B,BROWN,BROWN,TRIM4#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-1049004

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71490-1049013

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71490-1047004

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,BLUE,BLUE,TRIM8#

 1
71490-1047003

EP7#..(DX,XL)..(EUG,FRG)

GL PACK,FB,GRAY,GRAY,TRIM1#

 1
71490-1058006

EP7#,NP70..XL

FB-B,BROWN,BROWN,TRIM4#

 1
71490-1049003

EP7#..DX,STD,XL

FB,GRAY,GRAY,TRIM1#

 1
71490-1058003

EP7#,NP70..XL

FB-B,GRAY,GRAY,TRIM1#

 1
71490-1049014

EP7#..DX,STD,XL

FB,BLUE,BLUE,TRIM8#

 1
71490-1059003

EP7#,NP70..XL

FB-G,GRAY,GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-10080

EP7#,NP70

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-10240

EP7#,NP70

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-10200

EP7#,NP70

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EP7#,NP70

 33
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EP7#,NP70

 33
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EP7#,NP70

 33
72601 - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-10060

EP7#,NP70

 2
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-10050

EP7#,NP70

 1
72630-10070

EP7#

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-10040

EP7#,NP70

 1
72640-10060

EP7#

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72655-2002054

EP7#

BLUE,BLUE,TRIM8#

 2
72655-2002056

EP7#,NP70

BROWN,BROWN,TRIM4#

 2
72655-2002023

EP7#,NP70

GRAY,GRAY,TRIM1#

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72655-2002054

EP7#

BLUE,BLUE,TRIM8#

 2
72655-2002056

EP7#,NP70

BROWN,BROWN,TRIM4#

 2
72655-2002023

EP7#,NP70

GRAY,GRAY,TRIM1#

 2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72656-2001023

EP7#,NP70

GRAY,GRAY,TRIM1#

 2
72656-2001054

EP7#

BLUE,BLUE,TRIM8#

 2
72656-2001056

EP7#,NP70

BROWN,BROWN,TRIM4#

 2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72656-2001023

EP7#,NP70

GRAY,GRAY,TRIM1#

 2
72656-2001054

EP7#

BLUE,BLUE,TRIM8#

 2
72656-2001056

EP7#,NP70

BROWN,BROWN,TRIM4#

 2
Common parts
65896-10010
90119-06207
90119-06255
90119-08317
90119-08463
91521-60816
