EP70L-PHKDSW (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

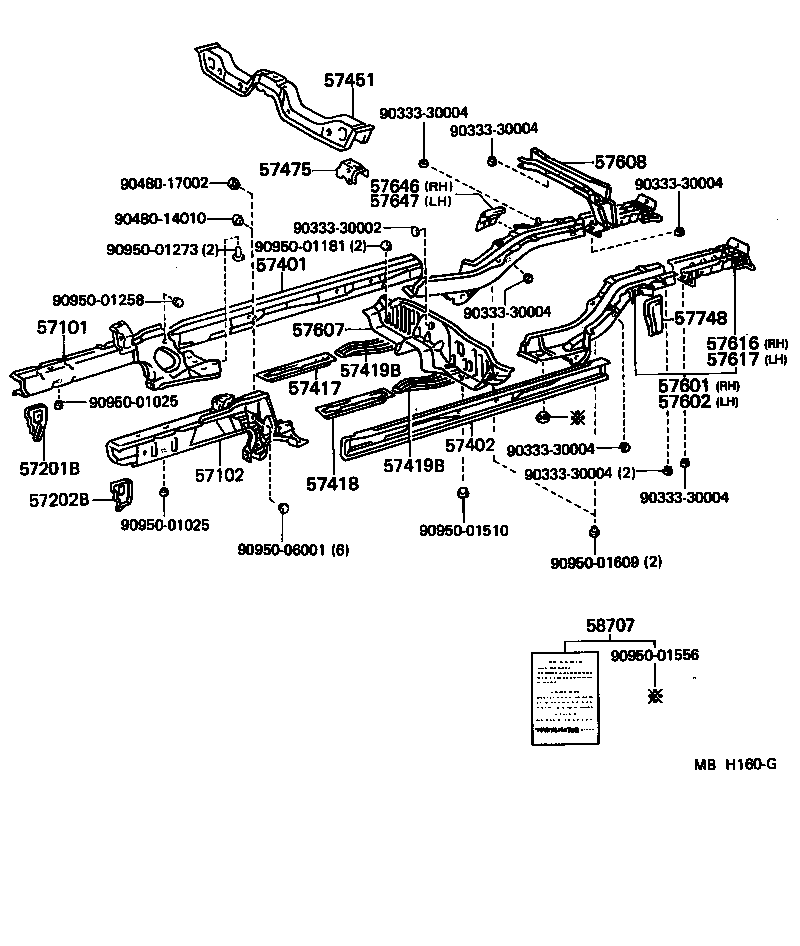

Click highlighted areas on diagram

diagram 57101 57102 57201B 57202B 57401 57402 57417 57418 57419B 57419B 57451 57475 57601 57602 57607 57608 57616 57617 57646 57647 57748 58707 9033330002 9033330004 9033330004 9033330004 9033330004 9033330004 9033330004 9033330004 9048014010 9048017002 9095001025 9095001025 9095001181 9095001258 9095001273 9095001510 9095001556 9095001609 9095006001
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-10161

EP7#

 1
57101-10160

EP7#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-10290

EP7#,NP70

 1
57102-10151

EP7#

 1
57102-10150

EP7#

 1
57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57201-10020

EP7#,NP70

 1
57202B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57202-10020

EP7#,NP70

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-10110

EP7#,NP70..5D

 1
57401-10100

EP7#

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-10110

EP7#,NP70..5D

 1
57402-10100

EP7#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-10060

EP7#,NP70

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-10050

EP7#,NP70

 1
57419B - REINFORCEMENT, FRONT FLOOR UNDER, REAR
57419-10020

EP7#,NP70

 2
57419B - REINFORCEMENT, FRONT FLOOR UNDER, REAR
57419-10020

EP7#,NP70

 2
57451 - MEMBER, FRONT FLOOR CROSS
57451-10050

EP7#,NP70

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-10030

EP7#,NP70

RH

 1
57476-10020

EP7#,NP70

LH

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-10050

EP7#..EUG,FRG

 1
57601-10050

EP7#

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-10050

EP7#,NP70

 1
57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57605-10060

EP7#,NP70

 1
57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57606-10060

EP7#,NP70

 1
57616 - MEMBER, REAR FLOOR SIDE, REAR RH
57615-10900

EP7#..EUG

 1
57615-10900

EP7#

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-10900

EP7#,NP70

 1
57646 - REINFORCEMENT, REAR SIDE MEMBER TO BODY, RH
57646-10020

EP7#,NP70

 1
57647 - REINFORCEMENT, REAR SIDE MEMBER TO BODY, LH
57647-10020

EP7#,NP70

 1
57748 - REINFORCEMENT, LATERAL ROD BRACKET
57748-10010

EP7#,NP70

 1
58707 - PLUG SET, HOLE
58707-10010

EP7#

 1
Common parts
90333-30002
90333-30004
90480-14010
90480-17002
90950-01025
90950-01181
90950-01258
90950-01273
90950-01510
90950-01556
90950-01609
90950-06001
