EP70L-PGMNSW (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 1EL
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

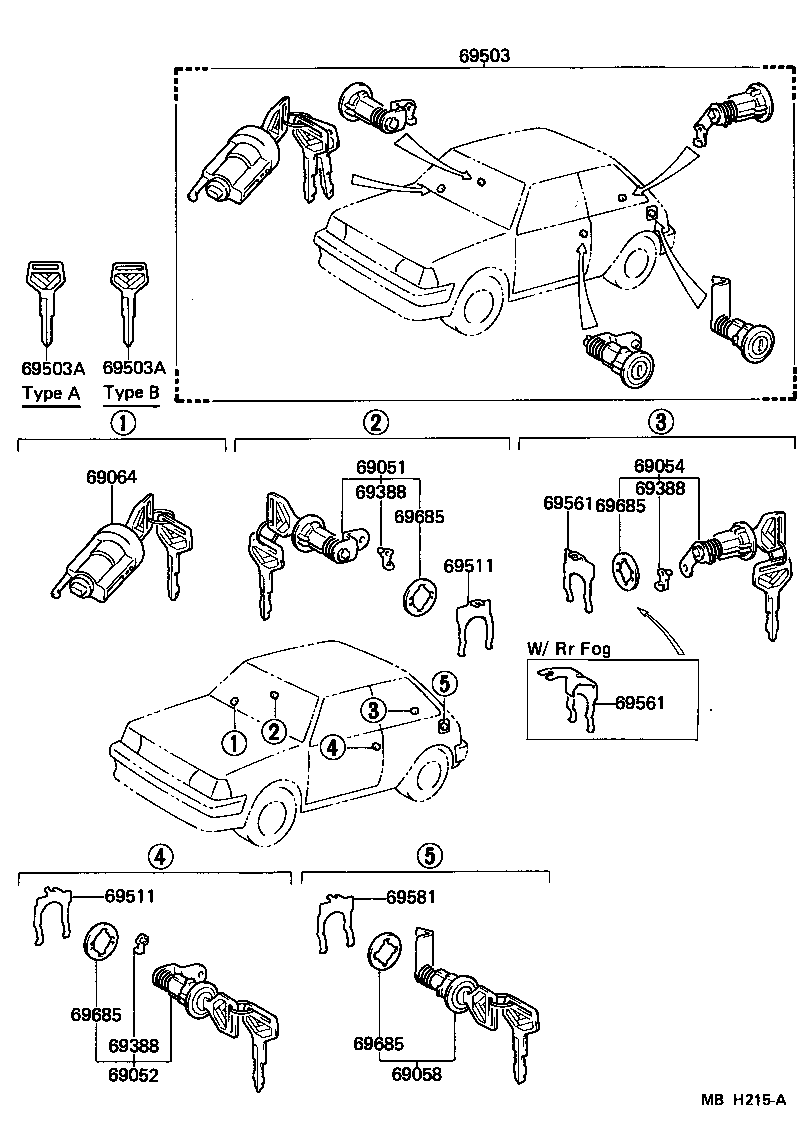

Click highlighted areas on diagram

diagram 69051 69052 69054 69058 69064 69388 69388 69388 69503 69503A 69503A 69511 69511 69561 69561 69581 69685 69685 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-10170

EP7#,NP70

 1
69051-12170

EP7#..EUG,FRG

*IPM

 1
69051-10100

EP7#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-10100

EP7#

 1
69052-12170

EP7#..EUG,FRG

*IPM

 1
69052-10170

EP7#,NP70

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-10131

EP7#,NP70

 1
69055-10110

EP7#..LHD..(DX,GL,XL)..(EUG,FRG)

*IPM

 1
69055-10080

EP7#..DX,GL,XL

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-16040

EP7#..EUG,FRG

*IPM

 1
69058-16070

EP7#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-16050

EP7#..EUG,FRG

*IPM

 1
69057-16070

EP7#

 1
69057-10150

EP7#,NP70

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

EP7#,NP70

FR DOOR LH

 1
69759-20080

EP7#,NP70

FR DOOR RH,BACK DOOR

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

EP7#,NP70

FR DOOR LH

 1
69759-20080

EP7#,NP70

FR DOOR RH,BACK DOOR

 2
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

EP7#,NP70

FR DOOR LH

 1
69759-20080

EP7#,NP70

FR DOOR RH,BACK DOOR

 2
69503 - CYLINDER SET, LOCK
69005-10100

EP7#..LHD..(DX,GL,XL)..(EUG,FRG)

*IPM

 1
69005-10210

EP7#,NP70..LHD

*IPM,W/FUEL LID OPENER

 1
69005-10200

EP7#,NP70..LHD

W/FUEL LID OPENER

 1
69005-10140

EP7#..DX,GL,XL

 1
69503A - KEY, BLANK
90999-00092

EP7#..EUG,FRG

MSTER KEY,W(*69),*IPM,TYPE B

 1
90999-00091

EP7#

MASTER KEY,W(*70),TYPE B

 1
90999-00086

EP7#

MASTER KEY,TYPE A

 1
90999-00084

EP7#..EUG,FRG

MASTER KEY,W(*68),*IPM,TYPE A

 1
69503A - KEY, BLANK
90999-00092

EP7#..EUG,FRG

MSTER KEY,W(*69),*IPM,TYPE B

 1
90999-00091

EP7#

MASTER KEY,W(*70),TYPE B

 1
90999-00086

EP7#

MASTER KEY,TYPE A

 1
90999-00084

EP7#..EUG,FRG

MASTER KEY,W(*68),*IPM,TYPE A

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

EP7#

 2
69511-32010

EP7#,NP70

W/FUEL LID OPENER

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

EP7#

 2
69511-32010

EP7#,NP70

W/FUEL LID OPENER

 1
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69511-32010

EP7#,NP70

 1
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69511-32010

EP7#,NP70

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69511-32010

EP7#,NP70

 1
69685 - PAD, LOCK CYLINDER
69513-32010

EP7#,NP70

FR DOOR,FUEL LID

 3
69563-16010

EP7#,NP70

BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69513-32010

EP7#,NP70

FR DOOR,FUEL LID

 3
69563-16010

EP7#,NP70

BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69513-32010

EP7#,NP70

FR DOOR,FUEL LID

 3
69563-16010

EP7#,NP70

BACK DOOR

 1
69685 - PAD, LOCK CYLINDER
69513-32010

EP7#,NP70

FR DOOR,FUEL LID

 3
69563-16010

EP7#,NP70

BACK DOOR

 1
