EP70L-PGKRSG (1985)

Toyota Starlet

Production Dec 1985 - Dec 1989
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

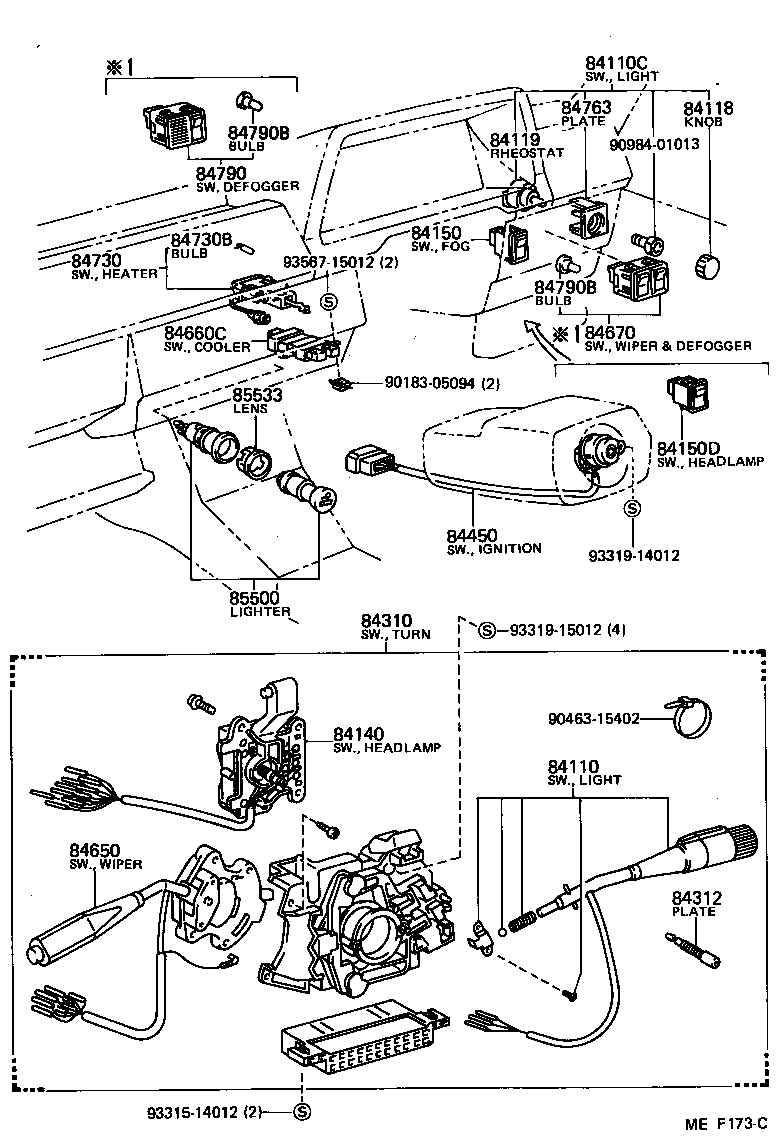

ILLUST NO. 3 OF 5(8410-8612)

Click highlighted areas on diagram

diagram 84110 84110C 84118 84119 84140 84150 84150D 84310 84312 84450 84650 84660C 84670 84730 84730B 84763 84790 84790B 84790B 85500 85533 9018305094 9046315402 9098401013 9331514012 9331914012 9331915012 9356715012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-19715

EP7#..LHD

 1
84112-19865

EP7#,NP70..LHD

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-19385

EP7#..LHD

 1
84140-10110

EP7#,NP70..LHD

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-10580

EP7#..LHD..(DX,STD,XL)

 1
84310-10650

EP7#,NP70..LHD..(S,STD,XL)

 1
84310-10670

EP7#,NP70..LHD..(GL,S,XL)

W/INTERMITTENT WIPER

 1
84312 - PLATE, HORN CONTACT
84312-32020

EP7#..LHD

 1
84312-32020

EP7#,NP70

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-16020

EP7#,NP70

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-10490

EP7#,NP70..LHD..(GL,S,XL)

W/INTERMITTENT WIPER

 1
84652-80061

EP7#..LHD..(DX,STD,XL)

 1
84652-10470

EP7#,NP70..LHD..(S,STD,XL)

 1
84670 - SWITCH ASSY, REAR WIPER & DEFOGGER
84670-10010

EP7#

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-10080

EP7#,NP70..DX,GL,STD,XL

 1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014

EP7#,NP70

14V 1.4W,12V 1.4W

 1
84763 - PLATE, SWITCH
84763-10040

EP7#,NP70..STD

NO.2

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-10080

EP7#

 1
84790-10140

EP7#,NP70..LHD

 1
84790-10130

EP7#,NP70..LHD

W/RR FOG LAMP

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10170

EP7#

12V 1.12W

 1
84999-10180

EP7#,NP70

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10170

EP7#

12V 1.12W

 1
84999-10180

EP7#,NP70

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-10100

EP7#,NP70

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-10010

EP7#,NP70

 1
Common parts
90183-05094
90463-15402
90984-01013
93315-14012
93319-14012
93319-15012
93567-15012

ILLUST NO. 3 OF 5(8612- )

Click highlighted areas on diagram

diagram 84110 84110C 84118 84119 84140 84150D 84310 84312 84330 84330B 84450 84650 84660C 84730 84730B 84763 84763 84790 84790B 85500 85533 9016450048 9016450048 9018305094 9098401013 9331514012 9331914012 9331915012 9356715012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-19715

EP7#..LHD

 1
84112-19865

EP7#,NP70..LHD

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-19385

EP7#..LHD

 1
84140-10110

EP7#,NP70..LHD

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-10580

EP7#..LHD..(DX,STD,XL)

 1
84310-10650

EP7#,NP70..LHD..(S,STD,XL)

 1
84310-10670

EP7#,NP70..LHD..(GL,S,XL)

W/INTERMITTENT WIPER

 1
84312 - PLATE, HORN CONTACT
84312-32020

EP7#..LHD

 1
84312-32020

EP7#,NP70

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-10120

EP7#,NP70..LHD

W/RR WIPER

 1
84332-10130

EP7#,NP70..LHD

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10180

EP7#,NP70

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-16020

EP7#,NP70

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-10490

EP7#,NP70..LHD..(GL,S,XL)

W/INTERMITTENT WIPER

 1
84652-80061

EP7#..LHD..(DX,STD,XL)

 1
84652-10470

EP7#,NP70..LHD..(S,STD,XL)

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-10080

EP7#,NP70..DX,GL,STD,XL

 1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014

EP7#,NP70

14V 1.4W,12V 1.4W

 1
84763 - PLATE, SWITCH
84763-10040

EP7#,NP70..STD

NO.2

 1
84763 - PLATE, SWITCH
84763-10040

EP7#,NP70..STD

NO.2

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-10080

EP7#

 1
84790-10140

EP7#,NP70..LHD

 1
84790-10130

EP7#,NP70..LHD

W/RR FOG LAMP

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10170

EP7#

12V 1.12W

 1
84999-10180

EP7#,NP70

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-10100

EP7#,NP70

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-10010

EP7#,NP70

 1
Common parts
90164-50048
90183-05094
90984-01013
93315-14012
93319-14012
93319-15012
93567-15012
