EP70L-PGKRSG (1985)

Toyota Starlet

Production Dec 1985 - Dec 1989
Engine 1EL
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

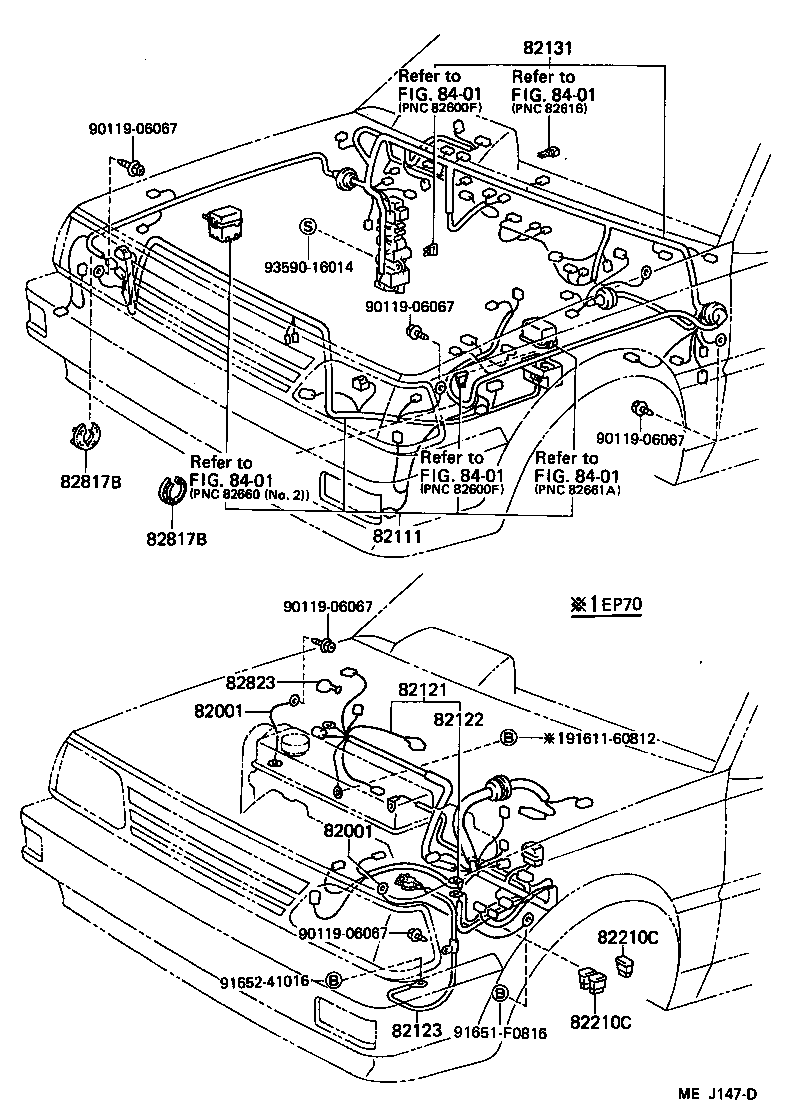

ILLUST NO. 1 OF 5(8410-8707)EP7# ; (8707- )EP7#..EUG,FRG

Click highlighted areas on diagram

diagram 82001 82001 82111 82121 82122 82123 82131 82210C 82210C 82817B 82817B 82823 8401 8401 8401 8401 8401 9011906067 9011906067 9011906067 9011906067 9011906067 9161160812 91651F0816 9165241016 9359016014
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07241

EP7#

E/G HUNGER TO BODY

 1
90980-07242

EP7#

E/G CLUTCH TO BODY

 1
82001 - CABLE, BOND, NO.1
90980-07241

EP7#

E/G HUNGER TO BODY

 1
90980-07242

EP7#

E/G CLUTCH TO BODY

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-10050

EP7#..FRG

 1
82111-10050

EP7#..LHD..(EUG,FRG)

*FRG

 1
82111-10040

EP7#..FRG

W/O *FRG

 1
82121 - WIRE, ENGINE
82121-10160

EP70..LHD

 1
82121-10161

EP70..LHD

 1
82121-10162

EP70..LHD

 1
82121-10470

EP70

 1
82122 - WIRE, ENGINE, NO.2
82122-10010

EP7#

 1
82122-10010

EP7#..EUG,FRG

 1
82123 - WIRE, ENGINE, NO.3
82123-10020

EP7#

 1
82131 - WIRE, COWL
82131-10240

EP70..LHD;EP71..LHD..(DX,GL,XL)

W/*SNR &/OR *RW

 1
82131-10260

EP7#..LHD..MTM..(EUG,FRG)

W/*RFL

 1
82131-10230

EP7#..LHD..MTM

 1
82131-10360

EP7#..LHD..MTM..(EUG,FRG)

*FRG,W/*TAC &/OR *RW

 1
82131-10350

EP7#..LHD..MTM..(EUG,FRG)

*FRG

 1
82131-10270

EP7#..LHD..(EUG,FRG)

W/*RFL,W/*RFL & *RW

 1
82131-10300

EP70..3D..STD;EP70..LHD..3D..4F..XL..EUG

FINLAND SPEC

 1
82131-10670

EP7#..LHD..(EUG,FRG)

NORWAY SPEC,W/*SNR,*TAC&/OR*RW

 1
82131-10660

EP7#..LHD..(EUG,FRG)

NORWAY SPEC

 1
82131-10260

EP70..LHD

W/*RFL

 1
82131-10340

EP7#..LHD..(EUG,FRG)

W/*AIC,*RHW,*RW,*SNR &/OR *TAC

 1
82131-10230

EP70..LHD

 1
82131-10440

EP7#..LHD..MTM..(EUG,FRG)

W/*AIC,W/*RW & *AIC

 1
82131-10330

EP7#..LHD..(EUG,FRG)

W/*RHW &/OR *RW

 1
82131-10270

EP7#..FRG

W/*RFL,W/*RFL & *RW

 1
82131-10350

EP70..FRG

*FRG

 1
82131-10440

EP70..LHD

W/*AIC,W/*RW & *AIC

 1
82131-10310

EP70..3D..STD;EP70..LHD..3D..4F..XL..EUG

FINLAND W/*SNR,*TAC &/OR *RW

 1
82131-10240

EP70..LHD

*SNR &/OR *RW

 1
82131-10261

EP70..LHD

W/*RFL

 1
82131-10231

EP70..LHD

 1
82131-10271

EP7#..FRG

W/*RFL,W/*RFL & *RW

 1
82131-10341

EP7#..LHD..(EUG,FRG)

W/*AIC,*RHW,*RW,*SNR &/OR *TAC

 1
82131-10301

EP70..3D..STD;EP70..LHD..3D..4F..XL..EUG

FINLAND SPEC

 1
82131-10331

EP7#..LHD..(EUG,FRG)

W/*RHW &/OR *RW

 1
82131-10311

EP70..3D..STD;EP70..LHD..3D..4F..XL..EUG

FINLAND W/*SNR,*TAC &/OR *RW

 1
82131-10441

EP70..LHD

W/*AIC,W/*RW & *AIC

 1
82131-10671

EP7#..LHD..(EUG,FRG)

NORWAY SPEC,W/*SNR,*TAC&/OR*RW

 1
82131-10351

EP70..FRG

*FRG

 1
82131-1C140

EP70..FRG

W/*RW

 1
82131-10661

EP7#..LHD..(EUG,FRG)

NORWAY SPEC

 1
82131-1C120

EP70..FRG

W/O *FRG & W/*RFL,W/*RFL & *RW

 1
82131-1C150

EP70..FRG

W/*SNR & *RW

 1
82131-1C141

EP70..FRG

W/TURN-OFF WARNING;W/*RW

 1
82131-1C090

EP70..FRG

W/O *FRG

 1
82131-1C130

EP70..FRG

 1
82131-1C100

EP70..FRG

W/O *FRG & W/*RW

 1
82131-1C121

EP70..FRG

W/O *FRG & W/TURN-OFF WARNING

 1
82131-1C151

EP70..FRG

W/*SNR & *RW

 1
82131-1C140

EP7#..FRG

W/*IW RR WIPER

 1
82131-1C121

EP70..FRG

W/O *FRG & W/*RFL,W/*RFL & *RW

 1
82131-1C141

EP70..FRG

 1
82210C - FUSIBLE LINK
90982-08190

EP7#,NP70

60A,TERM.:FEMALE,YEL,60A

 1
90982-08188

EP7#,NP70

30A,TERM.:FEMALE,PNK,30A

 2
82210C - FUSIBLE LINK
90982-08190

EP7#,NP70

60A,TERM.:FEMALE,YEL,60A

 1
90982-08188

EP7#,NP70

30A,TERM.:FEMALE,PNK,30A

 2
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-22280

EP7#

 2
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-22280

EP7#

 2
82823 - CAP, TERMINAL, NO.1
82823-20040

EP7#

 1
82823-22050

EP7#,NP70

ALTERNATOR

 1
Common parts
90119-06067
91611-60812
91651-F0816
91652-41016
93590-16014
Linked diagrams
8401
