Toyota Starlet EP70 SHIFT LEVER & RETAINER

Manufacturers Home
Toyota
EU
STARLET
EP70L-PGKRSG (1985)
3312 - SHIFT LEVER & RETAINER

EP70L-PGKRSG (1985)

Toyota Starlet

Production Dec 1985 - Dec 1989

Engine 1EL

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

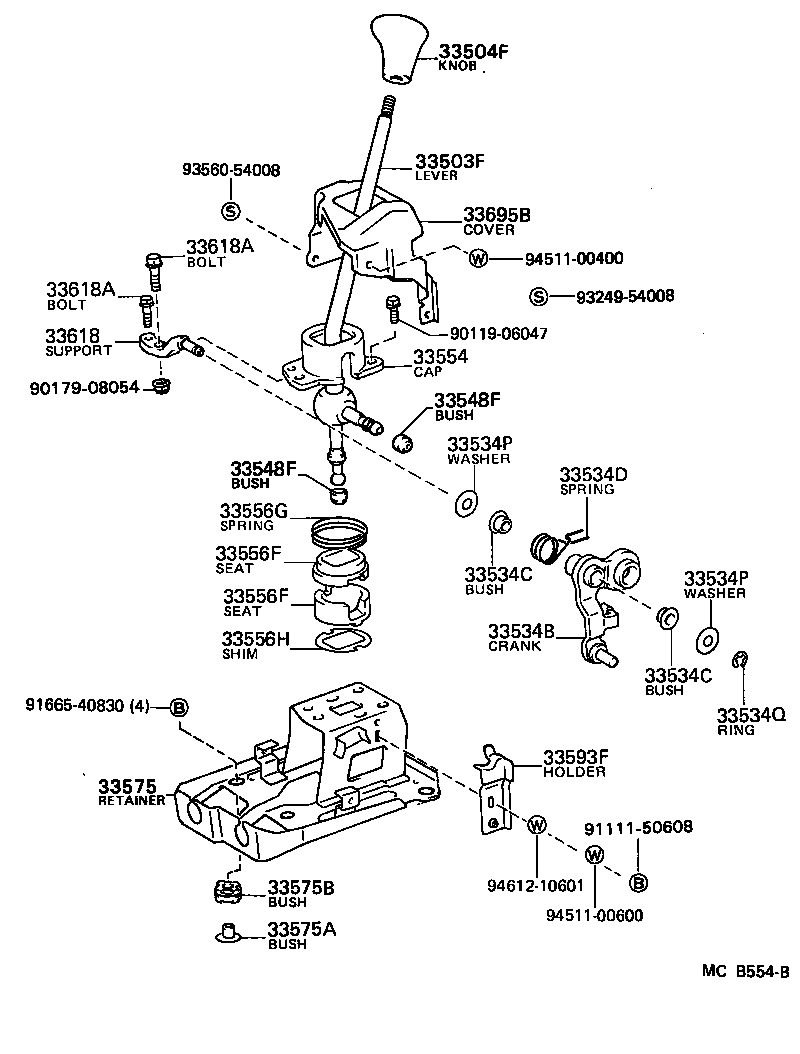

ILLUST NO. 1 OF 2(8410-8612)MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-16220	EP7#,NP70..MTM	12/1986 - 09/1988	1
33503-16221	EP7#,NP70..MTM	09/1988 - 12/1989	1
33503-10080	EP7#..MTM	10/1984 - 12/1986	1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-1404001	EP7#..4F BLACK,BLACK,TRIM1#	10/1984 - 12/1989	1
33534B - CRANK, SELECTING BELL, NO.1
33509-12040	EP7#..MTM	10/1984 - 11/1984	1
33509-16020	EP7#,NP70..MTM	12/1986 - 09/1988	1
33509-12080	EP7#,NP70..MTM	10/1989 - 12/1989	1
33509-12060	EP7#,NP70..MTM	09/1988 - 10/1989	1
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-12013	EP7#,NP70..MTM	10/1984 - 09/1988	2
90386-12034	EP7#,NP70..MTM	09/1988 - 12/1989	2
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-12013	EP7#,NP70..MTM	10/1984 - 09/1988	2
90386-12034	EP7#,NP70..MTM	09/1988 - 12/1989	2
33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1)
90508-20062	EP7#..MTM	10/1984 - 12/1986	1
90508-20084	EP7#,NP70..MTM	12/1986 - 12/1989	1
33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1)
90201-12052	EP7#,NP70..MTM	12/1986 - 12/1989	2
90201-12029	EP7#..MTM	10/1984 - 12/1986	2
33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1)
90201-12052	EP7#,NP70..MTM	12/1986 - 12/1989	2
90201-12029	EP7#..MTM	10/1984 - 12/1986	2
33534Q - RING, E (FOR SELECTING BELLCRANK NO.1)
96160-00900	EP7#,NP70..MTM	10/1984 - 12/1989	1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021	EP7#,NP70..MTM	10/1984 - 12/1989	2
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021	EP7#,NP70..MTM	10/1984 - 12/1989	2
33554 - CAP, SHIFT LEVER
33554-12040	EP7#..MTM	10/1984 - 12/1986	1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-20020	EP7#,NP70..MTM	09/1988 - 12/1989	1
33556-16040	EP7#,NP70..MTM	12/1986 - 09/1988	1
33556-12020	EP7#..MTM LWR	10/1984 - 12/1986	1
33556-12030	EP7#..MTM UPR	10/1984 - 12/1986	1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-16040	EP7#,NP70..MTM	12/1986 - 09/1988	1
33556-12020	EP7#..MTM LWR	10/1984 - 12/1986	1
33556-12030	EP7#..MTM UPR	10/1984 - 12/1986	1
33556-20020	EP7#,NP70..MTM	09/1988 - 12/1989	1
33556G - SPRING (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
90561-35001	EP7#..MTM	10/1984 - 12/1986	1
33556H - SHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
90564-30003	EP7#..MTM T=0.5,MARK C 0R 5,T=0.5,MARK C OR 5	10/1984 - 12/1986	1
90564-30005	EP7#..MTM T=0.7,MARK E 0R 7,T=0.7,MARK E OR 7	10/1984 - 12/1986	1
90564-30009	EP7#..MTM T=1.1,MARK K 0R 11,T=1.1,MARK K OR 11	10/1984 - 12/1986	1
90564-30004	EP7#..MTM T=0.6,MARK D 0R 6,T=0.6,MARK D OR 6	10/1984 - 12/1986	1
90564-30012	EP7#..MTM T=0.4,MARK B 0R 4,T=0.4,MARK B OR 4	10/1984 - 12/1986	1
90564-30008	EP7#..MTM T=1.0,MARK H 0R 10,T=1.0,MARK H OR 10	10/1984 - 12/1986	1
90564-30010	EP7#..MTM T=1.2,MARK L 0R 12,T=1.2,MARK L OR 12	10/1984 - 12/1986	1
90564-30007	EP7#..MTM T=0.9,MARK G 0R 9,T=0.9,MARK G OR 9	10/1984 - 12/1986	1
90564-30011	EP7#..MTM T=0.3,MARK A 0R 3,T=0.3,MARK A OR 3	10/1984 - 12/1986	1
90564-30006	EP7#..MTM T=0.8,MARK F 0R 8,T=0.8,MARK F OR 8	10/1984 - 12/1986	1
33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33575-20390	EP7#,NP70..MTM	10/1989 - 12/1989	1
33506-10040	EP7#..MTM	10/1984 - 12/1986	1
33575-16040	EP7#,NP70..MTM	12/1986 - 10/1989	1
33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)
90389-08031	EP7#,NP70..MTM	10/1984 - 12/1989	4
33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)
90389-10018	EP7#,NP70..MTM	10/1984 - 12/1989	4
33593F - HOLDER, SPRING (FOR FLOOR SHIFT)
33593-12020	EP7#..MTM	10/1984 - 12/1986	1
33618 - SUPPORT, SELECTING BELLCRANK, NO.1
33618-12040	EP7#..MTM	10/1984 - 12/1986	1
33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT)
90119-06268	EP7#..MTM 6-1.00PX24-20,6-1.0PX24-20	10/1984 - 12/1986	1
90105-08078	EP7#..MTM 8-1.25PX28-13,8-1.25PX28-13	10/1984 - 12/1986	1
33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT)
90119-06268	EP7#..MTM 6-1.00PX24-20,6-1.0PX24-20	10/1984 - 12/1986	1
90105-08078	EP7#..MTM 8-1.25PX28-13,8-1.25PX28-13	10/1984 - 12/1986	1
33695B - COVER, SELECTING SPRING (FOR FLOOR SHIFT)
33695-16010	EP7#,NP70..MTM	12/1986 - 02/1988	1
33695-10010	EP7#..MTM	10/1984 - 12/1986	1
33695-20010	EP7#,NP70..MTM	02/1988 - 12/1989	1
Common parts
90119-06047
90179-08054
91111-50608
91665-40830
93249-54008
93560-54008
94511-00400
94511-00600
94612-10601

ILLUST NO. 1 OF 2(8612- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-16220	EP7#,NP70..MTM	12/1986 - 09/1988	1
33503-16221	EP7#,NP70..MTM	09/1988 - 12/1989	1
33503-10080	EP7#..MTM	10/1984 - 12/1986	1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-1404001	EP7#..4F BLACK,BLACK,TRIM1#	10/1984 - 12/1989	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-10060	EP7#,NP70..MTM	12/1986 - 12/1989	1
33530H - RING, SNAP (FOR SHIFT LEVER)
90520-36018	EP7#,NP70..MTM	09/1988 - 12/1989	1
90520-34002	EP7#,NP70..MTM	12/1986 - 09/1988	1
33534B - CRANK, SELECTING BELL, NO.1
33509-12040	EP7#..MTM	10/1984 - 11/1984	1
33509-16020	EP7#,NP70..MTM	12/1986 - 09/1988	1
33509-12080	EP7#,NP70..MTM	10/1989 - 12/1989	1
33509-12060	EP7#,NP70..MTM	09/1988 - 10/1989	1
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-12013	EP7#,NP70..MTM	10/1984 - 09/1988	2
90386-12034	EP7#,NP70..MTM	09/1988 - 12/1989	2
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-12013	EP7#,NP70..MTM	10/1984 - 09/1988	2
90386-12034	EP7#,NP70..MTM	09/1988 - 12/1989	2
33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1)
90508-20062	EP7#..MTM	10/1984 - 12/1986	1
90508-20084	EP7#,NP70..MTM	12/1986 - 12/1989	1
33534K - WASHER, WAVE (FOR SELECTING BELLCRANK NO.1)
90206-12003	EP7#,NP70..MTM	12/1986 - 12/1989	1
33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1)
90201-12052	EP7#,NP70..MTM	12/1986 - 12/1989	2
90201-12029	EP7#..MTM	10/1984 - 12/1986	2
33534Q - RING, E (FOR SELECTING BELLCRANK NO.1)
96160-00900	EP7#,NP70..MTM	10/1984 - 12/1989	1
33534R - CUSHION (FOR SELECTING BELLCRANK NO.1)
90540-06029	EP7#,NP70..MTM	12/1986 - 12/1989	1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021	EP7#,NP70..MTM	10/1984 - 12/1989	2
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021	EP7#,NP70..MTM	10/1984 - 12/1989	2
33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
90385-34001	EP7#,NP70..MTM	12/1986 - 12/1989	1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-20020	EP7#,NP70..MTM	09/1988 - 12/1989	1
33556-16040	EP7#,NP70..MTM	12/1986 - 09/1988	1
33556-12020	EP7#..MTM LWR	10/1984 - 12/1986	1
33556-12030	EP7#..MTM UPR	10/1984 - 12/1986	1
33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33575-20390	EP7#,NP70..MTM	10/1989 - 12/1989	1
33506-10040	EP7#..MTM	10/1984 - 12/1986	1
33575-16040	EP7#,NP70..MTM	12/1986 - 10/1989	1
33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)
90389-08031	EP7#,NP70..MTM	10/1984 - 12/1989	4
33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)
90389-10018	EP7#,NP70..MTM	10/1984 - 12/1989	4
33695B - COVER, SELECTING SPRING (FOR FLOOR SHIFT)
33695-16010	EP7#,NP70..MTM	12/1986 - 02/1988	1
33695-10010	EP7#..MTM	10/1984 - 12/1986	1
33695-20010	EP7#,NP70..MTM	02/1988 - 12/1989	1
Common parts
90119-08559
90179-08054
91651-40610

EP70L-PGKRSG (1985)

ILLUST NO. 1 OF 2(8410-8612)MTM

ILLUST NO. 1 OF 2(8612- )MTM
