EP70L-PGKDSW (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
1EL
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )1EL

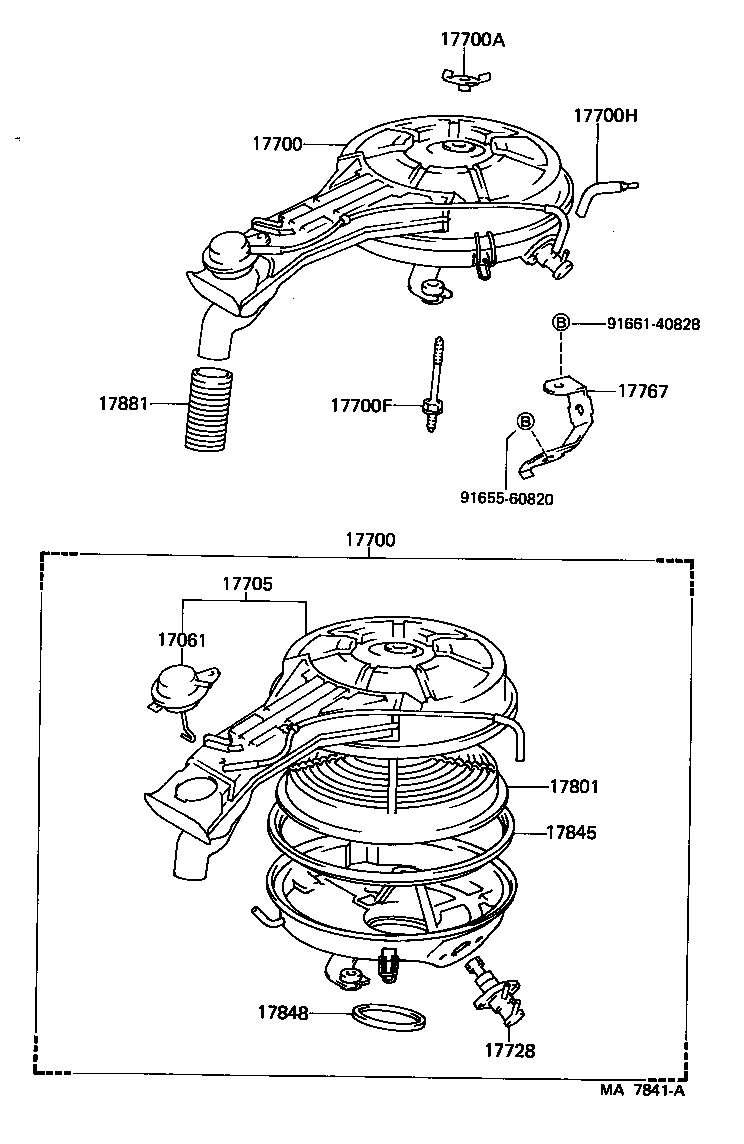

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-10010 |
1EL..EP70 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-10080 |
1EL..EP70 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-10080 |
1EL..EP70 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06009 |
1EL,2EL#..EP7# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 |
1EL..EP70 |
1 | ||
| 17700H - HOSE, AIR | ||||
| 17341-10010 |
1EL..EP70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-10060 |
1EL..EP70 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-10010 |
1EL,2EL#..EP7#..EUG,SDZ |
1 | ||
| 17728-10010 |
1EL,2EL..EP7#..EUG |
1 | ||
| 17767 - BRACKET, AIR CLEANER | ||||
| 17771-11020 |
1EL..EP70 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-10030 |
1EL,2EL#..EP7# |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-10020 |
1EL,2EL#..EP7# |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-10020 |
1EL..EP70 |
1 | ||
| 17848-10021 |
1EL..EP70 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-10030 |
1EL,2EL#..EP7# |
1 | ||
| 17881-10031 |
1EL,2EL#..EP7# |
1 | ||
| Common parts | ||||
| 91655-60820 | ||||
| 91661-40828 | ||||
