MXAA52R-ANFMBW (2018)

Toyota Rav4 (Jpp)

Production Nov 2018 - Jul 2020
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )RHD..6F

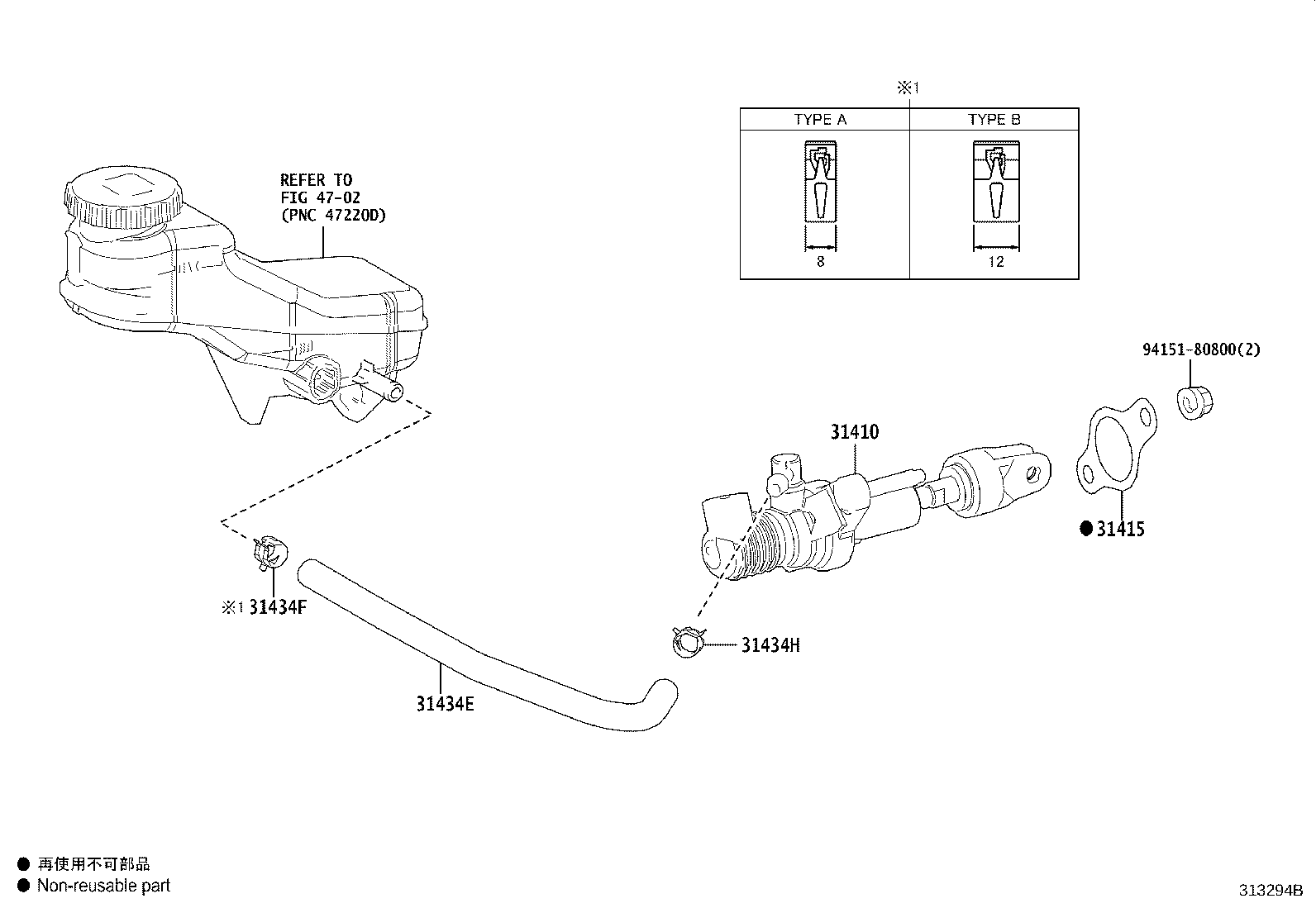

Click highlighted areas on diagram

diagram 31410 31415 31434E 31434F 31434H 4702 9415180800
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-12090

MXAA5#..6F

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-60020

MXAA5#..6F

 1
31434E - HOSE, CLUTCH RESERVOIR, NO.1
31434-42080

MXAA5#..RHD..6F

 1
31434F - CLIP(FOR CLUTCH RESERVOIR HOSE NO.1)
96138-41501

MXAA5#..6F

TYPE A:REFER ILLUST.

 1
31434H - CLIP(FOR CLUTCH RESERVOIR HOSE NO.2)
96138-41501

MXAA5#..6F

 1
Common parts
94151-80800
Linked diagrams
4702
