MXAA52L-ANXXBW (2018)
Toyota Rav4 (Jpp)
Production
Nov 2018
-
Jul 2020
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1811- )M20AFKS..MXAA52..CVT

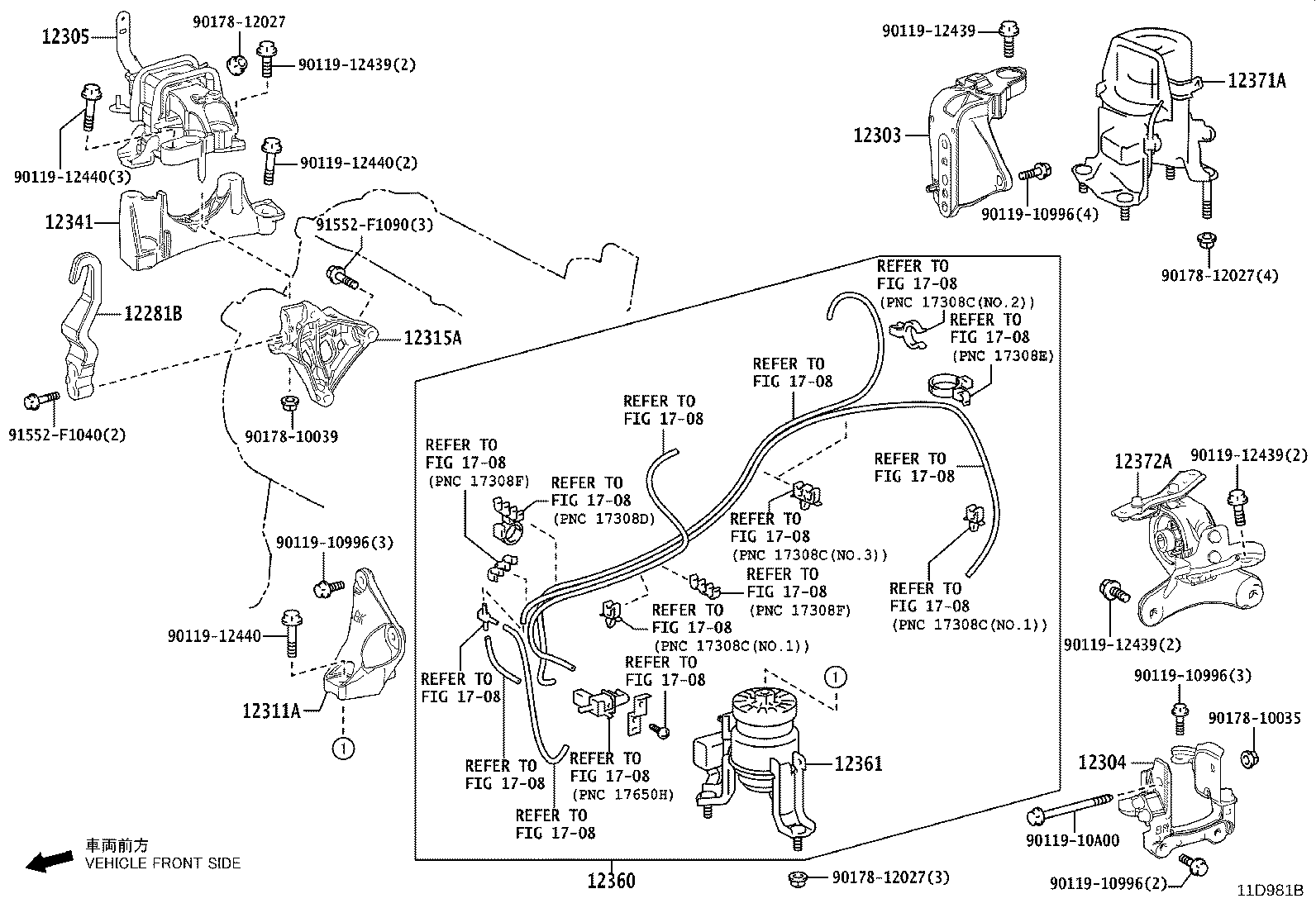

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12281B - HANGER, ENGINE, NO.1 | ||||
| 12281-25030 |
M20AFKS..MXAA5# |
1 | ||
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-24020 |
M20AFKS..MXAA52..CVT |
1 | ||
| 12304 - BRACKET SUB-ASSY, ENGINE MOUNTING, LH | ||||
| 12304-24010 |
M20AFKS..MXAA5#..CVT |
1 | ||
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-24030 |
M20AFKS..MXAA5#..CVT |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-24010 |
M20AFKS..MXAA5#..CVT |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-24020 |
M20AFKS..MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-25010 |
M20AFKS..MXAA5# |
1 | ||
| 12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT | ||||
| 12360-24010 |
M20AFKS..MXAA52..CVT |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-24010 |
M20AFKS..MXAA5#..CVT |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-25050 |
M20AFKS..MXAA52..CVT |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-24040 |
M20AFKS..MXAA5#..CVT |
1 | ||
| Common parts | ||||
| 90119-10996 | ||||
| 90119-10A00 | ||||
| 90119-12439 | ||||
| 90119-12440 | ||||
| 90178-10035 | ||||
| 90178-10039 | ||||
| 90178-12027 | ||||
| 91552-F1040 | ||||
| 91552-F1090 | ||||
| Linked diagrams | ||||
| 1708 | ||||
