MXAA52L-ANFMBW (2018)

Toyota Rav4 (Jpp)

Production Nov 2018 - Jul 2020
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )AXAA5#,MXAA5#..LHD..EUR,GCC

Click highlighted areas on diagram

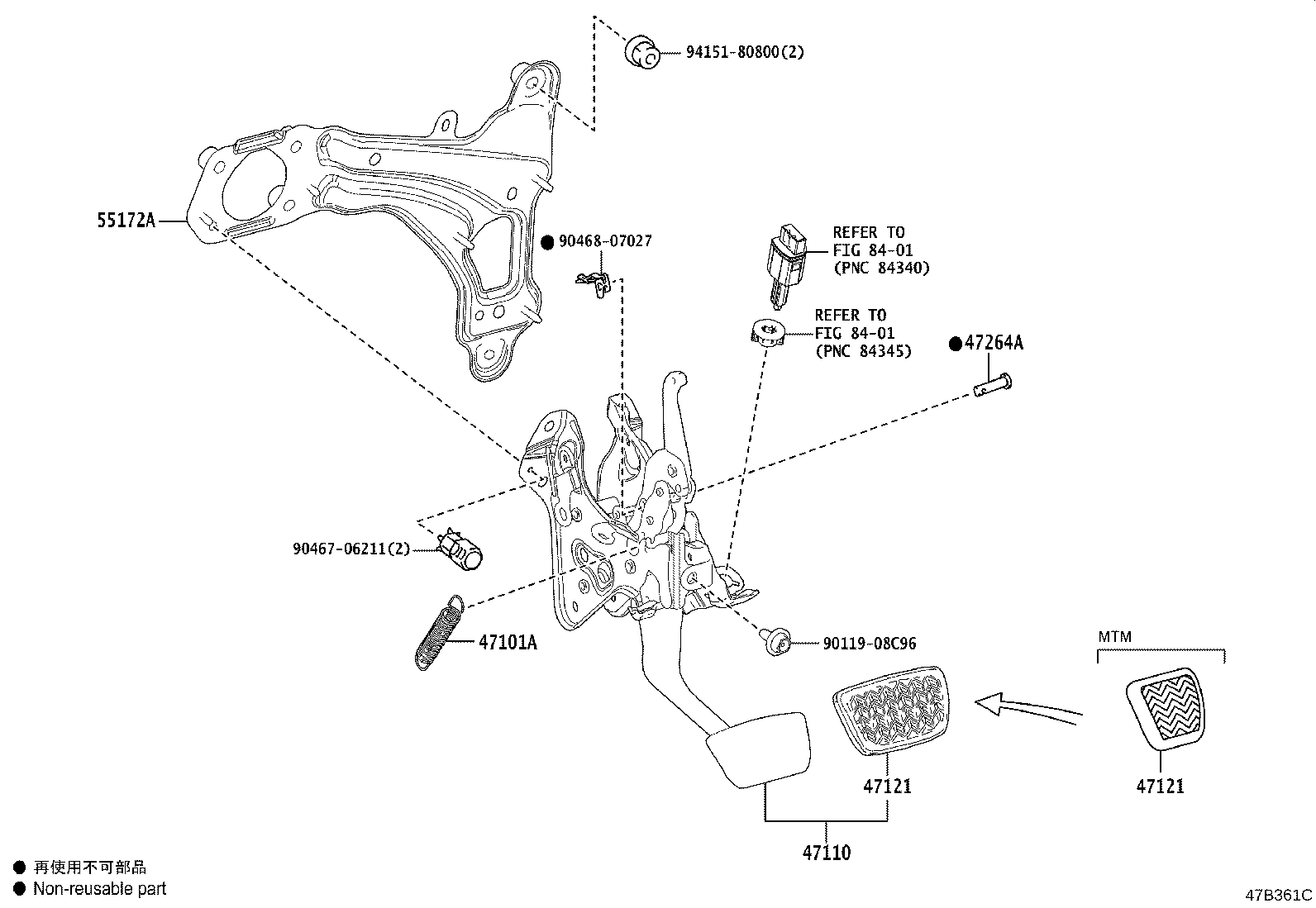

diagram 47101A 47110 47121 47121 47264A 55172A 8401 8401 9011908C96 9046706211 9046807027 9415180800
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12046

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-42330

MXAA5#..LHD..6F..EUR

 1
47121 - PAD, BRAKE PEDAL
47121-12040

MXAA5#..6F

 1
47121 - PAD, BRAKE PEDAL
47121-12040

MXAA5#..6F

 1
47264A - PIN(FOR PUSH ROD)
90240-08082

AXAH5#,AXAL5#;AXAA5#,MXAA5#..LHD..(EUR,GCC)

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD

 1
Common parts
90119-08C96
90467-06211
90468-07027
94151-80800
Linked diagrams
8401
