MXAA52L-ANFGBW (2018)

Toyota Rav4 (Jpp)

Production Nov 2018 - Jul 2020
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1811- )MXAA52..6F

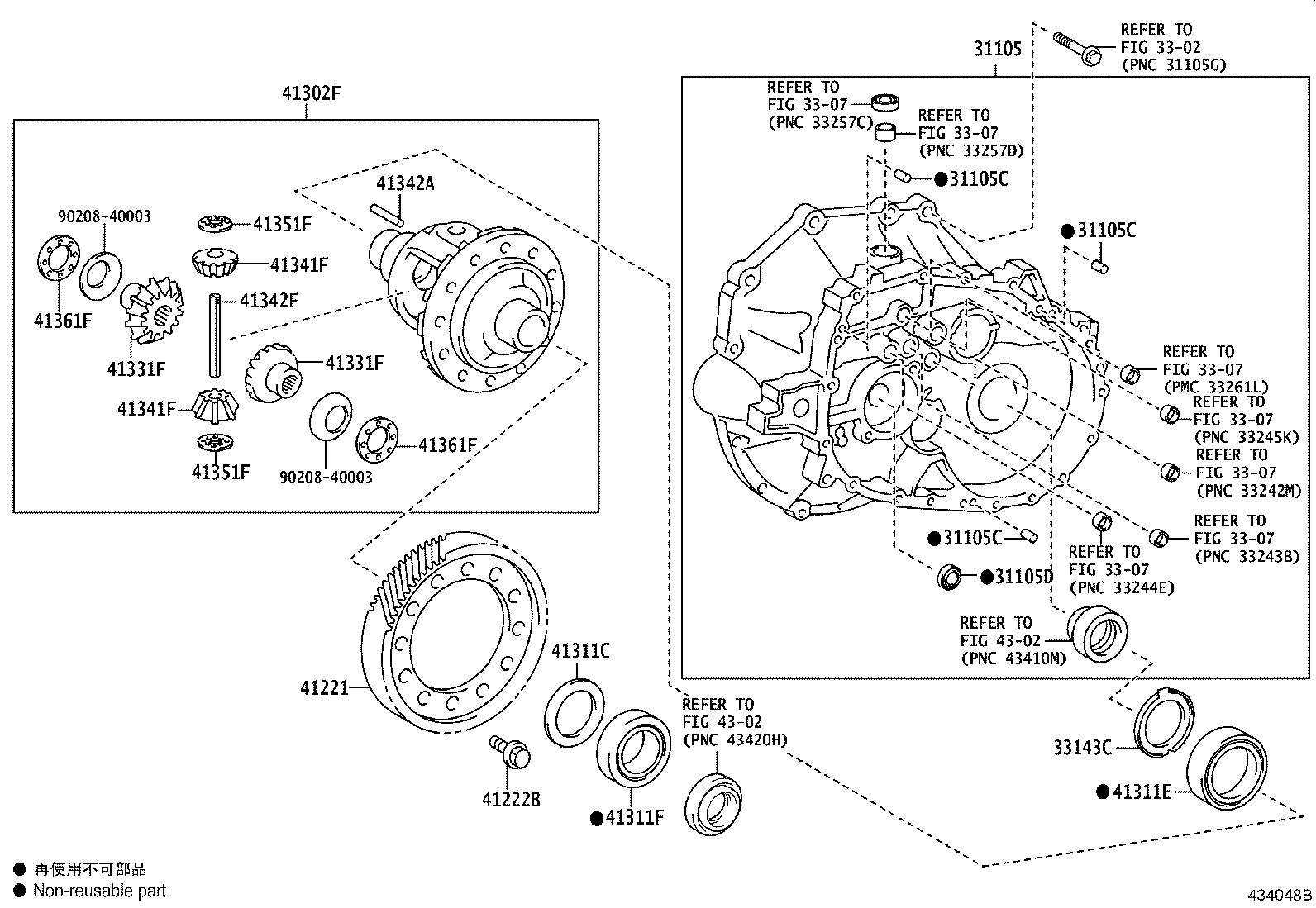

Click highlighted areas on diagram

EG62

diagram 31105 31105C 31105C 31105C 31105D 3302 3307 3307 3307 3307 3307 3307 3307 33143C 41221 41222B 41302F 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302 4302 9020840003 9020840003
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-12260

MXAA52..6F

 1
31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE)
90250-08054

MXAA5#..6F

 3
31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE)
90250-08054

MXAA5#..6F

 3
31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE)
90250-08054

MXAA5#..6F

 3
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25030

MXAA5#..6F

 1
33143C - BAFFLE, FRONT DIFFERENTIAL OIL
33143-20060

MXAA5#..6F

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12680

MXAA5#..6F

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12379

MXAA5#..6F

 12
41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL
41301-12410

MXAA52..6F

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-61096

MXAA5#..6F

T=2.10,MARK B

 1
90564-61095

MXAA5#..6F

T=2.05,MARK A

 1
90564-61099

MXAA5#..6F

T=2.25,MARK E

 1
90564-61111

MXAA5#..6F

T=2.85,MARK S

 1
90564-61107

MXAA5#..6F

T=2.65,MARK N

 1
90564-61101

MXAA5#..6F

T=2.35,MARK G

 1
90564-61104

MXAA5#..6F

T=2.50,MARK K

 1
90564-61110

MXAA5#..6F

T=2.80,MARK R

 1
90564-61103

MXAA5#..6F

T=2.45,MARK J

 1
90564-61102

MXAA5#..6F

T=2.40,MARK H

 1
90564-61109

MXAA5#..6F

T=2.75,MARK Q

 1
90564-61163

MXAA5#..6F

T=2.075,MARK AA

 1
90564-61106

MXAA5#..6F

T=2.60,MARK M

 1
90564-61108

MXAA5#..6F

T=2.70,MARK P

 1
90564-61105

MXAA5#..6F

T=2.55,MARK L

 1
90564-61097

MXAA5#..6F

T=2.15,MARK C

 1
90564-61165

MXAA5#..6F

T=2.175,MARK CC

 1
90564-61100

MXAA5#..6F

T=2.30,MARK F

 1
90564-61168

MXAA5#..6F

T=2.325,MARK FF

 1
90564-61167

MXAA5#..6F

T=2.275,MARK EE

 1
90564-61098

MXAA5#..6F

T=2.20,MARK D

 1
90564-61169

MXAA5#..6F

T=2.375,MARK GG

 1
90564-61166

MXAA5#..6F

T=2.225,MARK DD

 1
90564-61112

MXAA5#..6F

T=2.90,MARK T

 1
90564-61170

MXAA5#..6F

T=2.425,MARK HH

 1
90564-61172

MXAA5#..6F

T=2.525,MARK KK

 1
90564-61164

MXAA5#..6F

T=2.125,MARK BB

 1
90564-61174

MXAA5#..6F

T=2.625,MARK MM

 1
90564-61171

MXAA5#..6F

T=2.475,MARK JJ

 1
90564-61179

MXAA5#..6F

T=2.875,MARK SS

 1
90564-61178

MXAA5#..6F

T=2.825,MARK RR

 1
90564-61175

MXAA5#..6F

T=2.675,MARK NN

 1
90564-61176

MXAA5#..6F

T=2.725,MARK PP

 1
90564-61173

MXAA5#..6F

T=2.575,MARK LL

 1
90564-61177

MXAA5#..6F

T=2.775,MARK QQ

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-57028

MXAA5#..6F

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-57028

MXAA5#..6F

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-21020

MXAA5#..6F

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-21020

MXAA5#..6F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-21010

MXAA5#..6F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-21010

MXAA5#..6F

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

MXAA5#..6F

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-28010

MXAA5#..6F

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-30060

MXAA5#..6F

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-30060

MXAA5#..6F

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-28230

MXAA5#..6F

T=1.0,MARK 1

 2
41361-28240

MXAA5#..6F

T=1.1,MARK 2

 2
41361-28260

MXAA5#..6F

T=1.3,MARK 4

 2
41361-28250

MXAA5#..6F

T=1.2,MARK 3

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-28230

MXAA5#..6F

T=1.0,MARK 1

 2
41361-28240

MXAA5#..6F

T=1.1,MARK 2

 2
41361-28260

MXAA5#..6F

T=1.3,MARK 4

 2
41361-28250

MXAA5#..6F

T=1.2,MARK 3

 2
