AXAH54R-ANXMBQ (2019)

Toyota Rav4 (Jpp)

Production Feb 2019 - Jul 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1902- )AXAH54,AXAL54

Click highlighted areas on diagram

SUSPENSION CROSSMEMBER

diagram 51100H 51206A 52257A 52258B 52271E 52272A 52273C 52274C 52275C 52276B 52281 52281 52297 52298 9011616004 9011616004 9011912439 9011912439 9011916026 9011916029 9011916029 9017816008 9017816008 9415180841 9415180841
Part # Description Qty Price
51100H - FRAME ASSY, FRONT
51100-42010

AXAA5#,AXAH5#,MXAA5#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-42080

AXAH54,AXAL54

 1
52257A - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
52258B - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52271-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52271-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
52273C - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-33030

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
52274C - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-33030

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
52275C - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR RH
52275-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
52276B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR LH
52276-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER
52281-33020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 4
52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER
52281-33020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 4
52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52297-42020

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH
52298-42010

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
Common parts
90116-16004
90119-12439
90119-16026
90119-16029
90178-16008
94151-80841

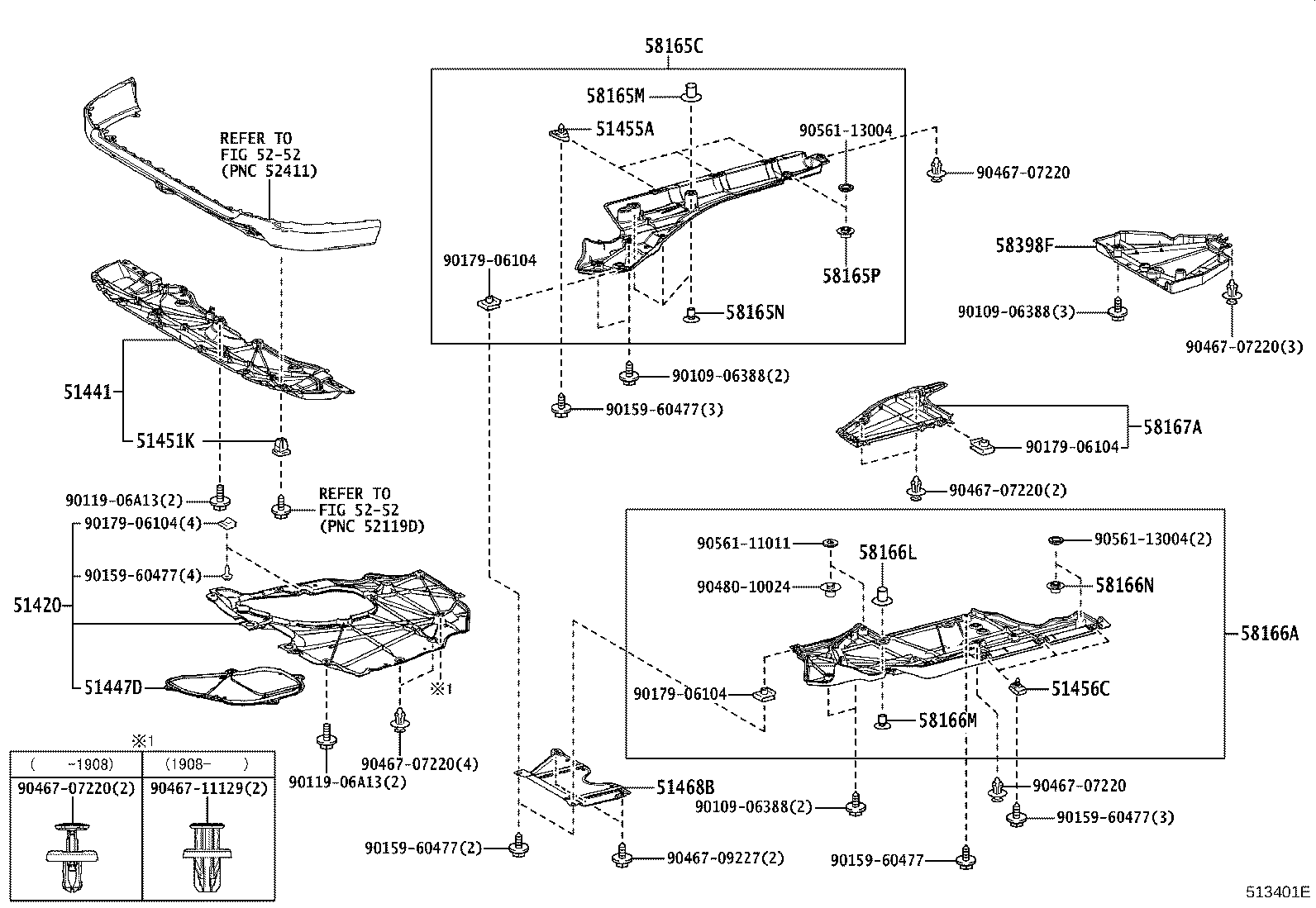

ILLUST NO. 2 OF 2(1902- )AXAH54,AXAL54..ARL,EUR,GCC,RUS

Click highlighted areas on diagram

UNDER COVER

diagram 51420 51441 51447D 51451K 51455A 51456C 51468B 5252 5252 58165C 58165M 58165N 58165P 58166A 58166L 58166M 58166N 58167A 58398F 9010906388 9010906388 9010906388 9011906A13 9011906A13 9015960477 9015960477 9015960477 9015960477 9015960477 9017906104 9017906104 9017906104 9017906104 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9046709227 9046711129 9048010024 9056111011 9056113004 9056113004
Part # Description Qty Price
51420 - COVER ASSY, ENGINE UNDER, NO.2
51420-42030

AXAA52,AXAH5#;AXAA54,MXAA54..ARL,EUR,GEN,SA

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-42200

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-42080

AXAA52,AXAH5#,AXAL5#;AXAA54,MXAA54..ARL,EUR,GEN,RUS,SA

 1
51451K - GROMMET, SCREW, NO.1
90189-06237

AXAA5#,AXAH5#,AXAL5#,MXAA5#

 6
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-48020

AXAH5#,AXAL5#

 3
51456C - SEAL, ENGINE UNDER COVER, NO.2
51455-48020

AXAH5#,AXAL5#

 3
51468B - INSULATOR, ENGINE UNDER COVER HEAT
51468-42020

AXAH5#,AXAL5#

 1
58165C - COVER, FRONT FLOOR, RH
58165-42040

AXAH5#,AXAL5#

 1
58165M - CLIP, FRONT FLOOR COVER, NO.1
90467-17026A0

AXAH5#,AXAL5#

SUPER WHITE 2

 3
58165N - CLIP, FRONT FLOOR COVER, NO.2
90467-17027C0

AXAH5#,AXAL5#

BLACK

 3
58165P - CLIP, FRONT FLOOR COVER, NO.3
90467-14053

AXAH5#,AXAL5#;AXAA52,MXAA54..LHD;AXAA54,MXAA52..LHD..GEN;AXAA54,MXAA52..ARL,EUR,GCC,RUS

 1
58166A - COVER, FRONT FLOOR, LH
58166-42030

AXAH5#,AXAL5#

 1
58166L - CLIP, FRONT FLOOR COVER, NO.1
90467-17026A0

AXAH5#,AXAL5#

SUPER WHITE 2

 4
58166M - CLIP, FRONT FLOOR COVER, NO.2
90467-17027C0

AXAH5#,AXAL5#

BLACK

 4
58166N - CLIP, FRONT FLOOR COVER, NO.3
90467-14053

AXAH5#,AXAL5#

 2
58167A - COVER, FRONT FLOOR, CENTER
58167-42010

AXAH5#,AXAL5#

 1
58398F - COVER, FLOOR UNDER, NO.1
58398-42040

AXAH54,AXAL54..ARL,EUR,GCC,RUS

 1
Common parts
90109-06388
90119-06A13
90159-60477
90179-06104
90467-07220
90467-09227
90467-11129
90480-10024
90561-11011
90561-13004
Linked diagrams
5252
