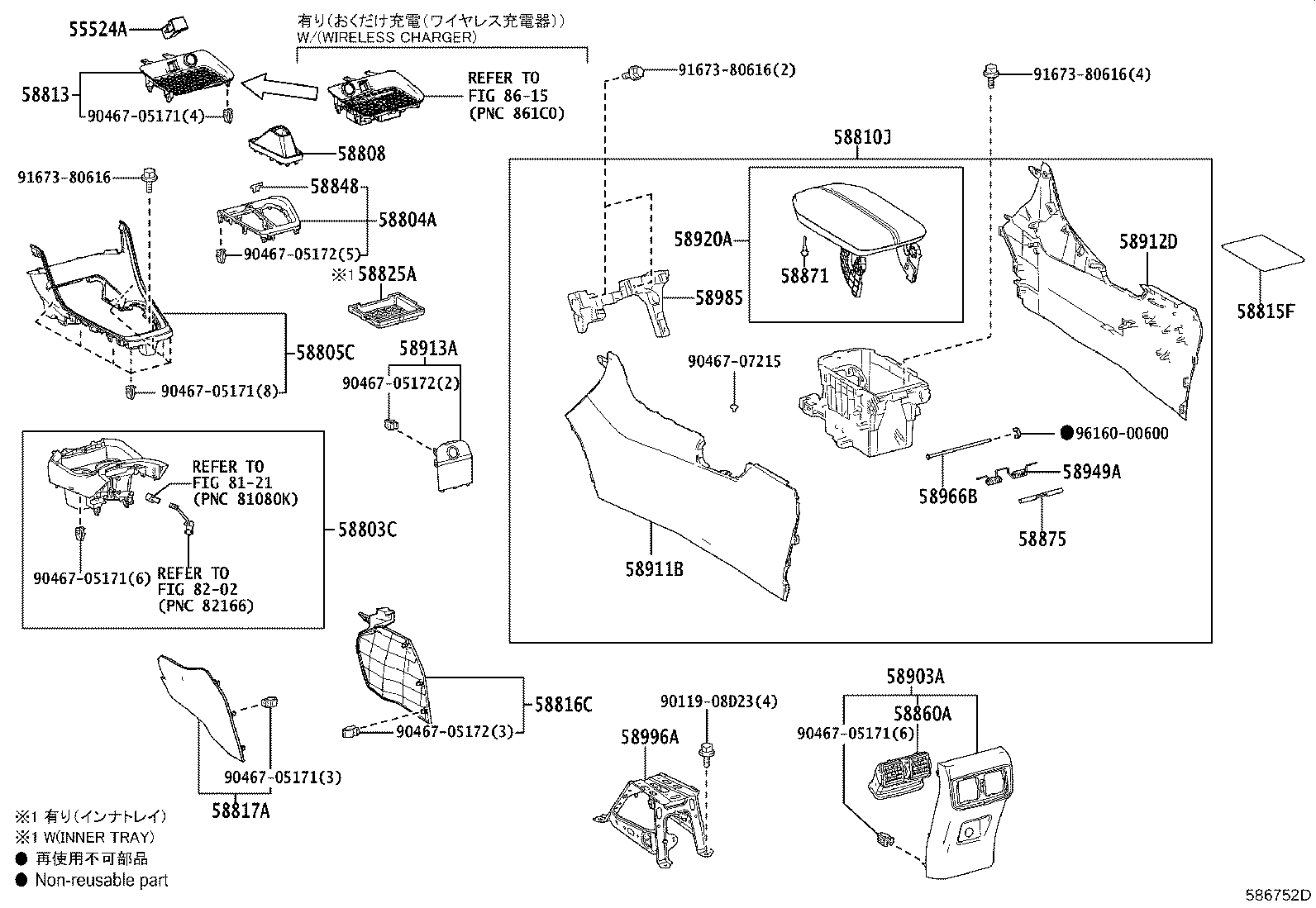

AXAH54R-ANXMB (2019)
Toyota Rav4 (Jpp)
(1811- )RHD..ATM,CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55524A - COVER, SWITCH BASE HOLE | ||||
| 55524-12010C0 |
AXAA5#..GEN;MXAA54..X..GEN;MXAA52..LHD..(G,M);MXAA52..LHD..X..GEN;AXAA5#..(G,M,V)..GCC;MXAA52..RHD..(EUR,GEN);AXAH54,MXAA52..LHD..CVT..X..EUR;AXAH5#,MXAA54..(G,M,V)..(EUR,GCC,GEN) AUDIO JACK-WITHOUT,BLACK |
1 | ||
| 55524-12010C0 |
MXAA52..M..GEN;MXAA54..X..GEN;AXAA54..RHD..GEN;AXAA52..(G,M)..GCC;AXAA52,AXAH52..GEN;MXAA52..LHD..(G,X)..GEN;MXAA52..RHD..(G,X)..(EUR,GEN);AXAA54..LHD..(G,M,V)..(GCC,GEN);AXAH54,MXAA54..(G,M,V)..(GCC,GEN) AUDIO-6SPEAKER(AUDIO LESS)&AUDIO JACK-WITHOUT,BLACK |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-42030C3 |
AXAA54..LHD..X..GEN;MXAA54..LHD..CVT..X..(GCC,GEN);AXAA52,AXAH5#,AXAL5#..X..(ARL,GCC,GEN);AXAA54,MXAA52..(ATM,CVT)..X..(ARL,GCC) BLACK,TRIM2#,4# |
1 | ||
| 58803-42050C3 |
AXAA5#,AXAH5#,MXAA5#..(ATM,CVT)..G..(ARL,GCC,GEN,SA) BLACK,TRIM10,20 |
1 | ||
| 58803-42030C3 |
MXAA52..M..ARL;AXAA54..RHD..X..GEN;MXAA54..RHD..CVT..(M,X);MXAA52..CVT..(M,X)..(GEN,SA);MXAA54..LHD..CVT..M..(GCC,GEN);AXAA5#,AXAH5#,AXAL5#..M..(ARL,GCC,GEN) BLACK,TRIM1#,2#,4# |
1 | ||
| 58803-42050C4 |
AXAA5#,AXAH5#,MXAA5#..(ATM,CVT)..G..(ARL,GCC,GEN,SA) DK.BROWN,TRIM10,20,4# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-42480 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(ATM,CVT) |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-42100 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(ATM,CVT) |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-42130C0 |
AXAL5#..(G,M)..ARL;AXAL5#..RHD..G..EUR;MXAA54..RHD..CVT..(M,X);AXAA54,MXAA52..RHD..(ATM,CVT)..X..(GEN,SA);AXAA5#,AXAH5#,MXAA52..RHD..(ATM,CVT)..(G,M) BLACK,TRIM1#,2#,4# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-42060C1 |
AXAH52,AXAL5#..(G,M)..ARL;AXAA54,AXAH54,MXAA52..M..ARL;AXAH52,AXAL5#..RHD..G..(EUR,GEN);AXAA5#,AXAH54,MXAA52..RHD..(ATM,CVT)..G BLACK,TRIM1#,2#,4# |
1 | ||
| 58815F - CARPET, CONSOLE BOX | ||||
| 58815-42040 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-42030C0 |
AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);AXAL5#..RHD..G..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);AXAA5#,AXAH5#,MXAA52..RHD..(G,M) BLACK,TRIM1#,2#,4# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-42030C0 |
AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);AXAL5#..RHD..G..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);AXAA5#,AXAH5#,MXAA52..RHD..(G,M) BLACK,TRIM1#,2#,4# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-42030 |
AXAA5#,AXAH54,MXAA5#..G;AXAH52,AXAL5#..(G,M)..EUR;AXAH52,AXAL5#..G..(ARL,GEN);AXAA54,AXAH54,MXAA5#..M..EUR |
1 | ||
| 58848 - COVER, SHIFT LEVER HOLE | ||||
| 58848-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(ATM,CVT) |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-48050C2 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 58860-48050C2 |
AXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 58871 - CUSHION, CONSOLE BOX | ||||
| 90541-03078 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 58875 - SPACER, CONSOLE BOX | ||||
| 58875-42010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-42060C0 |
MXAA54..LHD..6F..M..GEN;AXAA52,AXAH5#..(G,M)..GEN;MXAA54..LHD..CVT..(G,M)..GEN;AXAA54,MXAA52..LHD..(G,M)..GEN;AXAA54,MXAA5#..RHD..(G,M,X)..GEN AUDIO JACK-FRONT:AUX & USB1,REAR:USB2,BLACK,TRIM1#,2#,4# |
1 | ||
| 58903-42050C0 |
MXAA52..X..SA;MXAA52..LHD..CVT..X..GEN;AXAA52,AXAH5#..(G,M)..GEN;AXAA54,MXAA5#..LHD..(G,M)..GEN;AXAA54,MXAA5#..RHD..(G,M,X)..GEN BLACK,TRIM1#,2#,4# |
1 | ||
| 58903-42060C0 |
AXAA52,AXAH5#..(G,M)..GEN;AXAA54,MXAA5#..LHD..(G,M)..GEN;AXAA54,MXAA5#..RHD..(G,M,X)..GEN AUDIO JACK-FRONT:USB1,REAR:USB2,BLACK,TRIM1#,2#,4# |
1 | ||
| 58903-42060C0 |
MXAA54..M..GEN;MXAA54..CVT..G..GEN;AXAA5#,AXAH5#,MXAA52..(G,M)..GEN AUDIO JACK-FRONT:AUX & USB3,REAR:USB2,BLACK,TRIM1#,2#,4# |
1 | ||
| 58903-42060C0 |
AXAH52..M..GEN;AXAH52..LHD..G..GEN;AXAA52,AXAH54..(G,M)..GEN;AXAA54,MXAA5#..LHD..(G,M)..GEN;AXAA54,MXAA5#..RHD..(G,M,X)..GEN AUDIO JACK-FRONT:AUX & USB1,REAR:USB2,BLACK,TRIM1#,2#,4# |
1 | ||
| 58903-42060C0 |
AXAA5#,AXAH5#,MXAA5#..(G,M)..GEN AUDIO JACK-FRONT:USB3, REAR:USB3,BLACK,TRIM1#,2#,4# |
1 | ||
| 58903-42050C0 |
AXAA54,MXAA54..V..GEN;MXAA54..LHD..X..(GCC,GEN);AXAA54,MXAA52..X..(ARL,GCC);AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA52,AXAH5#,AXAL5#..X..(ARL,GCC,GEN) BLACK,TRIM2#,4# |
1 | ||
| 58903-42060C0 |
AXAH52..M..GEN;AXAH52..LHD..G..GEN;AXAA5#,AXAH54,MXAA5#..(G,M)..GEN AUDIO JACK-FRONT:AUX & USB3,REAR:USB2,BLACK,TRIM1#,2#,4# |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-42080C0 |
AXAL5#..(G,M)..ARL;AXAL5#..RHD..G..EUR;MXAA54..RHD..CVT..(M,X);AXAA54,MXAA52..RHD..(ATM,CVT)..X..(GEN,SA);AXAA5#,AXAH5#,MXAA52..RHD..(ATM,CVT)..(G,M) BLACK,TRIM1#,2#,4# |
1 | ||
| 58912D - PANEL, BOX, NO.2 | ||||
| 58912-42070C0 |
AXAL5#..(G,M)..ARL;AXAL5#..RHD..G..EUR;MXAA54..RHD..CVT..(M,X);AXAA54,MXAA52..RHD..(ATM,CVT)..X..(GEN,SA);AXAA5#,AXAH5#,MXAA52..RHD..(ATM,CVT)..(G,M) BLACK,TRIM1#,2#,4# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-42010 |
AXAH54;MXAA52..X..(ARL,EUR,GEN);MXAA52..(G,M)..(ARL,EUR,GEN,SA);AXAA5#,AXAH52,AXAL5#,MXAA54..ARL,EUR,GCC,GEN,SA |
1 | ||
| 58913-42030 |
MXAA54..M,V;MXAA54..CVT..G;MXAA54..6F..G..EUR;MXAA52..6F..(G,M)..(EUR,GEN);AXAA5#,AXAH5#,MXAA52..(ATM,CVT)..(G,M,V)..(ARL,EUR,GCC,GEN,SA) AUDIO JACK-FRONT:AUX & USB3,REAR:USB2 |
1 | ||
| 58913-42030 |
MXAA52..6F..(G,M)..EUR;MXAA52..(G,M)..(ARL,GEN,SA);MXAA52..LHD..CVT..(G,M)..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA54..(G,M,V)..(ARL,EUR,GCC,GEN,SA) AUDIO JACK-FRONT:USB3, REAR:USB3 |
1 | ||
| 58913-42030 |
AXAH52..M..GEN;AXAH52..LHD..G..GEN;MXAA52..LHD..(G,M)..GEN;AXAA5#..(G,M,V)..(GCC,GEN);AXAH54,MXAA54..(G,M,V)..GEN;MXAA52..RHD..CVT..(G,M)..(EUR,GEN) AUDIO JACK-FRONT:AUX & USB3,REAR:USB2 |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-42010C0 |
AXAH5#..M..(GCC,GEN);MXAA52..CVT..(M,X)..(GEN,SA);AXAA54,MXAA54..RHD..(ATM,CVT)..(M,X)..GEN;AXAA5#,MXAA54..LHD..(ATM,CVT)..M..(GCC,GEN) BLACK,TRIM1#,2#,4# |
1 | ||
| 58920-42010C0 |
AXAA54..LHD..X..GEN;MXAA54..LHD..CVT..X..(GCC,GEN);AXAA52,AXAH5#,AXAL5#..X..(ARL,GCC,GEN);AXAA54,MXAA52..(ATM,CVT)..X..(ARL,GCC) BLACK,TRIM2#,4# |
1 | ||
| 58920-42020C1 |
AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA52..CVT..X..RUS;AXAH54..M..(ARL,EUR);MXAA54..CVT..(EUR,RUS);AXAH52..(G,M)..(ARL,EUR);AXAH52,MXAA54..CVT..G..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(ATM,CVT)..G;AXAA54,MXAA52..(ATM,CVT)..M..(ARL,EUR,RUS) BLACK,TRIM1#,2#,4# |
1 | ||
| 58949A - SPRING, CONSOLE BOX MOUNTING BRACKET | ||||
| 58949-42040 |
MXAA52..CVT..M..GEN;MXAA52..CVT..X..(ARL,GEN,SA);AXAA54,AXAH5#,AXAL5#..X..ARL;AXAA5#,AXAH5#,MXAA54..(ATM,CVT)..(M,X)..(GCC,GEN) |
1 | ||
| 58949-42050 |
AXAH54..M..ARL;MXAA52..6F..(M,X);MXAA54..EUR,RUS,SA;MXAA54..6F..(M,X)..GEN;AXAH54..(M,X)..(EUR,RUS);AXAA5#,AXAH54,MXAA52..G,V;AXAH52,MXAA54..(G,V)..(GCC,GEN);AXAH52,AXAL5#..(G,M)..(ARL,EUR);AXAH52,AXAL5#,MXAA52..CVT..X..(EUR,RUS);AXAA54,MXAA52..(ATM,CVT)..M..(ARL,EUR,RUS) |
1 | ||
| 58966B - PIN, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58966-42020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 58985 - RETAINER, CONSOLE BOX | ||||
| 58985-42080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(ATM,CVT) |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-42080 |
AXAH54;AXAA5#,AXAH52,AXAL5#,MXAA5#..ARL,EUR,GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 90119-08D23 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-07215 | ||||
| 91673-80616 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8615 | ||||
