AXAH54R-ANXMB (2019)

Toyota Rav4 (Jpp)

Production Feb 2019 - Jul 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )AXAH54,AXAL54..RHD

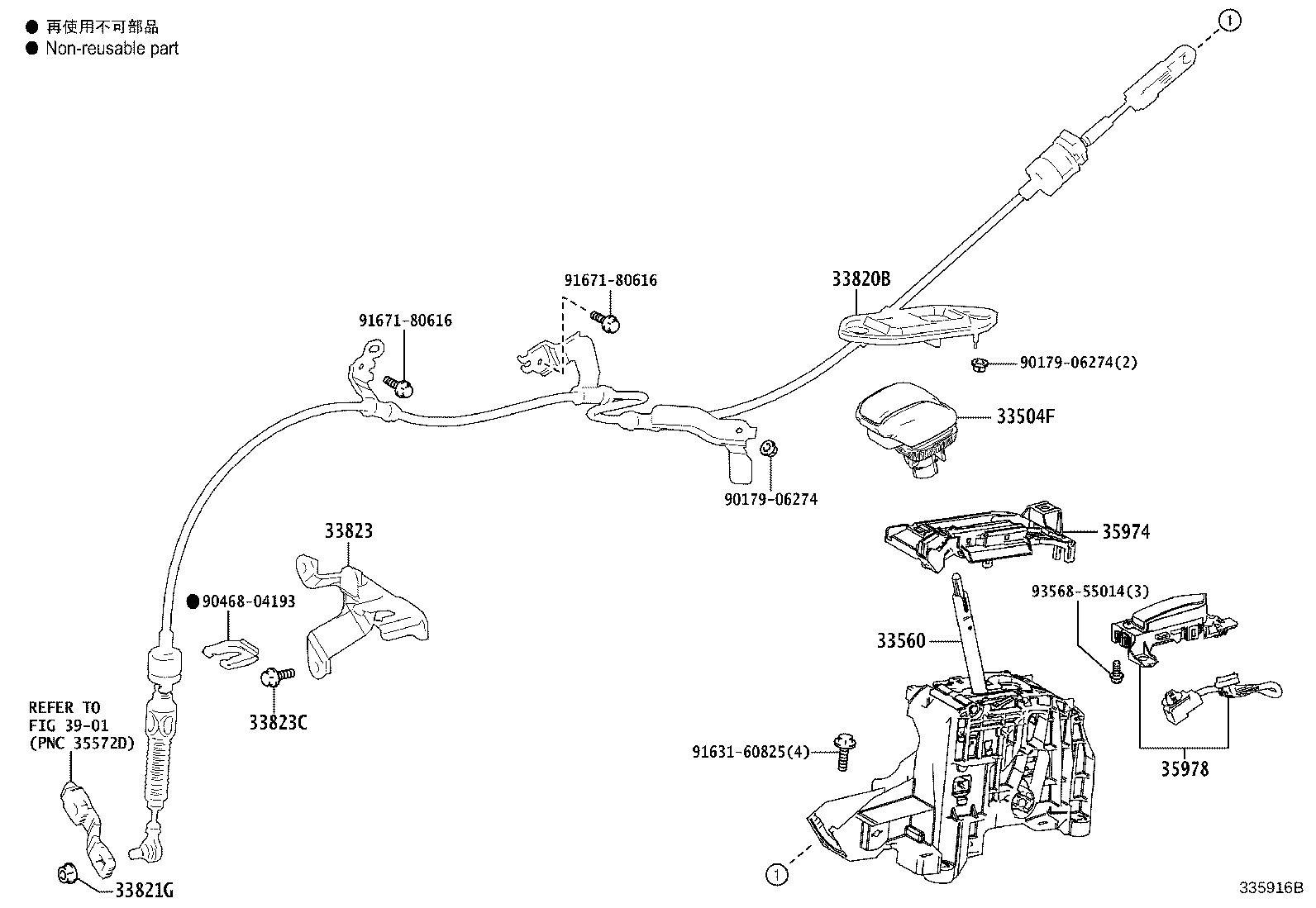

Click highlighted areas on diagram

diagram 33504F 33560 33820B 33821G 33823 33823C 35974 35978 3901 9017906274 9017906274 9046804193 9163160825 9167180616 9167180616 9356855014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-42130C0

AXAA54..LHD..X..GEN;MXAA54..RHD..V..GEN;AXAA54..V..(GCC,GEN);MXAA54..LHD..CVT..(V,X)..(GCC,GEN);AXAA52,AXAH5#,AXAL5#..X..(ARL,GCC,GEN);AXAA54,MXAA52..(ATM,CVT)..X..(ARL,GCC)

BLACK,TRIM2#,4#

 1
33542-40050C0

AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;AXAH52,MXAA54..CVT..G..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(ATM,CVT)..G;AXAH52,MXAA54..CVT..(G,M)..(ARL,EUR,RUS);AXAA54,AXAH54,MXAA52..(ATM,CVT)..M..(ARL,EUR,RUS)

BLACK,TRIM1#,2#,4#

 1
33504-42130C0

MXAA5#..CVT..X..RUS;AXAH5#..M..(GCC,GEN);MXAA52..CVT..(M,X)..GEN;AXAA54,MXAA54..RHD..(ATM,CVT)..(M,X)..GEN;AXAA5#,MXAA54..LHD..(ATM,CVT)..M..(GCC,GEN)

BLACK,TRIM1#,2#,4#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-10020

AXAA52,AXAH5#,AXAL5#..RHD;AXAA54,MXAA5#..RHD..(ATM,CVT)..(G,M,V)

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-42490

AXAH54,AXAL54

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

AXAH5#,AXAL5#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-42050

AXAH5#,AXAL5#

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

AXAA5#,AXAH5#,AXAL5#,MXAA5#..ATM,CVT

 2
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-42050

AXAA5#,AXAH5#,AXAL5#,MXAA5#..RHD..(ATM,CVT)

 1
35978 - INDICATOR, SHIFT POSITION
35978-42060

AXAH5#,AXAL5#..RHD

 1
Common parts
90179-06274
90468-04193
91631-60825
91671-80616
93568-55014
Linked diagrams
3901
