AXAH52L-ANXMBW (2018)
Toyota Rav4 (Jpp)

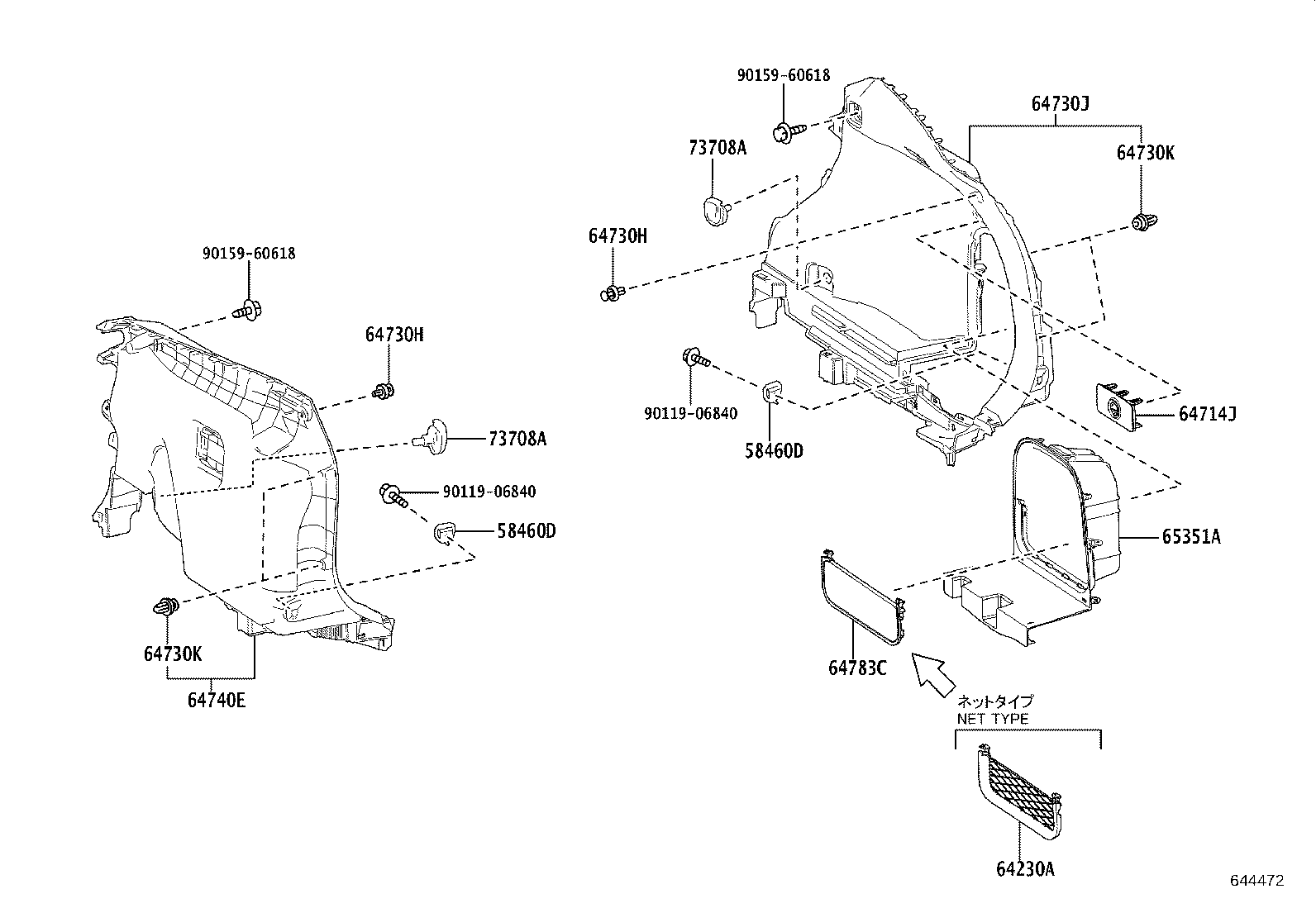

ILLUST NO. 1 OF 2(1811- )AXAH5#,AXAL5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 64714J - COVER, DECK SIDE TRIM, RH | ||||
| 64714-42050C0 |
MXAA52..EUR;AXAL5#..G..EUR;MXAA52..X..RUS;AXAA5#..(G,M)..GCC;AXAH5#,MXAA54..(G,M)..(EUR,GCC);AXAH5#,MXAA54..LHD..X..(EUR,RUS) AUDIO JACK-WITHOUT,BLACK,TRIM1#,2#,4# |
1 | ||
| 64714-42070C0 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#,MXAA54..(G,M)..(ARL,GCC);AXAH5#,MXAA52..LHD..X..(EUR,RUS);AXAA5#,AXAH5#,MXAA52..(G,M)..(ARL,EUR,GCC,RUS,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 65487-53020 |
AXAA5#,AXAH52,MXAA5# |
2 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 65487-53020 |
AXAA5#,AXAH52,MXAA5# |
2 | ||
| 64730J - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-42230C0 |
AXAH54..G..RUS;AXAH5#..(G,M)..(ARL,EUR,GCC,GEN) BLACK,TRIM1#,2#,4# |
1 | ||
| 64730-42231C0 |
AXAH5#,AXAL5#..M..EUR BLACK,TRIM2# |
1 | ||
| 64730-42150C0 |
AXAH5#..LHD..X..EUR BLACK,TRIM1#,2#,4# |
1 | ||
| 64730-42151C0 |
AXAH5#,AXAL5#..X..EUR BLACK,TRIM2# |
1 | ||
| 64730K - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 64730K - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 64740E - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-42140C0 |
MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA5#..RHD..X..(GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 64740-42170C0 |
AXAH5#..G..EUR;AXAH5#..LHD..M..EUR;AXAA54,MXAA5#..LHD..(G,M)..EUR AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 64740-42170C0 |
AXAH5#..G..EUR;AXAH5#..LHD..M..EUR;AXAA54,MXAA5#..LHD..(G,M)..EUR AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM1#,2#,4# |
1 | ||
| 64740-42160C0 |
AXAH54..G..RUS;AXAA5#,AXAH5#,MXAA5#..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 64740-42171C0 |
MXAA52..LHD..M..EUR;AXAH5#,AXAL5#,MXAA54..M..EUR AUDIO-JBL 8INCH T1 DAB, EUROPE,BLACK,TRIM2# |
1 | ||
| 64740-42141C0 |
AXAH5#,AXAL5#,MXAA52..X..EUR BLACK,TRIM2# |
1 | ||
| 64740-42171C0 |
MXAA52..LHD..M..EUR;AXAH5#,AXAL5#,MXAA54..M..EUR AUDIO-JBL 8INCH T2 DAB, EUROPE,BLACK,TRIM2# |
1 | ||
| 64740-42161C0 |
AXAH5#,AXAL5#,MXAA5#..M..EUR BLACK,TRIM2# |
1 | ||
| 64783C - PLATE, DECK TRIM POCKET COVER | ||||
| 64783-42030C0 |
AXAA54..RHD..X..GEN;AXAL5#,MXAA52..M..ARL;MXAA52..LHD..CVT..X..GEN;MXAA5#..LHD..M..(EUR,GCC,GEN);MXAA5#..RHD..(M,X)..(EUR,GEN,SA);AXAA5#,AXAH5#..M..(ARL,EUR,GCC,GEN) BLACK,TRIM1#,2#,4# |
1 | ||
| 64783-42030C0 |
AXAL5#..(M,X)..EUR;MXAA54..(M,X)..RUS;AXAH5#,MXAA52..X..(EUR,RUS);AXAA54,AXAH54,MXAA52..M..RUS BLACK,TRIM2# |
1 | ||
| 65351A - COVER, BATTERY HOLE | ||||
| 65351-42010C0 |
AXAH5#..G,M;AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;AXAH5#..LHD..X..EUR BLACK,TRIM1#,2#,4# |
1 | ||
| 73708A - BRACKET SET, TETHER ANCHOR | ||||
| 73708-42060C1 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
2 | ||
| 73708A - BRACKET SET, TETHER ANCHOR | ||||
| 73708-42060C1 |
AXAL5#..G..EUR;MXAA54..EUR,RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAA5#,AXAH5#,MXAA52..G,M;MXAA54..LHD..(G,M)..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);AXAH5#,MXAA52..LHD..X..(EUR,RUS) BLACK,TRIM1#,2#,4# |
2 | ||
| Common parts | ||||
| 90119-06840 | ||||
| 90159-60618 | ||||
ILLUST NO. 2 OF 2(1811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58386 - PLATE, REAR FLOOR FINISH | ||||
| 58387-42130C0 |
AXAH54..G..RUS;AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54..M..(ARL,EUR,GCC,GEN);MXAA54..LHD..CVT..M..(GCC,GEN);AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..6F..(G,M)..(EUR,GEN);AXAA52,AXAH5#,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-42120C1 |
AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 58410-42110C1 |
AXAL5#..G..EUR;MXAA52..6F..EUR;MXAA54..RHD..(M,X);AXAH5#..LHD..X..EUR;MXAA52..LHD..CVT..EUR;MXAA52..LHD..CVT..X..GEN;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAL5#,MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,AXAH5#..(G,M)..(ARL,EUR,GCC,GEN,SA) SPARE TIRE-T165/80D17(REINFORCED TEMPORARY),STEEL,BLACK,TRIM1#,2#,4# |
1 | ||
| 58410-42110C1 |
AXAL5#..G..EUR;MXAA52..6F..EUR;AXAH5#..LHD..X..EUR;MXAA52..LHD..CVT..EUR;AXAA54,AXAH5#,MXAA54..(G,M)..EUR SPARE TIRE-REPAIR KIT,BLACK,TRIM1#,2#,4# |
1 | ||
| 58410-42110C1 |
AXAL5#..G..EUR;MXAA52..6F..EUR;AXAH5#..LHD..X..EUR;MXAA52..LHD..CVT..EUR;AXAA54,AXAH5#,MXAA54..(G,M)..EUR SPARE TIRE-165/80D17(REINFORCED TEMPORARY),ALUMI,BLACK,TRIM1#,2#,4# |
1 | ||
| 58416D - CLIP, REAR FLOOR BOARD | ||||
| 90467-10201 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 58416D - CLIP, REAR FLOOR BOARD | ||||
| 90467-10201 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
4 | ||
| 58416K - BOARD, REAR FLOOR, NO.2 | ||||
| 58416-42070C0 |
AXAH54..G,M;AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAA5#,AXAH52,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 58417H - BOARD, REAR FLOOR, NO.3 | ||||
| 58417-42070C0 |
AXAH54..G,M;AXAL5#..G..EUR;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..(G,M)..(EUR,GCC,GEN);AXAA5#,AXAH52,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 58577E - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1 | ||||
| 58577-42150C0 |
AXAH54..G..RUS;AXAL5#..(G,M)..ARL;MXAA54..RHD..(M,X);MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAL5#,MXAA54..CVT..G..EUR;AXAA54,MXAA52..RHD..X..(GEN,SA);MXAA54..LHD..6F..(G,M)..(EUR,GEN);MXAA54..LHD..CVT..(G,M)..(GCC,GEN);AXAA5#,AXAH5#,MXAA52..(G,M)..(ARL,EUR,GCC,GEN,SA) BLACK,TRIM1#,2#,4# |
1 | ||
| 58707E - PLUG SET, HOLE | ||||
| 58707-50060 |
MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..EUR SPARE TIRE-REPAIR KIT |
1 | ||
| 64779K - STOPPER, SPARE WHEEL COVER | ||||
| 64779-42050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..(G,V)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 64779-42030 |
MXAA52..6F..EUR;MXAA52..ARL,GEN,SA;MXAA52..LHD..CVT..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA54..ARL,EUR,GCC,GEN,SA SPARE TIRE-T165/80D17(REINFORCED TEMPORARY),STEEL |
1 | ||
| 64779-42040 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..(M,X)..(ARL,EUR,GCC,GEN,SA) |
1 | ||
| 64779-42030 |
MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..EUR SPARE TIRE-165/80D17(REINFORCED TEMPORARY),ALUMI |
1 | ||
| 64907D - STOPPER SUB-ASSY, TONNEAU COVER, RH | ||||
| 64907-42030 |
AXAH54..EUR,GCC,GEN,RUS;AXAA5#,AXAH52,AXAL5#,MXAA5#..EUR,GCC,GEN PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER) |
1 | ||
| 64909C - STOPPER SUB-ASSY, TONNEAU COVER, LH | ||||
| 64909-42030 |
AXAH54..EUR,GCC,GEN,RUS;AXAA5#,AXAH52,AXAL5#,MXAA5#..EUR,GCC,GEN PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER) |
1 | ||
| 64910N - COVER ASSY, TONNEAU | ||||
| 64910-42060C0 |
AXAL5#..G..EUR;MXAA52..LHD..CVT..X..GEN;AXAH5#,MXAA52..LHD..X..EUR;AXAA54,MXAA5#..RHD..(G,M,X)..(EUR,GEN);AXAA52,AXAH5#..(G,M)..(EUR,GCC,GEN,RUS);AXAA54,MXAA5#..LHD..(G,M)..(EUR,GCC,GEN) PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONNEAU COVER),BLACK,TRIM1#,2#,4# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-42011 |
MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..EUR SPARE TIRE-REPAIR KIT |
1 | ||
| 64993-42010 |
MXAA52..6F..EUR;MXAA52..LHD..CVT..EUR;AXAA54,AXAH5#,MXAA54..EUR SPARE TIRE-REPAIR KIT |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||
| 93560-55014 | ||||
