AXAA54L-ANZMB (2018)

Toyota Rav4 (Jpp)

Production Nov 2018 - Jul 2020
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1811-2110)A25AFKS..ARL,EUR,GCC,GEN,SA ; (1910-)A25AFKS..AXAA54..RUS

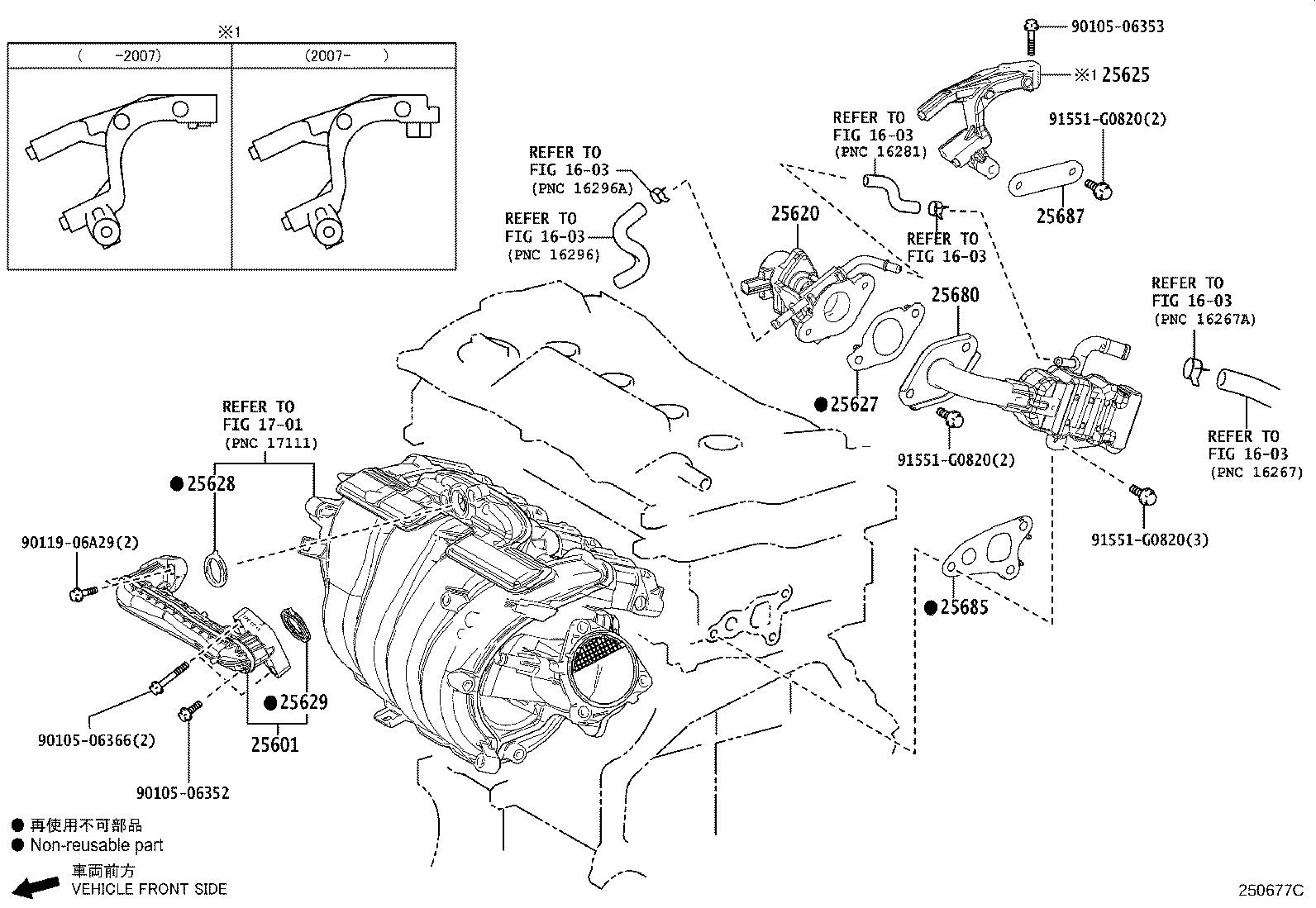

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1701 25601 25620 25625 25627 25628 25629 25680 25685 25687 9010506352 9010506353 9010506366 9011906A29 91551G0820 91551G0820 91551G0820
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-25011

A25#..AXAA5#,AXAH5#,AXAL5#

 1
25620 - VALVE ASSY, EGR
25620-25040

A25#..AXAA5#,AXAH5#,AXAL5#

 1
25625 - BRACKET, EGR VALVE
25625-25010

A25#..AXAA5#,AXAH5#,AXAL5#

 1
25627 - GASKET, EGR VALVE
25627-25010

A25#..AXAA5#,AXAH5#,AXAL5#

 1
25628 - GASKET, EGR INLET
25628-25010

A25#..AXAA5#,AXAH5#,AXAL5#

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-25010

A25#..AXAA5#,AXAH5#,AXAL5#

 1
25680 - COOLER ASSY, EGR
25680-25010

A25AFKS..AXAA5#

 1
25685 - GASKET, EGR COOLER, NO.1
25685-25011

A25#..AXAA5#,AXAH5#,AXAL5#

 1
25687 - BRACKET, EGR COOLER, NO.1
25687-25010

A25AFKS..AXAA5#

 1
Common parts
90105-06352
90105-06353
90105-06366
90119-06A29
91551-G0820
Linked diagrams
1603
1701
