AXAA52L-ANZMBV (2019)
Toyota Rav4 (Jpp)

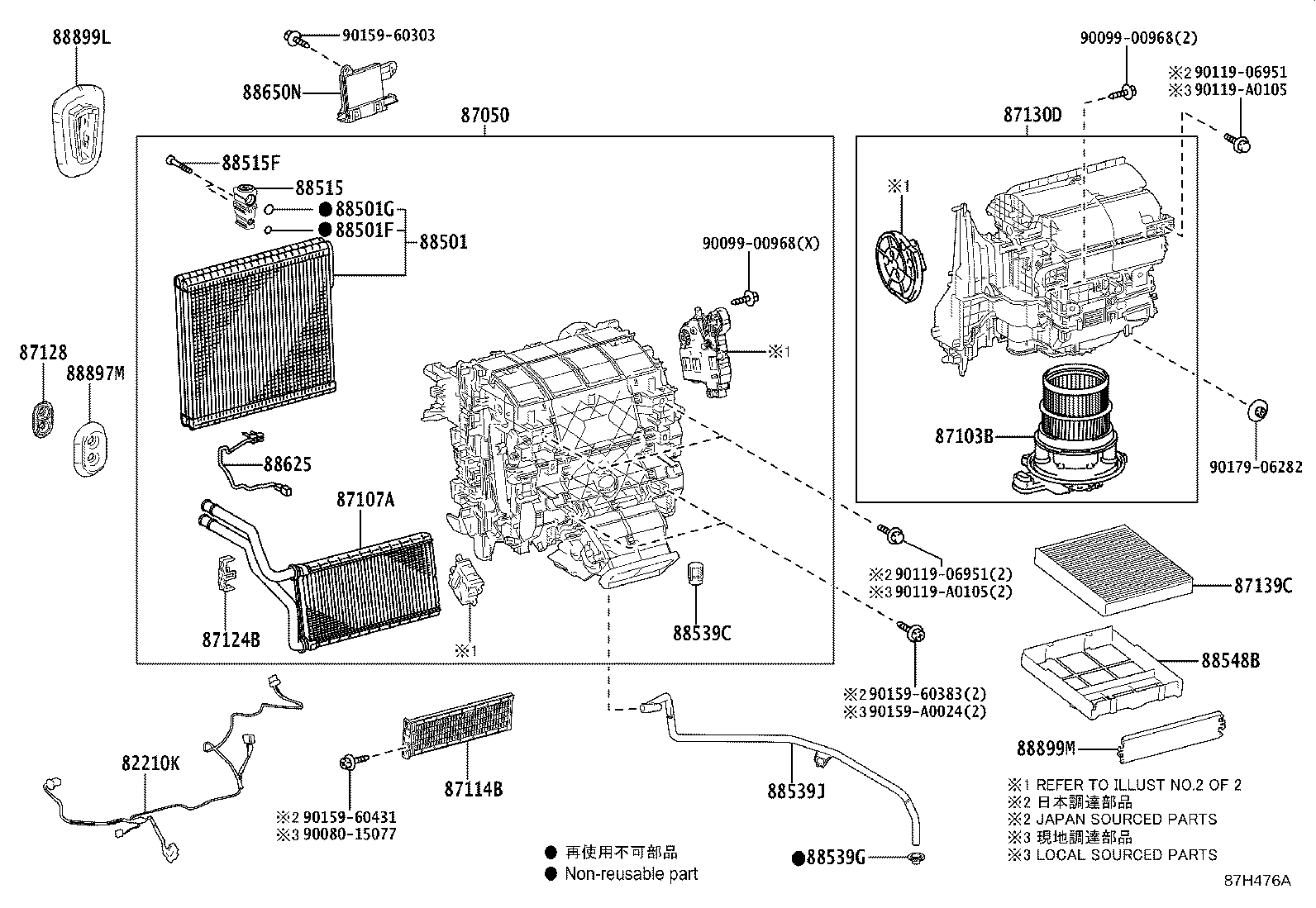

ILLUST NO. 1 OF 2(1811-2007)AXAA5#,MXAA5#..LHD..X..EUR,GCC,GEN ;(1910-2007)X..RUS ; (2008- )AXAA
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-42050 |
AXAA5#,MXAA5#..LHD;AXAH5#..LHD..(GCC,GEN,RUS) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33C30 |
MXAA5#..LHD..(G,M,V);AXAA5#..LHD..(G,M,V)..(GCC,GEN,RUS) |
1 | ||
| 87050-42A50 |
AXAA5#,MXAA5#..LHD..X |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-58080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33130 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-58050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-47290 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-28020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# POLLEN FILTER |
1 | ||
| 87139-58010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-33340 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88899-10110 |
AXAA54..EUR;MXAA52..RHD..EUR;AXAA5#,MXAA5#..LHD..X;AXAH5#,AXAL5#..RHD..(ARL,GEN) |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-42070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-47090 |
AXAH5#..LHD..GEN;MXAA52..LHD..CVT;AXAA5#,MXAA54..LHD;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS);AXAH5#,AXAL5#..EUR,GCC,RUS |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28050 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-42810 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);AXAH54..ARL,EUR,RUS;MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH52,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88650-42820 |
AXAA5#,AXAH54,MXAA54..G..GCC;AXAA5#,AXAH5#,MXAA52..RHD..G..GEN |
1 | ||
| 88650-42821 |
AXAA5#,AXAH54,MXAA54..G..GCC;AXAA5#,AXAH5#,MXAA52..RHD..G..GEN |
1 | ||
| 88650-42811 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-33020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88898D - GROMMET | ||||
| 88899-33070 |
AXAA5#,MXAA5#..X |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-33080 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||
ILLUST NO. 1 OF 2(1811-2007)AXAH5#..LHD..GCC,GEN,RUS ; (1811-2007)AXAA5#,MXAA5#..LHD..G,M,V..EUR,GCC
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-42050 |
AXAA5#,MXAA5#..LHD;AXAH5#..LHD..(GCC,GEN,RUS) |
1 | ||
| 82212-42050 |
AXAA5#,MXAA5#..LHD;AXAH5#..LHD..(GCC,GEN,RUS) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33C30 |
MXAA5#..LHD..(G,M,V);AXAA5#..LHD..(G,M,V)..(GCC,GEN,RUS) |
1 | ||
| 87050-33C30 |
MXAA5#..LHD..(G,M,V);AXAA5#..LHD..(G,M,V)..(GCC,GEN,RUS) |
1 | ||
| 87050-42A50 |
AXAA5#,MXAA5#..LHD..X |
1 | ||
| 87050-42A50 |
AXAA5#,MXAA5#..LHD..X |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-58080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87103-58080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33130 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87107-33130 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-58050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87114-58050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87124-33070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87128-28010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-47290 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87130-47290 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-28020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# POLLEN FILTER |
1 | ||
| 87139-28020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# POLLEN FILTER |
1 | ||
| 87139-58010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# DEODORANT FILTER |
1 | ||
| 87139-58010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-33340 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88501-33340 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88515-48110 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 90099-04542 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88899-10110 |
AXAA54..EUR;MXAA52..RHD..EUR;AXAA5#,MXAA5#..LHD..X;AXAH5#,AXAL5#..RHD..(ARL,GEN) |
1 | ||
| 88899-10110 |
AXAA54..EUR;MXAA52..RHD..EUR;AXAA5#,MXAA5#..LHD..X;AXAH5#,AXAL5#..RHD..(ARL,GEN) |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88888-47010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-42070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 88539-42070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-47090 |
AXAH5#..LHD..GEN;MXAA52..LHD..CVT;AXAA5#,MXAA54..LHD;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS);AXAH5#,AXAL5#..EUR,GCC,RUS |
1 | ||
| 88899-47090 |
AXAH5#..LHD..GEN;MXAA52..LHD..CVT;AXAA5#,MXAA54..LHD;MXAA52..LHD..6F..GEN;MXAA52..6F..(EUR,RUS);AXAH5#,AXAL5#..EUR,GCC,RUS |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28050 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88620-28050 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-42820 |
AXAA5#,AXAH54,MXAA54..G..GCC;AXAA5#,AXAH5#,MXAA52..RHD..G..GEN |
1 | ||
| 88650-42810 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);AXAH54..ARL,EUR,RUS;MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH52,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88650-42810 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);AXAH54..ARL,EUR,RUS;MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH52,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88650-42820 |
AXAA5#,AXAH54,MXAA54..G..GCC;AXAA5#,AXAH5#,MXAA52..RHD..G..GEN |
1 | ||
| 88650-42821 |
AXAA5#,AXAH54,MXAA54..G..GCC;AXAA5#,AXAH5#,MXAA52..RHD..G..GEN |
1 | ||
| 88650-42821 |
AXAA5#,AXAH54,MXAA54..G..GCC;AXAA5#,AXAH5#,MXAA52..RHD..G..GEN |
1 | ||
| 88650-42811 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88650-42811 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-33020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87128-33020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-33080 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88899-33080 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88899-47120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90119-A0105 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90159-A0024 | ||||
| 90179-06282 | ||||
ILLUST NO. 1 OF 2(1811-2007)6F..G..SA ; (1811-2007)MXAA54..RHD..M,V ; (1811-2007)AXAA52,AXAH5#,AXAL5
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-42050 |
AXAA5#,MXAA5#..LHD;AXAH5#..LHD..(GCC,GEN,RUS) |
1 | ||
| 82212-42050 |
AXAA5#,MXAA5#..LHD;AXAH5#..LHD..(GCC,GEN,RUS) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33C30 |
MXAA5#..LHD..(G,M,V);AXAA5#..LHD..(G,M,V)..(GCC,GEN,RUS) |
1 | ||
| 87050-33C30 |
MXAA5#..LHD..(G,M,V);AXAA5#..LHD..(G,M,V)..(GCC,GEN,RUS) |
1 | ||
| 87050-42A50 |
AXAA5#,MXAA5#..LHD..X |
1 | ||
| 87050-42A50 |
AXAA5#,MXAA5#..LHD..X |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-58080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87103-58080 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33130 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87107-33130 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-58050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87114-58050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87124-33070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87128-28010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-47290 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87130-47290 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-28020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# POLLEN FILTER |
1 | ||
| 87139-28020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# POLLEN FILTER |
1 | ||
| 87139-58010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# DEODORANT FILTER |
1 | ||
| 87139-58010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-33340 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88501-33340 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88515-48110 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 90099-04542 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88899-10110 |
AXAA54..EUR;MXAA52..RHD..EUR;AXAA5#,MXAA5#..LHD..X;AXAH5#,AXAL5#..RHD..(ARL,GEN) |
1 | ||
| 88899-10110 |
AXAA54..EUR;MXAA52..RHD..EUR;AXAA5#,MXAA5#..LHD..X;AXAH5#,AXAL5#..RHD..(ARL,GEN) |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88888-47010 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-42070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 88539-42070 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28050 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88620-28050 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-42810 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);AXAH54..ARL,EUR,RUS;MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH52,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88650-42810 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);AXAH54..ARL,EUR,RUS;MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH52,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88650-42820 |
AXAA5#,AXAH54,MXAA54..G..GCC;AXAA5#,AXAH5#,MXAA52..RHD..G..GEN |
1 | ||
| 88650-42820 |
AXAA5#,AXAH54,MXAA54..G..GCC;AXAA5#,AXAH5#,MXAA52..RHD..G..GEN |
1 | ||
| 88650-42821 |
AXAA5#,AXAH54,MXAA54..G..GCC;AXAA5#,AXAH5#,MXAA52..RHD..G..GEN |
1 | ||
| 88650-42821 |
AXAA5#,AXAH54,MXAA54..G..GCC;AXAA5#,AXAH5#,MXAA52..RHD..G..GEN |
1 | ||
| 88650-42811 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88650-42811 |
AXAA54..V..GCC;MXAA54..RHD..(M,X);MXAA54..G..(EUR,GEN);MXAA54..LHD..(M,V,X)..(EUR,GCC,GEN);AXAA5#,AXAH5#,MXAA52..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(M,X)..(GCC,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52..(G,M,X)..(ARL,EUR,SA) |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-33020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 87128-33020 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-33080 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88899-33080 |
MXAA54;MXAA52..LHD..EUR;AXAA5#,AXAH5#,AXAL5#,MXAA52..ARL,GCC,GEN,RUS,SA |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| 88899-47120 |
AXAA5#,AXAH5#,AXAL5#,MXAA5# |
1 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

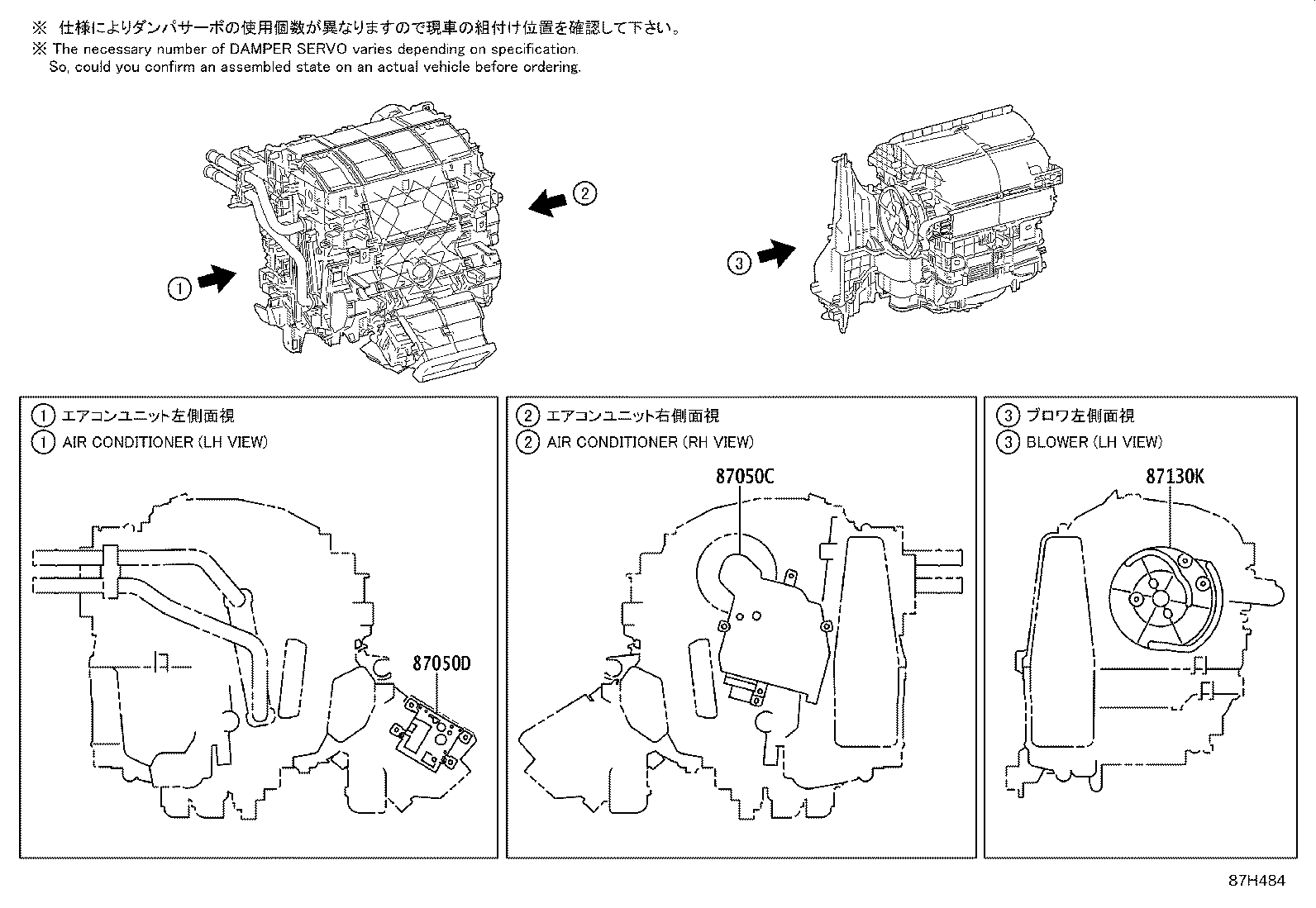

ILLUST NO. 2 OF 2(1811-2007)AXAA5#,MXAA5#..LHD..X..EUR,GCC,GEN ;(1910-2007)X..RUS ; (2008- )AXAA
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-48170 |
AXAH5#..LHD..GEN;MXAA54..LHD..(G,M,V);AXAH5#,AXAL5#..EUR,GCC,RUS;MXAA52..6F..(G,M)..(EUR,GEN);AXAA5#,MXAA52..LHD..(ATM,CVT)..(G,M,V) |
1 | ||
| 87106-47180 |
AXAA5#,MXAA5#..LHD..X |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-48200 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-58050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
ILLUST NO. 2 OF 2(1811-2007)AXAH5#..LHD..GCC,GEN,RUS ; (1811-2007)AXAA5#,MXAA5#..LHD..G,M,V..EUR,GCC
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-48170 |
AXAH5#..LHD..GEN;MXAA54..LHD..(G,M,V);AXAH5#,AXAL5#..EUR,GCC,RUS;MXAA52..6F..(G,M)..(EUR,GEN);AXAA5#,MXAA52..LHD..(ATM,CVT)..(G,M,V) |
1 | ||
| 87106-48170 |
AXAH5#..LHD..GEN;MXAA54..LHD..(G,M,V);AXAH5#,AXAL5#..EUR,GCC,RUS;MXAA52..6F..(G,M)..(EUR,GEN);AXAA5#,MXAA52..LHD..(ATM,CVT)..(G,M,V) |
1 | ||
| 87106-47180 |
AXAA5#,MXAA5#..LHD..X |
1 | ||
| 87106-47180 |
AXAA5#,MXAA5#..LHD..X |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-48200 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87106-48200 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-58050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87106-58050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
ILLUST NO. 2 OF 2(1811-2007)6F..G..SA ; (1811-2007)MXAA54..RHD..M,V ; (1811-2007)AXAA52,AXAH5#,AXAL5
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-48170 |
AXAH5#..LHD..GEN;MXAA54..LHD..(G,M,V);AXAH5#,AXAL5#..EUR,GCC,RUS;MXAA52..6F..(G,M)..(EUR,GEN);AXAA5#,MXAA52..LHD..(ATM,CVT)..(G,M,V) |
1 | ||
| 87106-48170 |
AXAH5#..LHD..GEN;MXAA54..LHD..(G,M,V);AXAH5#,AXAL5#..EUR,GCC,RUS;MXAA52..6F..(G,M)..(EUR,GEN);AXAA5#,MXAA52..LHD..(ATM,CVT)..(G,M,V) |
1 | ||
| 87106-47180 |
AXAA5#,MXAA5#..LHD..X |
1 | ||
| 87106-47180 |
AXAA5#,MXAA5#..LHD..X |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-48200 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87106-48200 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-58050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
| 87106-58050 |
AXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
