ZSA44R-ANXXPW (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 3ZRFAE
Transmission A CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1504- )ZSA44..A

Click highlighted areas on diagram

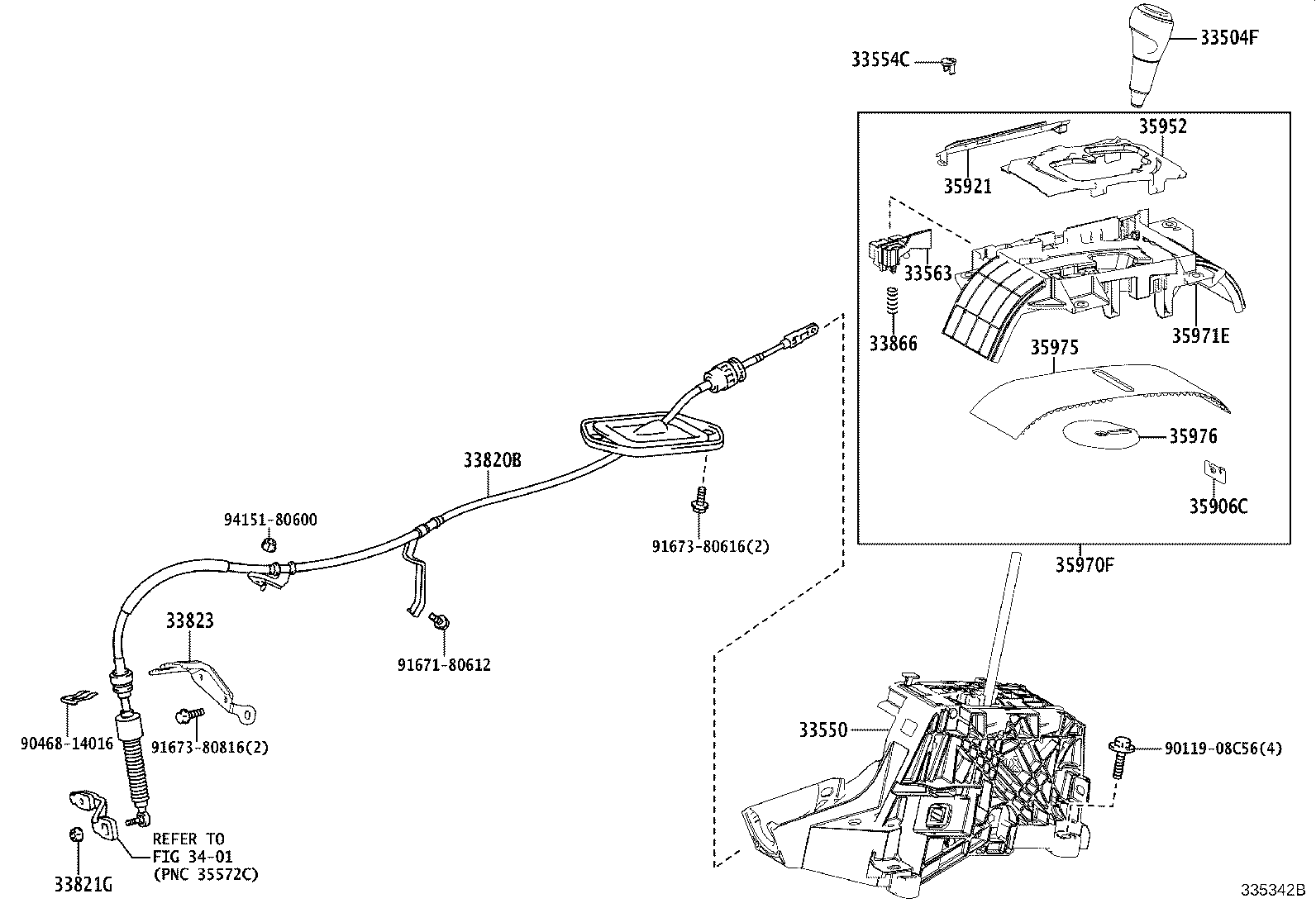

diagram 33504F 33550 33554C 33563 33820B 33821G 33823 33866 3401 35906C 35921 35952 35970F 35971E 35975 35976 9011908C56 9046814016 9167180612 9167380616 9167380816 9415180600
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-42100

ALA49,ZSA44..(6FC,A)..M..EUR

SPECIAL EDITION

 1
33504-42070C0

ALA49,ZSA44..RHD..(6FC,A)..X..(DCRL,HTWVM)

STEERING WHEEL-LEATHER,BLACK,TRIM2#

 1
33504-42080C0

ALA49,ZSA44..(6FC,A)..X

BLACK,TRIM2#

 1
33504-42070C0

ALA49,ZSA44..(6FC,A)..(G,M)

BLACK,TRIM1#,2#,3#,4#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-42240

ALA49,ZSA44..RHD..(6FC,A)

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-42120

ALA49,ZSA44..RHD..(6FC,A)

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-42410

ZSA44..A

 1
33820-42400

ZSA44..A

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

ZSA44..A

 1
90179-08061

ZSA44..A

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-42030

ZSA44..A

 1
33823-28300

ZSA44..A

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-33010

ALA49,ZSA44..6FC,A

 1
35906C - CHIP, INDICATOR LAMP
35906-49005

ALA49,ZSA44..6FC,A

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-42070

ALA49,ZSA44..RHD..(6FC,A)

 1
35952 - LENS, POSITION INDICATOR
35952-42030

ALA49,ZSA44..RHD..(6FC,A)

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-42160

ALA49,ZSA44..RHD..(6FC,A)

 1
35971E - HOUSING, POSITION INDICATOR
35971-42060

ALA49,ZSA44..RHD..(6FC,A)

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-42040

ALA49,ZSA44..6FC,A

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-42020

ALA49,ZSA44..6FC,A

 1
Common parts
90119-08C56
90468-14016
91671-80612
91673-80616
91673-80816
94151-80600
Linked diagrams
3401

(1212- )RUP..B ; (1212- )ZSA44..A ; (1510-)JPP..B

Click highlighted areas on diagram

diagram 33502S 33504F 33550 33554C 33563 33820B 33821G 33823 33829 33866 3401 35906C 35921 35952 35970F 35971E 35975 35976 9011908C56 9046814016 9155180614 9155180614 9155180614 91611B0816 9167380612
Part # Description Qty Price
33502S - COVER SET, SHIFT LOCK W/LABEL
33502-42060

ALA49,ZSA44..6FC,A

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-42100

ALA49,ZSA44..(6FC,A)..M..EUR

SPECIAL EDITION

 1
33504-42070C0

ALA49,ZSA44..RHD..(6FC,A)..X..(DCRL,HTWVM)

STEERING WHEEL-LEATHER,BLACK,TRIM2#

 1
33504-42080C0

ALA49,ZSA44..(6FC,A)..X

BLACK,TRIM2#

 1
33504-42070C0

ALA49,ZSA44..(6FC,A)..(G,M)

BLACK,TRIM1#,2#,3#,4#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-42240

ALA49,ZSA44..RHD..(6FC,A)

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-42120

ALA49,ZSA44..RHD..(6FC,A)

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-42410

ZSA44..A

 1
33820-42400

ZSA44..A

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

ZSA44..A

 1
90179-08061

ZSA44..A

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-42030

ZSA44..A

 1
33823-28300

ZSA44..A

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-42120

ZSA44..A

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-33010

ALA49,ZSA44..6FC,A

 1
35906C - CHIP, INDICATOR LAMP
35906-49005

ALA49,ZSA44..6FC,A

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-42070

ALA49,ZSA44..RHD..(6FC,A)

 1
35952 - LENS, POSITION INDICATOR
35952-42030

ALA49,ZSA44..RHD..(6FC,A)

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-42160

ALA49,ZSA44..RHD..(6FC,A)

 1
35971E - HOUSING, POSITION INDICATOR
35971-42060

ALA49,ZSA44..RHD..(6FC,A)

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-42040

ALA49,ZSA44..6FC,A

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-42020

ALA49,ZSA44..6FC,A

 1
Common parts
90119-08C56
90468-14016
91551-80614
91611-B0816
91673-80612
Linked diagrams
3401
