ZSA44R-ANXMPW (2012)
Toyota Rav4

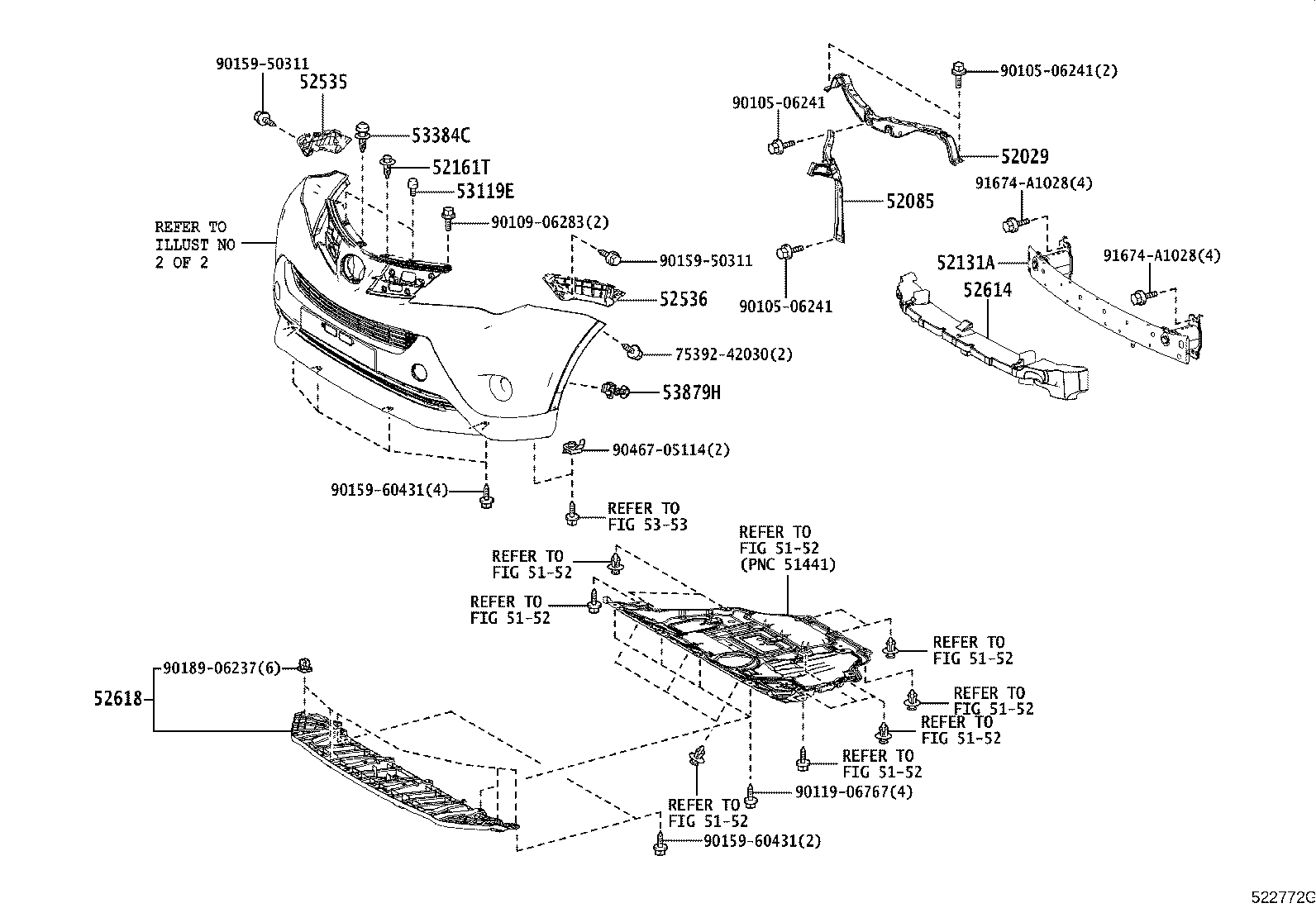

ILLUST NO. 1 OF 2(1212-1510)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-42100 |
ALA4#,ZSA44 |
1 | ||
| 52085 - STAY SUB-ASSY, FRONT BUMPER, CENTER | ||||
| 52085-42040 |
ALA4#,ZSA44 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-42110 |
ALA4#,ZSA44 |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ALA4#,ZSA44 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-42070 |
ALA4#,ZSA44 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-42050 |
ALA4#,ZSA44 |
1 | ||
| 52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2 | ||||
| 52614-42080 |
ALA4#,ZSA44 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-42050 |
ALA4#,ZSA44 |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
ALA4#,ZSA44 |
2 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-68010 |
ALA4#,ZSA44 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
ALA4#,ZSA44 |
2 | ||
| Common parts | ||||
| 75392-42030 | ||||
| 90105-06241 | ||||
| 90109-06283 | ||||
| 90119-06767 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90189-06237 | ||||
| 90467-05114 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||

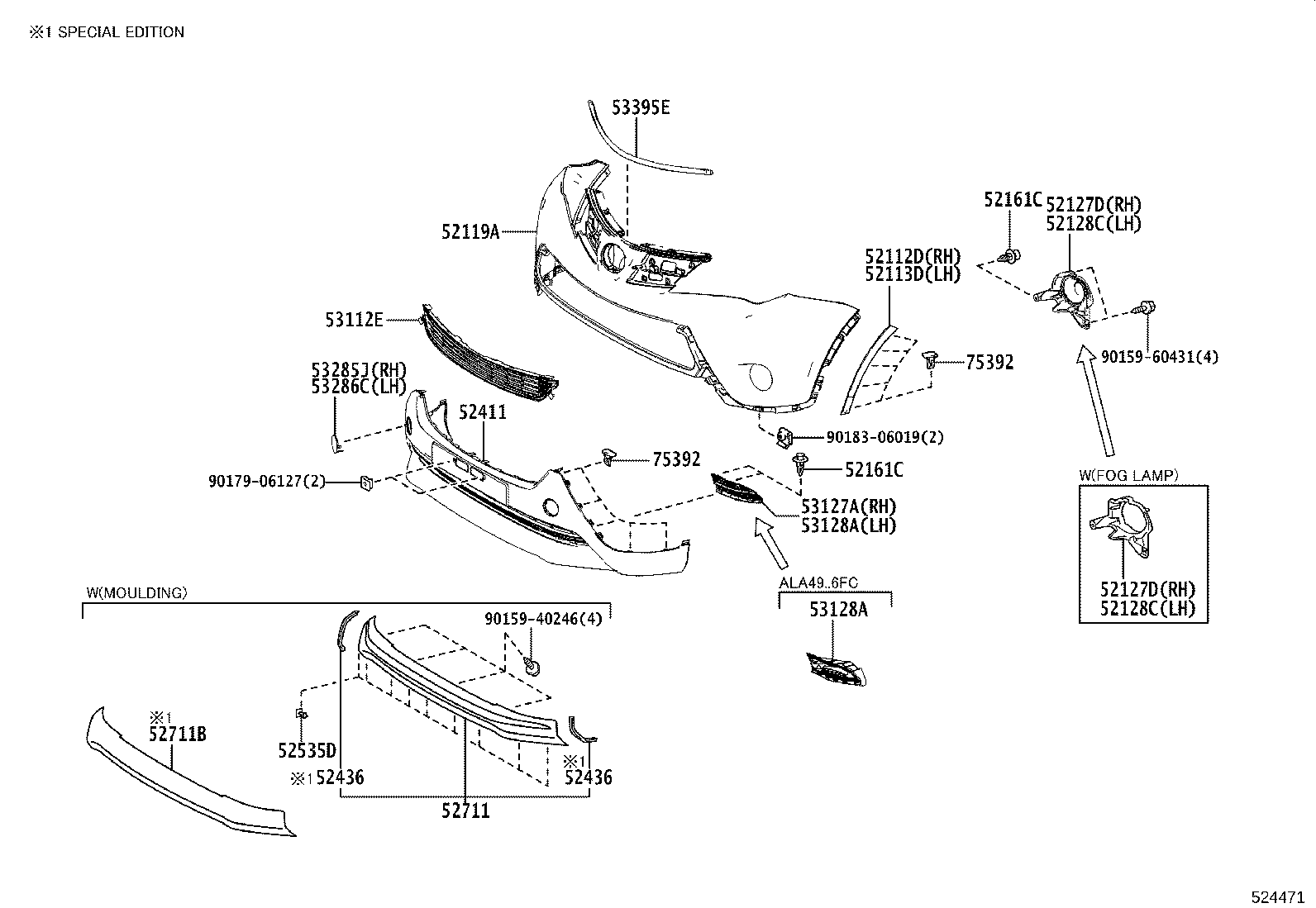

ILLUST NO. 2 OF 2(1212-1510)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-42100 |
ALA4#,ZSA44 NO PAINT REQ. |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-42100 |
ALA4#,ZSA44 NO PAINT REQ. |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-4A904 |
ALA4#,ZSA44 PAINT REQ. |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-42130 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 52127-42090 |
ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M) |
1 | ||
| 52127-42130 |
ALA41..RHD..X;ZSA44..RHD..A..X FRONT FOG LAMP-WITHOUT |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-42130 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 52127-42090 |
ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M) |
1 | ||
| 52127-42130 |
ALA41..RHD..X;ZSA44..RHD..A..X FRONT FOG LAMP-WITHOUT |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-42090 |
ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M) |
1 | ||
| 52128-42130 |
ALA41..RHD..X;ZSA44..RHD..A..X FRONT FOG LAMP-WITHOUT |
1 | ||
| 52128-42130 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-42090 |
ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M) |
1 | ||
| 52128-42130 |
ALA41..RHD..X;ZSA44..RHD..A..X FRONT FOG LAMP-WITHOUT |
1 | ||
| 52128-42130 |
ALA4#,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ALA4#,ZSA44 |
6 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ALA4#,ZSA44 |
6 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-42040 |
ALA4#,ZSA44..LHD..G;ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 52411-42030 |
ALA49..RHD..X;ALA49..LHD..(M,X);ALA40,41,ZSA44..X;ALA40,41,ZSA44..LHD..M |
1 | ||
| 52436 - PROTECTOR, FRONT BUMPER GUARD | ||||
| 52436-42010 |
ALA4#,ZSA44..(G,M)..EUR SPECIAL EDITION |
2 | ||
| 52436 - PROTECTOR, FRONT BUMPER GUARD | ||||
| 52436-42010 |
ALA4#,ZSA44..(G,M)..EUR SPECIAL EDITION |
2 | ||
| 52535D - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-28020 |
ALA4#,ZSA44..LHD..G;ALA4#,ZSA44..RHD..(G,M) |
9 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-42040 |
ALA4#,ZSA44..LHD..G;ALA4#,ZSA44..RHD..(G,M) PLATED |
1 | ||
| 52711B - MOULDING, FRONT BUMPER | ||||
| 52711-42090 |
ALA4#,ZSA44..(G,M)..EUR SPECIAL EDITION,COLOR 070 ONLY |
1 | ||
| 52711-42080 |
ALA4#,ZSA44..(G,M)..EUR SPECIAL EDITION,EXCEPT COLOR 070 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-42090 |
ALA4#,ZSA44 NO PAINT REQ. |
1 | ||
| 53127A - GRILLE, RADIATOR, LOWER RH | ||||
| 53127-42040 |
ALA4#,ZSA44 |
1 | ||
| 53128A - GRILLE, RADIATOR, LOWER LH | ||||
| 53128-42020 |
ALA4#,ZSA44..6F,A |
1 | ||
| 53128A - GRILLE, RADIATOR, LOWER LH | ||||
| 53128-42020 |
ALA4#,ZSA44..6F,A |
1 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-42080 |
ALA4#,ZSA44 |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-42090 |
ALA4#,ZSA44 |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-42060 |
ALA4#,ZSA44 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ALA4#,ZSA44 |
18 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ALA4#,ZSA44 |
18 | ||
| Common parts | ||||
| 90159-40246 | ||||
| 90159-60431 | ||||
| 90179-06127 | ||||
| 90183-06019 | ||||
