ZSA44R-ANFMPW (2012)
Toyota Rav4
ILLUST NO. 4 OF10(1212- ) ; (1610- )RUP
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-42C50 |
ZSA44..RHD..M NON-WVTA&JAMAICA SPEC&WIRELESS DOOR LOCK-SMART ENTRY |
1 | ||
| 82151-42C50 |
ALA4#,ZSA44..RHD..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 82151-42C50 |
ZSA44..RHD..M NON-WVTA&TRINIDAD-TOBAGO SPEC&WIRELESS DOOR LOCK-SMART ENTRY |
1 | ||
| 82151-42C40 |
ALA4#,ZSA44..RHD..(M,X) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-42B90 |
ALA4#,ZSA44..RHD..(M,X) |
1 | ||
| 82152-42C00 |
ZSA44..RHD..M NON-WVTA&TRINIDAD-TOBAGO SPEC&WIRELESS DOOR LOCK-SMART ENTRY |
1 | ||
| 82152-42C00 |
ALA4#,ZSA44..RHD..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 82152-42C00 |
ZSA44..RHD..M NON-WVTA&JAMAICA SPEC&WIRELESS DOOR LOCK-SMART ENTRY |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-42170 |
ALA4#,ZSA44..RHD |
1 | ||
| 82153-42171 |
ALA4#,ZSA44..RHD |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-42050 |
ALA4#,ZSA44..RHD |
1 | ||
| 82154-42051 |
ALA4#,ZSA44..RHD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-42490 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 82184-42460 |
ALA4#,ZSA44..RHD..M AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 82184-42460 |
ALA4#,ZSA44..RHD..M ENGLAND SPEC&BASIC PACKAGE&AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 82184-42500 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 82184-42470 |
ALA4#,ZSA44..M |
1 | ||
| 82184-42460 |
ALA4#,ZSA44..RHD..M BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT |
1 | ||
| 82184-42490 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-WITH(3 BUTTON)&BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT |
1 | ||
| 82184-42520 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 82184-42500 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 82184-42481 |
ALA4#,ZSA44..M BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 82184-42490 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR&BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT |
1 | ||
| 82184-42520 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-WITH(3 BUTTON)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 82184-42500 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-WITH(3 BUTTON) |
1 | ||
| 82184-42471 |
ALA4#,ZSA44..M |
1 | ||
| 82184-42461 |
ALA4#,ZSA44..RHD..M BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT |
1 | ||
| 82184-42482 |
ALA4#,ZSA44..M BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 82184-42491 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-WITH(3 BUTTON)&BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT |
1 | ||
| 82184-42491 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR&BACK MONITOR(REAR TELEVISION CAMERA)-WITHOUT |
1 | ||
| 82184-42501 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-WITH(3 BUTTON) |
1 | ||
| 82184-42521 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 82184-42521 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-WITH(3 BUTTON)&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*BGM(WITH CAMERA)) |
1 | ||
| 82184-42501 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR)&WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 5 OF10(1212- ) ; (1610- )RUP
FLOOR,FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-42N90 |
ALA4#,ZSA44..RHD..(M,X) TIRE INFLATION PRESS WRNG-WITHOUT |
1 | ||
| 82161-42N90 |
ZSA44..RHD..A..M SRS AIR BAG-WITH(*DRP&SIDE&CURTAIN SHIELD&KNEE)&TIRE INFLATION PRESS WRNG-WITH |
1 | ||
| 82161-42P00 |
ALA4#,ZSA44..RHD..(M,X) |
1 | ||
| 82161-42N91 |
ALA4#,ZSA44..RHD..(M,X) TIRE INFLATION PRESS WRNG-WITHOUT |
1 | ||
| 82161-42P01 |
ALA4#,ZSA44..RHD..(M,X) |
1 | ||
| 82161-42N92 |
ALA4#,ZSA44..RHD..(M,X) TIRE INFLATION PRESS WRNG-WITHOUT |
1 | ||
| 82161-42N91 |
ZSA44..RHD..A..M SRS AIR BAG-WITH(*DRP&SIDE&CURTAIN SHIELD&KNEE)&TIRE INFLATION PRESS WRNG-WITH&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 82161-42N92 |
ZSA44..RHD..A..M SRS AIR BAG-WITH(*DRP&SIDE&CURTAIN SHIELD&KNEE)&TIRE INFLATION PRESS WRNG-WITH&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 82161-42P02 |
ALA4#,ZSA44..RHD..(M,X) |
1 | ||
| 82161-42N93 |
ALA4#,ZSA44..RHD..(M,X) TIRE INFLATION PRESS WRNG-WITHOUT |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-42B01 |
ALA4#,ZSA44..RHD |
1 | ||
| 82162-42B00 |
ALA4#,ZSA44..RHD |
1 | ||
| 82162-42B02 |
ALA4#,ZSA44..RHD |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-42040 |
ALA41,49,ZSA44 |
1 | ||
| 82164-42070 |
ALA41,49,ZSA44 |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-42020 |
ALA41,49,ZSA44 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-42400 |
ZSA44..RHD..M;ZSA44..RHD..A..G;ALA40,41..RHD..(G,M) ENGLAND SPEC&BASIC PACKAGE&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)&AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 82171-42610 |
ALA4#,ZSA44..RHD..(G,M) |
1 | ||
| 82171-42670 |
ALA4#,ZSA44..RHD..(G,M) MOON ROOF-WITH |
1 | ||
| 82171-42670 |
ALA4#,ZSA44..RHD..(G,M) MOON ROOF-WITH&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 82171-42610 |
ALA40,41,ZSA44..RHD..(G,M) ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)&AUDIO-6SPEAKER(AUDIOLESS) |
1 | ||
| 82171-42670 |
ALA40,41,ZSA44..RHD..(G,M) ENGLAND SPEC&ANTI-THEFT SYSTEM-WITH(*IM,DOUBLE ROCK & ALARM)&MOON ROOF-WITH&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 82171-42740 |
ALA4#,ZSA44..RHD..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-42030 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82181-42031 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 82181-42030 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 82181-42010 |
ALA4#,ZSA44 |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-42020 |
ALA4#,ZSA44..M,X |
1 | ||
| 82182-42030 |
ALA4#,ZSA44..M,X CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 82182-42010 |
ZSA44..RHD..(M,X) JAMAICA SPEC&CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 82182-42010 |
ZSA44..RHD..(M,X) TRINIDAD-TOBAGO SPEC&CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-42021 |
ALA4#,ZSA44..M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 82183-42020 |
ALA4#,ZSA44..M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 82183-42031 |
ALA4#,ZSA44..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR&LANE CHANGE ASSIST-WITH(BLIND SPOTMONITOR & *RCTA) |
1 | ||
| 82183-42010 |
ZSA44..RHD..M WIRELESS DOOR LOCK-SMART ENTRY |
1 | ||
| 82183-42010 |
ALA4#,ZSA44..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 82183-42032 |
ALA4#,ZSA44..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR&LANE CHANGE ASSIST-WITH(BLIND SPOTMONITOR & *RCTA) |
1 | ||
| 82183-42022 |
ALA4#,ZSA44..M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-42070 |
ZSA44 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-42380 |
ALA4#,ZSA44 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-42390 |
ALA4#,ZSA44 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-42420 |
ALA4#,ZSA44 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-42410 |
ALA4#,ZSA44 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-42430 |
ALA4#,ZSA44 |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-60220 |
ALA4#,ZSA44 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-42110 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-42120 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-42A20 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC |
1 | ||
| 82817-42750 |
ALA4#,ZSA44 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-42A30 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC |
1 | ||
| 82817-42760 |
ALA4#,ZSA44 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 8417 | ||||

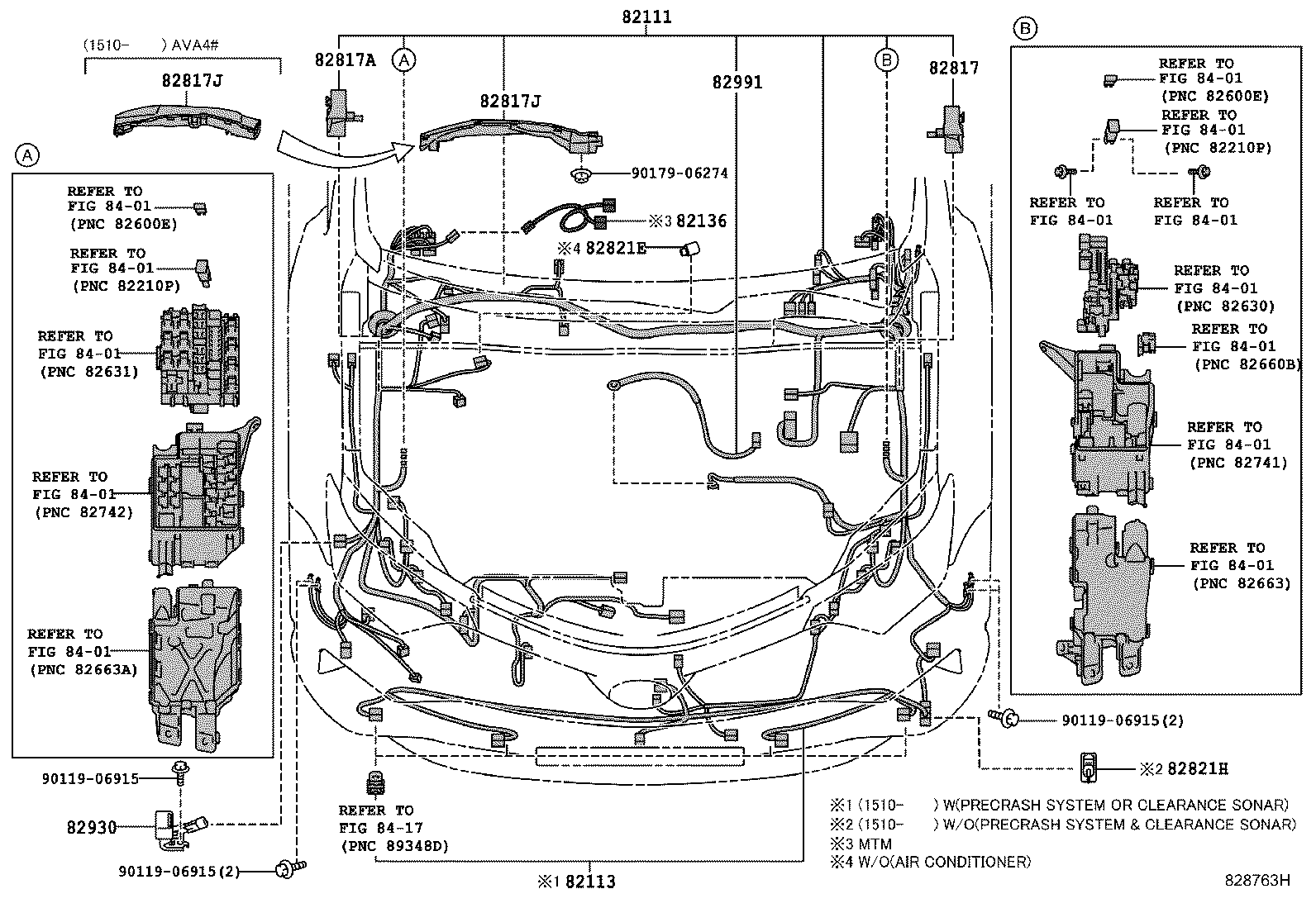

ILLUST NO. 1 OF10(1212- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-42N60 |
ZSA44..RHD |
1 | ||
| 82111-42N61 |
ZSA44..RHD |
1 | ||
| 82111-42N62 |
ZSA44..RHD..6F |
1 | ||
| 82111-4AL80 |
ZSA44..RHD..A |
1 | ||
| 82136 - WIRE, DASH | ||||
| 82136-42010 |
ALA4#,ZSA44..RHD..6F |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-42A20 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC |
1 | ||
| 82817-42750 |
ALA4#,ZSA44 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-42A30 |
ALA4#,ZSA44..RHD..(DCRE,DCRL,HTWVM) ENGLAND SPEC |
1 | ||
| 82817-42760 |
ALA4#,ZSA44 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-42470 |
ALA4#,ZSA44..RHD |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-42470 |
ALA4#,ZSA44..RHD |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-12400 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM BASIC PACKAGE |
1 | ||
| 82930 - CONDENSER ASSY, WIRING HARNESS, NO.1 | ||||
| 82930-42010 |
ZSA44..A |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-42060 |
ZSA44 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO. 3 OF10(1212- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-4AM50 |
ALA49,ZSA44..RHD..(6FC,A)..M ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 82141-4AM60 |
ALA49,ZSA44..RHD..(6FC,A)..M |
1 | ||
| 82141-4AN00 |
ALA49,ZSA44..RHD..6F..M ENGLAND SPEC&BASIC PACKAGE |
1 | ||
| 82141-4AN10 |
ALA49,ZSA44..RHD..6F..M |
1 | ||
| 82141-4AM81 |
ALA49,ZSA44..RHD..(6FC,A)..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 82141-4AN11 |
ALA41,49,ZSA44..RHD..6F..M |
1 | ||
| 82141-4AM61 |
ALA49,ZSA44..RHD..(6FC,A)..M |
1 | ||
| 82141-4AN31 |
ALA41,49,ZSA44..RHD..6F..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 82141-4AM51 |
ALA49,ZSA44..RHD..(6FC,A)..M ENGLAND SPEC&BASIC PACKAGE&AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 82141-4AN01 |
ALA41,49,ZSA44..RHD..6F..M ENGLAND SPEC&BASIC PACKAGE&AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 82141-4AM62 |
ALA49,ZSA44..RHD..(6FC,A)..M |
1 | ||
| 82141-4AM82 |
ALA49,ZSA44..RHD..(6FC,A)..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 82141-4AN32 |
ALA41,49,ZSA44..RHD..6F..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 82141-4AN12 |
ALA41,49,ZSA44..RHD..6F..M |
1 | ||
| 82141-4AQ22 |
ZSA44..RHD..6F..M NON-WVTA&JAMAICA SPEC&WIRELESS DOOR LOCK-SMART ENTRY&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 82141-4AQ22 |
ZSA44..RHD..6F..M NON-WVTA&TRINIDAD-TOBAGO SPEC&WIRELESS DOOR LOCK-SMART ENTRY&AUDIO-6SPEAKER(AUDIOLESS) |
1 | ||
| 82141-4AQ32 |
ZSA44..RHD..A..M NON-WVTA&JAMAICA SPEC&WIRELESS DOOR LOCK-SMART ENTRY&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 82141-4AQ32 |
ZSA44..RHD..A..M NON-WVTA&TRINIDAD-TOBAGO SPEC&WIRELESS DOOR LOCK-SMART ENTRY&AUDIO-6SPEAKER(AUDIOLESS) |
1 | ||
| 82141-4AN02 |
ALA41,49,ZSA44..RHD..6F..M ENGLAND SPEC&BASIC PACKAGE&AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 82141-4AN13 |
ALA41,49,ZSA44..RHD..6F..M |
1 | ||
| 82141-4AN33 |
ALA41,49,ZSA44..RHD..6F..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 82141-4AQ23 |
ZSA44..RHD..6F..M NON-WVTA&TRINIDAD-TOBAGO SPEC&WIRELESS DOOR LOCK-SMART ENTRY&AUDIO-6SPEAKER(AUDIOLESS) |
1 | ||
| 82141-4AQ23 |
ZSA44..RHD..6F..M NON-WVTA&JAMAICA SPEC&WIRELESS DOOR LOCK-SMART ENTRY&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 82141-4B360 |
ZSA44..RHD..A..M |
1 | ||
| 82141-4B350 |
ZSA44..RHD..A..M ENGLAND SPEC&BASIC PACKAGE&AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 82141-4B390 |
ZSA44..RHD..A..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 82141-4B380 |
ZSA44..RHD..A..M NON-WVTA&JAMAICA SPEC&WIRELESS DOOR LOCK-SMART ENTRY&AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 82141-4B380 |
ZSA44..RHD..A..M NON-WVTA&TRINIDAD-TOBAGO SPEC&WIRELESS DOOR LOCK-SMART ENTRY&AUDIO-6SPEAKER(AUDIOLESS) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-42090 |
ALA40..M;ALA49,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 82142-42090 |
ALA49..LHD..G..DCR;ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-42040 |
ALA4#,ZSA44 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-42340 |
ALA4#,ZSA44 |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-42340 |
ALA4#,ZSA44 |
2 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-42360 |
ALA4#,ZSA44..RHD |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-42370 |
ALA4#,ZSA44..RHD |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-42020 |
ALA41..G,M;ALA40,49,ZSA44..DCRE,DCRL,HTWVM AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF10(1212- ) ; (1610- )RUP
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10794 | ||||

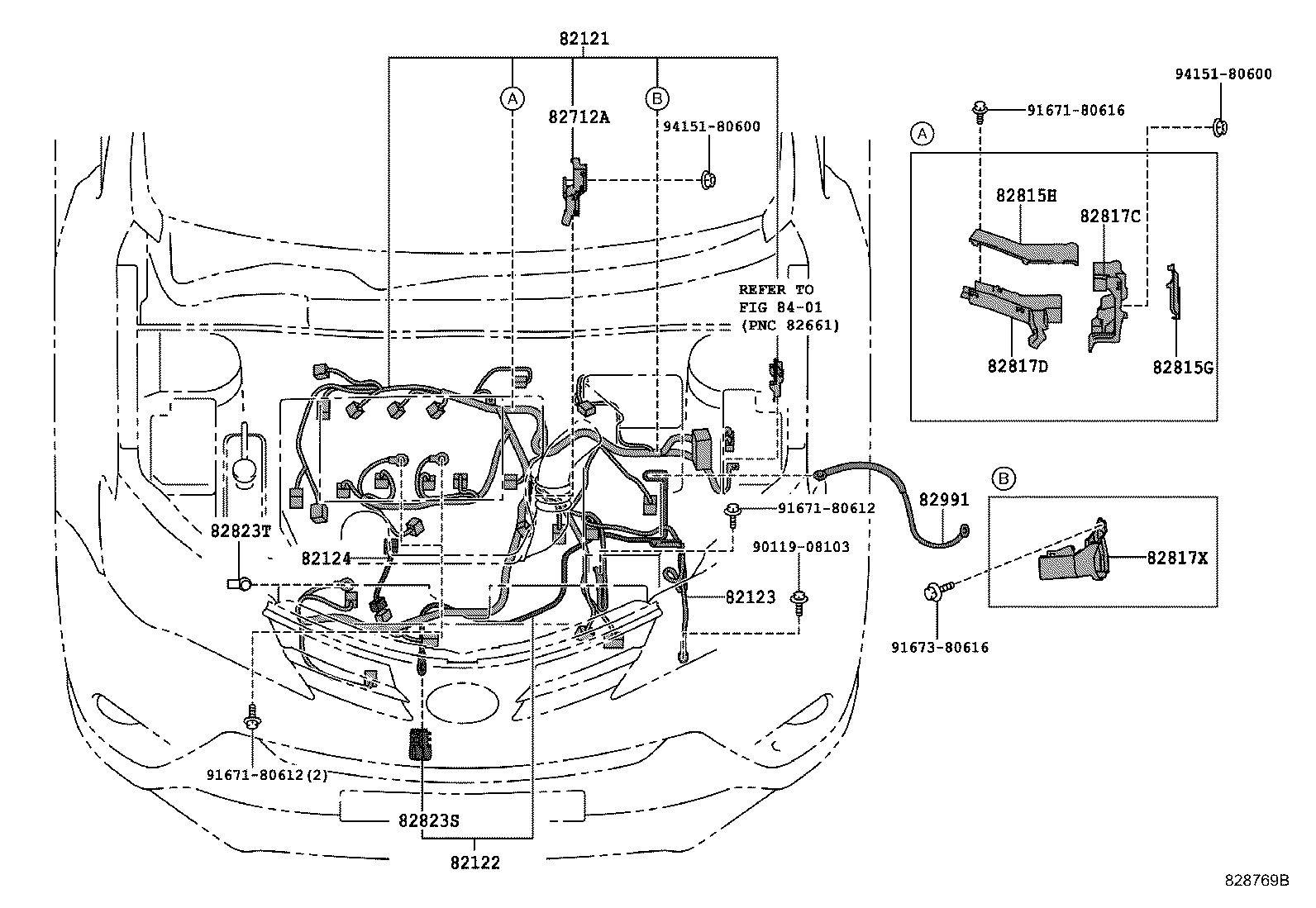

ILLUST NO. 2 OF10(1212-1504)A ; (1212- )ZSA44..JPP..6F,A ; (1610- )ZSA44..RUP..6F
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-42C60 |
ZSA44..A |
1 | ||
| 82121-42C80 |
ZSA44..6F |
1 | ||
| 82121-42C81 |
ZSA44..6F |
1 | ||
| 82121-42C61 |
ZSA44..A |
1 | ||
| 82121-42F50 |
ZSA44..6F |
1 | ||
| 82121-42E00 |
ZSA44..A |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-42100 |
ZSA44..6F |
1 | ||
| 82122-42100 |
ZSA44..A |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-42230 |
ZSA44..A |
1 | ||
| 82123-42250 |
ZSA44..6F |
1 | ||
| 82123-42251 |
ZSA44..6F |
1 | ||
| 82123-42252 |
ZSA44..6F |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZSA44 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-28440 |
ZSA44..A |
1 | ||
| 82712-28440 |
ZSA44..6F |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-42060 |
ZSA44 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-42070 |
ZSA44 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-42600 |
ZSA44..A |
1 | ||
| 82817-42600 |
ZSA44..6F |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-42610 |
ZSA44 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-42520 |
ALA4#,ZSA44 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-30120 |
ZSA44..6F |
1 | ||
| 82823-30120 |
ZSA44..A |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZSA44 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-42060 |
ZSA44 |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

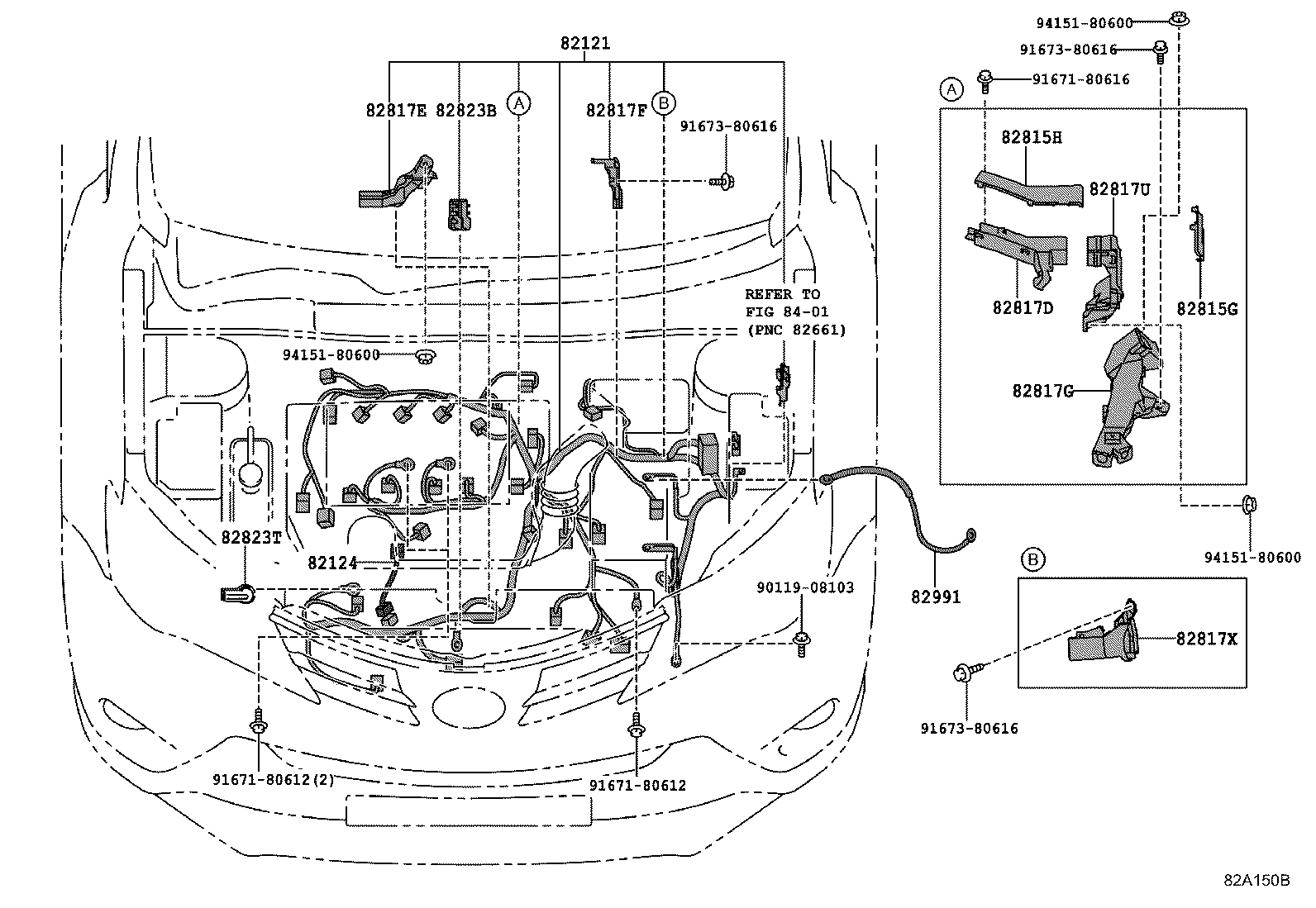

ILLUST NO. 2 OF10(1504- )ZSA44..A
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-42C60 |
ZSA44..A |
1 | ||
| 82121-42C80 |
ZSA44..6F |
1 | ||
| 82121-42C81 |
ZSA44..6F |
1 | ||
| 82121-42C61 |
ZSA44..A |
1 | ||
| 82121-42F50 |
ZSA44..6F |
1 | ||
| 82121-42E00 |
ZSA44..A |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZSA44 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-42060 |
ZSA44 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-42070 |
ZSA44 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-42610 |
ZSA44 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-48C80 |
ZSA44..A |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-48F20 |
ZSA44..A |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-42520 |
ALA4#,ZSA44 |
1 | ||
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-12120 |
ZSA44..A |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZSA44 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-42060 |
ZSA44 |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.10 OF10(1212- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-47A10 | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10988 | ||||
| 90980-11003 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11060 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11246 | ||||
| 90980-11292 | ||||
| 90980-11349 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
| 90980-11918 | ||||
| 90980-12380 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
ILLUST NO.10 OF10(1212- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12183 | ||||
| 90980-12221 | ||||
| 90980-12382 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12686 | ||||
| 90980-12687 | ||||
| 90980-12699 | ||||
| 90980-12B01 | ||||
ILLUST NO. 8 OF10(1212- )ZSA4#..JPP ; (1610- )ZSA4#..RUP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2B660 | ||||
| 82711-35620 | ||||
| 82711-3F230 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12R10 | ||||
| 82715-21110 | ||||
| 82715-28L90 | ||||
| 82715-42790 | ||||
| 82715-42800 | ||||
| 82715-42B50 | ||||
| 82715-42D40 | ||||
| 82715-42D50 | ||||
| 82715-42F70 | ||||
| 82715-42G00 | ||||
| 82715-48G10 | ||||
| 82715-48G20 | ||||
| 82715-48G30 | ||||
| 82715-48G50 | ||||
| 82715-6A460 | ||||
| 82729-20070 | ||||
| 82729-20150 | ||||
| 90105-08391 | ||||
| 90119-06952 | ||||
| 90464-00620 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5854 | ||||
ILLUST NO.10 OF10(1212- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
