ZSA44R-ANFGPW (2012)

Toyota Rav4

Production Dec 2012 - Oct 2015
Engine 3ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1212-1504)A ; (1510- )B

Click highlighted areas on diagram

K111,K111F

diagram 30400 30400N 30400P 33621J 3402 3414 3414 3414 3414 35012B 35106L 35106P 35125E 35125F 35125G 35141E 35141F 35141F 35150B 35150C 35168C 35330D 35330E 35394D 35394D 35394D 35572C 82125M 8401 8401 8410 8410 8410 8410 8410 8410 8410 8410 8410 8410 9010506049 9010506252 9030106004 9030121009 9034118077 9043018008 9046400905 9161160618 9413000802 9451200800
Part # Description Qty Price
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-48021

ZSA44..A

K114F

 1
30400-42050

ZSA44..A

K111F

 1
30400N - PLUG, REFILL(CVT)
90341-18077

ZSA44..A

 1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008

ZSA44..A

 1
33621J - LABEL, TRANSAXLE OIL INFORMATION
33621-28021

ZSA44..A

 1
35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER
3510A-44012

ZSA44..A

 1
35012-28030

ZSA44..A

 1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-20031

ZSA44..A

 1
35106-28100

ZSA44..A

 1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173

ZSA44..A

 19
35125E - TUBE, OVERFLOW(CVT)
35125-28170

ZSA44..A

 1
35125-44070

ZSA44..A

 1
35125F - PLUG, OVERFLOW(CVT)
90341-12034

ZSA44..A

 1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008

ZSA44..A

 1
35141E - RING, O(FOR BREATHER PLUG)
90301-06005

ZSA44..A

 1
90301-06021

ZSA44..A

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149

ZSA44..A

NO.1

 1
90930-03164

ZSA44..A

NO.2

 1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03149

ZSA44..A

NO.1

 1
90930-03164

ZSA44..A

NO.2

 1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-48010

ZSA44..A

 1
35150C - RING, O (FOR TRANSMISSION CASE PLUG)
90301-09173

ZSA44..A

 1
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-20010

ZSA44..A

 1
35168-28020

ZSA44..A

 1
35330D - STRAINER ASSY, OIL
35330-0W090

ZSA44..A

 1
35330-28020

ZSA44..A

 1
35330E - RING, O (FOR OIL STRAINER)
90301-24013

ZSA44..A

 1
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011

ZSA44..A

 2
35394-30011

ZSA44..A

 3
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011

ZSA44..A

 2
35394-30011

ZSA44..A

 3
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011

ZSA44..A

 2
35394-30011

ZSA44..A

 3
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-42030

ZSA44..A

 1
35572-28130

ZSA44..A

 1
82125M - WIRE, TRANSMISSION
82125-48030

ZSA44..A

 1
82125-44020

ZSA44..A

 1
Common parts
90105-06049
90105-06252
90301-06004
90301-21009
90341-18077
90430-18008
90464-00905
91611-60618
94130-00802
94512-00800
Linked diagrams
3402
3414
8401
8410

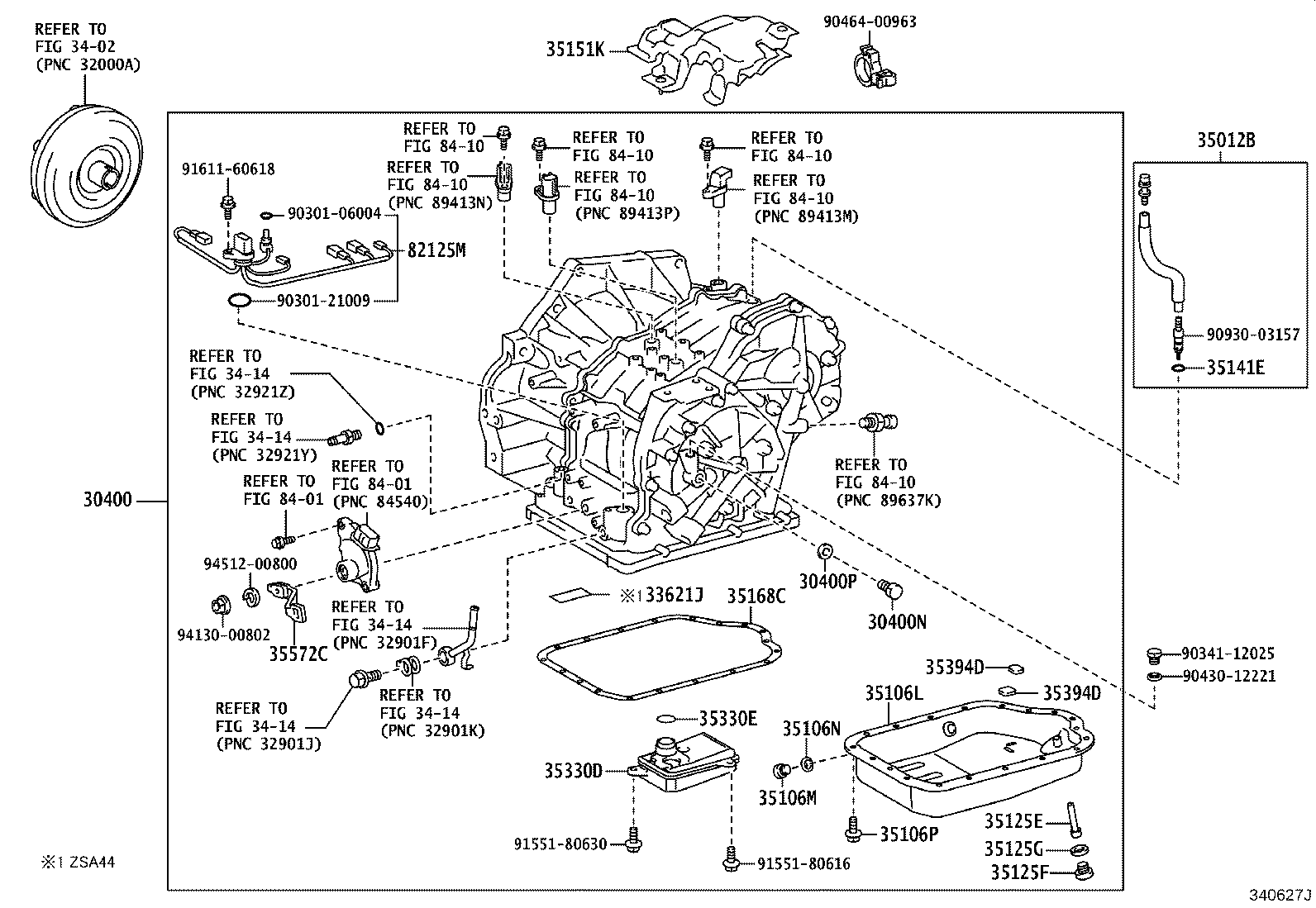

ILLUST NO. 1 OF 2(1504- )ZSA44..A

Click highlighted areas on diagram

K114,K114F

diagram 30400 30400N 30400P 33621J 3402 3414 3414 3414 3414 3414 35012B 35106L 35106M 35106N 35106P 35125E 35125F 35125G 35141E 35151K 35168C 35330D 35330E 35394D 35394D 35572C 82125M 8401 8401 8410 8410 8410 8410 8410 8410 8410 9030106004 9030121009 9034112025 9043012221 9046400963 9093003157 9155180616 9155180630 9161160618 9413000802 9451200800
Part # Description Qty Price
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-48021

ZSA44..A

K114F

 1
30400-42050

ZSA44..A

K111F

 1
30400N - PLUG, REFILL(CVT)
90341-18077

ZSA44..A

 1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008

ZSA44..A

 1
33621J - LABEL, TRANSAXLE OIL INFORMATION
33621-28021

ZSA44..A

 1
35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER
3510A-44012

ZSA44..A

 1
35012-28030

ZSA44..A

 1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-20031

ZSA44..A

 1
35106-28100

ZSA44..A

 1
35106M - PLUG SUB-ASSY, DRAIN(CVT)
90341-18016

ZSA44..A

 1
35106N - GASKET, DRAIN PLUG(CVT)
90430-01001

ZSA44..A

 1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173

ZSA44..A

 19
35125E - TUBE, OVERFLOW(CVT)
35125-28170

ZSA44..A

 1
35125-44070

ZSA44..A

 1
35125F - PLUG, OVERFLOW(CVT)
90341-12034

ZSA44..A

 1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008

ZSA44..A

 1
35141E - RING, O(FOR BREATHER PLUG)
90301-06005

ZSA44..A

 1
90301-06021

ZSA44..A

 1
35151K - COVER, AUTOMATIC TRANSMISSION CASE
35151-48070

ZSA44..A

 1
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-20010

ZSA44..A

 1
35168-28020

ZSA44..A

 1
35330D - STRAINER ASSY, OIL
35330-0W090

ZSA44..A

 1
35330-28020

ZSA44..A

 1
35330E - RING, O (FOR OIL STRAINER)
90301-24013

ZSA44..A

 1
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011

ZSA44..A

 2
35394-30011

ZSA44..A

 3
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011

ZSA44..A

 2
35394-30011

ZSA44..A

 3
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-42030

ZSA44..A

 1
35572-28130

ZSA44..A

 1
82125M - WIRE, TRANSMISSION
82125-48030

ZSA44..A

 1
82125-44020

ZSA44..A

 1
Common parts
90301-06004
90301-21009
90341-12025
90430-12221
90464-00963
90930-03157
91551-80616
91551-80630
91611-60618
94130-00802
94512-00800
Linked diagrams
3402
3414
8401
8410

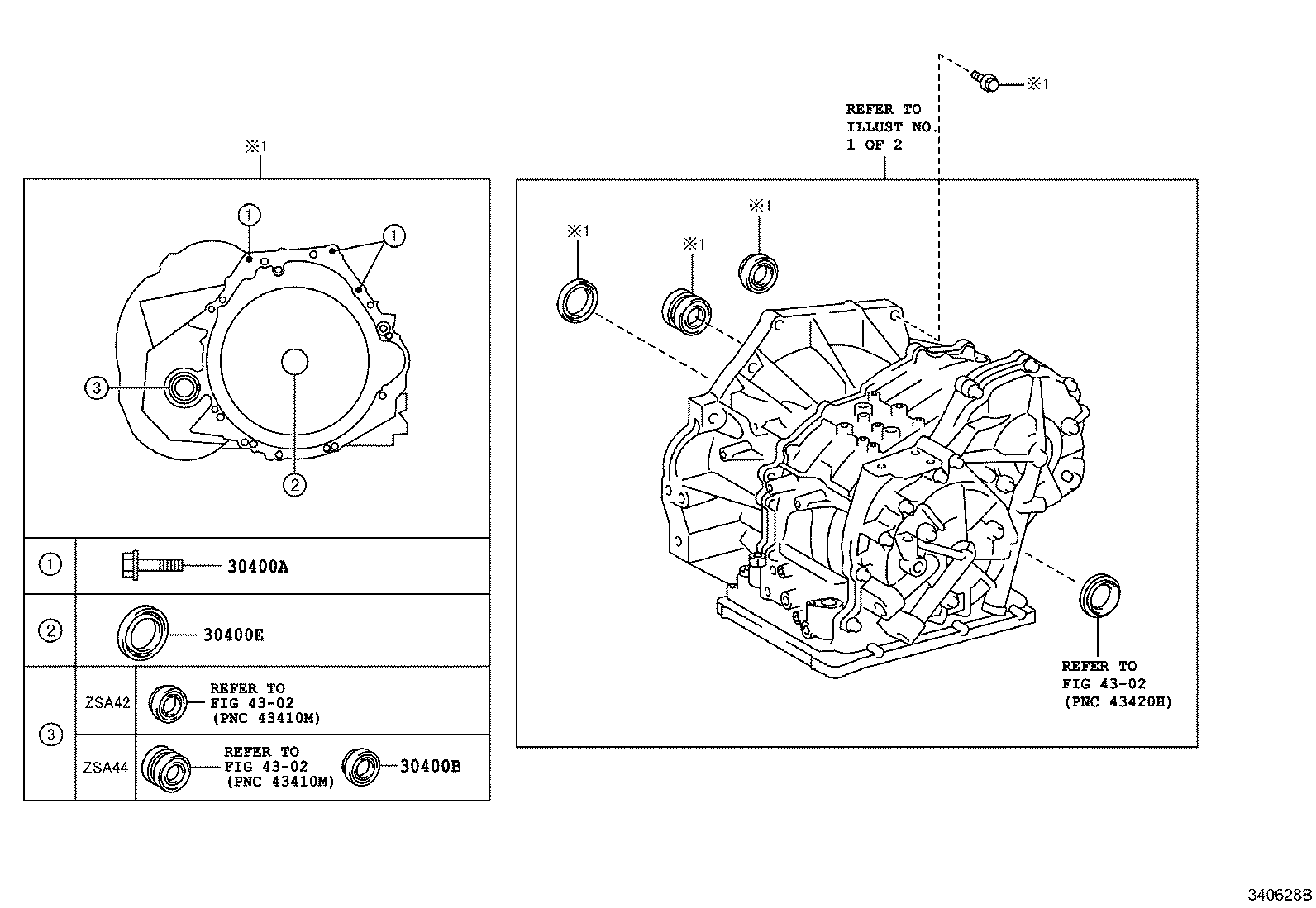

ILLUST NO. 2 OF 2(1504- )ZSA44..A

Click highlighted areas on diagram

K114,K114F

diagram 30400A 30400B 30400E 4302 4302 4302
Part # Description Qty Price
30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91512-61045

ZSA44..A

 3
30400B - SEAL, TYPE T OIL, NO.1(FOR CVT)
90311-49002

ZSA44..A

 1
90311-55004

ZSA44..A

 1
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-45027

ZSA44..A

 1
Linked diagrams
4302

ILLUST NO. 2 OF 2(1212-1504)A ; (1510- )B

Click highlighted areas on diagram

K111,K111F

diagram 30400A 30400B 30400E 4302 4302 4302
Part # Description Qty Price
30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91512-61045

ZSA44..A

 3
30400B - SEAL, TYPE T OIL, NO.1(FOR CVT)
90311-49002

ZSA44..A

 1
90311-55004

ZSA44..A

 1
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-45027

ZSA44..A

 1
Linked diagrams
4302
