ZSA44L-ANXXPW (2015)

Toyota Rav4

Production Oct 2015 - Oct 2018
Engine 3ZRFAE
Transmission A CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1510- )ZSA4#

Click highlighted areas on diagram

UNDER COVER

diagram 51441 51443 51444 5252 5252 5252 5252 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51410-42100

ZSA44

 1
51410-42100

ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ASA44..JPP..(G,M)..RUS

 1
51441-42150

ZSA44..LHD..EUR

ISRAEL SPEC

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-42010

ALA4#,ZSA44

 1
51443-42010

ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-42040

ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)

 1
51444-42040

ALA4#,ZSA44

 1
Common parts
90467-07215
Linked diagrams
5252

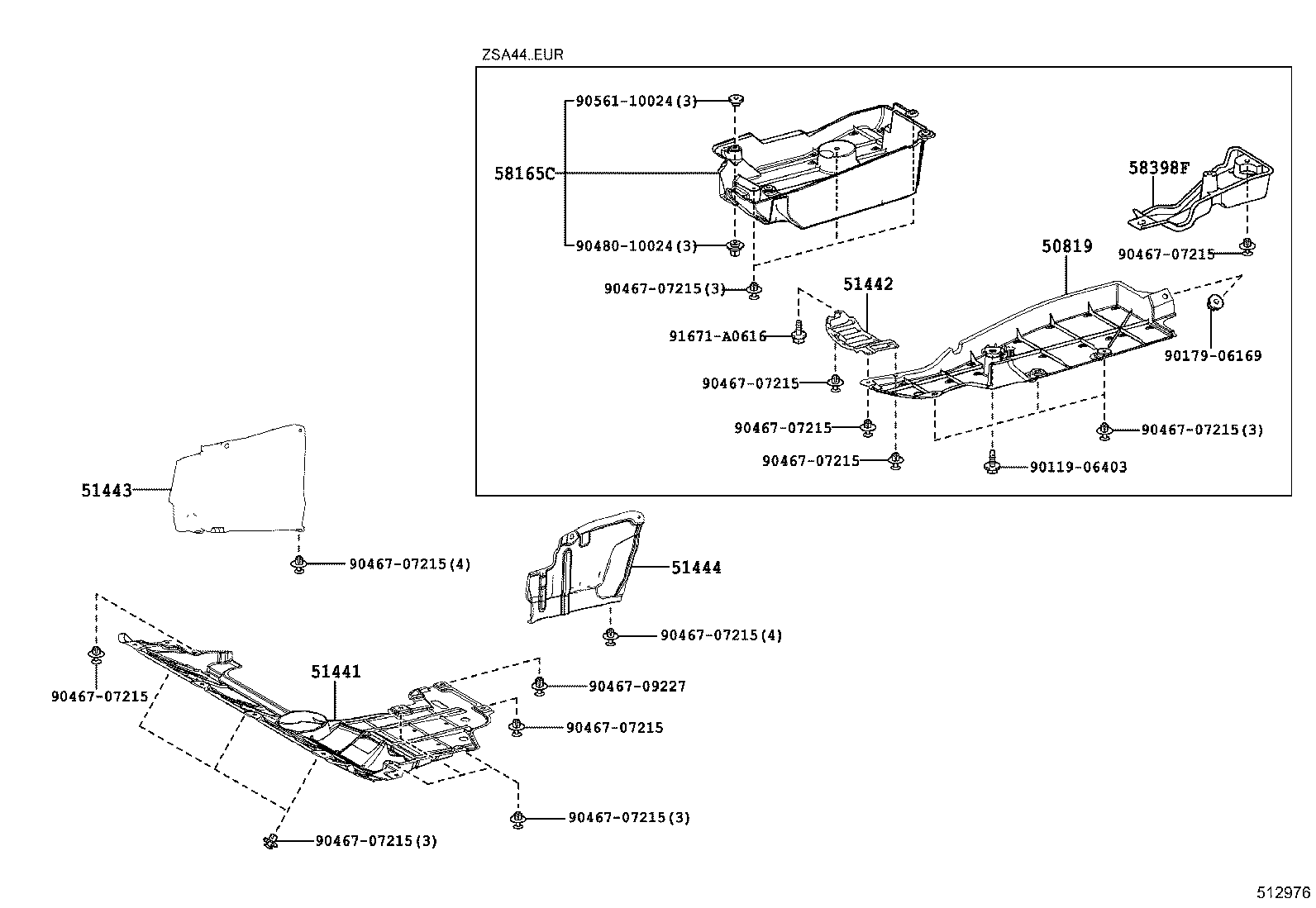

ILLUST NO. 2 OF 2(1510- )ASA44 ; (1510- )ZSA44..EUR

Click highlighted areas on diagram

UNDER COVER

diagram 50819 51441 51442 51443 51444 58165C 58398F 9011906403 9017906169 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046709227 9048010024 9056110024 91671A0616
Part # Description Qty Price
50819 - COVER, FRONT FLOOR
50819-42030

ALA4#,ZSA44

 1
50819-42031

ASA44,WWA42,ZSA44..EUR

 1
51441 - COVER, ENGINE UNDER, NO.1
51410-42100

ZSA44

 1
51410-42100

ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ASA44..JPP..(G,M)..RUS

 1
51441-42150

ZSA44..LHD..EUR

ISRAEL SPEC

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-42090

ASA44,AVA4#,WWA42,ZSA44..EUR

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-42010

ALA4#,ZSA44

 1
51443-42010

ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-42040

ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM)

 1
51444-42040

ALA4#,ZSA44

 1
58165C - COVER, FRONT FLOOR, RH
58165-42020

ALA4#,ZSA44

 1
58165-42021

ASA44,AVA4#,WWA42,ZSA44..EUR

 1
58398F - COVER, FLOOR UNDER, NO.1
58398-42022

ALA4#,ZSA44

 1
58398-42022

ASA44,AVA4#,WWA42,ZSA44..EUR

 1
Common parts
90119-06403
90179-06169
90467-07215
90467-09227
90480-10024
90561-10024
91671-A0616
