ZSA44L-ANFXPW (2015)
Toyota Rav4

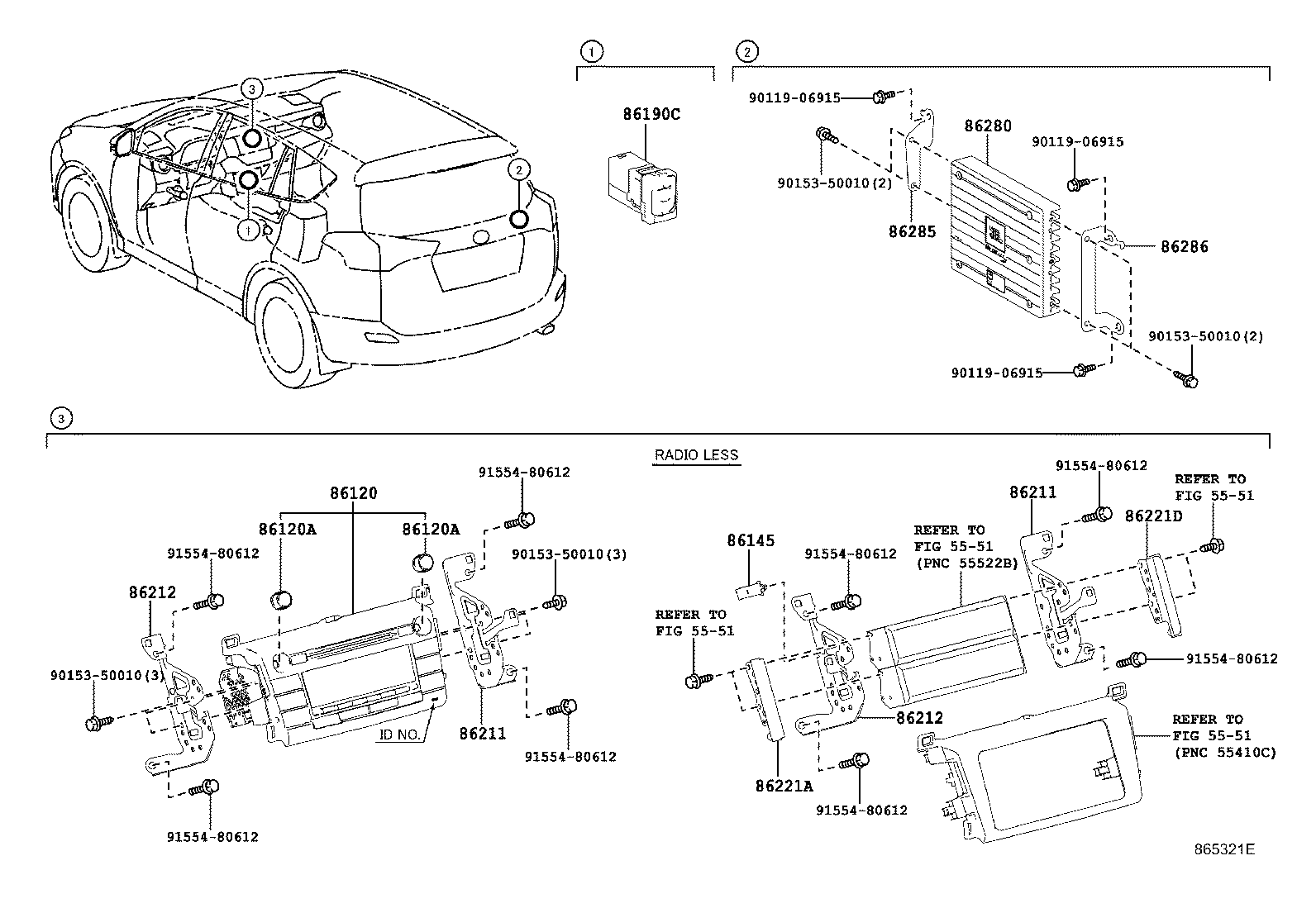

ILLUST NO. 1 OF 2(1212- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-42400 |
ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) PANASONIC, ID=53880,AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 86120-42400 |
ALA4#,ZSA44..LHD..X PANASONIC, ID=53880,AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 86120-42400 |
ALA4#,ZSA44..LHD..X PANASONIC, ID=53880 |
1 | ||
| 86120-42480 |
ALA49,ZSA44..LHD..X..(DCR,DCRE,HTWVM) PIONEER, ID=P10307,AUDIO-CD&USB&4SPEAKER(VFD) |
1 | ||
| 86120-42410 |
WWA42,ZSA44..LHD..X..EUR PANASONIC, ID=510124,FRENCH SPEC&AUDIO-WITHOUT |
1 | ||
| 86120-42410 |
WWA42,ZSA44..LHD..X..EUR PANASONIC, ID=510124,AUDIO-WITHOUT |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-23041 |
ALA4#,ZSA44..X;ALA49..RHD..G..DCR |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-23041 |
ALA4#,ZSA44..X;ALA49..RHD..G..DCR |
2 | ||
| 86145 - CONNECTOR, ANTENNA MALE | ||||
| 86145-52010 |
ALA4#..G,M;ALA49..RHD..X;ZSA44..RHD..6F;ZSA44..A..(G,M);ZSA44..LHD..6F..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86145-52010 |
ALA4#,ZSA44..X AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 86145-52010 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 86145-52010 |
AVA42..EUR;ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;ASA44..JPP..(G,M)..RUS;ZSA44..LHD..(G,M)..EUR;ALA49,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86145-52010 |
AVA4#..EUR;WWA42,ZSA44..X..EUR;WWA42,ZSA44..LHD..(G,M)..EUR AUDIO-WITHOUT |
1 | ||
| 86145-52010 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-42040 |
ALA4#,ZSA44 |
1 | ||
| 86190-42040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-42080 |
AVA42..EUR;ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;ASA44..JPP..(G,M)..RUS;ZSA44..LHD..(G,M)..EUR;ALA49,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86211-42080 |
ALA4#,ZSA44 |
1 | ||
| 86211-42080 |
AVA4#..EUR;WWA42,ZSA44..LHD..(G,M)..EUR AUDIO-WITHOUT |
1 | ||
| 86211-42080 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-42080 |
AVA42..EUR;ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;ASA44..JPP..(G,M)..RUS;ZSA44..LHD..(G,M)..EUR;ALA49,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86211-42080 |
ALA4#,ZSA44 |
1 | ||
| 86211-42080 |
AVA4#..EUR;WWA42,ZSA44..LHD..(G,M)..EUR AUDIO-WITHOUT |
1 | ||
| 86211-42080 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-42080 |
ALA4#,ZSA44 |
1 | ||
| 86212-42080 |
AVA4#..EUR;WWA42,ZSA44..LHD..(G,M)..EUR AUDIO-WITHOUT |
1 | ||
| 86212-42080 |
AVA42..EUR;ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;ASA44..JPP..(G,M)..RUS;ZSA44..LHD..(G,M)..EUR;ALA49,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86212-42080 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-42080 |
ALA4#,ZSA44 |
1 | ||
| 86212-42080 |
AVA4#..EUR;WWA42,ZSA44..LHD..(G,M)..EUR AUDIO-WITHOUT |
1 | ||
| 86212-42080 |
AVA42..EUR;ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;ASA44..JPP..(G,M)..RUS;ZSA44..LHD..(G,M)..EUR;ALA49,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86212-42080 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
1 | ||
| 86221A - PANEL, RADIO RECEIVER | ||||
| 86221-52050 |
ALA4#,ZSA44..X AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 86221-52050 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 86221-52050 |
ALA4#..G,M;ALA49..RHD..X;ZSA44..RHD..6F;ZSA44..A..(G,M);ZSA44..LHD..6F..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86221-52050 |
AVA42..EUR;ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;ASA44..JPP..(G,M)..RUS;ZSA44..LHD..(G,M)..EUR;ALA49,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86221-52050 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 86221-52050 |
AVA4#..EUR;WWA42,ZSA44..X..EUR;WWA42,ZSA44..LHD..(G,M)..EUR AUDIO-WITHOUT |
1 | ||
| 86221D - PANEL, RADIO RECEIVER | ||||
| 86221-52060 |
ALA4#,ZSA44..X AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 86221-52060 |
ALA4#..G,M;ALA49..RHD..X;ZSA44..RHD..6F;ZSA44..A..(G,M);ZSA44..LHD..6F..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86221-52060 |
AVA4#..EUR;WWA42,ZSA44..X..EUR;WWA42,ZSA44..LHD..(G,M)..EUR AUDIO-WITHOUT |
1 | ||
| 86221-52060 |
ALA4#,ZSA44..DCRE,DCRL,HTWVM AUDIO-W/O(AUDIO&SPEAKER) |
1 | ||
| 86221-52060 |
AVA42..EUR;ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;ASA44..JPP..(G,M)..RUS;ZSA44..LHD..(G,M)..EUR;ALA49,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) AUDIO-6SPEAKER(AUDIO LESS) |
1 | ||
| 86221-52060 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR AUDIO-4SPEAKER(AUDIO LESS) |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-42050 |
ZSA44..6F..(G,M)..EUR ECO PACKAGE-WITHOUT&AUDIO-JBL 7INCH DA-FULL DAB EU |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-42030 |
ZSA44..6F..(G,M)..EUR ECO PACKAGE-WITHOUT&AUDIO-JBL 7INCH DA-FULL DAB EU |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-0R010 |
ZSA44..6F..(G,M)..EUR ECO PACKAGE-WITHOUT&AUDIO-JBL 7INCH DA-FULL DAB EU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90153-50010 | ||||
| 91554-80612 | ||||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 2 OF 2(1212- )
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04189 |
ALA4#,ZSA44 |
1 | ||
| 90980-04189 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
