ZSA44L-ANFXPW (2015)
Toyota Rav4
(1510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-42020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 85391-42020 |
ALA4#,ZSA44 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-32150 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 85349-32150 |
ALA4#,ZSA44 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-32150 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 85349-32150 |
ALA4#,ZSA44 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
ALA4#,ZSA44 |
1 | ||
| 85349-89122 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
ALA4#,ZSA44 |
1 | ||
| 85349-89122 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ZSA44..LHD..(G,M) *H,L=840,COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ZSA44..LHD *H,L=840,COLD AREA SPEC,*562 |
1 | ||
| 90099-33080 |
ZSA44..LHD..(G,M) *H,L=840,COLD AREA SPEC&HEADLAMP-DISCHARGE,*562 |
1 | ||
| 90099-33080 |
ZSA44..LHD..(G,M) *H,L=840,HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ALA4#,ZSA44 *H,L=840,*562 |
1 | ||
| 90099-33080 |
ZSA44..LHD..(G,M) *H,L=840,HEADLAMP-DISCHARGE,*562 |
1 | ||
| 90099-33080 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) *H,L=840,*561,*562 |
1 | ||
| 90099-33080 |
AVA4#,WWA42,ZSA44..LHD..EUR *H,L=840,COLD AREA SPEC,*561,*562 |
1 | ||
| 90099-33080 |
AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR *H,L=840,COLD AREA SPEC & WITH(STEERING HEATER),*561,*562 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
ZSA44..LHD..(G,M) *H,L=840,COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ZSA44..LHD *H,L=840,COLD AREA SPEC,*562 |
1 | ||
| 90099-33080 |
ZSA44..LHD..(G,M) *H,L=840,COLD AREA SPEC&HEADLAMP-DISCHARGE,*562 |
1 | ||
| 90099-33080 |
ZSA44..LHD..(G,M) *H,L=840,HEADLAMP-DISCHARGE & W(*AHB),*562 |
1 | ||
| 90099-33080 |
ALA4#,ZSA44 *H,L=840,*562 |
1 | ||
| 90099-33080 |
ZSA44..LHD..(G,M) *H,L=840,HEADLAMP-DISCHARGE,*562 |
1 | ||
| 90099-33080 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) *H,L=840,*561,*562 |
1 | ||
| 90099-33080 |
AVA4#,WWA42,ZSA44..LHD..EUR *H,L=840,COLD AREA SPEC,*561,*562 |
1 | ||
| 90099-33080 |
AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR *H,L=840,COLD AREA SPEC & WITH(STEERING HEATER),*561,*562 |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85373-44010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 85373-44010 |
ALA4#,ZSA44 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33382 |
ALA4#,ZSA44 *H,L=1200,*562 |
1 | ||
| 90099-33382 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) *H,L=1790,*561,*562 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33382 |
ALA4#,ZSA44 *H,L=1200,*562 |
1 | ||
| 90099-33382 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) *H,L=1790,*561,*562 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62098 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) L=3374 |
1 | ||
| 90099-62098 |
ALA4#,ZSA44 L=3374 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-62065 |
ALA4#,ZSA44 L=350 |
1 | ||
| 90099-62065 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) L=350 |
1 | ||
| Common parts | ||||
| 82711-3A640 | ||||
| 82711-52090 | ||||
| 85371-12040 | ||||
| 90469-07011 | ||||

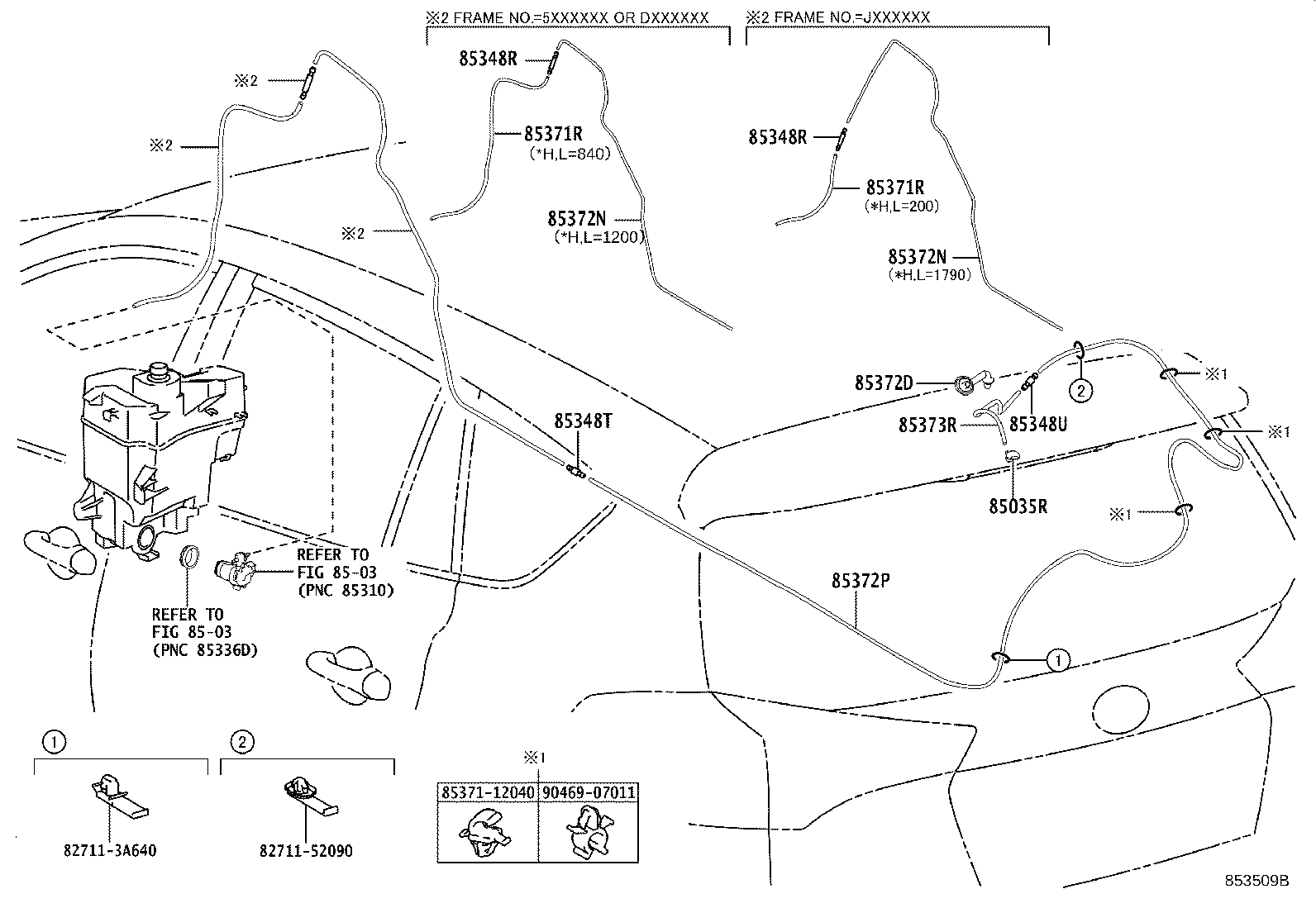

| Linked diagrams | ||||
| 8503 | ||||
