ZSA44L-ANFXPW (2015)
Toyota Rav4

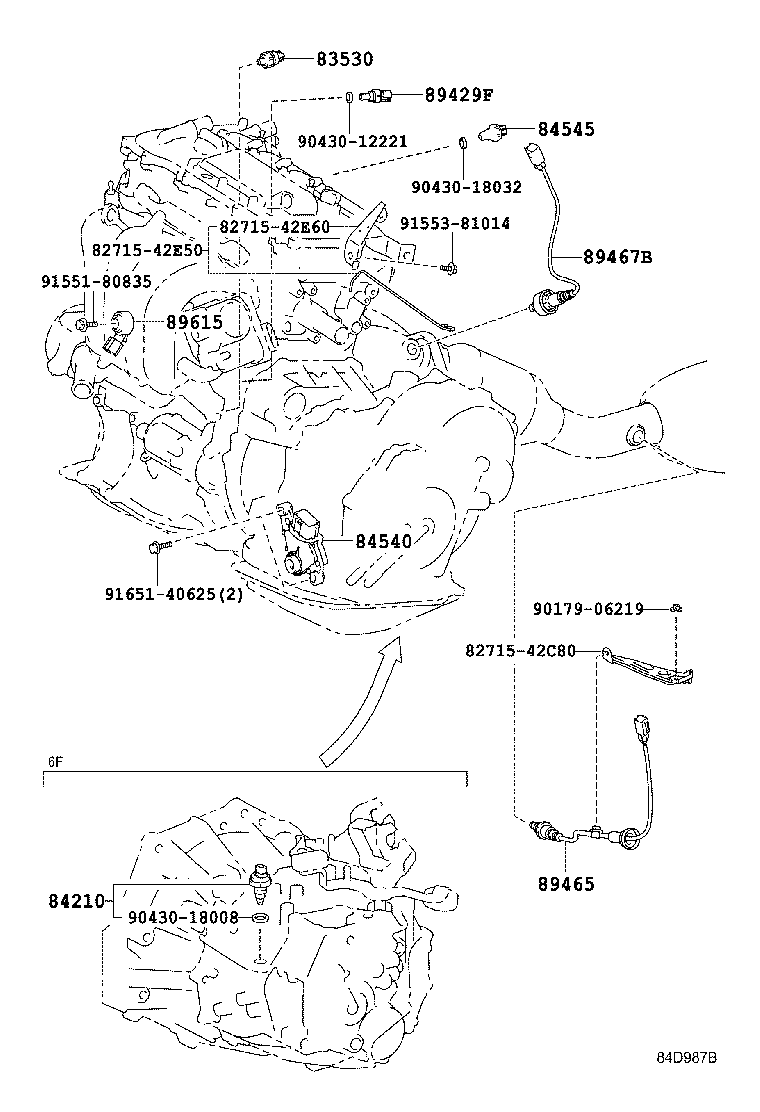

ILLUST NO. 1 OF 8(1212- )ZSA4#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 83530-28020 |
ZSA44 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
ALA4#,ZSA44..6F |
1 | ||
| 84210-52050 |
ZSA44..6F..EUR;ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZSA44..A |
1 | ||
| 84540-28030 |
ZSA44..A |
1 | ||
| 84545 - SWITCH, NEUTRAL POSITION | ||||
| 84545-20021 |
ZSA44..6F..EUR |
1 | ||
| 84545-20021 |
ZSA44..6F..EUR ECO PACKAGE-WITHOUT |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
ZSA44..EUR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-42210 |
ZSA44 MARK:TAPE=GREEN |
1 | ||
| 89465-48340 |
ZSA44..EUR |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-12030 |
ZSA44 MARK:TAPE=RED |
1 | ||
| 89467-52060 |
ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA42..JPP..B..(G,M);ZSA44..JPP..B..(G,X) |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZSA44 |
1 | ||
| 89615-20090 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| Common parts | ||||
| 82715-42C80 | ||||
| 82715-42E50 | ||||
| 82715-42E60 | ||||
| 90179-06219 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40625 | ||||
ILLUST NO. 6 OF 8(1212- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ALA4#,ZSA44..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 84052-71010 |
ALA4#,ZSA44..M,X |
1 | ||
| 84052-71010 |
ALA49,ASA44,WWA42,ZSA4#..JPP..(6F,6FC,A)..M WIRELESS DOOR LOCK-SMART ENTRY & POWER BACK DOOR |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12770 |
ALA4#,ZSA44..LHD..X |
1 | ||
| 84140-12800 |
ALA4#,ZSA44..LHD..X FRONT FOG LAMP-WITH |
1 | ||
| 84140-33250 |
ALA4#,ZSA44..G,M |
1 | ||
| 84140-12770 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 84140-12770 |
ASA44,WWA42,ZSA44..X..EUR |
1 | ||
| 84140-12770 |
AVA4#..LHD..G..EUR;WWA42,ZSA44..LHD..(G,M)..EUR FRENCH SPEC&BASIC PACKAGE&FRONT BUMPER-WITH(COLOR & MOLDING) |
1 | ||
| 84140-12800 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC |
1 | ||
| 84140-33250 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(G,M) |
1 | ||
| 84140-33250 |
WWA42,ZSA44..X..EUR PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84140-33250 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12770 |
ALA4#,ZSA44..LHD..X |
1 | ||
| 84140-12800 |
ALA4#,ZSA44..LHD..X FRONT FOG LAMP-WITH |
1 | ||
| 84140-33250 |
ALA4#,ZSA44..G,M |
1 | ||
| 84140-12770 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 84140-12770 |
ASA44,WWA42,ZSA44..X..EUR |
1 | ||
| 84140-12770 |
AVA4#..LHD..G..EUR;WWA42,ZSA44..LHD..(G,M)..EUR FRENCH SPEC&BASIC PACKAGE&FRONT BUMPER-WITH(COLOR & MOLDING) |
1 | ||
| 84140-12800 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC |
1 | ||
| 84140-33250 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(G,M) |
1 | ||
| 84140-33250 |
WWA42,ZSA44..X..EUR PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84140-33250 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-42110C0 |
ALA49..LHD..6F..G..DCR;ALA4#,ZSA44..6F..(G,M)..(DCRE,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42130C0 |
ALA49,ZSA44..LHD..(6F,A)..X AUDIO-CD&USB&4SPEAKER(VFD),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42120C0 |
ALA49..LHD..6FC..G..DCR;ALA49,ZSA44..(6FC,A)..(G,M)..(DCRL,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42130C0 |
ALA40..G,M;ALA40,ZSA44..LHD..X;ZSA44..LHD..6F..(G,M);ALA49..LHD..(DCRE,DCRL);ALA49,ZSA44..RHD..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE&AUDIO-W/O(AUDIO&SPEAKER),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42090C0 |
ALA49..RHD..G..DCR;ALA49..LHD..6F..X..DCR;ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42130C0 |
ZSA44..LHD..A..(G,M) FRENCH SPEC&BASIC PACKAGE&AUDIO-W/O(AUDIO&SPEAKER),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42130C0 |
ALA4#,ZSA44..G,M AUDIO-6SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42130C0 |
ALA49..LHD..6F..X..DCR;ALA4#,ZSA44..LHD..X..(DCRE,DCRL,HTWVM) AUDIO-4SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 84250-42310C1 |
WWA42,ZSA44..LHD..X..EUR CRUISE CONTROL-WITH(RADAR TYPE)&SPEED WARNING-WITH(ASL)&AUDIO-6SPEAKER 7INCH DA-FULL EU,BLACK,TRIM2# |
1 | ||
| 84250-42220C1 |
WWA42,ZSA44..M..EUR SPEED WARNING-WITHOUT&AUDIO-6SPEAKER(AUDIO LESS),BLACK,TRIM2# |
1 | ||
| 84250-42220C1 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR BLACK,TRIM2# |
1 | ||
| 84250-42220C1 |
WWA42,ZSA44..LHD..6F..M..EUR SPEED WARNING-WITHOUT&AUDIO-WITHOUT,BLACK,TRIM2# |
1 | ||
| 84250-42220C1 |
ZSA44..A..M;WWA42..RHD..M BASIC PACKAGE&SPEED WARNING-WITHOUT&AUDIO-WITHOUT,BLACK,TRIM2# |
1 | ||
| 84250-42300C1 |
WWA42,ZSA44..M..EUR BLACK,TRIM2# |
1 | ||
| 84250-42230C1 |
WWA42,ZSA44..LHD..X..EUR AUDIO-6SPEAKER 7INCH DA-FULL EU,BLACK,TRIM2# |
1 | ||
| 84250-42240C1 |
ZSA44..LHD..A..M COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&SPEED WARNING-WITHOUT,BLACK,TRIM2# |
1 | ||
| 84250-42240C1 |
ZSA44..X..EUR PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR TYPE)&AUDIO-6SPEAKER 7INCH DA-FULL EU,BLACK,TRIM2# |
1 | ||
| 84250-42240C1 |
ZSA44..LHD..A..M COLD AREA SPEC & WITH(STEERING HEATER)&PRE-COLLISION SYSTEM-WITH&SPEED WARNING-WITHOUT,BLACK,TRIM2# |
1 | ||
| 84250-42300C1 |
WWA42,ZSA44..LHD..X..EUR CRUISE CONTROL-WITH(ELECTRIC TYPE)&SPEED WARNING-WITH(ASL)&AUDIO-6SPEAKER 7INCH DA-FULL EU,BLACK,TRIM2# |
1 | ||
| 84250-42230C1 |
ZSA44..LHD..M..EUR SPEED WARNING-WITHOUT,BLACK,TRIM2# |
1 | ||
| 84250-42240C1 |
ZSA44..6F..M..EUR PRE-COLLISION SYSTEM-WITH&SPEED WARNING-WITHOUT,BLACK,TRIM2# |
1 | ||
| 84250-42310C1 |
WWA42,ZSA44..LHD..X..EUR PRE-COLLISION SYSTEM-WITH&CRUISE CONTROL-WITH(RADAR TYPE)&SPEED WARNING-WITH(ASL)&AUDIO-6SPEAKER 7INCH DA-FULL EU,BLACK,TRIM2# |
1 | ||
| 84250-42310C1 |
ZSA44..M..EUR PRE-COLLISION SYSTEM-WITH,BLACK,TRIM2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12010 |
ALA4#,ZSA44 |
1 | ||
| 84308-12010 |
AVA44;ZSA44..LHD..EUR;ASA44,AVA42..EUR;ZSA44..JPP..B..X;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..(M,X)..DCRL;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI) |
1 | ||
| 84308-42010 |
AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-12100 |
AVA44;ZSA44..LHD..EUR;ASA44,AVA42..EUR;ZSA44..JPP..B..X;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..(M,X)..DCRL;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI) |
1 | ||
| 84307-12100 |
ALA4#,ZSA44 |
1 | ||
| 84307-42060 |
AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12320 |
ALA4#,ZSA44..M,X |
1 | ||
| 84450-12320 |
ALA4#,ZSA44..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 84450-12320 |
ALA49,ASA44,WWA42,ZSA4#..JPP..(6F,6FC,A)..M WIRELESS DOOR LOCK-SMART ENTRY & POWER BACK DOOR |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-42010 |
ALA49..LHD..6FC..G..DCR;ALA49,ZSA44..(6FC,A)..(G,M)..(DCRL,HTWVM) |
1 | ||
| 84523-42010 |
ZSA44..A..(G,M) |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-12130 |
ZSA44..A..(G,M) RH |
1 | ||
| 84610-12120 |
ZSA44..A..(G,M) LH |
1 | ||
| 84610-12130 |
ALA49..LHD..6FC..G..DCR;ALA49,ZSA44..(6FC,A)..(G,M)..(DCRL,HTWVM) RH |
1 | ||
| 84610-12120 |
ALA49..LHD..6FC..G..DCR;ALA49,ZSA44..(6FC,A)..(G,M)..(DCRL,HTWVM) LH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-12130 |
ZSA44..A..(G,M) RH |
1 | ||
| 84610-12120 |
ZSA44..A..(G,M) LH |
1 | ||
| 84610-12130 |
ALA49..LHD..6FC..G..DCR;ALA49,ZSA44..(6FC,A)..(G,M)..(DCRL,HTWVM) RH |
1 | ||
| 84610-12120 |
ALA49..LHD..6FC..G..DCR;ALA49,ZSA44..(6FC,A)..(G,M)..(DCRL,HTWVM) LH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42150 |
ALA4#,ZSA44..X |
1 | ||
| 84652-42150 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 84652-12A90 |
ALA4#,ZSA44..G,M |
1 | ||
| 84652-12A90 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(G,M) |
1 | ||
| 84652-1A860 |
WWA42,ZSA44..LHD..(G,M)..EUR FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 84652-1A860 |
ALA49,ASA44,WWA42,ZSA4#..JPP..X |
1 | ||
| 84652-12A90 |
WWA42,ZSA44..X..EUR PRE-COLLISION SYSTEM-WITH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42150 |
ALA4#,ZSA44..X |
1 | ||
| 84652-42150 |
ALA4#,ZSA44..LHD..(G,M)..(DCRE,DCRL,HTWVM) FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 84652-12A90 |
ALA4#,ZSA44..G,M |
1 | ||
| 84652-12A90 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..JPP..(G,M) |
1 | ||
| 84652-1A860 |
WWA42,ZSA44..LHD..(G,M)..EUR FRENCH SPEC&BASIC PACKAGE |
1 | ||
| 84652-1A860 |
ALA49,ASA44,WWA42,ZSA4#..JPP..X |
1 | ||
| 84652-12A90 |
WWA42,ZSA44..X..EUR PRE-COLLISION SYSTEM-WITH |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-52010 |
ALA49,ZSA44..(6FC,A)..(M,X) |
1 | ||
| 85432-52010 |
ALA49,ZSA44..(6FC,A)..M WIRELESS DOOR LOCK-SMART ENTRY+POWER BACK DOOR |
1 | ||
| 85432-52010 |
ALA49,ASA44,ZSA44..JPP..(6FC,A)..M WIRELESS DOOR LOCK-SMART ENTRY & POWER BACK DOOR |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-12010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-42120 |
ALA4#,ZSA44..LHD |
1 | ||
| 89650-42240 |
ALA49,ASA44,WWA42,ZSA4#..LHD |
1 | ||
| 89650-42241 |
ASA44..X..EUR;ZSA42..JPP..B..M;ZSA44..JPP..B..X;ASA44,ZSA44..JPP..(G,M)..EFI;ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM);ALA49,ZSA42..JPP..(G,X)..(DCRE,EFI) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-42120 |
ALA4#,ZSA44..LHD |
1 | ||
| 89650-42240 |
ALA49,ASA44,WWA42,ZSA4#..LHD |
1 | ||
| 89650-42241 |
ASA44..X..EUR;ZSA42..JPP..B..M;ZSA44..JPP..B..X;ASA44,ZSA44..JPP..(G,M)..EFI;ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM);ALA49,ZSA42..JPP..(G,X)..(DCRE,EFI) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 8 OF 8(1510- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49205 |
ZSA44 |
1 | ||
| 83320-49205 |
ASA44,ZSA44..EUR EXCEPT ROSSIA |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49205 |
ZSA44 |
1 | ||
| 83320-49205 |
ASA44,ZSA44..EUR EXCEPT ROSSIA |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ALA4#,ZSA44 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
ALA4#,ZSA44 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ALA4#,ZSA44 |
2 | ||
| 84231-60070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ALA4#,ZSA44 |
2 | ||
| 84231-60070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 84231-60070 |
ALA4#,ZSA44 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 84231-60070 |
ALA4#,ZSA44 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 84810-52030 |
ALA4#,ZSA44 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 84810-52030 |
ALA4#,ZSA44 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 84810-52030 |
ALA4#,ZSA44 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 84810-52030 |
ALA4#,ZSA44 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-42210 |
ALA4#,ZSA44..LHD |
1 | ||
| 84820-42210 |
ASA44..X..EUR;ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..LHD..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..LHD..(ATM,CVT)..(G,M) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-42210 |
ALA4#,ZSA44..LHD |
1 | ||
| 84820-42210 |
ASA44..X..EUR;ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..LHD..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..LHD..(ATM,CVT)..(G,M) |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
ALA4#,ZSA44..M,X |
1 | ||
| 84840-78010 |
ASA44..X..EUR;ZSA44..RHD..M;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTWVM) |
1 | ||
| 84840-48020 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 84840-48020 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-42040 |
AVA42..M..EUR;ZSA44..JPP..M;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 84930-42040 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 84930-42040 |
AVA42..M..EUR;ZSA44..JPP..M;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..M POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-42040 |
AVA42..M..EUR;ZSA44..JPP..M;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 84930-42040 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 84930-42040 |
AVA42..M..EUR;ZSA44..JPP..M;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..M POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR) |
1 | ||
| 8598A - BATTERY, DOOR CONTROL | ||||
| 8598A-42010 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0W380 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W381 |
ASA44..(G,M)..RUS;ALA49,AVA4#,WWA42,ZSA4#..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W382 |
AVA4#..EUR;ZSA44..G,M;ALA49,ASA44,ZSA42..(G,M)..RUS LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W070 |
ALA4#,ZSA44..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),MARK=RA |
1 | ||
| 88163 - COVER, BLIND SPOT MONITOR, RH | ||||
| 88163-42010 |
ZSA44..A..M;ZSA44..LHD..A..G;ALA4#,ZSA44..(6F,6FC)..(G,M) LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 88163-42010 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA4#,ZSA44..(G,M)..EUR;ALA49,ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0W381 |
ASA44..(G,M)..RUS;ALA49,AVA4#,WWA42,ZSA4#..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W070 |
ALA4#,ZSA44..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR),MARK=RA |
1 | ||
| 88162-0W382 |
AVA4#..EUR;ZSA44..G,M;ALA49,ASA44,ZSA42..(G,M)..RUS LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W380 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..G,M LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88162-0W383 |
AVA4#..EUR;ZSA44..JPP..(G,M);ALA49,ASA44,ZSA42..JPP..(G,M)..RUS LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88173 - COVER, BLIND SPOT MONITOR, LH | ||||
| 88173-42010 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA4#,ZSA44..(G,M)..EUR;ALA49,ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 88173-42010 |
ZSA44..A..M;ZSA44..LHD..A..G;ALA4#,ZSA44..(6F,6FC)..(G,M) LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) |
1 | ||
| 891B2 - SENSOR, KICK DOOR CONTROL | ||||
| 891B2-0W030 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-42050 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR),P/N LABEL=8922242050 |
1 | ||
| 89222-42040 |
ALA49,ASA44,WWA42,ZSA4#..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89222-42040 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89222-42041 |
ALA49,ASA44,WWA42,ZSA4#..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89222-42041 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89222-42090 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89222-42090 |
AVA42..M..EUR;ZSA44..JPP..M;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89222-42090 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 89747-30040 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89747-30040 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89747-30040 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
2 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 89747-30040 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89747-30040 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89747-30040 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
2 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 89747-30040 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89747-30040 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89747-30040 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
2 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA4#,ZSA44..(G,M)..EUR;ALA49,ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA4#,ZSA44..(G,M)..EUR;ALA49,ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90179-06178 | ||||
| 91553-80612 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 8(1510- )AVA4#,WWA42,ZSA44 ; (1510- )ALA49,ASA44,ZSA42..RUS
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-37031 |
3ZRFAE..ZSA44 |
1 | ||
| 28850-36030 |
3ZRFAE..ZSA44 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-37031 |
3ZRFAE..ZSA44 |
1 | ||
| 28850-36030 |
3ZRFAE..ZSA44 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-37031 |
3ZRFAE..ZSA44 |
1 | ||
| 28850-36030 |
3ZRFAE..ZSA44 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-36020 |
3ZRFAE..ZSA44 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-02060 |
ALA49,ZSA44..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE |
1 | ||
| 85942-02060 |
ALA4#,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85942-02060 |
ALA4#,ZSA44..LHD COLD AREA SPEC |
1 | ||
| 85942-02060 |
ALA49,ZSA44..LHD..(G,M) COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 85942-02060 |
AVA4#,WWA42,ZSA44..LHD..EUR COLD AREA SPEC |
1 | ||
| 85942-02060 |
ALA49..G,M;ALA40,41,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE |
1 | ||
| 85942-02060 |
AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91671-A0616 | ||||
| 93315-14014 | ||||
| 94151-80801 | ||||

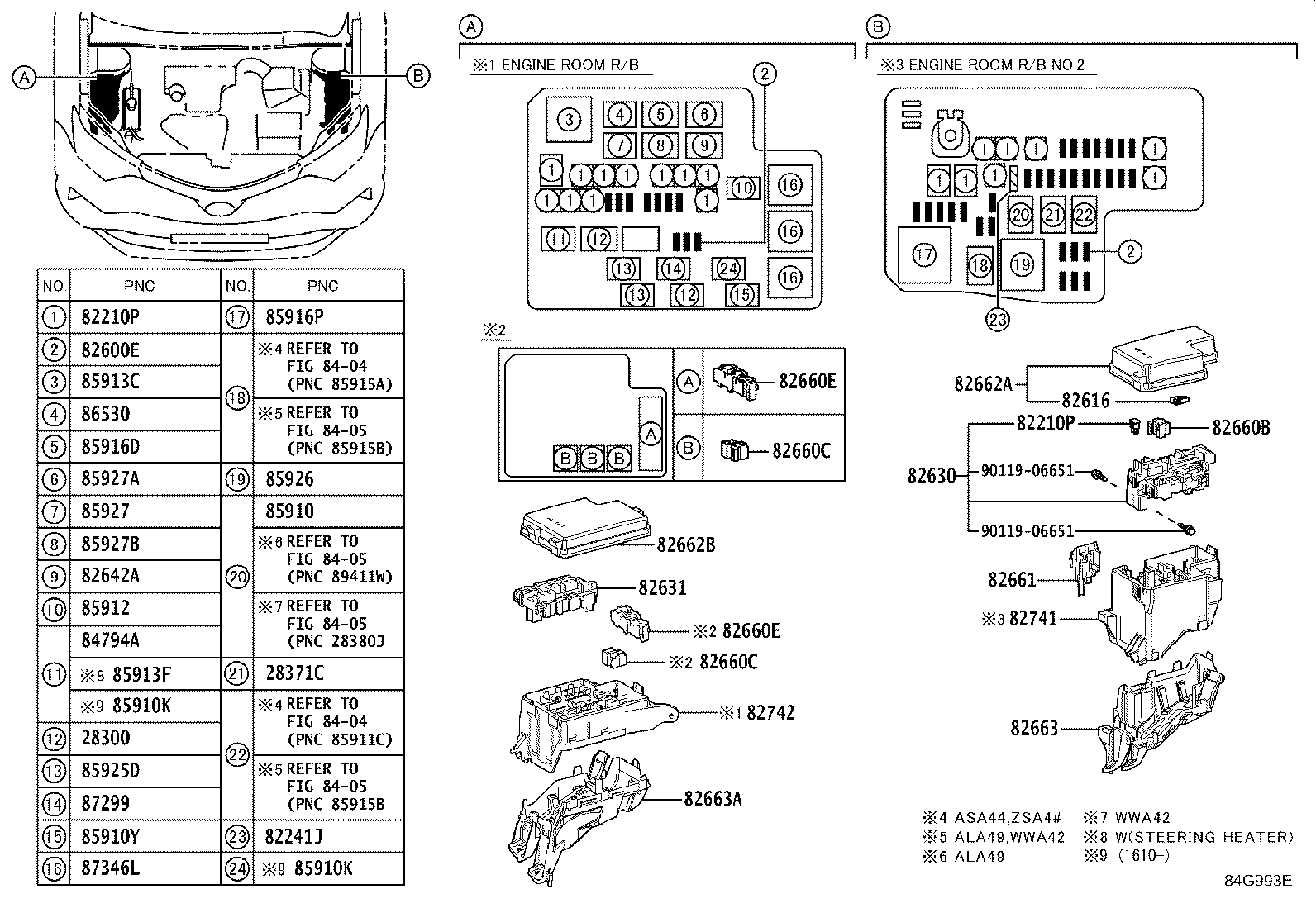

ILLUST NO. 3 OF 8(1510- )ALA49,ASA44,WWA42,ZSA4#
ENGINE ROOM RELAY BLOCK(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1ADFTV,2AD#,3ZRFAE..ALA4#,ZSA44 |
1 | ||
| 28300-21020 |
2ARFE..ASA44..X..EUR;3ZRFE..ZSA44..JPP..M;3ZRFE..ZSA44..JPP..B..(G,X);2ADFTV,3ZRFE..ALA49,ZSA42..JPP..X;2ADFHV,3ZRFAE..ALA49,ZSA44..JPP..(6F,6FC);2ARFE,3ZRFE..ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 28300-21020 |
3ZRFAE..ZSA44..A |
2 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2ARFXE..AVA42..EUR;3ZRFAE..ZSA44..LHD;2ARFE..ASA44..X..EUR;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA44..JPP..B..(G,X);2ADFHV,2ARFXE..ALA49,AVA44..JPP;2ADFTV,3ZRFE..ALA49,ZSA42..JPP..X;2ARFE,3ZRFE..ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 90987-02027 |
1ADFTV,2AD#,3ZRFAE..ALA4#,ZSA44 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
ZSA44 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
ALA4#,ZSA44 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08286 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
ALA4#,ZSA44 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ALA4#,ZSA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 80A,TERM.:FEMALE,BLK |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
ZSA44 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
ALA4#,ZSA44 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08286 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08296 |
ALA4#,ZSA44 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
ALA4#,ZSA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 80A,TERM.:FEMALE,BLK |
1 | ||
| 82241J - PIN, SHORT | ||||
| 82241-42010 |
ALA4#,ZSA44..G,M |
1 | ||
| 82241-42010 |
ZSA44..JPP..B..G;ZSA44..(G,M)..EUR;ZSA44..JPP..M..RUS;ALA49,ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 82241-42010 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 82241-42010 |
WWA42,ZSA44..(G,M)..EUR BASIC PACKAGE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09024 |
ALA4#,ZSA44 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ALA4#,ZSA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ALA4#,ZSA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ALA4#,ZSA44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ALA4#,ZSA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ALA4#,ZSA44..6F,6FC 5A,MINI FUSE,TAN |
1 | ||
| 90982-09019 |
ZSA44..A 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ALA4#,ZSA44 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 25A,MINI FUSE |
1 | ||
| 90982-09023 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ALA4#,ZSA44 |
1 | ||
| 82616-58010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-42010 |
ZSA44 |
1 | ||
| 82630-42020 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X;ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 82631 - HOLDER, FUSE | ||||
| 82631-42060 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X;ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 82631-42060 |
ALA4#,ZSA44 |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-02027 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ALA4#,ZSA44 |
1 | ||
| 82660-0H070 |
ZSA44..6F..M..EUR ECO PACKAGE-WITHOUT&HEAD LAMP-LED |
1 | ||
| 82660-0H070 |
ZSA44..6F..M..EUR ECO PACKAGE-WITHOUT&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 82660-0H070 |
ALA49,ASA44,ZSA44..JPP..(6F,6FC,A)..M..(DCRL,EFI,HTWVM) HEAD LAMP-LED |
1 | ||
| 82660-0H070 |
ZSA44..M..EUR HEAD LAMP-LED, W(*AHB) |
1 | ||
| 82660-52130 |
ASA44..X..EUR;ZSA44..RHD..M;ALA49,ZSA42..JPP..6F..X;ASA44,ZSA44..JPP..(6F,6FC)..M..RUS;ALA49,ZSA44..JPP..LHD..(M,X)..(DCRL,HTWVM) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ZSA44..LHD..A |
1 | ||
| 82660-52010 |
ZSA44..6F..M..EUR ECO PACKAGE-WITHOUT&HEAD LAMP-LED |
1 | ||
| 82660-52010 |
ZSA44..LHD..6F |
1 | ||
| 82660-52010 |
ZSA44..6F..M..EUR ECO PACKAGE-WITHOUT&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 82660-52010 |
ZSA44..6F..EUR ECO PACKAGE-WITHOUT |
1 | ||
| 82660-52010 |
AVA4#;ZSA44..LHD..EUR |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ZSA44..LHD..A |
1 | ||
| 82660-52010 |
ZSA44..6F..M..EUR ECO PACKAGE-WITHOUT&HEAD LAMP-LED |
1 | ||
| 82660-52010 |
ZSA44..LHD..6F |
1 | ||
| 82660-52010 |
ZSA44..6F..M..EUR ECO PACKAGE-WITHOUT&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 82660-52010 |
ZSA44..6F..EUR ECO PACKAGE-WITHOUT |
1 | ||
| 82660-52010 |
AVA4#;ZSA44..LHD..EUR |
2 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26290 |
AVA44;AVA42..EUR;ZSA44..LHD..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26290 |
AVA44;AVA42..EUR;ZSA44..LHD..EUR;ZSA42..JPP..6F..X;ZSA44..JPP..6F..M..RUS |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-42040 |
ALA4#,ZSA44 |
1 | ||
| 82661-42040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-42240 |
ZSA44 |
1 | ||
| 82662-42390 |
ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE |
1 | ||
| 82662-42390 |
ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 82662-42510 |
ZSA44..EUR |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-42360 |
ZSA44 |
1 | ||
| 82662-42580 |
ZSA4#..LHD |
1 | ||
| 82662-42581 |
ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA42..JPP..B..M;ZSA44..JPP..B..X;ZSA44..JPP..M..RUS |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-42100 |
ALA4#,ZSA44 |
1 | ||
| 82663-42100 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X;ALA49,AVA44..JPP..(DCRL,HTWC) |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-42110 |
ALA4#,ZSA44 |
1 | ||
| 82663-42110 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X;ALA49,AVA44..JPP..(DCRL,HTWC) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-42020 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X;ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 82741-42020 |
ALA4#,ZSA44 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-42030 |
ALA4#,ZSA44 |
1 | ||
| 82741-42031 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X;ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
AVA4#,WWA42,ZSA44..LHD..EUR COLD AREA SPEC |
1 | ||
| 90987-02027 |
ALA4#,ZSA44..LHD COLD AREA SPEC |
1 | ||
| 90987-02027 |
AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 85910 - RELAY ASSY, CIRCUIT OPENING | ||||
| 90987-02027 |
ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 90987-02027 |
ZSA44 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
WWA42,ZSA44..(G,M)..EUR BASIC PACKAGE |
1 | ||
| 90987-02027 |
ALA4#,ZSA44..X |
1 | ||
| 90987-02027 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-04010 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR |
1 | ||
| 90987-04010 |
WWA42..RHD..(G,M);ZSA44..(G,M)..EUR BASIC PACKAGE |
1 | ||
| 90987-04010 |
ALA4#,ZSA44..X |
1 | ||
| 90987-04010 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 85913F - RELAY, STEERING HEATER | ||||
| 90987-02027 |
AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ALA49..G,M;ALA49..RHD..X;ALA40,41,ZSA44..RHD;ALA40,41,ZSA44..LHD..(G,M) |
1 | ||
| 90987-02027 |
ZSA44..A..(G,M);ALA40,41,ZSA44..RHD..6F;ALA49..(G,M)..(DCRE,DCRL);ALA49..RHD..X..(DCRE,DCRL);ALA40,41,ZSA44..LHD..6F..(G,M) BASIC PACKAGE |
1 | ||
| 90987-02027 |
ALA4#,ZSA44..LHD..X FRONT FOG LAMP-WITH |
1 | ||
| 90987-02027 |
AVA4#,WWA42,ZSA44..(G,M)..EUR BASIC PACKAGE&FRONT BUMPER-WITH(COLOR & MOLDING) |
1 | ||
| 90987-02027 |
ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);AVA42,ZSA44..(G,M)..EUR;ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 90987-02027 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC |
1 | ||
| 90987-02027 |
AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC |
1 | ||
| 90987-02027 |
WWA42,ZSA44..X..EUR PRE-COLLISION SYSTEM-WITH |
1 | ||
| 90987-02027 |
WWA42,ZSA44..LHD..X..EUR COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ALA4#,ZSA44 |
1 | ||
| 90987-02025 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 85925D - RELAY, PTC HEATER | ||||
| 90987-02027 |
ZSA44..LHD |
2 | ||
| 90987-02027 |
AVA42..EUR;ZSA44..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M)..RUS |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 90987-02025 |
ALA4#,ZSA44 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ALA4#,ZSA44 |
1 | ||
| 90987-04004 |
ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| 90987-02027 |
ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| 90987-02027 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-02027 |
AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-02025 |
AVA42..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);AVA44,ZSA42..JPP..CVT..(G,M) |
1 | ||
| Common parts | ||||
| 90119-06651 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||

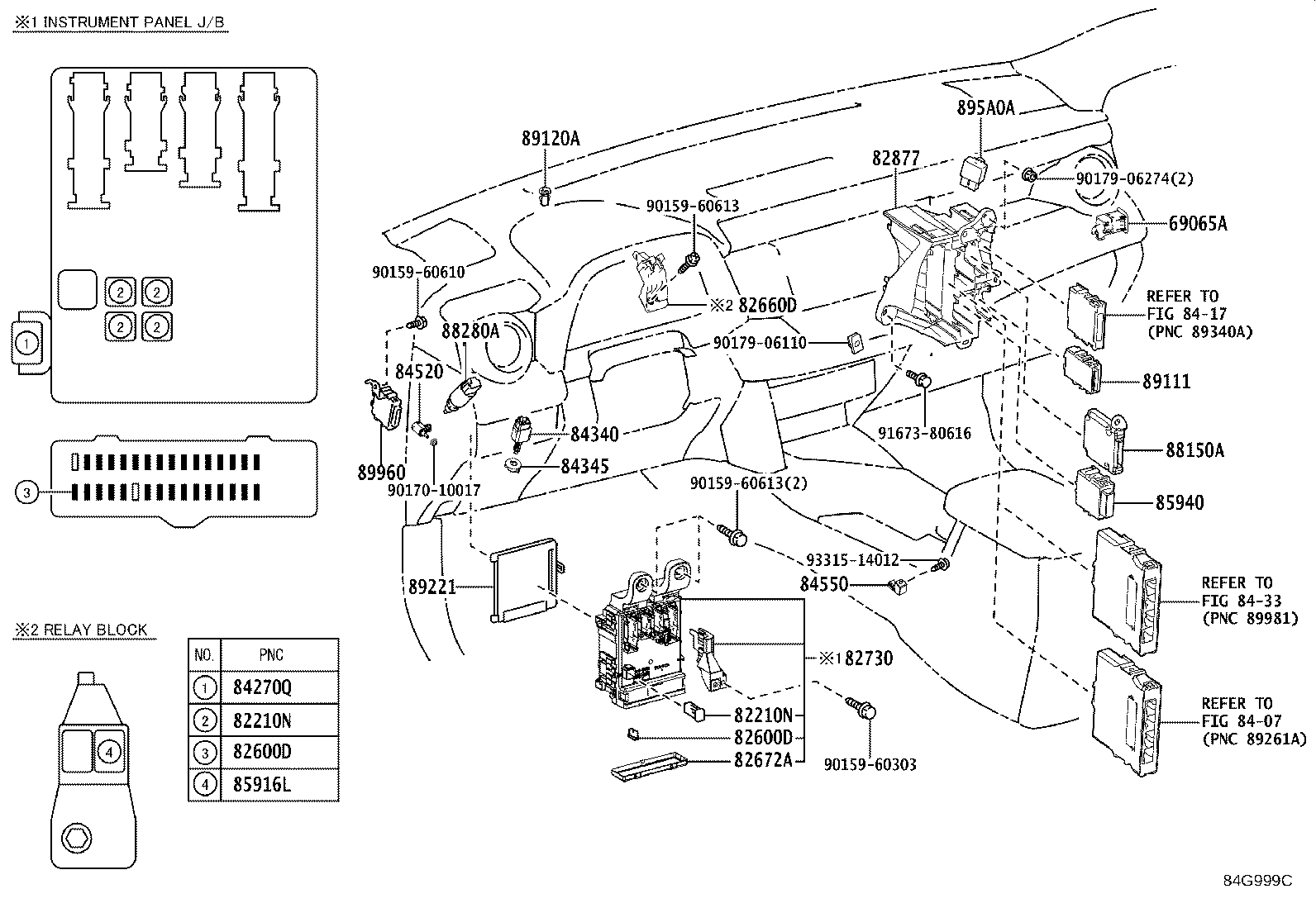

ILLUST NO. 4 OF 8(1510- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-12460 |
ALA4#,ZSA44 |
1 | ||
| 69065-12460 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ALA4#,ZSA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ALA4#,ZSA44 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
ALA4#,ZSA44 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ALA4#,ZSA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ALA4#,ZSA44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ALA4#,ZSA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ALA4#,ZSA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ALA4#,ZSA44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
ALA4#,ZSA44 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ALA4#,ZSA44 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ALA4#,ZSA44 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ALA4#,ZSA44 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ALA4#,ZSA44 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ALA4#,ZSA44 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) 25A,MINI FUSE |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-42070 |
ALA4#,ZSA44 |
1 | ||
| 82660-42070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-42150 |
ALA4#,ZSA44 |
1 | ||
| 82672-42190 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-42750 |
ALA4#,ZSA44..LHD |
1 | ||
| 82730-42811 |
ASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..(DCRL,HTWC,HTWVM) |
1 | ||
| 82730-42810 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..LHD |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-42010 |
ZSA44..LHD..A..X CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 82877-42010 |
ALA41,49,ZSA44..LHD..M BASIC PACKAGE |
1 | ||
| 82877-42010 |
ALA41,49,ZSA44..LHD..(6F,6FC)..X CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 82877-42010 |
ALA40..LHD;ALA41,49,ZSA44..LHD..(G,M) |
1 | ||
| 82877-42030 |
ASA44..X..EUR;ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..LHD..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..LHD..(ATM,CVT)..(G,M) |
1 | ||
| 82877-42030 |
ZSA44..6F..M..EUR BASIC PACKAGE |
1 | ||
| 82877-42030 |
ZSA44..6F..X..EUR ECO PACKAGE-WITHOUT |
1 | ||
| 82877-42030 |
ZSA44..6F..M..EUR BASIC PACKAGE&ECO PACKAGE-WITHOUT |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-02027 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
ALA4#,ZSA44 |
1 | ||
| 84340-49065 |
ASA44..X..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);AVA4#,ZSA44..RHD..(G,M);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ASA44..X..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);AVA4#,ZSA44..RHD..(G,M);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 84345-51010 |
ALA4#,ZSA44 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ZSA44..6F..EUR;ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X |
1 | ||
| 84520-42010 |
ALA4#,ZSA44..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ALA4#,ZSA44..LHD |
1 | ||
| 84550-33010 |
ASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..(DCRL,HTWC,HTWVM) |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ALA4#,ZSA44 |
1 | ||
| 90987-02027 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-42030 |
ALA4#,ZSA44..G,M |
1 | ||
| 85940-42030 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 85940-42030 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..(G,M)..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 85940-42030 |
WWA42,ZSA44..X..EUR PRE-COLLISION SYSTEM-WITH |
1 | ||
| 85940-42030 |
AVA4#,WWA42,ZSA44..(G,M)..EUR BASIC PACKAGE |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-42010 |
ZSA44..LHD..(G,M)..EUR PRE-COLLISION SYSTEM-WITH |
1 | ||
| 88150-42011 |
WWA42,ZSA44..LHD..EUR PRE-COLLISION SYSTEM-WITH |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
ZSA44..6F..EUR;ZSA44..JPP..6F..M..RUS;ALA49,ZSA42..JPP..6F..X |
1 | ||
| 88280-42010 |
ALA4#,ZSA44..6F |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-42021 |
ZSA44..X..EUR |
1 | ||
| 89111-42020 |
ALA49,ASA44,AVA4#,WWA42,ZSA4#..G,M |
1 | ||
| 89111-42021 |
WWA42,ZSA44..(G,M)..EUR BASIC PACKAGE |
1 | ||
| 89111-42021 |
ASA44..X..EUR;ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..(G,M)..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 89111-42020 |
WWA42,ZSA44..(G,M)..EUR BASIC PACKAGE |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-50020 |
ALA4#,ZSA44..G,M |
1 | ||
| 89121-50020 |
ALA4#,ZSA44..(G,M)..(DCRE,DCRL,HTWVM) BASIC PACKAGE |
1 | ||
| 89121-50020 |
ZSA44..JPP..B..G;ZSA44..JPP..M..RUS;AVA42,ZSA44..(G,M)..EUR;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 89121-50020 |
WWA42,ZSA44..(G,M)..EUR BASIC PACKAGE |
1 | ||
| 89121-50020 |
WWA42,ZSA44..X..EUR PRE-COLLISION SYSTEM-WITH |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-42090 |
ALA4#,ZSA44..LHD..(M,X)..(DCRE,DCRL,HTWVM) |
1 | ||
| 89220-42410 |
ZSA44..LHD..(M,X) UKURAINE SPEC |
1 | ||
| 89220-42410 |
ZSA44..LHD..(M,X) *334 |
1 | ||
| 89220-42110 |
ALA4#,ZSA44..LHD..M POWER DOOR LOCK-WITH(POWER BACK DOOR),P/N LABEL=8922042110 |
1 | ||
| 89220-42410 |
ALA4#,ZSA44..LHD..(M,X)..(DCRE,DCRL,HTWVM) NON-WVTA |
1 | ||
| 89220-42430 |
ALA4#,ZSA44..LHD..M NON-WVTA&POWER DOOR LOCK-WITH(POWER BACK DOOR),P/N LABEL=8922042430 |
1 | ||
| 89220-42420 |
ZSA44..LHD..M UKURAINE SPEC&POWER DOOR LOCK-WITH(POWER BACK DOOR),P/N LABEL=8922042420 |
1 | ||
| 89220-42420 |
ZSA44..LHD..M *334&POWER DOOR LOCK-WITH(POWER BACK DOOR),P/N LABEL=8922042420 |
1 | ||
| 89220-4A160 |
WWA42,ZSA44..LHD..(M,X)..EUR SPAIN SPEC |
1 | ||
| 89220-4A160 |
ZSA44..LHD..(M,X)..EUR ISRAEL SPEC |
1 | ||
| 89220-4A160 |
WWA42,ZSA44..LHD..(M,X)..EUR ITALY SPEC |
1 | ||
| 89220-4A170 |
WWA42,ZSA44..LHD..M..EUR GERMANY SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A160 |
WWA42,ZSA44..LHD..(M,X)..EUR SLOVENIA,CROATIA SPEC |
1 | ||
| 89220-4A170 |
WWA42,ZSA44..LHD..M..EUR ITALY SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A170 |
ZSA44..LHD..M..EUR ISRAEL SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A160 |
WWA42,ZSA44..LHD..(M,X)..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC |
1 | ||
| 89220-4A160 |
WWA42,ZSA44..LHD..(M,X)..EUR FRENCH SPEC |
1 | ||
| 89220-4A170 |
WWA42,ZSA44..LHD..M..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A170 |
WWA42,ZSA44..LHD..M..EUR ICELAND SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A170 |
WWA42,ZSA44..LHD..M..EUR FRENCH SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A170 |
WWA42,ZSA44..LHD..M..EUR SLOVENIA,CROATIA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A160 |
WWA42,ZSA44..LHD..(M,X)..EUR ICELAND SPEC |
1 | ||
| 89220-4A170 |
WWA42,ZSA44..LHD..M..EUR SPAIN SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR GERMANY SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR GERMANY SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR FRENCH SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED,W(*AHB) |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR GERMANY SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR FRENCH SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A160 |
WWA42,ZSA44..LHD..(M,X)..EUR GERMANY SPEC |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR ITALY SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR FRENCH SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR ITALY SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR GERMANY SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR ITALY SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR ITALY SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR SPAIN SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR FRENCH SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR ICELAND SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR ICELAND SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
ZSA44..LHD..M..EUR ISRAEL SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR SPAIN SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR SPAIN SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
ZSA44..LHD..M..EUR ISRAEL SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR SLOVENIA,CROATIA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEADLAMP-LED |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR SLOVENIA,CROATIA SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR SPAIN SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A180 |
ZSA44..LHD..M..EUR ISRAEL SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED,W(*AHB) |
1 | ||
| 89220-4A190 |
WWA42,ZSA44..LHD..(M,X)..EUR TURKEY SPEC |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR SLOVENIA,CROATIA SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4A200 |
WWA42,ZSA44..LHD..M..EUR BOSNIA,HERZEGOVINA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A180 |
WWA42,ZSA44..LHD..M..EUR SLOVENIA,CROATIA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEADLAMP-LED, W(*AHB) |
1 | ||
| 89220-4A190 |
WWA42,ZSA44..LHD..(M,X)..EUR EXCEPT FOR WVTA |
1 | ||
| 89220-4A190 |
WWA42,ZSA44..LHD..(M,X)..EUR MACEDONIA SPEC |
1 | ||
| 89220-4A210 |
WWA42,ZSA44..LHD..M..EUR TURKEY SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| 89220-4A200 |
WWA42,ZSA44..LHD..M..EUR TURKEY SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A200 |
WWA42,ZSA44..LHD..M..EUR MACEDONIA SPEC&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A230 |
WWA42,ZSA44..LHD..M..EUR POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A190 |
WWA42,ZSA44..LHD..(M,X)..EUR BOSNIA,HERZEGOVINA SPEC |
1 | ||
| 89220-4A210 |
WWA42,ZSA44..LHD..M..EUR TURKEY SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4A180 |
ZSA44..LHD..M..EUR ISRAEL SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A240 |
WWA42,ZSA44..LHD..M..EUR POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED |
1 | ||
| 89220-4A240 |
WWA42,ZSA44..LHD..M..EUR HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A240 |
WWA42,ZSA44..LHD..M..EUR POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4A220 |
WWA42,ZSA44..LHD..(M,X)..EUR |
1 | ||
| 89220-4A200 |
WWA42,ZSA44..LHD..M..EUR EXCEPT FOR WVTA&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 89220-4A240 |
WWA42,ZSA44..LHD..M..EUR HEAD LAMP-LED |
1 | ||
| 89220-4AD70 |
ZSA44..LHD..M..EUR ISRAEL SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4AD60 |
ZSA44..LHD..M..EUR ISRAEL SPEC |
1 | ||
| 89220-4AD70 |
ZSA44..LHD..M..EUR ISRAEL SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AD50 |
ZSA44..X..EUR ISRAEL SPEC |
1 | ||
| 89220-4AD50 |
WWA42,ZSA44..LHD..X..EUR SPAIN SPEC |
1 | ||
| 89220-4AD50 |
WWA42,ZSA44..LHD..X..EUR GERMANY SPEC |
1 | ||
| 89220-4AD50 |
WWA42,ZSA44..LHD..X..EUR ITALY SPEC |
1 | ||
| 89220-4AD50 |
WWA42,ZSA44..LHD..X..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC |
1 | ||
| 89220-4AD50 |
WWA42,ZSA44..LHD..X..EUR FRENCH SPEC |
1 | ||
| 89220-4AD60 |
WWA42,ZSA44..LHD..M..EUR SPAIN SPEC |
1 | ||
| 89220-4AD60 |
WWA42,ZSA44..LHD..M..EUR FRENCH SPEC |
1 | ||
| 89220-4AD50 |
WWA42,ZSA44..LHD..X..EUR ICELAND SPEC |
1 | ||
| 89220-4AD60 |
WWA42,ZSA44..LHD..M..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC |
1 | ||
| 89220-4AD60 |
WWA42,ZSA44..LHD..M..EUR GERMANY SPEC |
1 | ||
| 89220-4AD60 |
WWA42,ZSA44..LHD..M..EUR ICELAND SPEC |
1 | ||
| 89220-4AD50 |
WWA42,ZSA44..LHD..X..EUR SLOVENIA,CROATIA SPEC |
1 | ||
| 89220-4AD60 |
WWA42,ZSA44..LHD..M..EUR SLOVENIA,CROATIA SPEC |
1 | ||
| 89220-4AD60 |
WWA42,ZSA44..LHD..M..EUR ITALY SPEC |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR FRENCH SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR ITALY SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR FRENCH SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR SPAIN SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR ITALY SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR NORWAY,SWEDEN,FINLAND,DENMARK SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR GERMANY SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AD80 |
WWA42,ZSA44..LHD..X..EUR TURKEY SPEC |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR ICELAND SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR GERMANY SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR SPAIN SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR SLOVENIA,CROATIA SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AD90 |
WWA42,ZSA44..LHD..M..EUR MACEDONIA SPEC |
1 | ||
| 89220-4AD90 |
WWA42,ZSA44..LHD..M..EUR TURKEY SPEC |
1 | ||
| 89220-4AD80 |
WWA42,ZSA44..LHD..X..EUR EXCEPT FOR WVTA |
1 | ||
| 89220-4AD90 |
WWA42,ZSA44..LHD..M..EUR EXCEPT FOR WVTA |
1 | ||
| 89220-4AD80 |
WWA42,ZSA44..LHD..X..EUR MACEDONIA SPEC |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR SLOVENIA,CROATIA SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4AD80 |
WWA42,ZSA44..LHD..X..EUR BOSNIA,HERZEGOVINA SPEC |
1 | ||
| 89220-4AE00 |
WWA42,ZSA44..LHD..M..EUR TURKEY SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AE30 |
WWA42,ZSA44..LHD..M..EUR HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4AE10 |
WWA42,ZSA44..LHD..X..EUR |
1 | ||
| 89220-4AD90 |
WWA42,ZSA44..LHD..M..EUR BOSNIA,HERZEGOVINA SPEC |
1 | ||
| 89220-4AE30 |
WWA42,ZSA44..LHD..M..EUR HEAD LAMP-LED |
1 | ||
| 89220-4AE20 |
WWA42,ZSA44..LHD..M..EUR |
1 | ||
| 89220-4AD60 |
ZSA44..LHD..M..EUR UKRAINE SPEC&COLD AREA SPEC |
1 | ||
| 89220-4AD60 |
ZSA44..LHD..M..EUR UKRAINE SPEC&COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 89220-4AD50 |
ZSA44..X..EUR UKRAINE SPEC |
1 | ||
| 89220-4AD70 |
ZSA44..LHD..M..EUR UKRAINE SPEC&COLD AREA SPEC & WITH(STEERING HEATER)&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4AE00 |
WWA42,ZSA44..LHD..M..EUR EXCEPT FOR WVTA&HEAD LAMP-LED |
1 | ||
| 89220-4AJ60 |
ZSA44..X..EUR ISRAEL SPEC |
1 | ||
| 89220-4AD70 |
ZSA44..LHD..M..EUR UKRAINE SPEC&COLD AREA SPEC & WITH(STEERING HEATER)&HEAD LAMP-LED |
1 | ||
| 89220-4AD70 |
ZSA44..LHD..M..EUR UKRAINE SPEC&COLD AREA SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AJ80 |
ZSA44..LHD..M..EUR ISRAEL SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4AJ70 |
ZSA44..LHD..M..EUR ISRAEL SPEC |
1 | ||
| 89220-4AD70 |
WWA42,ZSA44..LHD..M..EUR ICELAND SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89220-4AJ80 |
ZSA44..LHD..M..EUR ISRAEL SPEC&HEAD LAMP-LED |
1 | ||
| 89220-4AD70 |
ZSA44..LHD..M..EUR UKRAINE SPEC&COLD AREA SPEC&HEAD LAMP-LED, W(*AHB) |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-42110 |
ALA4#,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 89960-42170 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M HEAD LAMP-LED |
1 | ||
| 89960-42110 |
ALA49..G,M;ALA40,41,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE |
1 | ||
| 89960-42170 |
WWA42,ZSA44..M..EUR HEAD LAMP-LED, W(*AHB) |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60610 | ||||
| 90159-60613 | ||||
| 90170-10017 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8407 | ||||
| 8417 | ||||
| 8433 | ||||
ILLUST NO. 5 OF 8(1510- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-42050 |
ALA4#,ZSA44..LHD..M HEADLAMP-DISCHARGE & W(*AHB)&CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 83950-42050 |
ALA4#,ZSA44..LHD..M HEADLAMP-4,PROJECTER & W(*AHB)&CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 83950-42060 |
ALA4#,ZSA44..LHD..(M,X) CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 83950-42070 |
ALA4#,ZSA44..LHD..M HEADLAMP-4,PROJECTER & W(*AHB) |
1 | ||
| 83950-42070 |
ALA4#,ZSA44..LHD..M HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 83950-42230 |
AVA4#..LHD..M..EUR;ZSA44..JPP..LHD..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&BACK MONITOR-WITH(*PVM) |
1 | ||
| 83950-42080 |
ALA4#,ZSA44..LHD..(M,X) |
1 | ||
| 83950-42220 |
ASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..(DCRL,HTWC,HTWVM) |
1 | ||
| 83950-42240 |
ZSA44..JPP..B..X;ALA49,ZSA42..JPP..X;ASA44,ZSA44..LHD..X..EUR CLEARANCE & BACK SONAR-WITH(REAR) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-42050 |
ALA49..RHD..G;ALA4#,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE & W(*AHB) |
1 | ||
| 84152-42050 |
ALA49..G,M;ALA40,41,ZSA44..LHD..(G,M) HEADLAMP-DISCHARGE |
1 | ||
| 84152-42050 |
ALA4#,ZSA44 |
1 | ||
| 84152-42051 |
ALA49,ASA44,WWA42,ZSA4#..JPP..LHD..M HEAD LAMP-LED, W(*AHB) & W/O(*PCS) |
1 | ||
| 84152-42051 |
ALA49,ASA44,WWA42,ZSA4#..JPP..(6F,6FC,A)..M HEAD LAMP-LED, W(*AHB) |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-42010 |
AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-42011 |
ASA44..X..EUR;ASA44..JPP..(G,M);ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..X..DCRE;ZSA44..JPP..B..(G,X);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 84725-42010 |
ALA41,49,ZSA44 |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-50010 |
ALA4#,ZSA44 |
1 | ||
| 84746-50010 |
AVA4#,WWA42,ZSA44..EUR EXCEPT FOR WVTA |
1 | ||
| 84746-50010 |
AVA4#,WWA42,ZSA44..LHD..EUR MACEDONIA SPEC |
1 | ||
| 84746-50010 |
ZSA44..LHD..EUR;ASA44,AVA4#..EUR;ZSA44..RHD..(G,M) |
1 | ||
| 84746-50010 |
ALA4#,ZSA44 TIRE INFLATION PRESS WRNG-WITHOUT |
1 | ||
| 84746-50010 |
AVA4#,WWA42,ZSA44..LHD..EUR BOSNIA,HERZEGOVINA SPEC |
1 | ||
| 84746-50010 |
AVA4#,WWA42,ZSA44..LHD..EUR TIRE INFLATION PRESS WRNG-WITHOUT |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-42070 |
ALA4#,ZSA44..LHD..(M,X) COLD AREA SPEC |
1 | ||
| 84751-42072 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER |
1 | ||
| 84751-42072 |
AVA4#,WWA42,ZSA44..M..EUR MID+ PACKAGE&SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER |
1 | ||
| 84751-42072 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 84751-42072 |
AVA4#,WWA42,ZSA44..LHD..(M,X)..EUR COLD AREA SPEC |
1 | ||
| 84751-42072 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-42080 |
ALA4#,ZSA44..LHD..(M,X) COLD AREA SPEC |
1 | ||
| 84751-42082 |
AVA4#,WWA42,ZSA44..M..EUR MID+ PACKAGE&SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER |
1 | ||
| 84751-42082 |
AVA4#,WWA42,ZSA44..LHD..(M,X)..EUR COLD AREA SPEC |
1 | ||
| 84751-42082 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC&SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER |
1 | ||
| 84751-42082 |
AVA4#,WWA42,ZSA44..LHD..M..EUR MID+ PACKAGE&COLD AREA SPEC & WITH(STEERING HEATER)&SEAT COVER MATERIAL-SUEDE & NATURAL LEATHER |
1 | ||
| 84751-42082 |
AVA4#,WWA42,ZSA44..LHD..M..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-48021 |
AVA4#,WWA42,ZSA44..LHD..(G,M)..EUR COLD AREA SPEC & WITH(STEERING HEATER) |
1 | ||
| 84794-48021 |
AVA4#,WWA42,ZSA44..LHD..EUR COLD AREA SPEC |
1 | ||
| 84794-42030 |
ALA4#,ZSA44..LHD COLD AREA SPEC |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-74010 |
ALA4#,ZSA44..M,X |
1 | ||
| 84870-52050 |
ALA4#,ZSA44..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER) |
1 | ||
| 84870-52050 |
AVA4#,WWA42,ZSA44..M..EUR OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 84870-52050 |
AVA4#,ZSA44..M..EUR |
1 | ||
| 84870-74010 |
ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA44..LHD..X..EUR;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,AVA44..JPP..(M,X)..(DCRL,HTWC)..RUS |
1 | ||
| 84870-74010 |
AVA4#,WWA42,ZSA44..M..EUR OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER) |
1 | ||
| 84870-74010 |
AVA4#,WWA42,ZSA44..M..EUR |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-74010 |
ALA4#,ZSA44..M,X |
1 | ||
| 84870-52050 |
ALA4#,ZSA44..M OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED, W(TURN &HEATER) |
1 | ||
| 84870-52050 |
AVA4#,WWA42,ZSA44..M..EUR OUTSIDE REAR VIEW MIRROR-*57,HIDROPHILIC,PAINTED,W(TURN & HEATER) |
1 | ||
| 84870-52050 |
AVA4#,ZSA44..M..EUR |
1 | ||
| 84870-74010 |
ZSA44..JPP..B..X;ZSA44..JPP..M..RUS;ASA44,ZSA44..LHD..X..EUR;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..X..(DCRE,EFI);ALA49,AVA44..JPP..(M,X)..(DCRL,HTWC)..RUS |
1 | ||
| 84870-74010 |
AVA4#,WWA42,ZSA44..M..EUR OUTSIDE REAR VIEW MIRROR-*ERCDM, PAINTED, W(TURN SIGNAL & HEATER) |
1 | ||
| 84870-74010 |
AVA4#,WWA42,ZSA44..M..EUR |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-42050 |
ALA4#,ZSA44..M POWER DOOR LOCK-WITH(POWER BACK DOOR) |
1 | ||
| 84930-42051 |
AVA42..M..EUR;ZSA44..JPP..M;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..M POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR) |
1 | ||
| 84930-42051 |
AVA42..M..EUR;ZSA44..JPP..M;ALA49,ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42010 |
ALA49,ZSA44..6FC,A |
1 | ||
| 84970-42020 |
ZSA44..6F..EUR ECO PACKAGE-WITHOUT |
1 | ||
| 84970-42080 |
ZSA44..A |
1 | ||
| 84970-42020 |
ALA41,49,ZSA44..6F |
1 | ||
| 84970-42120 |
ZSA44..6F..EUR |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42010 |
ALA49,ZSA44..6FC,A |
1 | ||
| 84970-42020 |
ZSA44..6F..EUR ECO PACKAGE-WITHOUT |
1 | ||
| 84970-42080 |
ZSA44..A |
1 | ||
| 84970-42020 |
ALA41,49,ZSA44..6F |
1 | ||
| 84970-42120 |
ZSA44..6F..EUR |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42010 |
ALA49,ZSA44..6FC,A |
1 | ||
| 84970-42020 |
ZSA44..6F..EUR ECO PACKAGE-WITHOUT |
1 | ||
| 84970-42080 |
ZSA44..A |
1 | ||
| 84970-42020 |
ALA41,49,ZSA44..6F |
1 | ||
| 84970-42120 |
ZSA44..6F..EUR |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42010 |
ALA49,ZSA44..6FC,A |
1 | ||
| 84970-42020 |
ZSA44..6F..EUR ECO PACKAGE-WITHOUT |
1 | ||
| 84970-42080 |
ZSA44..A |
1 | ||
| 84970-42020 |
ALA41,49,ZSA44..6F |
1 | ||
| 84970-42120 |
ZSA44..6F..EUR |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42010 |
ALA49,ZSA44..6FC,A |
1 | ||
| 84970-42020 |
ZSA44..6F..EUR ECO PACKAGE-WITHOUT |
1 | ||
| 84970-42080 |
ZSA44..A |
1 | ||
| 84970-42020 |
ALA41,49,ZSA44..6F |
1 | ||
| 84970-42120 |
ZSA44..6F..EUR |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-42010 |
ALA49,ZSA44..6FC,A |
1 | ||
| 84970-42020 |
ZSA44..6F..EUR ECO PACKAGE-WITHOUT |
1 | ||
| 84970-42080 |
ZSA44..A |
1 | ||
| 84970-42020 |
ALA41,49,ZSA44..6F |
1 | ||
| 84970-42120 |
ZSA44..6F..EUR |
1 | ||
| 84988H - SWITCH, DOWNHILL ASSIST CONTROL | ||||
| 84988-42070 |
ALA49,ZSA44..6FC,A |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ALA4#,ZSA44 |
1 | ||
| 85530-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-42060 |
ALA4#,ZSA44 |
1 | ||
| 85535-42060 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-42070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42011 |
ALA49,ASA44,WWA42,ZSA4#..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89611-42012 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89611-42012 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42011 |
ALA49,ASA44,WWA42,ZSA4#..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89611-42012 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| 89611-42012 |
ZSA44..JPP..M;ALA49,ASA44,ZSA42..JPP..(6FC,B)..M POWER DOOR LOCK-W/(AUTO LOCK(SPEED)&HANSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART |
1 | ||
| Linked diagrams | ||||
| 8601 | ||||
| 8617 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
