ZSA44L-ANFXPW (2015)
Toyota Rav4
ILLUST NO. 3 OF 3(1212- )LHD
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-42170 |
ALA4#,ZSA44..LHD |
1 | ||
| 77035-42171 |
ASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..(DCRL,HTWC,HTWVM) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-32020 |
ALA4#,ZSA44..LHD |
1 | ||
| 77306-32020 |
ASA44..X..EUR;AVA42..LHD..EUR;ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,AVA44,ZSA44..JPP..LHD..(DCRL,HTWC,HTWVM) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-42090 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77350-42090 |
ALA4#,ZSA44 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-75010 |
ALA4#,ZSA44 |
1 | ||
| 77377-75010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
| 91621-J0612 | ||||

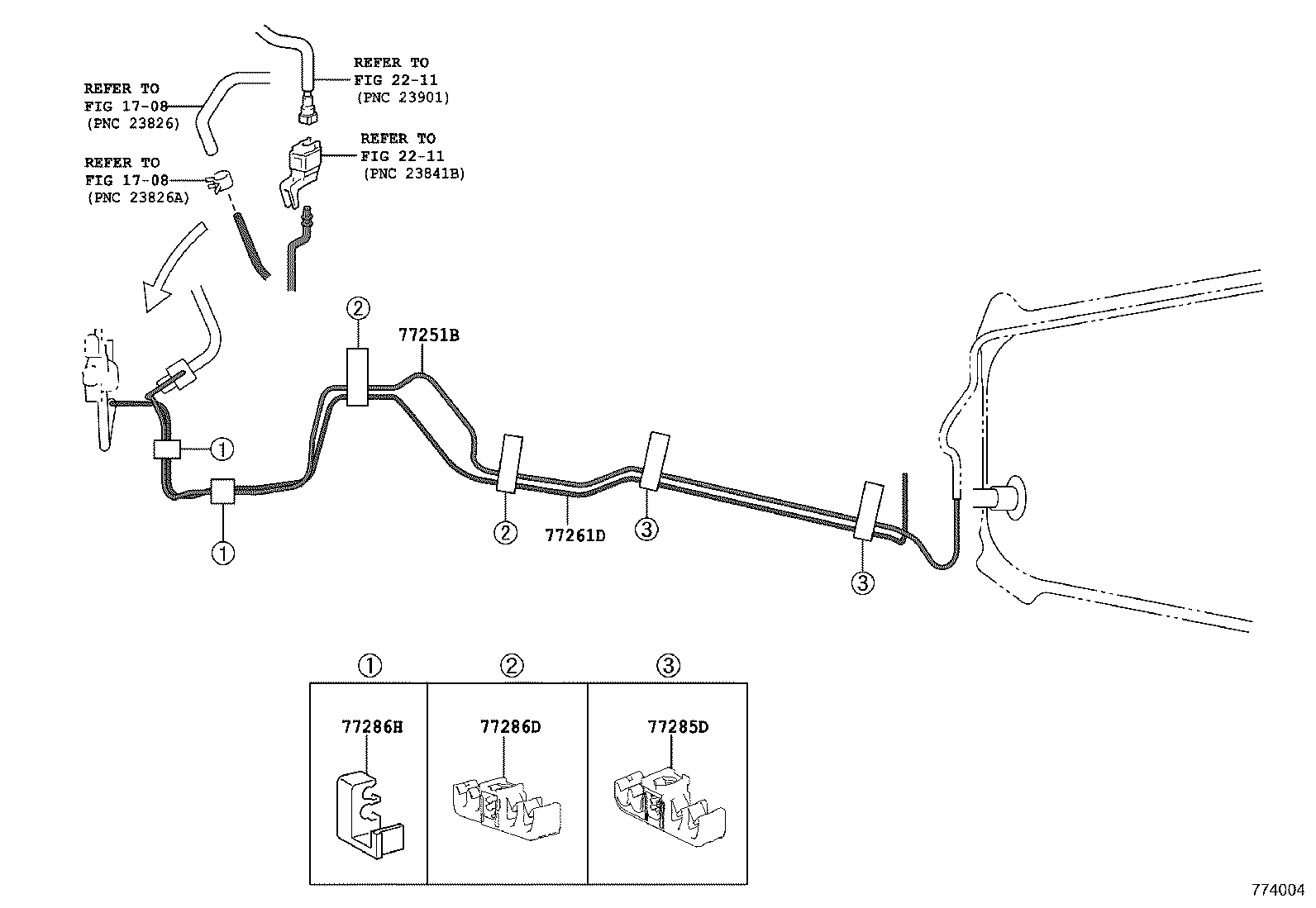

ILLUST NO. 2 OF 3(1510- )ASA44,ZSA4#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-42210 |
ZSA44 |
1 | ||
| 77251-78030 |
ASA44,ZSA4#..JPP |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-42100 |
ZSA44 |
1 | ||
| 77261-78040 |
ASA44,ZSA4#..JPP |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77298-52070 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 77298-52070 |
ALA4#,ZSA44 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77298-68010 |
ALA4#,ZSA44 |
2 | ||
| 77298-68010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-78030 |
ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||

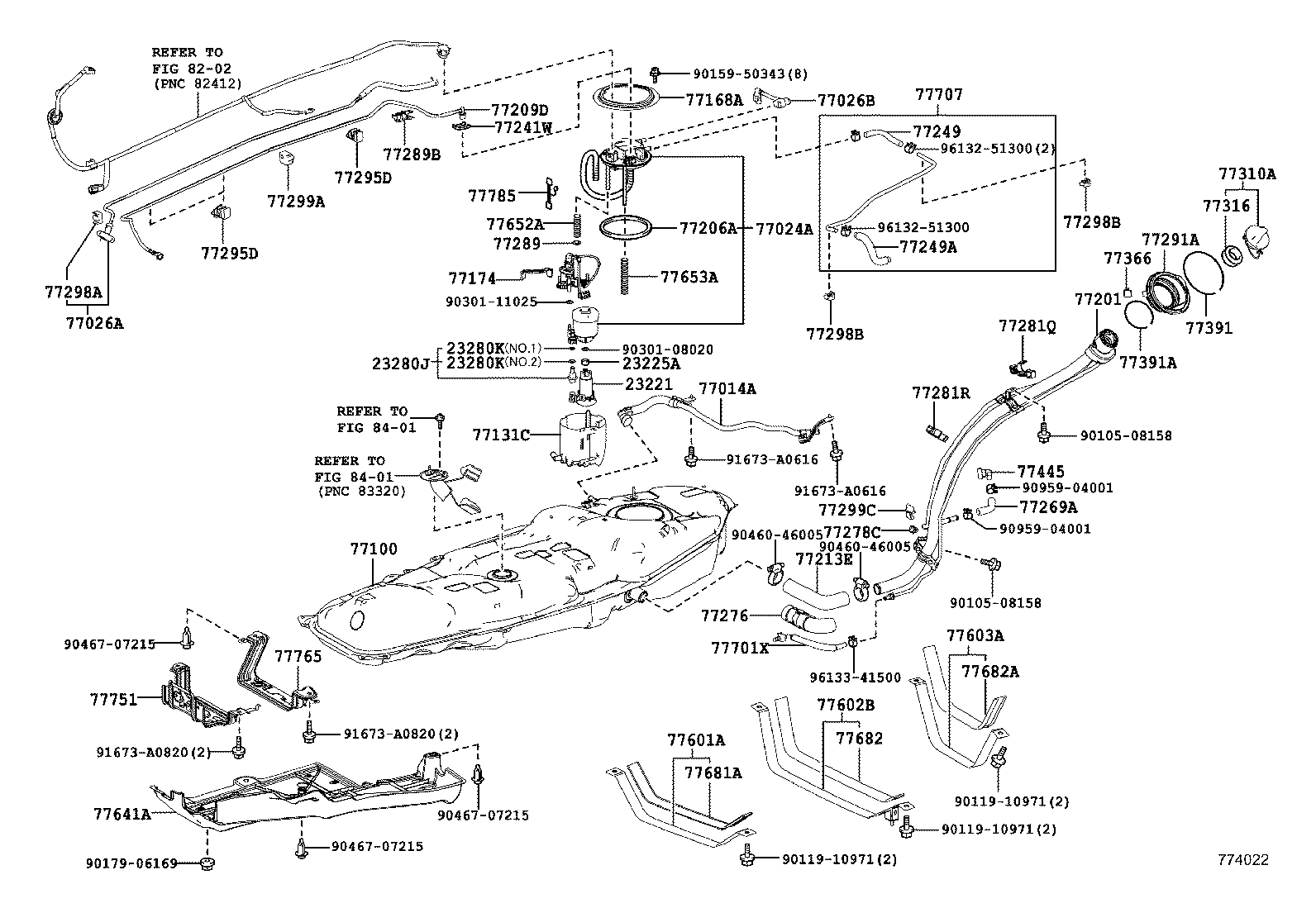

ILLUST NO. 1 OF 3(1510- )ZSA44
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-36011 |
2ARFXE..AVA42..EUR;3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;2ARFE..ASA44..X..EUR;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA44..JPP..B..(G,X);2AR#,3ZRFE..ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 23220-36011 |
3ZRFAE..ZSA44 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ARFXE..AVA42..EUR;3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;2ARFE..ASA44..X..EUR;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA44..JPP..B..(G,X);2AR#,3ZRFE..ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 23225-21020 |
3ZRFAE..ZSA44 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
3ZRFAE..ZSA44 |
1 | ||
| 23280-21010 |
2ARFXE..AVA42..EUR;3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;2ARFE..ASA44..X..EUR;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA44..JPP..B..(G,X);2AR#,3ZRFE..ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
3ZRFAE..ZSA44 NO.1 |
1 | ||
| 90301-15024 |
2ARFXE..AVA42..EUR;3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;2ARFE..ASA44..X..EUR;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA44..JPP..B..(G,X);2AR#,3ZRFE..ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) NO.2 |
1 | ||
| 90301-04013 |
2ARFXE..AVA42..EUR;3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;2ARFE..ASA44..X..EUR;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA44..JPP..B..(G,X);2AR#,3ZRFE..ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) NO.1 |
1 | ||
| 90301-15024 |
3ZRFAE..ZSA44 NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
3ZRFAE..ZSA44 NO.1 |
1 | ||
| 90301-15024 |
2ARFXE..AVA42..EUR;3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;2ARFE..ASA44..X..EUR;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA44..JPP..B..(G,X);2AR#,3ZRFE..ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) NO.2 |
1 | ||
| 90301-04013 |
2ARFXE..AVA42..EUR;3ZRFAE..ZSA44..LHD;3ZRFE..ZSA42..JPP..X;2ARFE..ASA44..X..EUR;3ZRFE..ZSA44..JPP..M;3ZRFAE..ZSA44..RHD..(G,M);3ZRFE..ZSA44..JPP..B..(G,X);2AR#,3ZRFE..ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) NO.1 |
1 | ||
| 90301-15024 |
3ZRFAE..ZSA44 NO.2 |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77014-42020 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 77014-42010 |
ALA4#,ZSA44 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-42110 |
ASA44..X;ZSA44..JPP;ZSA42..JPP..X;ZSA42..6F..(G,M);ZSA44..RUP..6F..X;ASA44,AVA4#,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77024-42110 |
ZSA44 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-42040 |
ZSA44 |
1 | ||
| 77026-42040 |
ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-42030 |
ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77026-42030 |
ZSA44 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-42250 |
ZSA44..6F..EUR ECO PACKAGE-WITHOUT |
1 | ||
| 77001-48190 |
ZSA44..EUR |
1 | ||
| 77001-42221 |
ZSA44 |
1 | ||
| 77001-48270 |
ZSA44..EUR |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-52082 |
ZSA44 |
1 | ||
| 77131-52082 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
ALA4#,ZSA44 |
1 | ||
| 77168-52020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-52070 |
ZSA44 |
1 | ||
| 77174-52070 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-42220 |
ZSA44 |
1 | ||
| 77201-42221 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-52010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77169-52010 |
ALA4#,ZSA44 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-42170 |
ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77209-42170 |
ZSA44 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-42080 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77213-42080 |
ZSA44 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZSA44 |
1 | ||
| 77241-33011 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-42050 |
ZSA44 |
1 | ||
| 77249-42050 |
ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-42070 |
ZSA44 |
1 | ||
| 77249-42070 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-42030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77269-42030 |
ALA4#,ZSA44 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-42020 |
ALA4#,ZSA44 |
1 | ||
| 77276-42020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-42030 |
ALA4#,ZSA44 |
1 | ||
| 77278-42030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77281Q - CLAMP, FUEL FILLER, NO.1 | ||||
| 77281-42030 |
ALA4#,ZSA44 |
1 | ||
| 77281-42030 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77281R - CLAMP, FUEL FILLER PIPE, NO.2 | ||||
| 77281-42040 |
ALA4#,ZSA44 |
1 | ||
| 77281-42040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52110 |
ZSA44 |
1 | ||
| 77289-52110 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-42020 |
ALA4#,ZSA44 |
1 | ||
| 77289-42020 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-42050 |
ALA4#,ZSA44 |
1 | ||
| 77291-42050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-42110 |
ALA4#,ZSA44 |
3 | ||
| 77295-42110 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
3 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-42110 |
ALA4#,ZSA44 |
3 | ||
| 77295-42110 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
3 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-42030 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 77298-42030 |
ALA4#,ZSA44 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30170 |
ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 77298-30170 |
ZSA44 |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30170 |
ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
2 | ||
| 77298-30170 |
ZSA44 |
2 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-42010 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 77299-42010 |
ALA4#,ZSA44 |
1 | ||
| 77299C - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 89639-28130 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 89639-28130 |
ALA4#,ZSA44 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77300-52030 |
ZSA44 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ALA4#,ZSA44 |
1 | ||
| 77316-52040 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77366-52010 |
ALA4#,ZSA44 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-30020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77391-30020 |
ALA4#,ZSA44 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ALA4#,ZSA44 |
1 | ||
| 77391-12020 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77445 - CONNECTOR, FUEL TANK VENT, NO.2 | ||||
| 77445-42020 |
ALA4#,ZSA44 |
1 | ||
| 77445-42050 |
AVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-42091 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 77601-42090 |
ALA4#,ZSA44 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-42030 |
ALA4#,ZSA44 |
1 | ||
| 77602-42031 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-42031 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 77603-42030 |
ALA4#,ZSA44 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-42060 |
ALA4#,ZSA44 |
1 | ||
| 77641-42060 |
ASA44,AVA4#,WWA42,ZSA44..EUR |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-42020 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77652-42020 |
ZSA44 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77652-42030 |
ZSA44 |
1 | ||
| 77652-42030 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-42020 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 77681-42020 |
ALA4#,ZSA44 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-21010 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 77681-21010 |
ALA4#,ZSA44 |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77681-42010 |
ASA44..X..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA44,ZSA42..JPP..(6FC,B)..(G,M);ALA49,ZSA44..JPP..LHD..(DCRL,HTWVM) |
1 | ||
| 77681-42010 |
ALA4#,ZSA44 |
1 | ||
| 77701X - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 | ||||
| 77701-42040 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77701-42040 |
ZSA44 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-42030 |
ZSA44 |
1 | ||
| 77707-42030 |
ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,ZSA42..JPP..(6FC,B)..(G,M) |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-0R030 |
ALA4#,ZSA44 |
1 | ||
| 77751-78020 |
ASA44,AVA4#,WWA42,ZSA44..EUR |
1 | ||
| 77765 - PROTECTOR, CHARCOAL CANISTER | ||||
| 77765-0R030 |
ALA4#,ZSA44 |
1 | ||
| 77765-78020 |
ASA44,AVA4#,WWA42,ZSA44..EUR |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-42050 |
AVA42..EUR;ASA44..X..EUR;ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ASA44,AVA44,ZSA42..JPP..(ATM,CVT)..(G,M) |
1 | ||
| 77785-42050 |
ZSA44 |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90119-10971 | ||||
| 90159-50343 | ||||
| 90179-06169 | ||||
| 90301-08020 | ||||
| 90301-11025 | ||||
| 90460-46005 | ||||
| 90467-07215 | ||||
| 90959-04001 | ||||
| 91673-A0616 | ||||
| 91673-A0820 | ||||
| 96132-51300 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
